◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50658 - UBS-RHD ▶ 3 - Brakes, Brake System ▶ 3-06 - REAR DISC BRAKE CALIPER ▶
3-06 — REAR DISC BRAKE CALIPER (#44893) — 28 parça

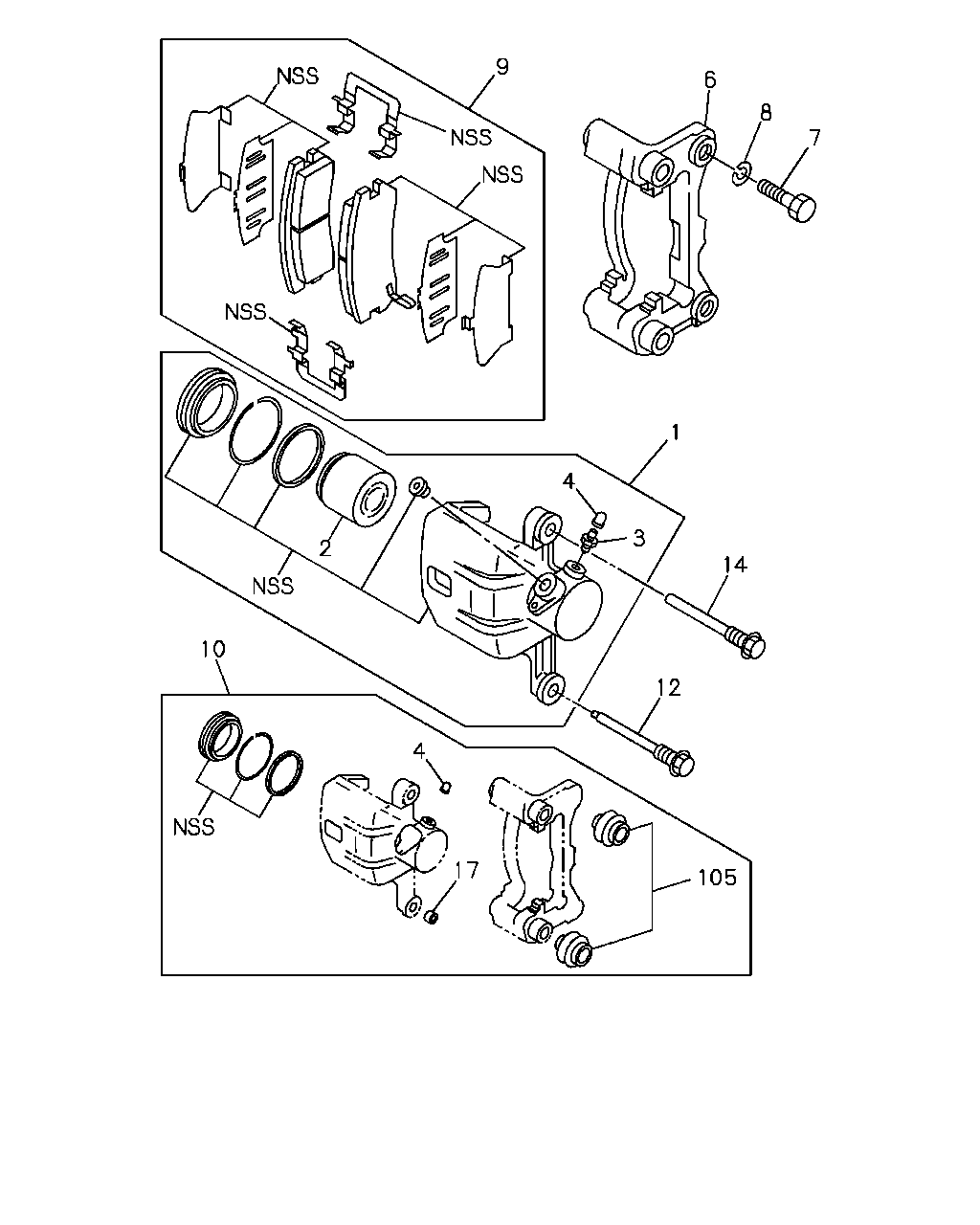

çizim 19615
105 17 4 10 2 12 14 3 4 1 7 8 6 9
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.665 CALIPER; RR DISC BRK 8-97035-259-0 01 1 9112-9601 ● ●
1 04.665 CALIPER; RR DISC BRK 8-97144-479-0 01 1 9602- ● ●
1 04.665 CALIPER; RR DISC BRK 8-97035-258-0 01 1 9112-9601 ● ●
1 04.665 CALIPER; RR DISC BRK 8-97144-478-0 01 1 9602- ● ●
2 04.665 PISTON; CALIPER,RR 8-97035-261-0 02 1 9112- ● ●
3 04.665 SCREW; BLEEDER,CALIPER,RR 8-97109-754-0 02 1 9112-9601 ● ●
3 04.665 SCREW; BLEEDER,CALIPER,RR
EXC. EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),SOUTH AFRICA EQUIPMENT(SW2) 		8-97109-754-0 02 1 9602-9602 ● ●
3 04.665 SCREW; BLEEDER,CALIPER,RR
EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),SOUTH AFRICA EQUIPMENT(SW2) 		8-97113-867-0 02 1 9602-9602 ● ●
3 04.665 SCREW; BLEEDER,CALIPER,RR 8-97113-867-0 02 1 9603- ● ●
4 04.665 CAP; BLEEDER SCREW,CALIPER,RR
04.666 		1-47619-009-0 02 1 9112- ● ●
6 04.665 BRACKET; SUPPORT,RR DISC BRK 8-97035-260-0 02 1 9112- ● ●
7 04.665 BOLT; DISC BRK
M12X27 		8-94425-585-0 04 1 9112-9502 ● ●
7 04.665 BOLT; DISC BRK
M12X27 		8-97126-215-1 04 1 9503- ● ●
8 04.665 WASHER; LK,DISC BRK
00.002 ID=12.2 		9-09150-812-0 04 1 9112- ● ●
9 04.667 PAD KIT; CALIPER,RR
EUROPE EQUIPMENT(EK4) 		8-97039-269-0 01 1 9112-9504 ● ●
9 04.667 PAD KIT; CALIPER,RR
EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),SOUTH AFRICA EQUIPMENT(SW2) 		8-97039-269-0 01 1 9505- ● ●
9 04.667 PAD KIT; CALIPER,RR
EXC. EUROPE EQUIPMENT(EK4) 		8-97035-266-0 01 1 9112-9504 ● ●
9 04.667 PAD KIT; CALIPER,RR
EXC. EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),SOUTH AFRICA EQUIPMENT(SW2) 		8-97035-266-0 01 1 9505- ● ●
10 04.665 REPAIR KIT; DISC BRK,RR 8-97035-265-0 01 1 9112-9601 ● ●
10 04.665 REPAIR KIT; DISC BRK,RR
EXC. EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),SOUTH AFRICA EQUIPMENT(SW2) 		8-97035-265-0 01 1 9602-9602 ● ●
10 04.665 REPAIR KIT; DISC BRK,RR
EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),SOUTH AFRICA EQUIPMENT(SW2) 		8-97134-718-0 01 1 9602-9602 ● ●
10 04.665 REPAIR KIT; DISC BRK,RR 8-97134-718-0 01 1 9603- ● ●
12 04.665 PIN; RET,CALIPER,RR DISC BRK 8-94362-821-0 02 1 9112- ● ●
14 04.665 PIN; GUIDE,CALIPER 8-94362-820-0 02 1 9112- ● ●
17 04.665 BUSHING
EUROPE EQUIPMENT(EK4) 04.626 		8-94362-822-0 02 1 9408-9504 ● ●
17 04.665 BUSHING
EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),SOUTH AFRICA EQUIPMENT(SW2) 04.626 		8-94362-822-0 02 1 9505- ● ●
105 04.665 BOOT; PIN
EUROPE EQUIPMENT(EK4) 		8-94362-823-0 04 1 9408-9504 ● ●
105 04.665 BOOT; PIN
EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),SOUTH AFRICA EQUIPMENT(SW2) 		8-94362-823-0 04 1 9505- ● ●
