3-02 — FRONT DISC BRAKE CALIPER (#44892) — 30 parça

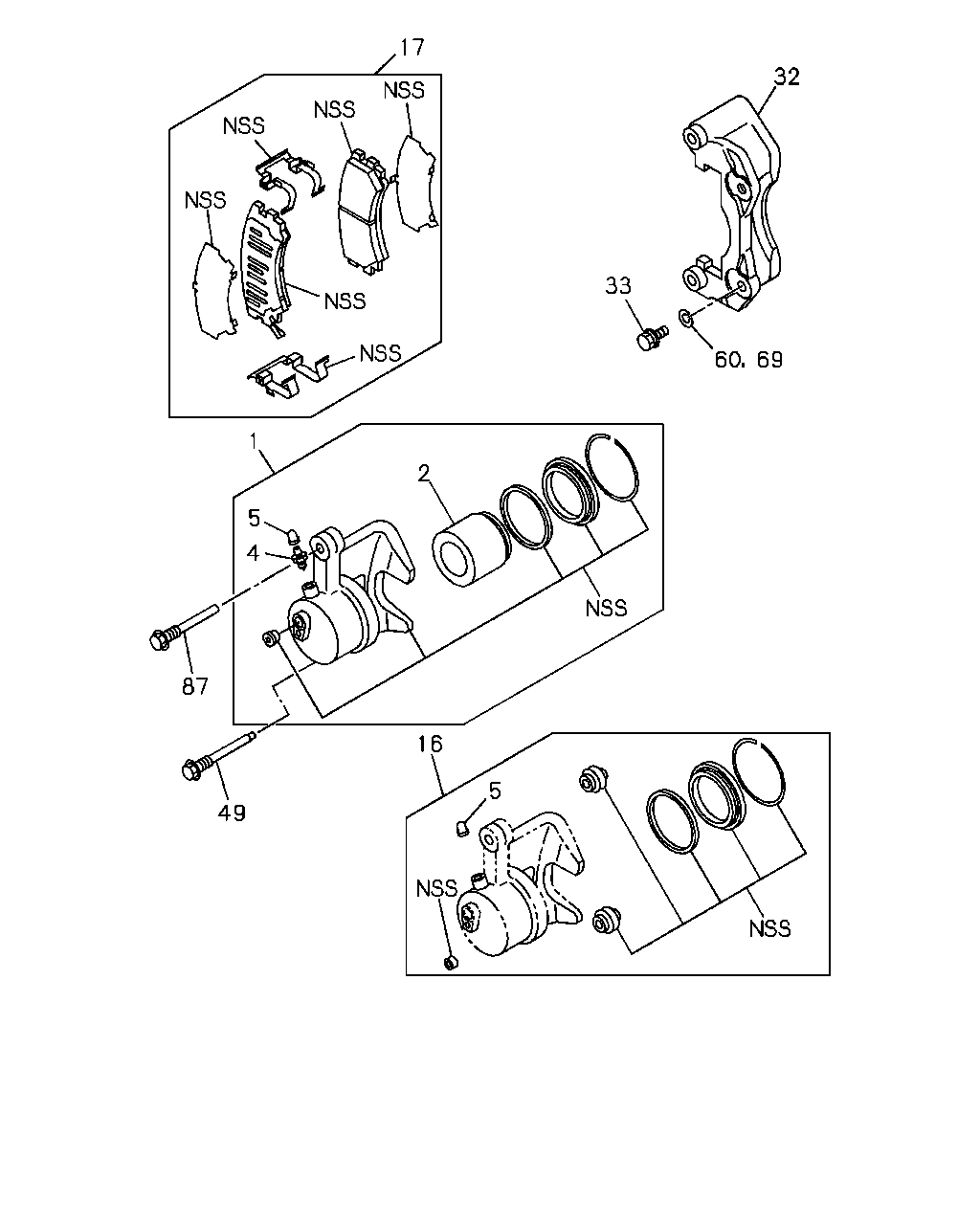

çizim 66198
17 32 33 60 69 1 2 5 4 87 49 16 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.665 CALIPER; FRT DISC BRK 8-97035-249-0 01 1 9112-9601 ● ●
1 04.665 CALIPER; FRT DISC BRK
EXC. EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),SOUTH AFRICA EQUIPMENT(SW2) 		8-97035-249-0 01 1 9602-9602 ● ●
1 04.665 CALIPER; FRT DISC BRK
EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),SOUTH AFRICA EQUIPMENT(SW2) 		8-97144-477-0 01 1 9602-9602 ● ●
1 04.665 CALIPER; FRT DISC BRK 8-97144-477-0 01 1 9603- ● ●
1 04.665 CALIPER; FRT DISC BRK 8-97035-248-0 01 1 9112-9601 ● ●
1 04.665 CALIPER; FRT DISC BRK
EXC. EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),SOUTH AFRICA EQUIPMENT(SW2) 		8-97035-248-0 01 1 9602-9602 ● ●
1 04.665 CALIPER; FRT DISC BRK
EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),SOUTH AFRICA EQUIPMENT(SW2) 		8-97144-476-0 01 1 9602-9602 ● ●
1 04.665 CALIPER; FRT DISC BRK 8-97144-476-0 01 1 9603- ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT 8-94438-689-0 02 1 9112- ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT 8-94438-713-0 02 1 9112-9601 ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
EXC. EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),SOUTH AFRICA EQUIPMENT(SW2) 		8-94438-713-0 02 1 9602-9602 ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),SOUTH AFRICA EQUIPMENT(SW2) 04.665 		8-97113-867-0 02 1 9602-9602 ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
04.665 		8-97113-867-0 02 1 9603- ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT 1-47619-009-0 02 1 9112- ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT 8-97035-256-1 01 1 9112-9601 ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
EXC. EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),SOUTH AFRICA EQUIPMENT(SW2) 		8-97035-256-1 01 1 9602-9602 ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),SOUTH AFRICA EQUIPMENT(SW2) 		8-97134-716-0 01 1 9602-9602 ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT 8-97134-716-0 01 1 9603- ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
EUROPE EQUIPMENT(EK4) 		8-97047-526-1 01 1 9112-9308 ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),SOUTH AFRICA EQUIPMENT(SW2) 		8-97047-526-1 01 1 9309-9409 ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),SOUTH AFRICA EQUIPMENT(SW2) 		8-97113-888-0 01 1 9410- ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
EXC. EUROPE EQUIPMENT(EK4) 		8-97035-257-1 01 1 9112-9308 ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
EXC. EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),SOUTH AFRICA EQUIPMENT(SW2) 		8-97035-257-1 01 1 9309- ● ●
32 04.665 SUPPORT; FRT DISC BRK 8-97035-250-1 02 1 9112- ● ●
33 04.665 BOLT; SUPPORT BRKT TO DISC BRK
M14X29 		8-94423-252-0 04 1 9112-9502 ● ●
33 04.665 BOLT; SUPPORT BRKT TO DISC BRK
M14X29 		8-97126-347-0 04 1 9503- ● ●
49 04.665 PIN; SLIDE,CALIPER 8-97035-254-0 02 1 9112- ● ●
60 04.665 WASHER; LK,SUPPORT BRKT TO KNUCK
05.422 ID=14.2 		9-09150-814-0 02 1 9112- ● ●
69 04.665 WASHER; LK,FRT DISC BRK
05.422 ID=14.2 		9-09150-814-0 02 1 9112- ● ●
87 04.665 PIN; LOCK 8-97035-255-0 02 1 9112- ● ●
