2-62 — TRANSFER SIDE CASE AND SHIFT LEVER (#44889) — 100 parça

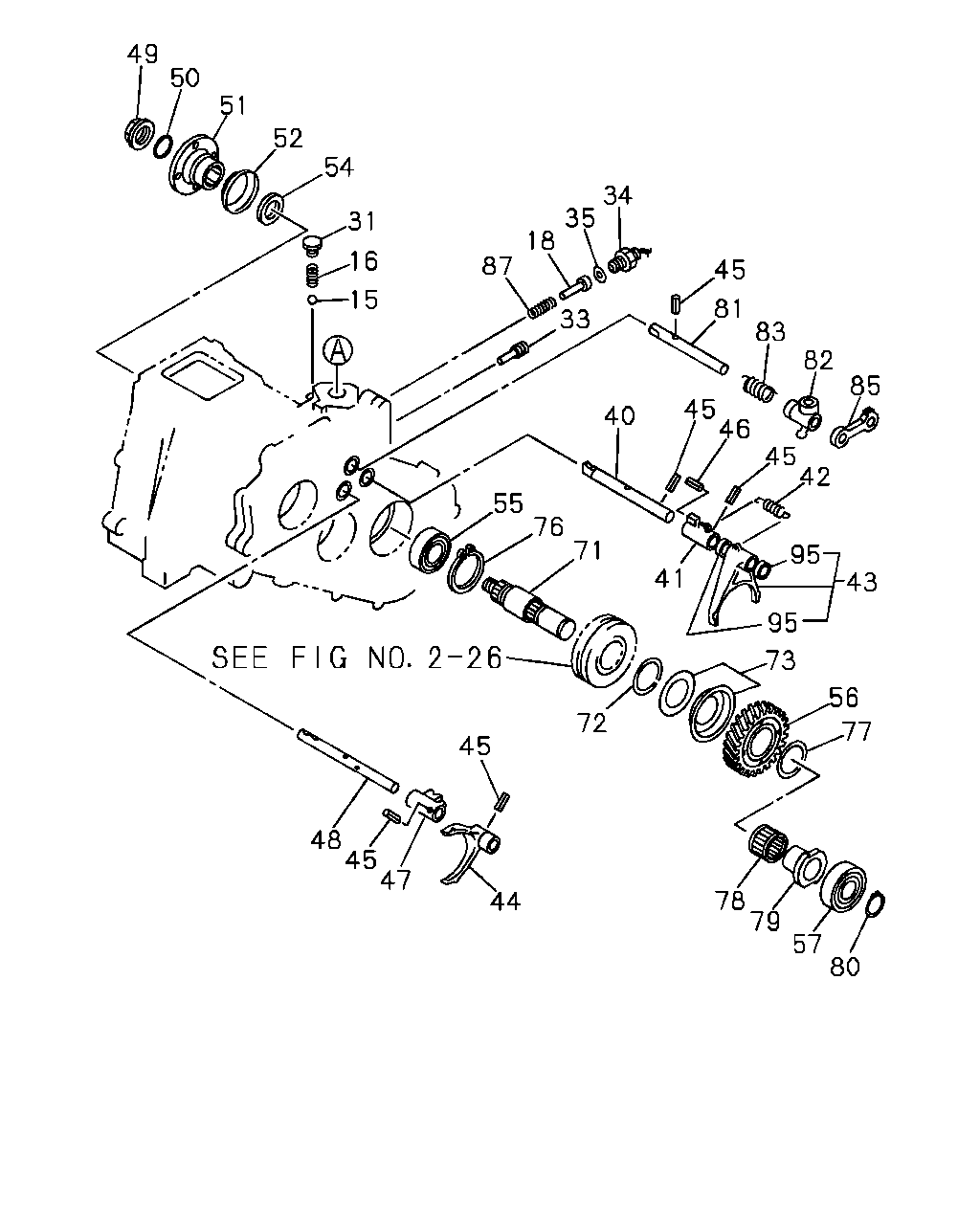

48 45 47 44 45 72 78 79 57 80 77 56 73 95 95 43 41 71 76 55 40 45 42 45 46 85 82 83 81 45 33 34 35 18 87 15 16 31 54 52 51 50 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	04.311 BALL; DETENT,SHIFT ROD,TRANSFER	8-94435-335-0	02	1	9112-	●	●
16	04.515 SPRING; DETENT,SHIFT ROD,TRANSFE 04.311 L=26.8	8-94320-193-0	02	1	9112-9607	●	●
16	04.515 SPRING; DETENT,SHIFT ROD,TRANSFE L=23.4	8-97145-374-0	02	1	9608-	●	●
18	04.525 PIN; INTER LOCK,SHIFT ROD,TRANSF	8-94461-898-0	01	1	9112-	●	●
31	04.520 PLUG; DETENT BALL,TRANSFER M12X9	9-99202-312-0	02	1	9112-	●	●
33	04.557 SCREW; STOPPER,TRANSFER M6X18	8-94448-812-1	01	1	9112-	●	●
34	04.075 SWITCH; TRANSFER INDICATOR	5-82440-018-0	01	1	9112-9510	●	●
34	04.075 SWITCH; TRANSFER INDICATOR	8-97143-604-0	01	1	9511-9609	●	●
34	04.075 SWITCH; TRANSFER INDICATOR	8-97138-632-0	01	1	9610-	●	●
35	04.075 GASKET; INDICATOR SWITCH,TRANSFE 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	9112-	●	●
40	04.309 ROD; SHIFT,4X2-4X4,TRANSFER	8-94421-920-3	01	1	9112-9504	●	●
40	04.309 ROD; SHIFT,4X2-4X4,TRANSFER	8-97070-675-1	01	1	9505-	●	●
41	04.555 BLOCK; SHIFT,4X2-4X4,TRANSFER	8-97033-094-2	01	1	9112-	●	●
42	04.515 SPRING; GEAR LOCK RELEASE,TRANSF L=30	8-94422-188-0	01	1	9112-	●	●
43	04.555 ARM; SHIFT,4X2-4X4,TRANSFER	8-94377-525-1	01	1	9112-9409	●	●
43	04.555 ARM; SHIFT,4X2-4X4,TRANSFER	8-97100-915-2	01	1	9410-	●	●
44	04.555 ARM; SHIFT,HIGH-LOW,TRANSFER	8-94421-922-3	01	1	9112-	●	●
45	04.303 PIN; SPR,SHIFT ARM TO ROD D=4.2 L=25	8-94171-541-0	06	1	9112-	●	●
46	04.555 PIN; SPR,SELECT LEVER	8-94448-816-1	01	1	9112-	●	●
47	04.555 BLOCK; SHIFT,LOW-HIGH,TRANSFER	8-97033-090-1	01	1	9112-9607	●	●
47	04.555 BLOCK; SHIFT,LOW-HIGH,TRANSFER	8-97141-883-1	01	1	9608-	●	●
48	04.309 ROD; SHIFT,HIGH-LOW,TRANSFER	8-94421-919-3	01	1	9112-9607	●	●
48	04.309 ROD; SHIFT,HIGH-LOW,TRANSFER	8-97141-882-1	01	1	9608-9708	●	●
48	04.309 ROD; SHIFT,HIGH-LOW,TRANSFER	8-97182-406-0	01	1	9709-	●	●
49	04.525 NUT; COUPLING DRIVER,FRT OUTPUT M27 FLANGE	8-94422-073-0	01	1	9112-	●	●
50	04.552 GASKET; COUPLING DRIVER,FRT OUTP	8-94483-035-0	01	1	9112-	●	●
51	05.555 FLANGE ASM; COUPLING DRIVER,TRAN	8-94453-699-5	01	1	9112-	●	●
52	05.545 COVER; DUST,TRANSFER FLANGE	8-94320-867-2	01	1	9112-	●	●
54	04.515 SEAL; OIL,TRANSFER FLANGE NOK	8-97046-703-2	01	1	9112-	●	●
54	04.515 SEAL; OIL,TRANSFER FLANGE TKK	8-97046-702-0	01	1	9302-	●	●
55	04.520 BEARING; BALL,TRANSFER FLANGE,FR NSK	8-94422-172-0	01	1	9112-	●	●
56	04.535 GEAR; OUTPUT,FRT WHEEL,TRANSFER Z=47	8-94482-317-1	01	1	9112-9502	●	●
56	04.535 GEAR; OUTPUT,FRT WHEEL,TRANSFER Z=47	8-97120-120-0	01	1	9503-9504	●	●
56	04.535 GEAR; OUTPUT,FRT WHEEL,TRANSFER A/T THM(RMQ) Z=47	8-97120-120-0	01	1	9505-9505	●	●
56	04.535 GEAR; OUTPUT,FRT WHEEL,TRANSFER M/T MUA 5 SPEED(RMN) Z=47	8-97120-125-0	01	1	9505-9505	●	●
56	04.535 GEAR; OUTPUT,FRT WHEEL,TRANSFER Z=47	8-97120-125-0	01	1	9506-9607	●	●
56	04.535 GEAR; OUTPUT,FRT WHEEL,TRANSFER Z=49	8-97126-101-1	01	1	9608-	●	●
57	04.520 BEARING; BALL,TRANSFER FLANGE,RR NSK	8-94422-052-0	01	1	9112-	●	●
71	05.555 SHAFT; TRANSFER OUTPUT	8-94421-900-5	01	1	9112-9504	●	●
71	05.555 SHAFT; TRANSFER OUTPUT	8-94377-437-2	01	1	9505-9505	●	●
71	05.555 SHAFT; TRANSFER OUTPUT	8-94377-437-3	01	1	9505-	●	●
72	04.537 RING; SNAP,ANTI LASH PLATE,FRT O	8-94482-501-0	01	1	9112-	●	●
73	04.537 PLATE ASM; ANTI LASH,TRANSFER GE	8-94320-569-0	01	1	9112-9607	●	●
73	04.537 PLATE ASM; ANTI LASH,TRANSFER GE	8-97164-346-0	01	1	9608-	●	●
76	04.525 RING; SNAP,BRG OUTER,TRANSFER OD=77.0	8-94422-092-0	01	1	9112-	●	●
77	04.537 SPRING; BELLEVILLE,ANTI LASH PLA	8-94482-499-0	01	1	9112-	●	●
78	04.520 BEARING; FRT OUTPUT GEAR,TRANSFE 04.419 NSK	8-94422-064-0	01	1	9112-	●	●
79	04.520 COLLAR; FRT OUTPUT GEAR,TRANSFER 04.419	8-97031-079-0	01	1	9112-9412	●	●
79	04.520 COLLAR; FRT OUTPUT GEAR,TRANSFER 04.419	8-94422-076-1	01	1	9501-	●	●
80	04.525 RING; FRT OUTPUT SHAFT,TRANSFER T=1.55 WHITE	8-94422-180-0	01	1	9112-	●	●
80	04.525 RING; FRT OUTPUT SHAFT,TRANSFER T=1.60 YELLOW	8-94422-181-0	01	1	9112-	●	●
80	04.525 RING; FRT OUTPUT SHAFT,TRANSFER T=1.65 BLUE	8-94422-182-0	01	1	9112-	●	●
80	04.525 RING; FRT OUTPUT SHAFT,TRANSFER T=1.70 PINK	8-94422-183-0	01	1	9112-	●	●
80	04.525 RING; FRT OUTPUT SHAFT,TRANSFER T=1.75 GREEN	8-94422-184-0	01	1	9112-	●	●
80	04.525 RING; FRT OUTPUT SHAFT,TRANSFER T=1.80 BROWN	8-94422-185-0	01	1	9112-	●	●
80	04.525 RING; FRT OUTPUT SHAFT,TRANSFER T=1.85 RED	8-94422-186-0	01	1	9112-	●	●
80	04.525 RING; FRT OUTPUT SHAFT,TRANSFER T=1.90 ORANGE	8-94422-187-0	01	1	9112-	●	●
81	04.309 ROD; TRANSFER SELECT	8-94370-499-2	01	1	9112-	●	●
82	04.555 BLOCK; TRANSFER	8-97033-092-1	01	1	9112-	●	●
83	04.515 SPRING; SELECT	8-94462-235-0	01	1	9112-	●	●
85	04.555 BRIDGE; CONT ROD,TRANSFER	8-94422-440-0	01	1	9112-9508	●	●
85	04.555 BRIDGE; CONT ROD,TRANSFER M/T MUA 5 SPEED(RMN)	8-94422-440-0	01	1	9509-9509	●	●
85	04.555 BRIDGE; CONT ROD,TRANSFER A/T THM(RMQ)	8-97128-522-0	01	1	9509-9509	●	●
85	04.555 BRIDGE; CONT ROD,TRANSFER	8-97128-522-0	01	1	9510-	●	●
87	04.515 SPRING; INTER LOCK,TRANSFER	8-94461-897-0	01	1	9112-	●	●
95	04.570 BUSHING	8-97103-115-0	02	1	9410-	●	●

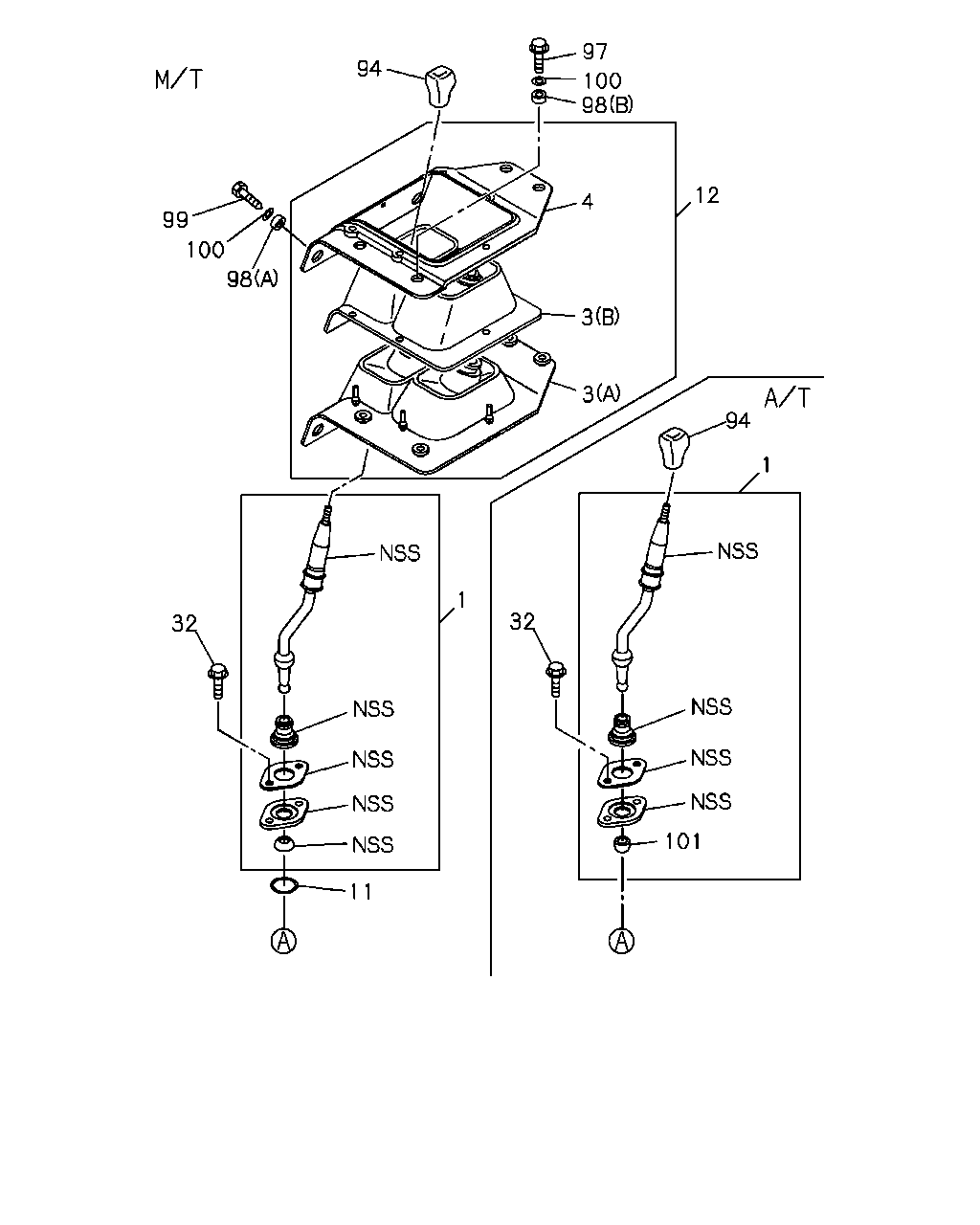

97 100 98 94 12 4 3 3 94 1 98 100 99 32 11 1 32 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.570 LEVER ASM; TRANSFER CONT M/T MUA 5 SPEED(RMN)	8-94375-556-4	01	1	9112-9504	●	●
1	04.570 LEVER ASM; TRANSFER CONT 4JG2 ENG(RJC) PINK MARK	8-97090-611-1	01	1	9505-9707	●	●
1	04.570 LEVER ASM; TRANSFER CONT 4JG2 ENG(RJC)	8-97179-998-0	01	1	9708-	●	●
1	04.570 LEVER ASM; TRANSFER CONT 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) M/T MUA 5 SPEED(RMN) BLUE MARK	8-97090-610-1	01	1	9505-9707	●	●
1	04.570 LEVER ASM; TRANSFER CONT 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) M/T MUA 5 SPEED(RMN)	8-97179-996-0	01	1	9708-	●	●
1	04.570 LEVER ASM; TRANSFER CONT 6VD1 SOHC ENG(RLU) A/T THM(RMQ)	8-94375-557-3	01	1	9112-9504	●	●
1	04.570 LEVER ASM; TRANSFER CONT A/T THM(RMQ) BROWN MARK	8-97090-612-0	01	1	9505-	●	●
3	04.570 COVER; DUST,CHANGE LEVER M/T MUA 5 SPEED(RMN) (A)	8-94381-105-2	01	1	9112-	●	●
3	04.570 COVER; DUST,CHANGE LEVER M/T MUA 5 SPEED(RMN) (B)	8-94381-106-1	01	1	9112-	●	●
4	04.570 RETAINER; CHANGE LEVER,TRANSFER M/T MUA 5 SPEED(RMN)	8-94381-046-1	01	1	9112-	●	●
11	04.570 GASKET; CHANGE LEVER M/T MUA 5 SPEED(RMN) ID=35.2	9-09561-235-0	01	1	9112-	●	●
12	04.570 GROMMET; TRANSFER LEVER M/T MUA 5 SPEED(RMN)	8-94380-946-2	01	1	9112-	●	●
32	04.012 BOLT; CHANGE LEVER TO SIDE CASE 06.672 M8X16 FLANGE	0-28010-816-0	02	1	9112-9204	●	●
32	04.012 BOLT; CHANGE LEVER TO SIDE CASE 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9205-9711	●	●
32	04.012 BOLT; CHANGE LEVER TO SIDE CASE 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9712-	●	●
94	04.570 KNOB; TRANSFER LEVER A/T THM(RMQ) CONVENIENT PACKAGE<6QZ> BLACK	8-97096-174-0	01	1	9609-9609		●
94	04.570 KNOB; TRANSFER LEVER A/T THM(RMQ) CONVENIENT PACKAGE<6QZ> EXC. THAILAND EQUIPMENT(PM9) BLACK	8-97096-174-0	01	1	9610-		●
94	04.570 KNOB; TRANSFER LEVER 04.006 BLACK	8-94453-161-1	01	1	9309-9608	●	●
94	04.570 KNOB; TRANSFER LEVER 04.006 BLACK	8-94453-161-1	01	1	9609-9609	●
94	04.570 KNOB; TRANSFER LEVER EXC. CONVENIENT PACKAGE<6QZ> 04.006 BLACK	8-94453-161-1	01	1	9609-9609		●
94	04.570 KNOB; TRANSFER LEVER 04.006 BLACK	8-94453-161-1	01	1	9610-	●
94	04.570 KNOB; TRANSFER LEVER EXC. CONVENIENT PACKAGE<6QZ> 04.006 BLACK	8-94453-161-1	01	1	9610-		●
94	04.570 KNOB; TRANSFER LEVER A/T THM(RMQ) THAILAND EQUIPMENT(PM9) CONVENIENT PACKAGE<6QZ> 04.006 BLACK	8-94453-161-1	01	1	9610-		●
94	04.570 KNOB; TRANSFER LEVER INTERIOR COLOR BROWN(130) DARK BROWN	8-97003-142-1	01	1	9112-9308	●	●
94	04.570 KNOB; TRANSFER LEVER INTERIOR COLOR GRAY(153) DARK GRAY	8-97003-144-1	01	1	9112-9308	●	●
97	04.570 BOLT; GROMMET M/T MUA 5 SPEED(RMN) 04.595 M8X25	0-28410-825-0	04	1	9112-9204	●	●
97	04.570 BOLT; GROMMET M/T MUA 5 SPEED(RMN) 08.155 M8X25 FLANGE	0-28480-825-0	04	1	9205-9302	●	●
97	04.570 BOLT; GROMMET M/T MUA 5 SPEED(RMN) M8X25 W/LK&PL WASHER	8-94411-977-0	04	1	9303-	●	●
98	04.570 PIECE; DIST,GROMMET M/T MUA 5 SPEED(RMN) 04.012 (A) OD=13 T=4.5	8-94230-464-1	02	1	9112-	●	●
98	04.570 PIECE; DIST,GROMMET M/T MUA 5 SPEED(RMN) 04.008 (B) OD=15 T=6.8	8-94437-495-0	04	1	9112-	●	●
99	04.570 SCREW; GROMMET M/T MUA 5 SPEED(RMN) 03.483	8-94220-277-0	02	1	9112-	●	●
100	04.570 WASHER; GROMMET M/T MUA 5 SPEED(RMN) 07.633 ID=8.4 OD=22	9-09164-708-0	06	1	9112-9302	●	●
100	04.570 WASHER; GROMMET M/T MUA 5 SPEED(RMN) 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	9303-	●	●
101	04.570 BUSHING; CHANGE LEVER A/T THM(RMQ)	8-94442-099-0	01	1	9112-	●	●
