Isuzu WW
▶
SUV
▶
UBS
▶
50658 - UBS-RHD
▶
2 - Clutch, Transmission, Trans Axle
▶
2-60 - TRANSFER
▶

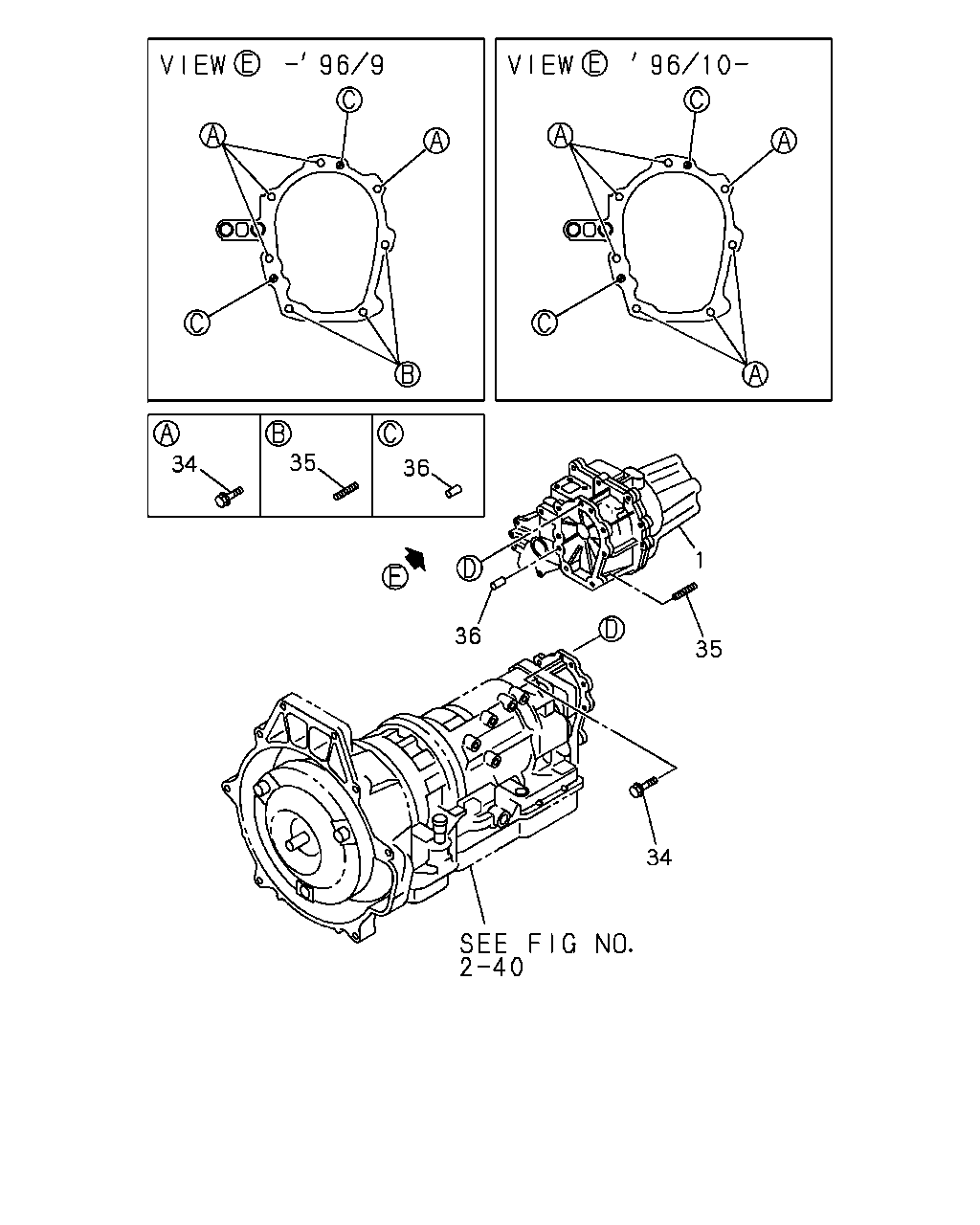

2-60 — TRANSFER
(#44887) — 26 parça
Tümü
A - UBS5VC
B - UBS5VF
◀
[260A] NO.1 -'94/9 (13 parça)
[260A] NO.2 '94/10 - (13 parça)
▶
34
36
36
35
1
35
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
04.505 TRANSFER ASM
A/T THM(RMQ)
8-97069-207-0
01
1
9112-9404
●
●
1
04.505 TRANSFER ASM
A/T THM(RMQ)
8-97041-215-0
01
1
9405-9409
●
●
1
04.505 TRANSFER ASM
A/T THM(RMQ)
8-97104-003-0
01
1
9410-9504
●
●
1
04.505 TRANSFER ASM
A/T THM(RMQ) SHIFT ON THE FLY(7EX)
8-97104-005-0
01
1
9505-9607
●
●
1
04.505 TRANSFER ASM
A/T THM(RMQ) SHIFT ON THE FLY(7EX)
8-97145-378-0
01
1
9608-
●
●
1
04.505 TRANSFER ASM
A/T THM(RMQ) EXC. SHIFT ON THE FLY(7EX)
8-97104-004-0
01
1
9505-9607
●
●
1
04.505 TRANSFER ASM
A/T THM(RMQ) EXC. SHIFT ON THE FLY(7EX)
8-97145-377-0
01
1
9608-
●
●
34
04.510 BOLT; TRANSFER
A/T THM(RMQ) 00.685 M10X30 FLANGE
0-28081-030-0
04
1
9112-9609
●
●
34
04.510 BOLT; TRANSFER
A/T THM(RMQ) 03.162 M10X35 FLANGE
0-28681-035-0
07
1
9610-9708
●
●
34
04.510 BOLT; TRANSFER
A/T THM(RMQ) 00.685 M10X35 FLANGE
0-28081-035-0
07
1
9709-
●
●
35
04.510 STUD; TRANSFER
A/T THM(RMQ) M10X35 L=50
5-09300-050-0
03
1
9112-9609
●
●
36
04.510 PIN; KNOCK,TRANSFER
A/T THM(RMQ) 08.939 OD=10 L=20
9-08161-020-0
02
1
9112-9507
●
●
36
04.510 PIN; KNOCK,TRANSFER
A/T THM(RMQ) OD=10 L=20
8-97135-423-0
02
1
9508-
●
●
34
35
36
36
35
1
34
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
04.505 TRANSFER ASM
A/T THM(RMQ)
8-97069-207-0
01
1
9112-9404
●
●
1
04.505 TRANSFER ASM
A/T THM(RMQ)
8-97041-215-0
01
1
9405-9409
●
●
1
04.505 TRANSFER ASM
A/T THM(RMQ)
8-97104-003-0
01
1
9410-9504
●
●
1
04.505 TRANSFER ASM
A/T THM(RMQ) SHIFT ON THE FLY(7EX)
8-97104-005-0
01
1
9505-9607
●
●
1
04.505 TRANSFER ASM
A/T THM(RMQ) SHIFT ON THE FLY(7EX)
8-97145-378-0
01
1
9608-
●
●
1
04.505 TRANSFER ASM
A/T THM(RMQ) EXC. SHIFT ON THE FLY(7EX)
8-97104-004-0
01
1
9505-9607
●
●
1
04.505 TRANSFER ASM
A/T THM(RMQ) EXC. SHIFT ON THE FLY(7EX)
8-97145-377-0
01
1
9608-
●
●
34
04.510 BOLT; TRANSFER
A/T THM(RMQ) 00.685 M10X30 FLANGE
0-28081-030-0
04
1
9112-9609
●
●
34
04.510 BOLT; TRANSFER
A/T THM(RMQ) 03.162 M10X35 FLANGE
0-28681-035-0
07
1
9610-9708
●
●
34
04.510 BOLT; TRANSFER
A/T THM(RMQ) 00.685 M10X35 FLANGE
0-28081-035-0
07
1
9709-
●
●
35
04.510 STUD; TRANSFER
A/T THM(RMQ) M10X35 L=50
5-09300-050-0
03
1
9112-9609
●
●
36
04.510 PIN; KNOCK,TRANSFER
A/T THM(RMQ) 08.939 OD=10 L=20
9-08161-020-0
02
1
9112-9507
●
●
36
04.510 PIN; KNOCK,TRANSFER
A/T THM(RMQ) OD=10 L=20
8-97135-423-0
02
1
9508-
●
●
