2-55 — AUTO TRANS SHIFT CONTROL LEVER (#44885) — 90 parça

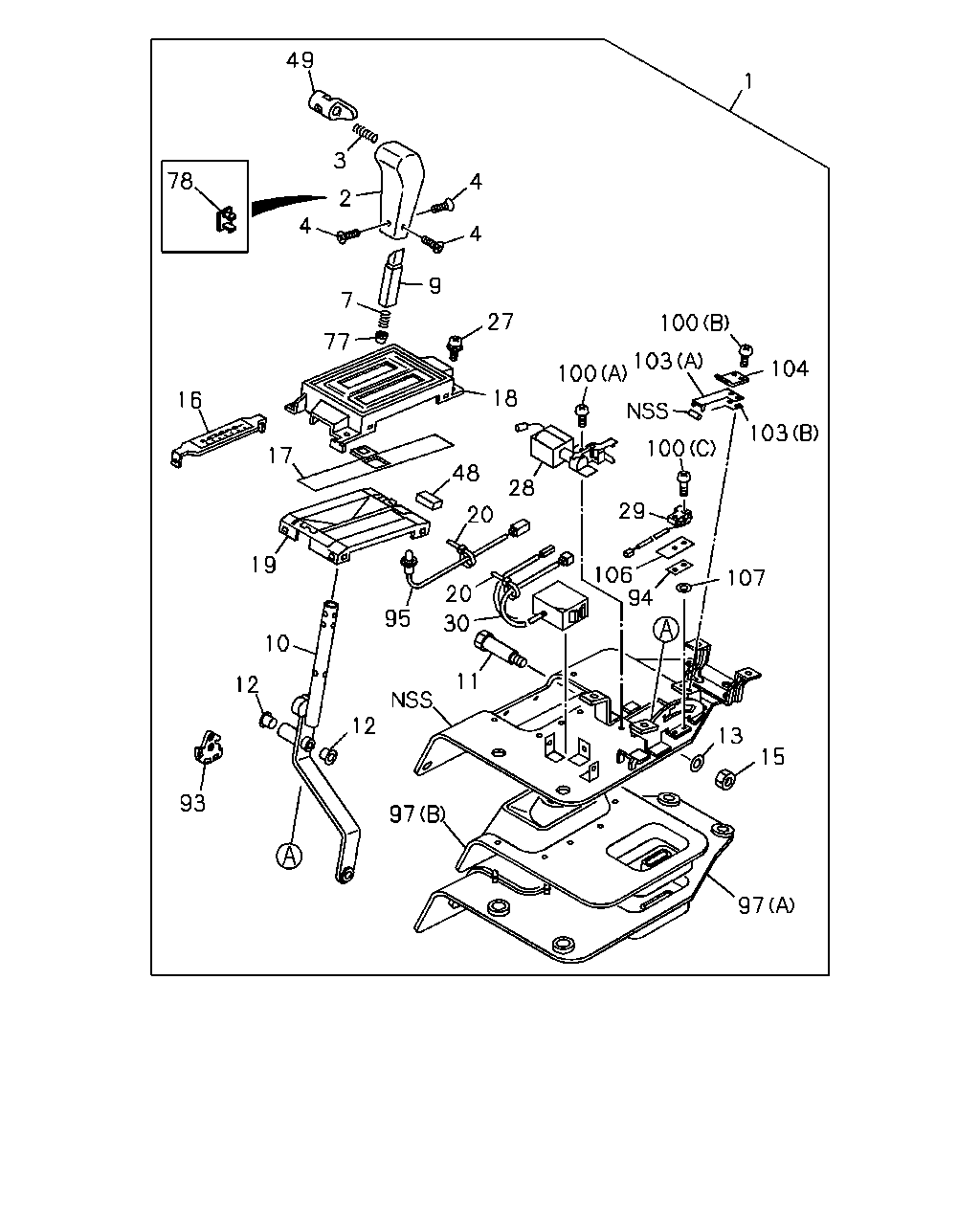

49 78 3 4 2 4 4 9 7 77 16 17 27 1 100 100 104 103 18 48 28 100 103 29 20 20 95 19 10 12 93 12 97 11 30 106 94 107 13 15 97

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.006 LEVER; SHIFT,A/T EUROPE EQUIPMENT(EK4) BLACK	8-97098-094-4	01	1	9309-9504
1	04.006 LEVER; SHIFT,A/T EUROPE EQUIPMENT(EK4) BLACK	8-97154-450-0	01	1	9505-9607
1	04.006 LEVER; SHIFT,A/T EUROPE EQUIPMENT(EK4) BLACK	8-97157-926-1	01	1	9608-
1	04.006 LEVER; SHIFT,A/T EXC. EUROPE EQUIPMENT(EK4) BLACK	8-97098-095-4	01	1	9309-9504
1	04.006 LEVER; SHIFT,A/T EXC. EUROPE EQUIPMENT(EK4) BLACK	8-97154-449-1	01	1	9505-
1	04.006 LEVER; SHIFT,A/T INTERIOR COLOR BROWN(130) EUROPE EQUIPMENT(EK4) DARK BROWN	8-97006-711-0	01	1	9112-9202
1	04.006 LEVER; SHIFT,A/T INTERIOR COLOR BROWN(130) EUROPE EQUIPMENT(EK4) DARK BROWN	8-97009-369-2	01	1	9203-9308
1	04.006 LEVER; SHIFT,A/T INTERIOR COLOR BROWN(130) EXC. EUROPE EQUIPMENT(EK4) DARK BROWN	8-97006-713-0	01	1	9112-9202
1	04.006 LEVER; SHIFT,A/T INTERIOR COLOR BROWN(130) EXC. EUROPE EQUIPMENT(EK4) DARK BROWN	8-97009-371-2	01	1	9203-9308
1	04.006 LEVER; SHIFT,A/T INTERIOR COLOR GRAY(153) EUROPE EQUIPMENT(EK4) DARK GRAY	8-97006-712-0	01	1	9112-9202
1	04.006 LEVER; SHIFT,A/T INTERIOR COLOR GRAY(153) EUROPE EQUIPMENT(EK4) DARK GRAY	8-97009-370-2	01	1	9203-9308
1	04.006 LEVER; SHIFT,A/T INTERIOR COLOR GRAY(153) EXC. EUROPE EQUIPMENT(EK4) DARK GRAY	8-97006-714-0	01	1	9112-9202
1	04.006 LEVER; SHIFT,A/T INTERIOR COLOR GRAY(153) EXC. EUROPE EQUIPMENT(EK4) DARK GRAY	8-97009-372-2	01	1	9203-9308
2	04.006 KNOB ASM; AUTO CONT LEVER INTERIOR COLOR BROWN(130) DARK BROWN	8-97004-154-0	01	1	9112-9308
2	04.006 KNOB ASM; AUTO CONT LEVER INTERIOR COLOR GRAY(153) DARK GRAY	8-97004-155-0	01	1	9112-9308
2	04.006 KNOB ASM; AUTO CONT LEVER BLACK	8-94389-630-0	01	1	9309-
3	04.008 SPRING; RETURN,KNOB	8-94370-126-0	01	1	9112-
4	04.006 SCREW; KNOB TO LEVER	8-94370-128-0	03	1	9112-
7	04.008 SPRING; RETURN,ROD	8-97029-913-0	01	1	9112-
9	04.006 SLEEVE; KNOB,SHIFT LEVER	8-94370-129-0	01	1	9112-
10	04.006 LEVER; A/T CONT	8-97039-068-0	01	1	9112-9202
10	04.006 LEVER; A/T CONT	8-97077-886-1	01	1	9203-9504
10	04.006 LEVER; A/T CONT	8-97125-746-0	01	1	9505-
11	04.040 LEVER; A/T SHIFT LEVER TO LINK	8-97024-960-0	01	1	9112-9202
11	04.040 LEVER; A/T SHIFT LEVER TO LINK	8-97066-339-0	01	1	9203-
12	04.008 BUSHING; SELECT LEVER	8-94389-643-0	02	1	9112-9202
13	04.042 WASHER; LEVER TO SHAFT 00.002 ID=8.2	9-09150-608-0	01	1	9112-
13	04.042 WASHER; LEVER TO SHAFT EUROPE EQUIPMENT(EK4)	8-97024-168-0	02	1	9112-9202
15	04.042 NUT; LEVER TO SHAFT 08.915 M8 M8	9-09111-508-0	01	1	9112-9504
15	04.042 NUT; LEVER TO SHAFT 00.787 M8	9-09111-408-0	01	1	9505-
16	04.020 LENS; INDICATOR	8-97039-065-0	01	1	9112-9504
16	04.020 LENS; INDICATOR	8-97123-316-0	01	1	9505-
17	04.020 PLATE; INDICATOR	8-97032-482-0	01	1	9112-9408
17	04.020 PLATE; INDICATOR	8-97113-988-0	01	1	9409-
18	04.020 COVER; INDICATOR,UPR	8-97039-063-0	01	1	9112-
19	04.020 COVER; INDICATOR,LWR	8-97039-064-0	01	1	9112-
20	04.022 CLIP; INHIBITOR SW	8-94389-647-0	02	1	9112-
27	04.022 SCREW; INDICATOR TO BRKT 04.054 M5X10 W/LK+PL WASHER	9-03920-510-0	04	1	9112-
28	04.006 SOLENOID ASM EUROPE EQUIPMENT(EK4)	8-97039-072-0	01	1	9112-
29	04.006 SWITCH; A/T EUROPE EQUIPMENT(EK4)	8-97035-007-0	01	1	9112-
30	04.006 CONTROLLER; A/T EUROPE EQUIPMENT(EK4)	8-97039-074-0	01	1	9112-9202
30	04.006 CONTROLLER; A/T EUROPE EQUIPMENT(EK4)	8-97039-073-0	01	1	9203-9607
30	04.006 CONTROLLER; A/T EUROPE EQUIPMENT(EK4)	8-97176-460-0	01	1	9608-
48	04.006 INSULATION; PLATE	8-97066-477-0	02	1	9505-
49	04.006 BUTTON; PUSH,KNOB INTERIOR COLOR BROWN(130) DARK BROWN	8-97004-146-0	01	1	9112-9308
49	04.006 BUTTON; PUSH,KNOB INTERIOR COLOR GRAY(153) DARK GRAY	8-97004-147-0	01	1	9112-9308
49	04.006 BUTTON; PUSH,KNOB BLACK	8-94389-615-0	01	1	9309-
77	04.010 SUPPORT; SPRING,A/T CONT LEVER	8-94370-130-0	01	1	9112-
78	04.057 PROTECTOR; LAMP CABLE,A/T CONT L INTERIOR COLOR BROWN(130) DARK BROWN	8-97003-314-0	01	1	9112-9202
78	04.057 PROTECTOR; LAMP CABLE,A/T CONT L INTERIOR COLOR BROWN(130) DARK BROWN	8-97009-373-0	01	1	9203-9308
78	04.057 PROTECTOR; LAMP CABLE,A/T CONT L INTERIOR COLOR GRAY(153) DARK GRAY	8-97003-316-0	01	1	9112-9202
78	04.057 PROTECTOR; LAMP CABLE,A/T CONT L INTERIOR COLOR GRAY(153) DARK GRAY	8-97009-374-0	01	1	9203-9308
78	04.057 PROTECTOR; LAMP CABLE,A/T CONT L BLACK	8-97097-675-0	01	1	9309-
93	04.008 STOPPER; SOLENOID	8-97069-805-0	01	1	9203-9504
94	04.008 PLATE; SWITCH EUROPE EQUIPMENT(EK4)	8-97035-011-0	01	1	9112-9305
95	04.006 LAMP; INDICATOR	8-97039-067-0	01	1	9112-9202
95	04.006 LAMP; INDICATOR	8-97035-013-0	01	1	9203-
97	04.008 BOOT (A)	8-97034-998-5	01	1	9112-
97	04.008 BOOT (B)	8-97034-999-0	01	1	9112-
100	04.012 SCREW 03.320 (B) M4X10 W/LK&PL WASHER	9-03920-410-0	02	1	9112-
100	04.012 SCREW EUROPE EQUIPMENT(EK4) (C)	8-97024-167-1	02	1	9112-
100	04.012 SCREW EUROPE EQUIPMENT(EK4) 04.054 (A) M5X10 W/LK+PL WASHER	9-03920-510-0	02	1	9112-9305
100	04.012 SCREW EUROPE EQUIPMENT(EK4) (A)	8-97093-499-0	02	1	9306-
103	04.008 SPRING; PLATE (A)	8-97035-014-0	01	1	9112-
103	04.008 SPRING; PLATE (B)	8-97066-443-0	01	1	9203-
104	04.011 PLATE; LINK	8-97035-016-1	01	1	9112-
106	04.008 SHEET; SWITCH EUROPE EQUIPMENT(EK4)	8-97035-009-0	01	1	9112-
107	04.008 WASHER; PL EUROPE EQUIPMENT(EK4)	8-97030-612-0	02	1	9112-9202

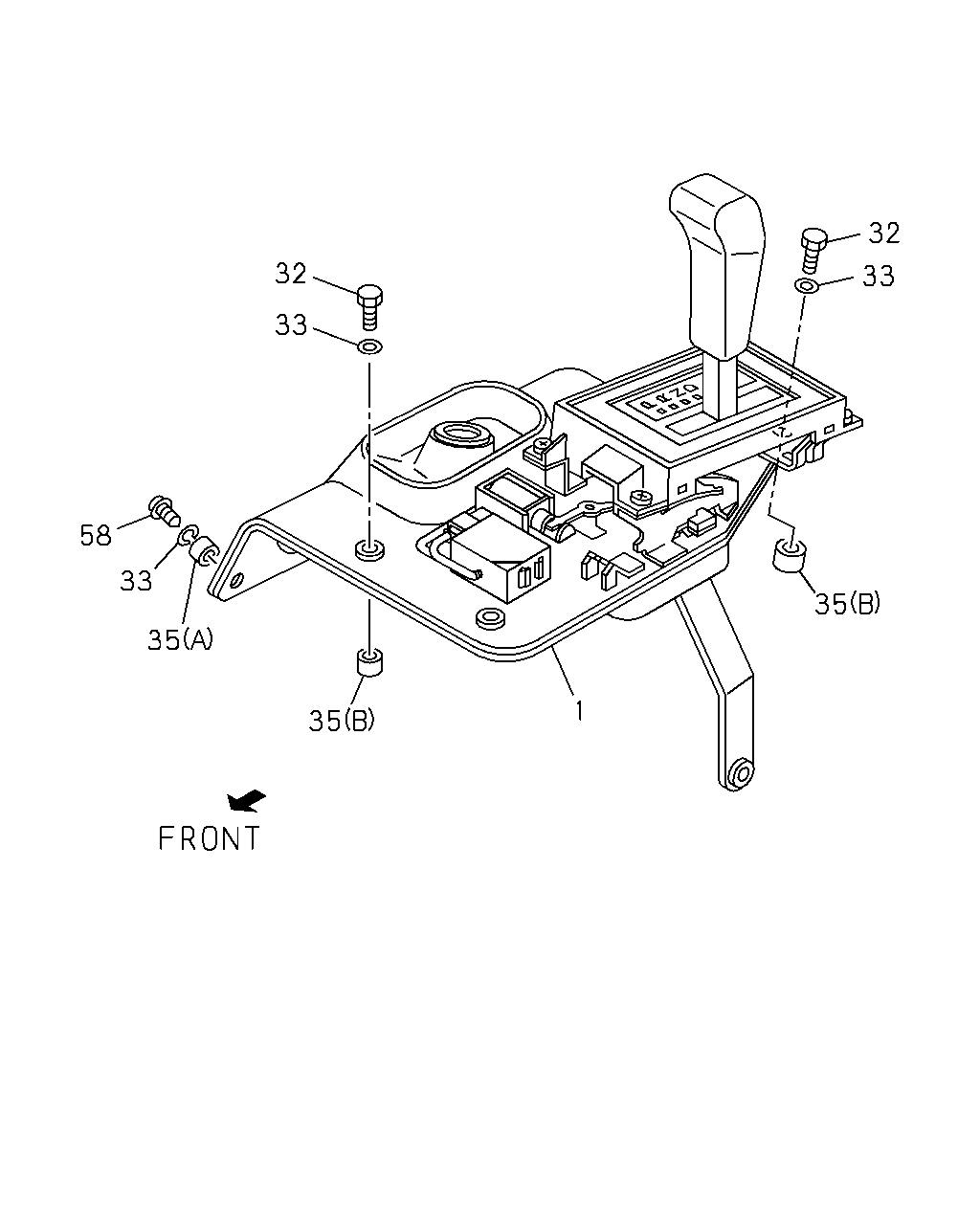

1 35 33 32 32 33 58 33 35 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.006 LEVER; SHIFT,A/T EUROPE EQUIPMENT(EK4) BLACK	8-97098-094-4	01	1	9309-9504
1	04.006 LEVER; SHIFT,A/T EUROPE EQUIPMENT(EK4) BLACK	8-97154-450-0	01	1	9505-9607
1	04.006 LEVER; SHIFT,A/T EUROPE EQUIPMENT(EK4) BLACK	8-97157-926-1	01	1	9608-
1	04.006 LEVER; SHIFT,A/T EXC. EUROPE EQUIPMENT(EK4) BLACK	8-97098-095-4	01	1	9309-9504
1	04.006 LEVER; SHIFT,A/T EXC. EUROPE EQUIPMENT(EK4) BLACK	8-97154-449-1	01	1	9505-
1	04.006 LEVER; SHIFT,A/T INTERIOR COLOR BROWN(130) EUROPE EQUIPMENT(EK4) DARK BROWN	8-97006-711-0	01	1	9112-9202
1	04.006 LEVER; SHIFT,A/T INTERIOR COLOR BROWN(130) EUROPE EQUIPMENT(EK4) DARK BROWN	8-97009-369-2	01	1	9203-9308
1	04.006 LEVER; SHIFT,A/T INTERIOR COLOR BROWN(130) EXC. EUROPE EQUIPMENT(EK4) DARK BROWN	8-97006-713-0	01	1	9112-9202
1	04.006 LEVER; SHIFT,A/T INTERIOR COLOR BROWN(130) EXC. EUROPE EQUIPMENT(EK4) DARK BROWN	8-97009-371-2	01	1	9203-9308
1	04.006 LEVER; SHIFT,A/T INTERIOR COLOR GRAY(153) EUROPE EQUIPMENT(EK4) DARK GRAY	8-97006-712-0	01	1	9112-9202
1	04.006 LEVER; SHIFT,A/T INTERIOR COLOR GRAY(153) EUROPE EQUIPMENT(EK4) DARK GRAY	8-97009-370-2	01	1	9203-9308
1	04.006 LEVER; SHIFT,A/T INTERIOR COLOR GRAY(153) EXC. EUROPE EQUIPMENT(EK4) DARK GRAY	8-97006-714-0	01	1	9112-9202
1	04.006 LEVER; SHIFT,A/T INTERIOR COLOR GRAY(153) EXC. EUROPE EQUIPMENT(EK4) DARK GRAY	8-97009-372-2	01	1	9203-9308
32	04.008 BOLT; CONT LEVER TO BODY 04.595 M8X25	0-28410-825-0	04	1	9112-9204
32	04.008 BOLT; CONT LEVER TO BODY 08.155 M8X25 FLANGE	0-28480-825-0	04	1	9205-9302
32	04.008 BOLT; CONT LEVER TO BODY 04.570 M8X25 W/LK&PL WASHER	8-94411-977-0	04	1	9303-
33	04.008 WASHER; PL,CONT LEVER TO BODY 07.633 ID=8.4 OD=22	9-09164-708-0	06	1	9112-9302
33	04.008 WASHER; PL,CONT LEVER TO BODY 07.633 ID=8.4 OD=22	9-09164-708-0	04	1	9303-9607
33	04.008 WASHER; PL,CONT LEVER TO BODY 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	9608-
35	04.008 SPACER; BRKT TO FLOOR,SELECT LEV 04.012 (A) OD=13 T=4.5	8-94230-464-1	02	1	9112-
35	04.008 SPACER; BRKT TO FLOOR,SELECT LEV (B) OD=15 T=6.8	8-94437-495-0	04	1	9112-
58	04.008 SCREW; BRKT 03.483	8-94220-277-0	02	1	9112-
