2-52 — AUTO TRANS OVERDRIVE GEAR (#44883) — 31 parça

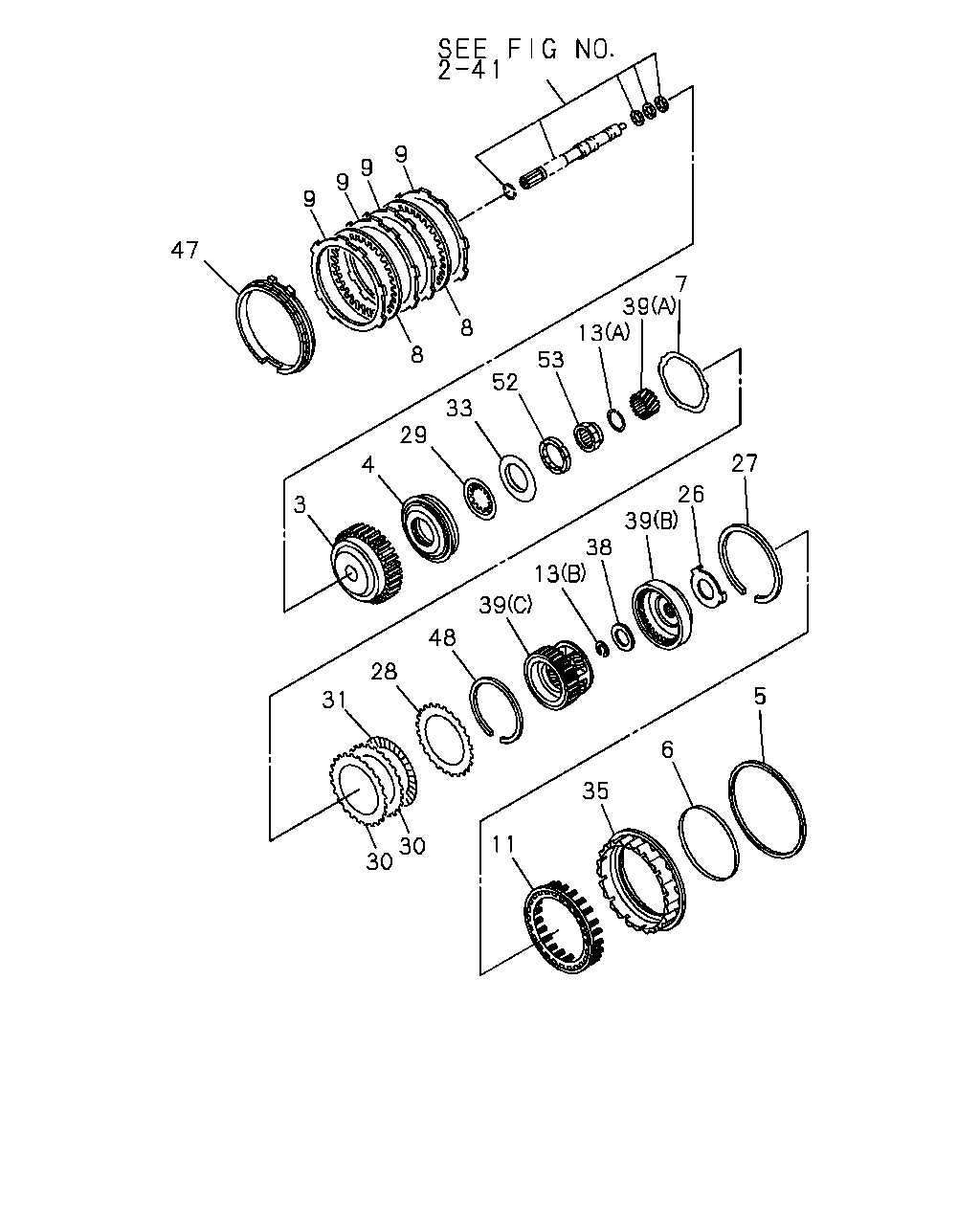

çizim 65447
30 30 11 35 5 6 27 26 39 38 13 39 48 28 31 3 29 4 33 52 53 13 39 7 8 8 47 9 9 9 9
BalonParca AdiParca NoAdetTipApplied Date
3 04.468 DRUM; CLU,OVERDRIVE,A/T 8-96015-290-0 01 1 9112-9302
3 04.468 DRUM; CLU,OVERDRIVE,A/T 8-96041-100-0 01 1 9303-
4 04.468 PISTON ASM; CLU,OVERDRIVE,A/T 8-96015-507-0 01 1 9112-9410
4 04.468 PISTON ASM; CLU,OVERDRIVE,A/T 8-96017-401-0 01 1 9411-
5 04.460 GASKET; CLU PISTON,OUTER,OVERDRI 8-96014-320-0 01 1 9112-9411
5 04.460 GASKET; CLU PISTON,OUTER,OVERDRI 8-96017-561-0 01 1 9412-
6 04.460 GASKET; CLU PISTON,INNER,OVERDRI 8-96014-321-0 01 1 9112-
7 04.468 PLATE; CLU CUSHION 8-96014-983-0 01 1 9112-
8 04.455 DISC; CLU,OVERDRIVE,A/T 8-96014-459-0 02 1 9112-
9 04.455 DISC ASM; CLU & FACING,OVERDRIVE 8-96014-187-0 04 1 9112-
11 04.468 SPRING; CLU RETURN,OVERDRIVE,A/T 8-08635-244-0 01 1 9112-
13 04.472 RING; SNAP,OVERDRIVE,A/T
(A) 		8-08634-274-0 01 1 9112-
13 04.472 RING; SNAP,OVERDRIVE,A/T
(B) 		8-96014-389-0 01 1 9112-
26 04.472 WASHER; THRUST,OVERDRIVE,A/T 8-96014-390-0 01 1 9112-
27 04.472 RING; RET,OVERDRIVE,A/T 8-08634-023-0 01 1 9112-
28 04.472 PLATE; CLU BACKING,OVERDRIVE,A/T 8-08634-864-0 01 1 9112-
29 04.455 DISC ASM; CLU & FACING,OVERDRIVE 8-96014-902-0 01 1 9112-
30 04.455 DISC; CLU,OVERDRIVE,A/T 8-96014-194-0 02 1 9112-
31 04.468 PLATE; CUSHION,OVERDRIVE,A/T 8-96014-195-0 01 1 9112-
33 04.485 RETAINER; BRK RETURN SPR,OVERDRI 8-96015-601-0 01 1 9112-
35 04.468 PISTON; BRK,OVERDRIVE,A/T 8-96014-928-0 01 1 9112-9411
35 04.468 PISTON; BRK,OVERDRIVE,A/T 8-96017-559-0 01 1 9412-
38 04.472 WASHER; THRUST,OVERDRIVE,A/T 8-08634-035-0 01 1 9112-
39 04.470 GEAR ASM; PLANETARY INTERNAL,A/T
(A) 		8-96014-199-0 01 1 9112-
39 04.470 GEAR ASM; PLANETARY INTERNAL,A/T
(B) 		8-96014-202-0 01 1 9112-
39 04.470 GEAR ASM; PLANETARY INTERNAL,A/T
(C) 		8-96014-376-0 01 1 9112-
47 04.467 FLANGE; OVERDRIVE BRK,A/T 8-96015-385-0 01 1 9112-
48 04.472 RING; SNAP,PLANETARY RING GEAR,O 8-08634-056-0 01 1 9112-
52 04.180 ROLLER; OVERDRIVE CLU 8-08634-049-0 01 1 9112-9504
52 04.180 ROLLER; OVERDRIVE CLU 8-00930-660-0 01 1 9505-
53 04.180 CAM; OVERDRIVE ROLLER CLU 8-08634-038-0 01 1 9112-
