50658 - UBS-RHD
▶
2 - Clutch, Transmission, Trans Axle
▶
2-49 - AUTO TRANS INHIBITOR SWITCH
▶

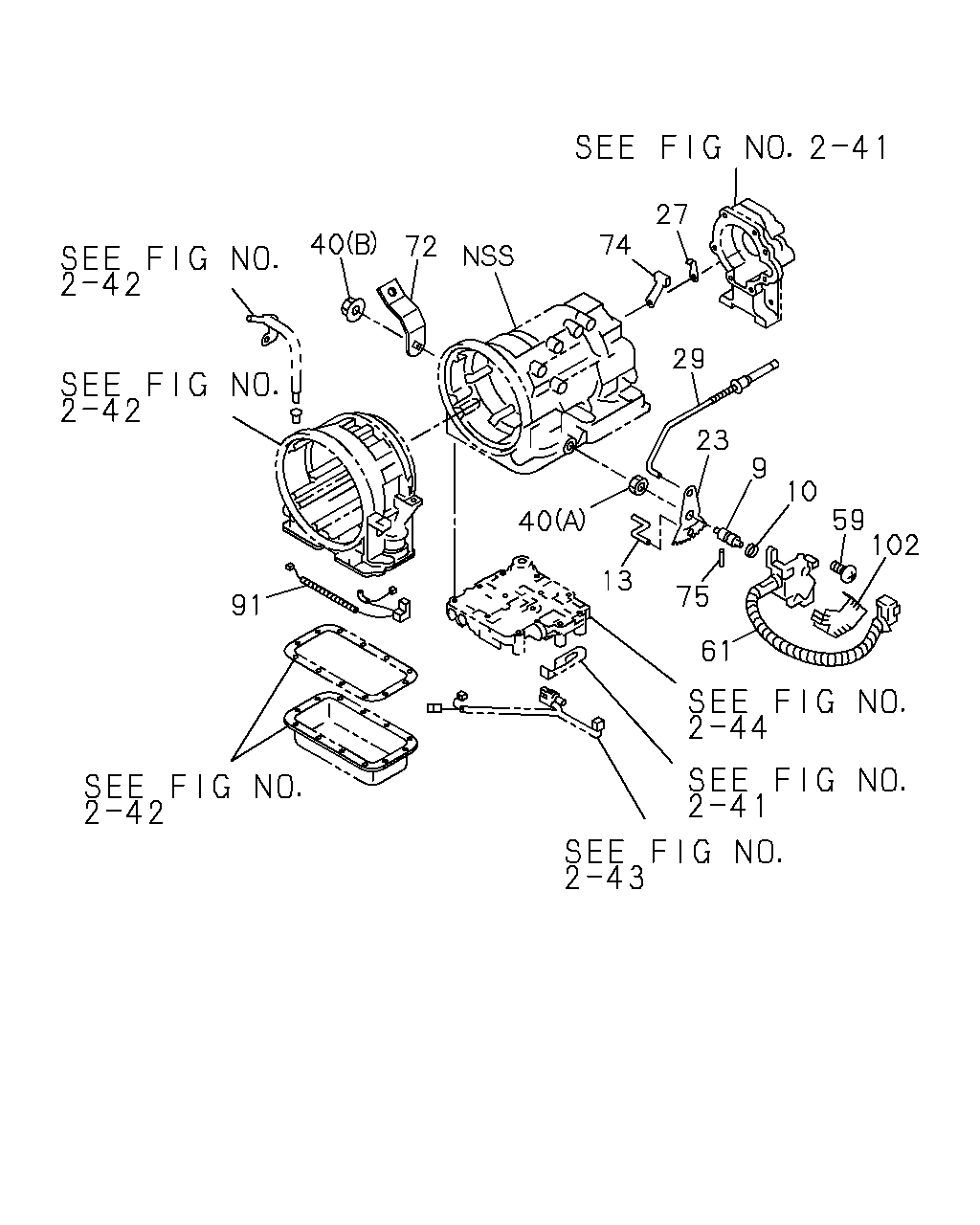

2-49 — AUTO TRANS INHIBITOR SWITCH
(#44882) — 23 parça
27
74
72
40
91
40
13
29
23
9
75
61
102
59
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
9
04.275 SHAFT; MANUAL,A/T
8-96014-268-0
01
1
9112-
10
04.265 GASKET; MANUAL SHIFT,A/T
8-08644-709-0
01
1
9112-
13
04.294 LEVER; SELECT,MANUAL SHAFT,A/T
8-05258-243-0
01
1
9112-
23
04.290 LEVER; PARKING ROD,A/T
8-96014-551-0
01
1
9112-9410
23
04.290 LEVER; PARKING ROD,A/T
8-96017-378-0
01
1
9411-
27
04.295 SPRING; PAWL RETURN,A/T
8-05258-076-0
01
1
9112-
29
04.290 ROD ASM; CONT,A/T
8-96016-702-0
01
1
9112-9408
29
04.290 ROD ASM; CONT,A/T
8-96017-286-0
01
1
9409-9607
29
04.290 ROD ASM; CONT,A/T
8-96014-271-0
01
1
9608-9703
29
04.290 ROD ASM; CONT,A/T
8-96017-286-0
01
1
9704-
40
04.037 NUT; LEVER TO SHAFT
(B) M10 FLANGE
0-91250-110-0
01
1
9112-
40
04.037 NUT; LEVER TO SHAFT
(A)
8-11067-223-0
01
1
9112-
59
04.265 SCREW; SW,A/T
8-96014-453-0
02
1
9112-
61
04.265 SWITCH ASM; POSITION
8-96015-275-0
01
1
9112-9302
61
04.265 SWITCH ASM; POSITION
8-96017-178-0
01
1
9303-9410
61
04.265 SWITCH ASM; POSITION
8-96017-620-0
01
1
9411-
72
04.035 LEVER; SELECT CONT
8-97013-518-1
01
1
9112-
74
04.294 PAWL; PARKING BRK LK,A/T
8-96016-620-0
01
1
9112-
75
04.290 PIN; PARKING BRK LK,A/T
8-05259-654-0
01
1
9112-
91
02.530 HARNESS ASM; CABLE,A/T CONT
8-96014-184-0
01
1
9112-9302
91
02.530 HARNESS ASM; CABLE,A/T CONT
8-96017-030-0
01
1
9303-9607
91
02.530 HARNESS ASM; CABLE,A/T CONT
04.115
8-96018-278-0
01
1
9608-
102
04.265 SHIELD; MODE SWITCH,A/T
8-96014-454-0
01
1
9112-
