Isuzu WW
▶
SUV
▶
UBS
▶
50658 - UBS-RHD
▶
2 - Clutch, Transmission, Trans Axle
▶
2-48 - AUTO TRANS MULTIPLE-DISC CLUTCH
▶

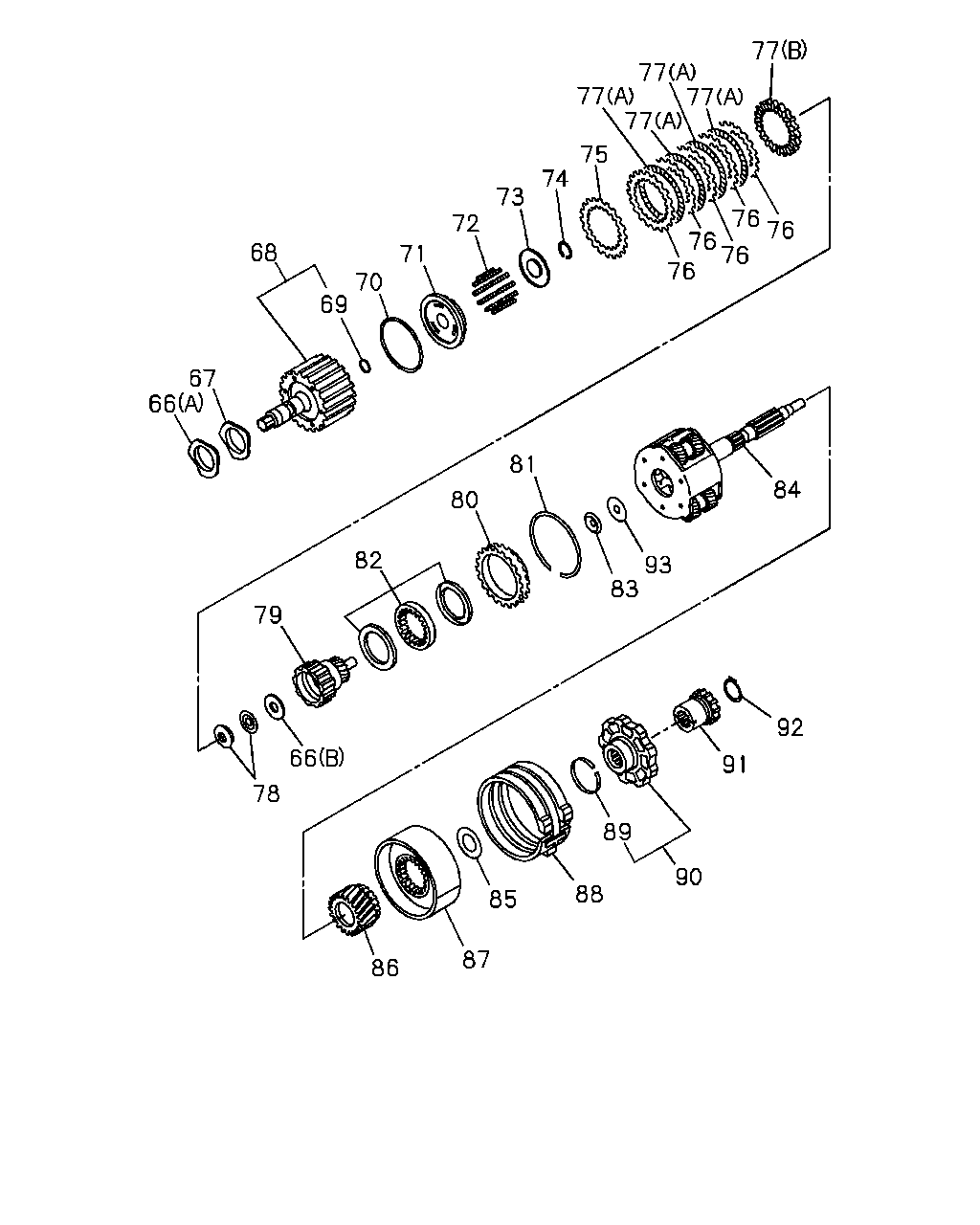

2-48 — AUTO TRANS MULTIPLE-DISC CLUTCH
(#44881) — 36 parça
86
87
88
85
90
89
91
92
84
93
83
81
80
82
79
66
78
66
67
68
69
70
71
72
73
74
75
77
77
77
77
77
76
76
76
76
76
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
66
04.169 WASHER; THRUST,3RD CLU
(A)
8-96013-403-0
01
1
9112-
66
04.169 WASHER; THRUST,3RD CLU
04.158 (B)
8-96015-459-0
01
1
9112-
67
04.169 WASHER; THRUST,CLU HUB
8-05258-945-0
01
1
9112-
68
04.169 DRUM; 3RD CLU
8-96041-095-0
01
1
9112-
69
04.262 SEAL; 3RD CLU PISTON INNER
8-96014-295-0
01
1
9112-9506
69
04.262 SEAL; 3RD CLU PISTON INNER
8-96018-543-0
01
1
9507-
70
04.262 SEAL; 3RD CLU PISTON OUTER
8-96014-296-0
01
1
9112-
71
04.262 PISTON; 3RD CLU
04.116
8-96016-223-0
01
1
9112-
72
04.262 SPRING; PISTON CLU
8-08958-719-0
12
1
9112-
73
04.262 SEAT; SPR,3RD CLU
8-05258-039-0
01
1
9112-
74
04.262 RING; RET
8-05258-094-0
01
1
9112-
75
04.262 PLATE; SPR,CLU
8-96014-643-0
01
1
9112-9410
75
04.262 PLATE; SPR,CLU
8-96017-603-0
01
1
9411-
76
04.262 PLATE; 3RD CLU
8-05258-955-0
05
1
9112-
77
04.262 PLATE ASM; 3RD CLU
(A)
8-96014-297-0
04
1
9112-
77
04.262 PLATE ASM; 3RD CLU
(B)
8-96014-946-0
01
1
9112-
78
04.262 WASHER & THRUST BEARING KIT
8-96040-078-0
01
1
9112-
79
04.262 GEAR ASM; INPUT SUN
8-96016-002-0
01
1
9112-9302
79
04.262 GEAR ASM; INPUT SUN
8-96016-253-0
01
1
9303-
80
04.262 RACE; SPRAG
04.116
8-96016-209-0
01
1
9112-
81
04.262 RING; RET,SPRAG
8-08958-684-0
01
1
9112-
82
04.256 SPRAG KIT
8-05258-137-0
01
1
9112-9410
82
04.256 SPRAG KIT
8-96017-149-0
01
1
9411-
83
04.256 BEARING; OUTPUT SHAFT
8-96014-602-0
01
1
9112-
84
04.256 CARRIER ASM; PLANETARY
8-96016-270-0
01
1
9112-9312
84
04.256 CARRIER ASM; PLANETARY
8-96017-348-0
01
1
9401-
85
04.256 THRUST BEARING & WASHER KIT
8-96016-084-0
01
1
9112-
86
04.256 GEAR; REACTION SUN
8-96015-037-0
01
1
9112-
87
04.256 DRUM; REACTION SUN
8-96014-581-0
01
1
9112-9607
87
04.256 DRUM; REACTION SUN
8-96018-009-0
01
1
9608-
88
04.256 BAND; BRAKE
8-96014-805-0
01
1
9112-
89
04.256 SEAL; RING,PARKING LOCK
8-05258-837-0
01
1
9112-
90
04.256 WHEEL; PARKING LOCK
8-96016-669-0
01
1
9112-
91
04.256 WHEEL; SPD
8-96015-053-0
01
1
9112-
92
04.256 RING; RET
8-96015-123-0
01
1
9112-
93
04.008 WASHER; OUTPUT SHAFT
04.262
8-96014-607-0
01
1
9112-
