◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50658 - UBS-RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-47 - AUTO TRANS PLANETARY GEAR AND GOVERNOR ▶
2-47 — AUTO TRANS PLANETARY GEAR AND GOVERNOR (#44880) — 57 parça

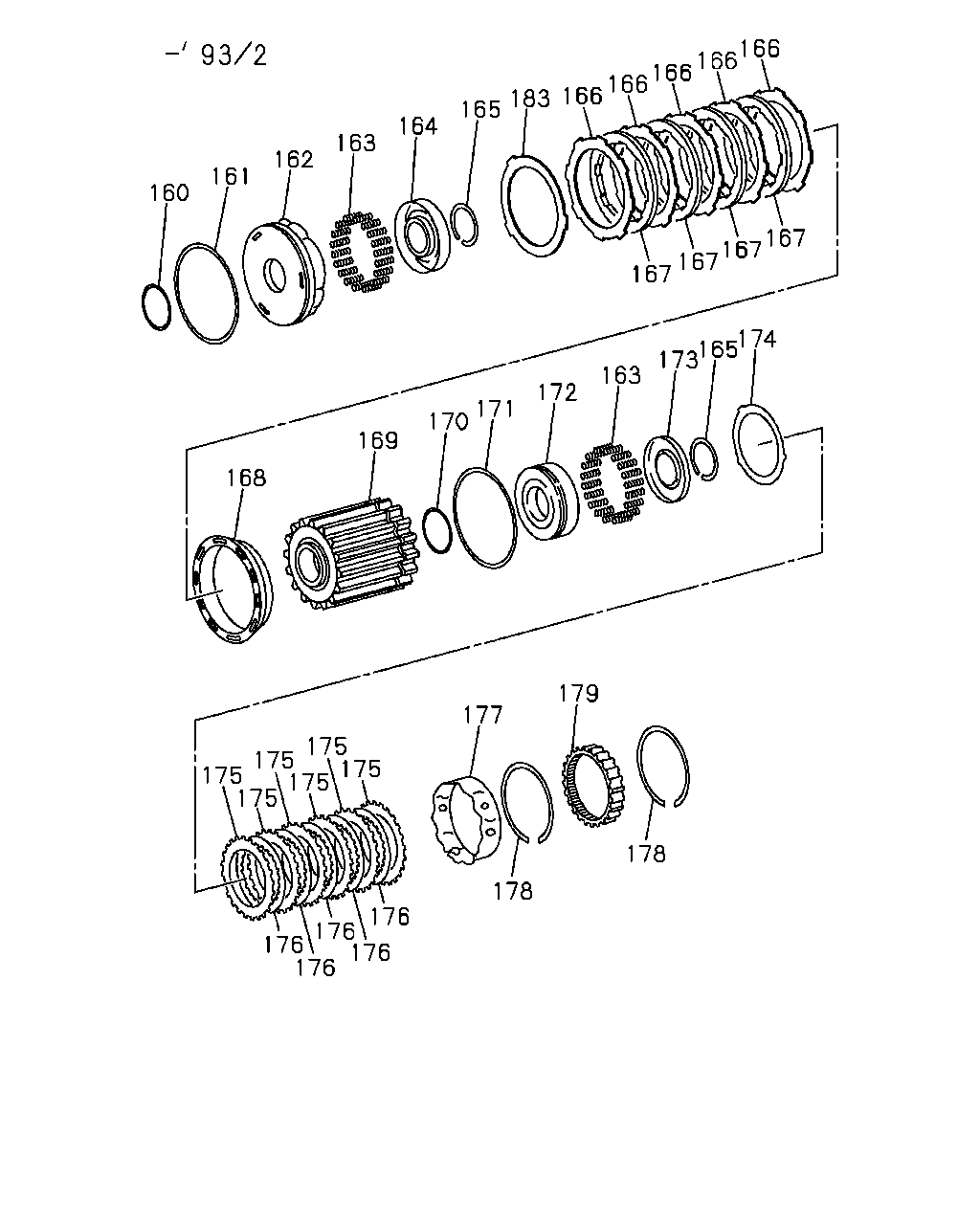

çizim 18623
160 161 162 163 164 165 183 166 166 166 166 166 167 167 167 167 174 165 173 163 172 171 170 169 168 175 175 175 175 175 175 177 179 178 178 176 176 176 176 176
BalonParca AdiParca NoAdetTipApplied Date
160 04.167 SEAL; REV CLU PISTON INNER 8-96014-331-0 01 1 9112-
161 04.167 SEAL; REV CLU PISTON OUTER 8-96014-332-0 01 1 9112-
162 04.167 PISTON; REV CLU 8-96014-964-0 01 1 9112-
163 04.176 SPRING; PISTON CLU
04.262 		8-08958-719-0 46 1 9112-
164 04.176 SEAT; SPR,REV CLU 8-05258-021-0 01 1 9112-
165 04.176 RING; RET 8-05258-093-0 02 1 9112-
166 04.176 PLATE; REV CLU 8-05258-957-0 05 1 9112-9312
166 04.176 PLATE; REV CLU 8-96017-283-0 05 1 9401-
167 04.176 PLATE ASM; REV CLU 8-96014-269-0 04 1 9112-
168 04.176 PLATE; REV CLU PRESS
T=6.35 		8-96014-622-0 01 1 9112-9302
168 04.176 PLATE; REV CLU PRESS 8-96041-050-0 01 1 9303-9312
168 04.176 PLATE; REV CLU PRESS 8-96041-217-0 01 1 9401-9607
168 04.176 PLATE; REV CLU PRESS
T=6.35 T=6.35 		8-96014-622-0 01 1 9608-
168 04.176 PLATE; REV CLU PRESS
T=6.64 T=6.64 		8-96014-623-0 01 1 9608-
168 04.176 PLATE; REV CLU PRESS
T=6.93 T=6.93 		8-96014-624-0 01 1 9608-
168 04.176 PLATE; REV CLU PRESS
T=7.22 T=7.22 		8-96014-625-0 01 1 9608-
168 04.176 PLATE; REV CLU PRESS
T=7.51 T=7.51 		8-96014-626-0 01 1 9608-
169 04.169 DRUM; 2ND CLU 8-96014-950-0 01 1 9112-9302
169 04.169 DRUM; 2ND CLU 8-96041-122-0 01 1 9303-
170 04.169 SEAL; 2ND CLU INNER 8-96014-305-0 01 1 9112-
171 04.169 SEAL; 2ND CLU OUTER 8-96014-306-0 01 1 9112-
172 04.169 PISTON; 2ND CLU 8-96016-384-0 01 1 9112-9302
173 04.169 SEAT; SPR,2ND CLU 8-05258-038-0 01 1 9112-
174 04.196 PLATE; 2ND CLU
04.169 		8-05258-990-0 01 1 9112-9302
175 04.176 PLATE; 2ND CLU 8-05258-956-0 06 1 9112-9302
176 04.176 PLATE ASM; 2ND CLU 8-96014-843-0 05 1 9112-9302
177 04.176 SPACER; 2ND CLU 8-08958-937-0 01 1 9112-9302
178 04.187 RING; RET 8-08958-619-0 02 1 9112-
179 04.190 GEAR; RING 8-96014-576-0 01 1 9112-
183 04.176 PLATE; REV CLU 8-05258-989-0 01 1 9209-9312
183 04.176 PLATE; REV CLU 8-96017-451-0 01 1 9401-

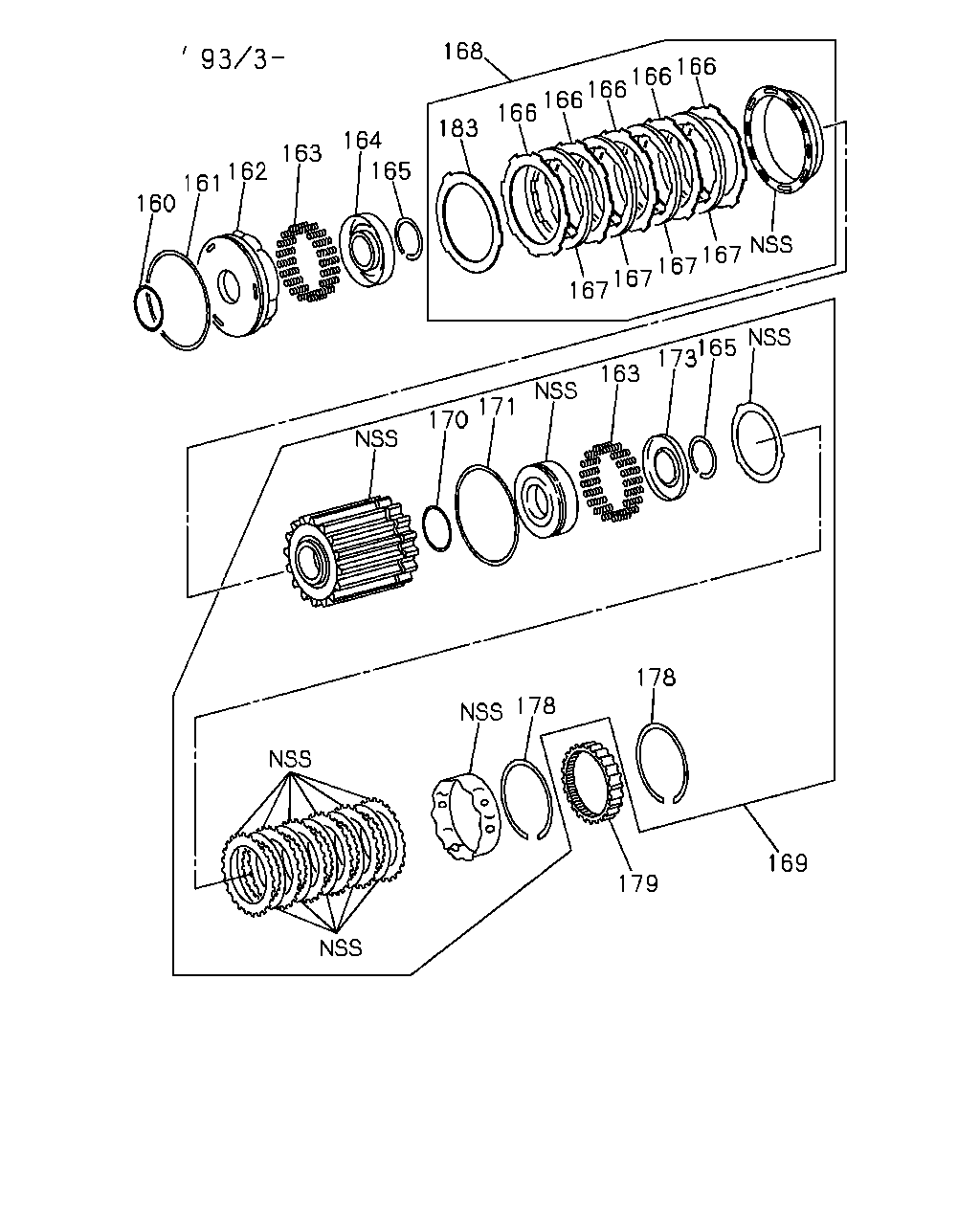

çizim 65952
168 160 161 162 163 164 165 183 166 166 166 166 166 167 167 167 167 165 173 163 171 170 178 178 169 179
BalonParca AdiParca NoAdetTipApplied Date
160 04.167 SEAL; REV CLU PISTON INNER 8-96014-331-0 01 1 9112-
161 04.167 SEAL; REV CLU PISTON OUTER 8-96014-332-0 01 1 9112-
162 04.167 PISTON; REV CLU 8-96014-964-0 01 1 9112-
163 04.176 SPRING; PISTON CLU
04.262 		8-08958-719-0 46 1 9112-
164 04.176 SEAT; SPR,REV CLU 8-05258-021-0 01 1 9112-
165 04.176 RING; RET 8-05258-093-0 02 1 9112-
166 04.176 PLATE; REV CLU 8-05258-957-0 05 1 9112-9312
166 04.176 PLATE; REV CLU 8-96017-283-0 05 1 9401-
167 04.176 PLATE ASM; REV CLU 8-96014-269-0 04 1 9112-
168 04.176 PLATE; REV CLU PRESS
T=6.35 		8-96014-622-0 01 1 9112-9302
168 04.176 PLATE; REV CLU PRESS 8-96041-050-0 01 1 9303-9312
168 04.176 PLATE; REV CLU PRESS 8-96041-217-0 01 1 9401-9607
168 04.176 PLATE; REV CLU PRESS
T=6.35 T=6.35 		8-96014-622-0 01 1 9608-
168 04.176 PLATE; REV CLU PRESS
T=6.64 T=6.64 		8-96014-623-0 01 1 9608-
168 04.176 PLATE; REV CLU PRESS
T=6.93 T=6.93 		8-96014-624-0 01 1 9608-
168 04.176 PLATE; REV CLU PRESS
T=7.22 T=7.22 		8-96014-625-0 01 1 9608-
168 04.176 PLATE; REV CLU PRESS
T=7.51 T=7.51 		8-96014-626-0 01 1 9608-
169 04.169 DRUM; 2ND CLU 8-96014-950-0 01 1 9112-9302
169 04.169 DRUM; 2ND CLU 8-96041-122-0 01 1 9303-
170 04.169 SEAL; 2ND CLU INNER 8-96014-305-0 01 1 9112-
171 04.169 SEAL; 2ND CLU OUTER 8-96014-306-0 01 1 9112-
173 04.169 SEAT; SPR,2ND CLU 8-05258-038-0 01 1 9112-
178 04.187 RING; RET 8-08958-619-0 02 1 9112-
179 04.190 GEAR; RING 8-96014-576-0 01 1 9112-
183 04.176 PLATE; REV CLU 8-05258-989-0 01 1 9209-9312
183 04.176 PLATE; REV CLU 8-96017-451-0 01 1 9401-
