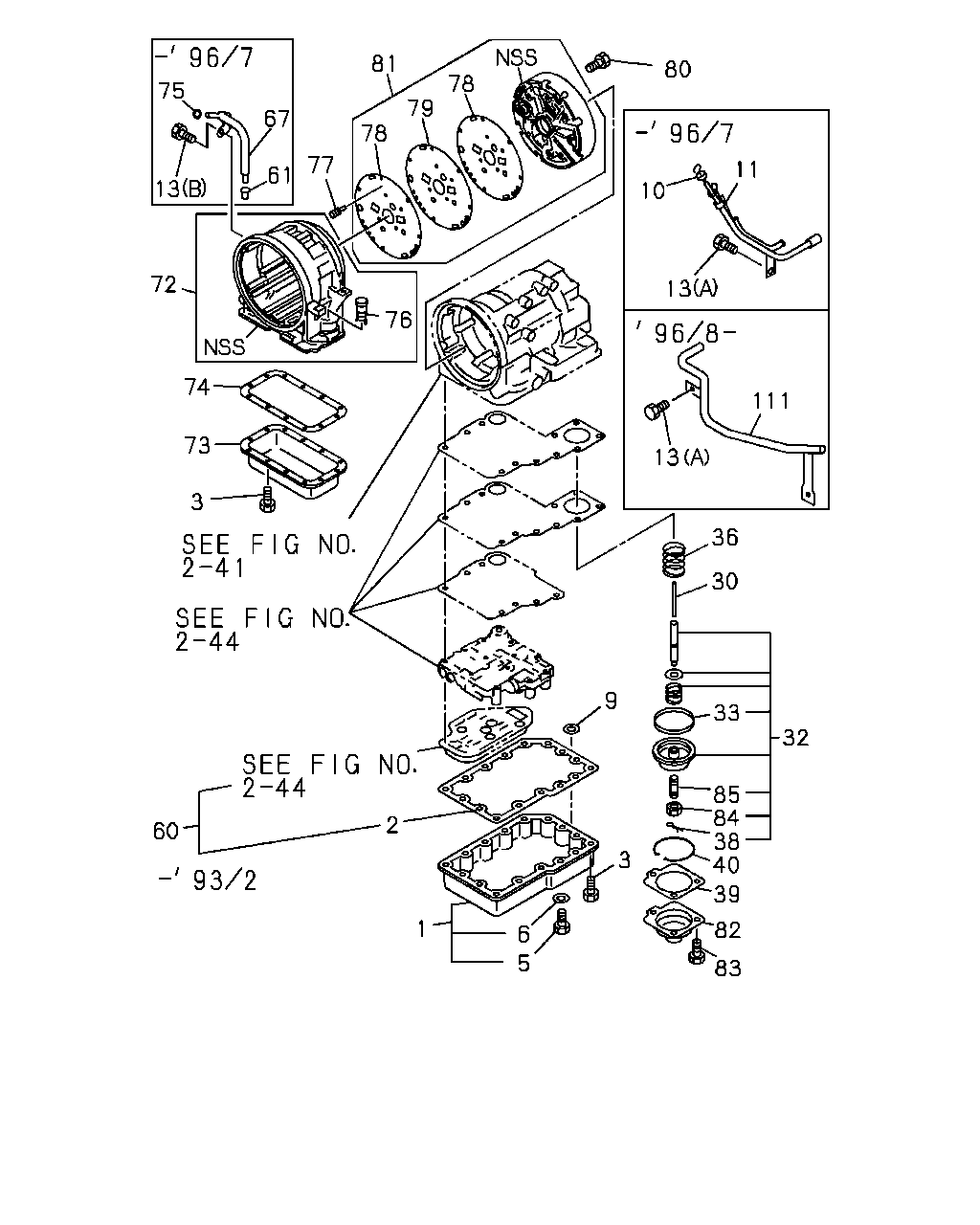

2-42 — AUTO TRANS OIL PAN AND OIL CONTROL (#44877) — 53 parça

83 82 39 3 6 5 1 2 60 9 40 85 84 38 33 32 30 36 13 111 11 10 13 80 78 81 78 79 77 67 75 13 61 76 72 74 73 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.195 PAN ASM; OIL,A/T	8-96016-554-0	01	1	9112-9607
1	04.195 PAN ASM; OIL,A/T	8-96017-876-0	01	1	9608-
2	04.196 GASKET; OIL PAN,A/T	8-96014-234-0	01	1	9112-
3	04.196 BOLT; OIL PAN TO CASE	8-96014-452-0	28	1	9112-9302
3	04.196 BOLT; OIL PAN TO CASE	8-96017-023-0	28	1	9303-
5	04.195 PLUG; OIL PAN	8-96015-481-0	01	1	9112-9607
5	04.195 PLUG; OIL PAN	8-96015-481-0	02	1	9608-
6	04.195 GASKET; OIL PAN TO PLUG	8-96014-572-0	01	1	9112-9607
6	04.195 GASKET; OIL PAN TO PLUG	8-01638-257-0	02	1	9608-
9	04.195 MAGNET; OIL PAN	8-96013-938-0	01	1	9112-
10	04.197 GAUGE; OIL LEVEL	8-97066-966-4	01	1	9112-9607
11	04.197 TUBE; OIL FILLER 6VD1 SOHC ENG(RLU)	8-97068-802-2	01	1	9112-9308
11	04.197 TUBE; OIL FILLER	8-97068-802-2	01	1	9309-9403
11	04.197 TUBE; OIL FILLER	8-97108-767-0	01	1	9404-9607
13	04.197 BOLT; OIL FILLER 06.672 (A) M8X16 FLANGE	0-28010-816-0	01	1	9112-9204
13	04.197 BOLT; OIL FILLER 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	9205-
13	04.197 BOLT; OIL FILLER 04.196 (B)	8-96014-452-0	01	1	9112-9302
13	04.197 BOLT; OIL FILLER 04.196 (B)	8-96017-023-0	01	1	9303-9607
30	04.265 ROD; VAC DIAPH,A/T	8-05258-182-0	01	1	9112-
32	04.228 PISTON ASM; SERVO,A/T	8-05258-183-0	01	1	9112-9504
32	04.228 PISTON ASM; SERVO,A/T	8-96017-601-0	01	1	9505-
33	04.229 SEAL; RING,SERVO PISTON,A/T	8-05258-159-0	01	1	9112-
36	04.233 SPRING; RETURN,SERVO PISTON,A/T	8-08958-931-0	01	1	9112-
38	04.233 RING; SNAP,SERVO PISTON,A/T	8-05258-185-0	01	1	9112-
39	04.212 GASKET; SERVO COVER	8-96014-414-0	01	1	9112-
40	04.233 RETAINER; SERVO PISTON,A/T	8-05258-121-0	01	1	9112-
60	04.198 REPAIR KIT; OIL FILTER,A/T 04.197	8-96041-011-0	01	1	9112-9302
61	04.198 SEAL; OIL FILTER	8-96014-690-0	01	1	9112-9410
61	04.198 SEAL; OIL FILTER 04.197	8-01259-475-0	01	1	9411-9607
67	04.198 TUBE; OIL FILLER,UPR,A/T	8-96015-118-0	01	1	9112-9607
72	04.195 CASE ASM; ADAPTER	8-96016-973-0	01	1	9112-9302
72	04.195 CASE ASM; ADAPTER	8-96041-192-0	01	1	9303-9410
72	04.195 CASE ASM; ADAPTER	8-96017-512-0	01	1	9411-
73	04.195 PAN ASM; ADAPTER	8-96014-186-0	01	1	9112-
74	04.195 GASKET; ADAPTER PAN	8-96014-235-0	01	1	9112-
75	04.195 SEAL; FILTER TUBE	8-96014-673-0	01	1	9112-9607
76	04.195 CONNECTOR; ADAPTER CASE	8-96015-408-0	01	1	9112-
77	04.195 RESTRICTOR; OIL	8-96014-353-0	01	1	9112-
78	04.195 GASKET; ADAPTER PLATE	8-96016-500-0	02	1	9112-9302
78	04.195 GASKET; ADAPTER PLATE	8-96016-514-0	02	1	9303-
79	04.195 PLATE; ADAPTER,CTR SUPPORT	8-96016-833-0	01	1	9112-
80	04.195 SCREW; CTR SUPPORT	8-96013-316-0	08	1	9112-
81	04.233 SUPPORT ASM; CENTER	8-96041-121-0	01	1	9112-9302
81	04.233 SUPPORT ASM; CENTER	8-96041-203-0	01	1	9303-9410
81	04.233 SUPPORT ASM; CENTER	8-96041-282-0	01	1	9411-
82	04.233 COVER; SERVO PISTON	8-96014-413-0	01	1	9112-
83	04.233 SCREW; SERVO COVER 04.195	8-96013-316-0	04	1	9112-
84	04.233 NUT; SERVO SCREW	8-00114-494-0	01	1	9112-9504
84	04.233 NUT; SERVO SCREW	8-96017-231-0	01	1	9505-
85	04.233 SCREW; SERVO PISTON	8-96014-010-0	01	1	9112-9504
85	04.233 SCREW; SERVO PISTON	8-96017-230-0	01	1	9505-9703
85	04.233 SCREW; SERVO PISTON	8-96018-235-0	01	1	9704-
111	04.229 PIPE; BREATHER 04.205	8-97120-495-3	01	1	9608-
