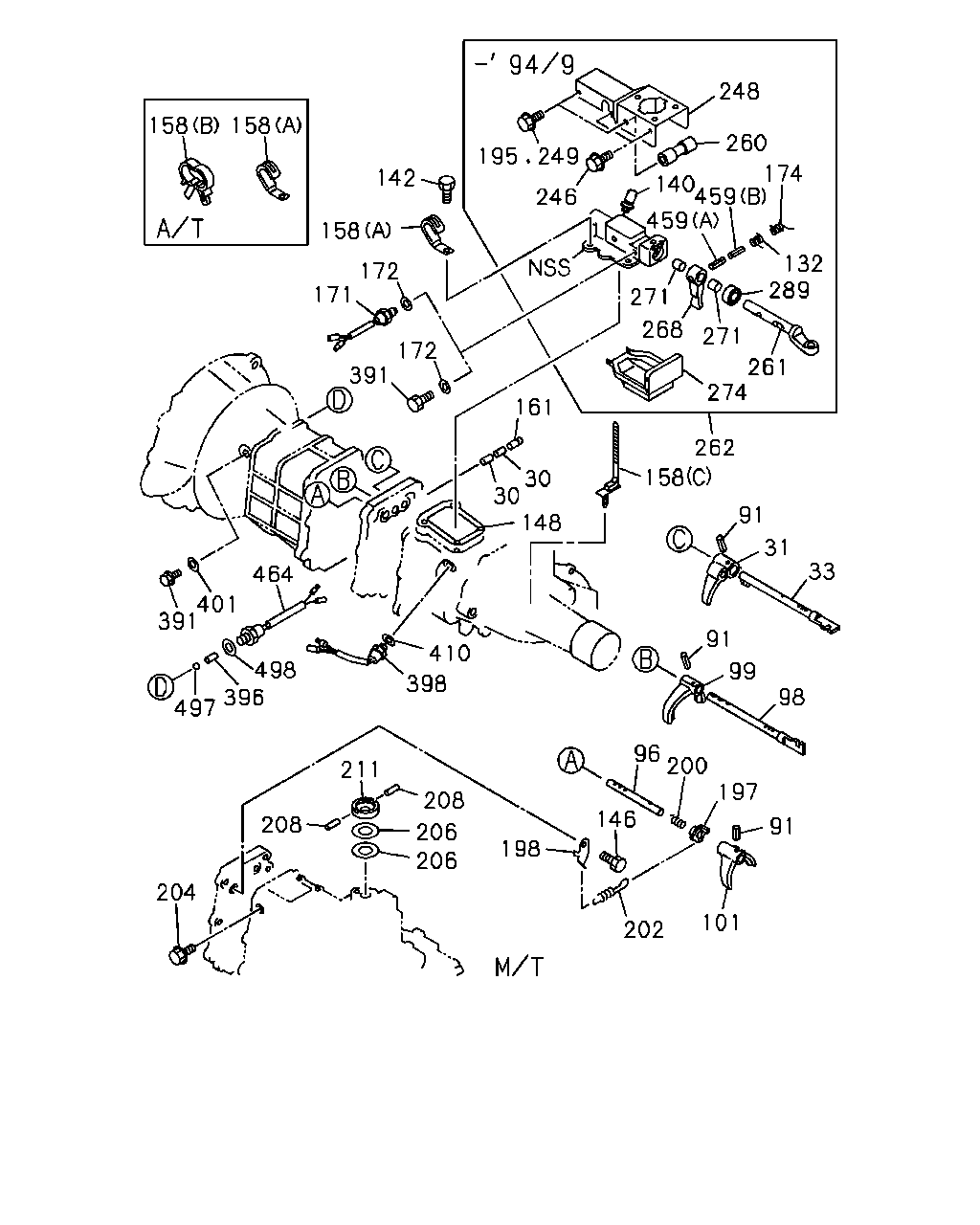

2-30 — GEAR SHIFTER AND QUADRANT BOX (#44873) — 104 parça

158 158 142 158 171 172 172 391 195 249 246 140 260 248 174 459 459 132 289 271 261 274 271 268 161 262 158 30 30 148 91 31 33 98 99 91 91 197 200 96 146 101 202 198 206 206 208 410 398 211 208 204 497 396 498 464 401 391

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
30	04.307 PIN; INTER LK	5-33534-002-1	02	1	9112-	●
31	04.302 ARM; SHIFT,LOW & 2ND	8-94421-912-2	01	1	9112-	●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97019-061-1	01	1	9112-	●
91	04.302 PIN; SPR,SHIFT ARM 04.303 D=4.2 L=25	8-94171-541-0	03	1	9112-	●
96	04.309 ROD; SHIFT,5TH	8-94440-079-0	01	1	9112-	●
98	04.309 ROD; SHIFT,TOP & 3RD	8-97019-060-2	01	1	9112-	●
99	04.302 ARM; SHIFT,4TH & 3RD	8-94421-911-2	01	1	9112-	●
101	04.302 ARM; SHIFT,REV & 5TH	8-94448-755-2	01	1	9112-	●
132	04.027 SPRING; SELECT STOP 04.042	8-94473-790-1	01	1	9112-9409	●
132	04.027 SPRING; SELECT STOP	8-97103-106-0	01	1	9410-	●
140	04.104 BREATHER; AIR,TRANS L=39	8-97035-693-2	01	1	9112-9409	●
142	04.012 BOLT; QUAD BOX 04.356 M8X22 FLANGE	8-94448-815-3	04	1	9112-	●
146	04.032 BOLT; REV INHIBITOR 08.900 M8X22 FLANGE	0-28080-822-0	01	1	9112-9609	●
146	04.032 BOLT; REV INHIBITOR 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9610-	●
148	04.015 GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 04.012	8-94473-945-0	01	1	9112-9308	●
148	04.015 GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-97083-599-0	01	1	9309-	●
158	04.105 CLIP; HARNESS 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	04	1	9112-9208	●
158	04.105 CLIP; HARNESS 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9112-		●
158	04.105 CLIP; HARNESS (B) ID=24	8-97022-568-3	01	1	9112-		●
158	04.105 CLIP; HARNESS (C) L=140	8-97122-360-0	01	1	9510-9512		●
161	04.307 PLUG; INTER LK HOLE	8-94239-543-1	01	1	9112-	●
171	04.054 SWITCH; NEUTRAL 6VD1 SOHC ENG(RLU) AUTO CRUISE CONT<K30>	5-82440-004-1	01	1	9112-9504	●
172	04.054 GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). 04.075 ID=14.2	8-94462-114-0	01	1	9112-	●
174	04.307 SPRING; REV 04.042	8-94473-791-1	01	1	9112-9409	●
174	04.307 SPRING; REV	8-97103-105-0	01	1	9410-	●
195	04.105 BOLT 04.012 M8X12 FLANGE	8-97049-142-0	01	1	9604-9604	●
195	04.105 BOLT 01.656 M8X12 FLANGE	8-94479-696-1	01	1	9604-	●
195	04.105 BOLT 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9309-9409	●
197	04.309 INHIBITOR; REV SHIFT	8-94448-753-0	01	1	9112-	●
198	04.309 BRACKET; REV INHIBITOR	8-94448-199-0	01	1	9112-	●
200	04.309 SPRING; REV INHIBITOR,COMP	8-94448-807-0	01	1	9112-	●
202	04.309 SPRING; REV INHIBITOR,EXT	8-97017-500-0	01	1	9112-	●
204	04.309 STOPPER; REV INHIBITOR	8-94479-434-2	01	1	9112-	●
206	04.307 SPRING; BALL SEAT 04.570	9-33619-632-0	02	1	9112-9707	●
208	04.307 PIN; BALL SEAT	8-94204-186-0	02	1	9112-9707	●
211	04.307 SEAT; BALL 04.570	5-33619-042-0	01	1	9112-9707	●
246	04.105 SCREW; DUST COVER M4X10 FLANGE	8-94328-359-1	04	1	9112-9409	●
248	04.105 RETAINER; CONT BOX	8-94328-360-2	01	1	9112-9409	●
249	04.012 BOLT; RET,CONT BOX M8X12 FLANGE	8-97049-142-0	05	1	9112-9308	●
249	04.012 BOLT; RET,CONT BOX M8X12 FLANGE	8-97049-142-0	03	1	9309-9409	●
260	04.309 SHAFT; SPRING SET,CONT BOX	8-94473-789-0	01	1	9112-9409	●
261	04.309 ROD; GEAR CONT	8-94473-788-3	01	1	9112-9409	●
261	04.309 ROD; GEAR CONT	8-97103-090-1	01	1	9410-	●
262	04.105 BOX ASM; SHIFT CONT	8-97033-096-3	01	1	9112-9409	●
262	04.105 BOX ASM; SHIFT CONT	8-97100-878-3	01	1	9410-	●
268	04.302 LEVER; CONT,INTERNAL	8-94473-786-1	01	1	9112-9409	●
268	04.302 LEVER; CONT,INTERNAL	8-97103-089-0	01	1	9410-	●
271	04.105 BUSHING; QUAD BOX	8-94151-447-0	02	1	9112-9310	●
271	04.105 BUSHING; QUAD BOX ID=14 L=15	8-94478-119-0	02	1	9311-	●
274	04.105 COVER; SHAFT,QUAD BOX	8-94473-785-2	01	1	9112-9409	●
274	04.105 COVER; SHAFT,QUAD BOX	8-97103-093-2	01	1	9410-	●
289	04.107 SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-94221-533-1	01	1	9112-9310	●
289	04.107 SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-94478-118-0	01	1	9311-	●
391	04.104 PLUG; SW HOLE EXC. AUTO CRUISE CONT<K30> 08.971 M14X9	9-99202-314-0	01	1	9112-9308	●
391	04.104 PLUG; SW HOLE 6VD1 SOHC ENG(RLU) EXC. AUTO CRUISE CONT<K30> 08.971 M14X9	9-99202-314-0	03	1	9112-9205	●
391	04.104 PLUG; SW HOLE 6VD1 SOHC ENG(RLU) AUTO CRUISE CONT<K30> 08.971 M14X9	9-99202-314-0	02	1	9112-9205	●
391	04.104 PLUG; SW HOLE 6VD1 SOHC ENG(RLU) 08.971 M14X9	9-99202-314-0	02	1	9206-9308	●
391	04.104 PLUG; SW HOLE EXC. ANTI LOCK BRAKE SYSTEM(JE5) 08.971 M14X9	9-99202-314-0	01	1	9309-9312	●
391	04.104 PLUG; SW HOLE EXC. ANTI LOCK BRAKE SYSTEM(JE5) M14X11	8-94252-142-0	01	1	9401-	●
396	04.311 PLUNGER; SHIFT ROD 4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) ANTI LOCK BRAKE SYSTEM(JE5) 04.075 D=5.5 L=20.7	8-94225-228-0	01	1	9309-	●
398	02.698 SWITCH; REV LAMP	8-94464-566-0	01	1	9112-9609	●
398	02.698 SWITCH; REV LAMP	8-97138-635-0	01	1	9610-	●
401	04.075 GASKET; SWITCH,TOP & 3RD 6VD1 SOHC ENG(RLU) 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	9505-	●
410	04.054 GASKET; REV SW 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	9112-	●
459	04.302 PIN; SPR,ROD TO ARM 04.042 (A) OD=5.4	9-09678-510-0	01	1	9112-	●
459	04.302 PIN; SPR,ROD TO ARM 04.042 (B) OD=3.3	9-09678-519-0	01	1	9112-	●
464	04.075 SWITCH; 1ST & 2ND 4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) ANTI LOCK BRAKE SYSTEM(JE5) 04.439	8-94411-366-1	01	1	9309-	●
497	04.307 BALL; SWITCH 4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) ANTI LOCK BRAKE SYSTEM(JE5)	9-00097-517-0	01	1	9309-	●
498	04.075 GASKET; SWITCH,1ST & 2ND 4JG2 ENG(RJC),4JG1 ENG(RLT),6VD1 SOHC ENG(RLU) 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	9309-9504	●
498	04.075 GASKET; SWITCH,1ST & 2ND 4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	9505-	●

262 511 459 271 186 142 195 172 391 274 479 166 22 132 22 479 166 174 268 261 289 271 459

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
22	04.307 CAP; RETURN SPR,SHIFT BLOCK	8-97103-102-0	02	1	9410-	●
132	04.027 SPRING; SELECT STOP 04.042	8-94473-790-1	01	1	9112-9409	●
132	04.027 SPRING; SELECT STOP	8-97103-106-0	01	1	9410-	●
142	04.012 BOLT; QUAD BOX 04.356 M8X22 FLANGE	8-94448-815-3	04	1	9112-	●
166	04.302 PIN; SPR,SELECT LEVER 04.307 D=4.2 L=25	8-97103-142-0	02	1	9410-	●
172	04.054 GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). 04.075 ID=14.2	8-94462-114-0	01	1	9112-	●
174	04.307 SPRING; REV 04.042	8-94473-791-1	01	1	9112-9409	●
174	04.307 SPRING; REV	8-97103-105-0	01	1	9410-	●
186	04.105 PLUG; SHIFTER ROD 00.253 OD=16	9-11129-081-0	01	1	9410-	●
195	04.105 BOLT 04.012 M8X12 FLANGE	8-97049-142-0	01	1	9604-9604	●
195	04.105 BOLT 01.656 M8X12 FLANGE	8-94479-696-1	01	1	9604-	●
195	04.105 BOLT 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9309-9409	●
261	04.309 ROD; GEAR CONT	8-94473-788-3	01	1	9112-9409	●
261	04.309 ROD; GEAR CONT	8-97103-090-1	01	1	9410-	●
262	04.105 BOX ASM; SHIFT CONT	8-97033-096-3	01	1	9112-9409	●
262	04.105 BOX ASM; SHIFT CONT	8-97100-878-3	01	1	9410-	●
268	04.302 LEVER; CONT,INTERNAL	8-94473-786-1	01	1	9112-9409	●
268	04.302 LEVER; CONT,INTERNAL	8-97103-089-0	01	1	9410-	●
271	04.105 BUSHING; QUAD BOX	8-94151-447-0	02	1	9112-9310	●
271	04.105 BUSHING; QUAD BOX ID=14 L=15	8-94478-119-0	02	1	9311-	●
274	04.105 COVER; SHAFT,QUAD BOX	8-94473-785-2	01	1	9112-9409	●
274	04.105 COVER; SHAFT,QUAD BOX	8-97103-093-2	01	1	9410-	●
289	04.107 SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-94221-533-1	01	1	9112-9310	●
289	04.107 SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-94478-118-0	01	1	9311-	●
391	04.104 PLUG; SW HOLE EXC. AUTO CRUISE CONT<K30> 08.971 M14X9	9-99202-314-0	01	1	9112-9308	●
391	04.104 PLUG; SW HOLE 6VD1 SOHC ENG(RLU) EXC. AUTO CRUISE CONT<K30> 08.971 M14X9	9-99202-314-0	03	1	9112-9205	●
391	04.104 PLUG; SW HOLE 6VD1 SOHC ENG(RLU) AUTO CRUISE CONT<K30> 08.971 M14X9	9-99202-314-0	02	1	9112-9205	●
391	04.104 PLUG; SW HOLE 6VD1 SOHC ENG(RLU) 08.971 M14X9	9-99202-314-0	02	1	9206-9308	●
391	04.104 PLUG; SW HOLE EXC. ANTI LOCK BRAKE SYSTEM(JE5) 08.971 M14X9	9-99202-314-0	01	1	9309-9312	●
391	04.104 PLUG; SW HOLE EXC. ANTI LOCK BRAKE SYSTEM(JE5) M14X11	8-94252-142-0	01	1	9401-	●
459	04.302 PIN; SPR,ROD TO ARM 04.042 (A) OD=5.4	9-09678-510-0	01	1	9112-	●
459	04.302 PIN; SPR,ROD TO ARM 04.042 (B) OD=3.3	9-09678-519-0	01	1	9112-	●
479	04.307 PLATE; SELECT D=13	8-97103-110-0	02	1	9410-	●
511	04.302 PIPE; AIR	8-97104-725-0	01	1	9410-	●
