Sayfa 2-26 - Isuzu EPC

2-26 — MANUAL TRANSMISSION GEAR (#44872) — 248 parça

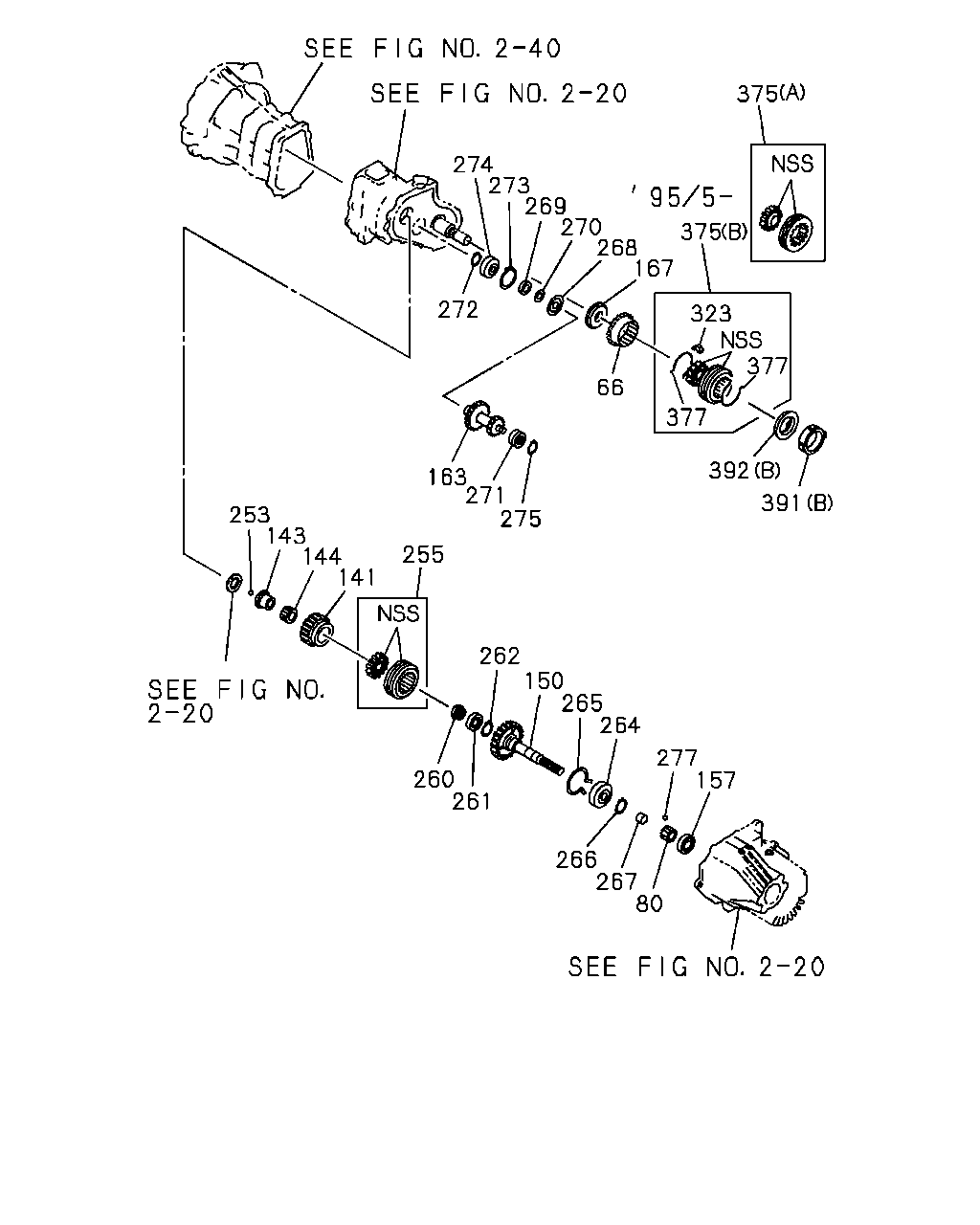

274 272 273 375 375 269 270 268 167 66 323 377 377 392 391 275 271 163 255 141 144 143 253 262 150 265 264 277 157 80 267 266 261 260

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
66	04.383 RING; BLOCK,SYN SHIFT ON THE FLY(7EX)	8-97102-296-0	01	1	9505-9506	●
66	04.383 RING; BLOCK,SYN SHIFT ON THE FLY(7EX)	8-97102-296-0	01	1	9507-9612	●	●
66	04.383 RING; BLOCK,SYN SHIFT ON THE FLY(7EX)	8-97169-516-0	01	1	9701-	●	●
80	04.343 GEAR; SPD DRIVE Z=6	8-94333-535-2	01	1	9112-	●	●
141	04.535 GEAR; INPUT,TRANSFER Z=34	8-97018-362-0	01	1	9112-9502	●	●
141	04.535 GEAR; INPUT,TRANSFER Z=34	8-97120-121-0	01	1	9503-9607	●	●
141	04.535 GEAR; INPUT,TRANSFER Z=34	8-97141-878-0	01	1	9608-	●	●
143	04.525 COLLAR; INPUT GEAR BRG,TRANSFER	8-94482-579-1	01	1	9112-	●	●
144	04.525 BEARING; NEEDLE,INPUT GEAR 04.419 NSK	1-09811-028-1	01	1	9112-	●	●
150	04.530 SHAFT; OUTPUT,RR WHEEL DRIVE Z=47	8-97018-363-1	01	1	9112-9501	●	●
150	04.530 SHAFT; OUTPUT,RR WHEEL DRIVE Z=47	8-97113-405-0	01	1	9502-9502	●	●
150	04.530 SHAFT; OUTPUT,RR WHEEL DRIVE Z=47	8-97120-122-0	01	1	9503-9607	●	●
150	04.530 SHAFT; OUTPUT,RR WHEEL DRIVE Z=49	8-97141-879-0	01	1	9608-9703	●	●
150	04.530 SHAFT; OUTPUT,RR WHEEL DRIVE Z=49	8-97166-156-0	01	1	9704-	●	●
157	04.520 BEARING; BALL,OUTPUT SHAFT NSK	8-94422-050-0	01	1	9112-	●	●
163	04.535 GEAR; COUNTER,TRANSFER Z=38-23	8-94367-604-0	01	1	9112-9502	●	●
163	04.535 GEAR; COUNTER,TRANSFER Z=38-23	8-97120-124-0	01	1	9503-9607	●	●
163	04.535 GEAR; COUNTER,TRANSFER Z=37-26	8-97165-317-0	01	1	9608-	●	●
167	04.422 PLATE; LK,COUNTER SHAFT,TRANSFER SHIFT ON THE FLY(7EX)	8-97102-940-0	01	1	9505-	●	●
253	04.535 BALL; INPUT 04.416	8-94201-356-0	01	1	9112-	●	●
255	04.538 SYNCHRONIZER ASM; LOW-HIGH,TRANS	8-97030-109-0	01	1	9112-9607	●
255	04.538 SYNCHRONIZER ASM; LOW-HIGH,TRANS	8-97141-885-1	01	1	9608-	●	●
255	04.538 SYNCHRONIZER ASM; LOW-HIGH,TRANS	8-97033-098-0	01	1	9112-9607		●
260	04.412 NUT; MAINSHAFT END M30	8-94422-072-1	01	1	9112-	●
260	04.412 NUT; MAINSHAFT END M27	8-94388-182-1	01	1	9112-		●
261	04.525 BEARING; PILOT,OUTPUT SHAFT NSK	8-94422-176-0	01	1	9112-	●	●
262	04.525 RING; SNAP,PILOT BRG 08.934 ID=23.2	9-09180-025-0	01	1	9112-	●	●
264	04.520 BEARING; RR OUTPUT SHAFT,FRT NSK	8-94422-054-0	01	1	9112-9308	●	●
264	04.520 BEARING; RR OUTPUT SHAFT,FRT KOYO	8-94422-055-1	01	1	9505-	●	●
264	04.520 BEARING; RR OUTPUT SHAFT,FRT NSK	8-94422-054-0	01	1	9309-	●	●
265	04.525 RING; SNAP,BRG OUTER OD=95.0	8-94422-091-0	01	1	9112-	●	●
266	04.525 RING; SNAP,BRG INNER ID=37.0 OD=53.0	8-94422-093-0	01	1	9112-	●	●
267	04.338 COLLAR; RR OUTPUT SHAFT,TRANSFER	8-94368-835-1	01	1	9112-9501	●	●
268	04.537 PLATE; ANTI LASH,COUNTER	8-94320-567-0	01	1	9112-9607	●	●
268	04.537 PLATE; ANTI LASH,COUNTER	8-97164-348-0	01	1	9608-	●	●
269	04.537 SPACER; ANTI LASH PLATE,COUNTER	8-94482-469-1	01	1	9112-	●	●
270	04.520 SPRING; BELLEVILLE,ANTI LASH,TRA 04.537	8-94482-498-0	01	1	9112-	●	●
271	04.520 BEARING; COUNTER GEAR,FRT NSK	8-94422-050-0	01	1	9112-	●	●
272	04.525 RING; SNAP,BRG INNER T=1.50 WHITE	8-94448-808-0	01	1	9112-9403	●
272	04.525 RING; SNAP,BRG INNER T=1.55 YELLOW	8-94448-809-0	01	1	9404-	●
272	04.525 RING; SNAP,BRG INNER T=1.60 BLUE	8-94448-810-0	01	1	9112-	●
272	04.525 RING; SNAP,BRG INNER T=1.55 YELLOW	8-94448-809-0	01	1	9112-9403	●	●
272	04.525 RING; SNAP,BRG INNER T=1.50 WHITE	8-94448-808-0	01	1	9404-	●	●
273	04.525 RING; SNAP,BRG OUTER OD=77.0	8-94422-092-0	01	1	9112-	●	●
274	04.520 BEARING; COUNTER GEAR,RR NSK	8-94422-058-1	01	1	9112-9112	●	●
274	04.520 BEARING; COUNTER GEAR,RR NSK	8-97075-338-0	01	1	9201-9203	●	●
274	04.520 BEARING; COUNTER GEAR,RR NSK	8-97080-183-0	01	1	9204-9210	●	●
274	04.520 BEARING; COUNTER GEAR,RR NSK	8-97080-184-0	01	1	9211-9405	●	●
274	04.520 BEARING; COUNTER GEAR,RR NSK	8-97113-429-0	01	1	9406-9706	●	●
274	04.520 BEARING; COUNTER GEAR,RR NSK	8-97080-184-0	01	1	9707-	●	●
274	04.520 BEARING; COUNTER GEAR,RR KOYO	8-97080-185-0	01	1	9309-9405	●	●
274	04.520 BEARING; COUNTER GEAR,RR KOYO	8-97113-430-0	01	1	9406-9706	●	●
274	04.520 BEARING; COUNTER GEAR,RR KOYO	8-97080-185-0	01	1	9707-	●	●
275	04.525 RING; SNAP,COUNTER GEAR BRG 08.934 ID=23.2	9-09180-025-0	01	1	9112-	●	●
277	04.345 BALL; SPD DRIVE GEAR 04.416	8-94201-356-0	01	1	9112-	●	●
323	04.384 INSERT	8-94448-202-1	03	1	9501-9504	●
323	04.384 INSERT SHIFT ON THE FLY(7EX)	8-94448-202-1	03	1	9505-	●	●
375	04.380 SYNCHRONIZER ASM; 2ND & 4TH 04.538 (A)	8-94457-785-1	01	1	9112-9412	●	●
375	04.380 SYNCHRONIZER ASM; 2ND & 4TH (A)	8-97104-026-0	01	1	9501-9504	●	●
375	04.380 SYNCHRONIZER ASM; 2ND & 4TH EXC. SHIFT ON THE FLY(7EX) (A)	8-97104-026-0	01	1	9505-	●	●
375	04.380 SYNCHRONIZER ASM; 2ND & 4TH SHIFT ON THE FLY(7EX) (B)	8-97104-027-0	01	1	9505-	●	●
377	04.384 SPRING; INSERT,4X2-4X4 SYN,TRANS	8-94422-075-0	02	1	9501-9504	●
377	04.384 SPRING; INSERT,4X2-4X4 SYN,TRANS SHIFT ON THE FLY(7EX)	8-94422-075-0	02	1	9505-	●	●
391	04.383 RING; INSIDE,SYN (A)	8-94363-056-0	02	1	9112-9504	●
391	04.383 RING; INSIDE,SYN SHIFT ON THE FLY(7EX) (B)	8-97101-452-0	01	1	9505-9506	●
391	04.383 RING; INSIDE,SYN SHIFT ON THE FLY(7EX) (B)	8-97101-452-0	01	1	9507-	●	●
391	04.383 RING; INSIDE,SYN (A)	8-94363-056-0	02	1	9505-	●
392	04.383 RING; OUTSIDE,SYN (A) OD=90.0	8-94363-055-0	02	1	9112-9504	●
392	04.383 RING; OUTSIDE,SYN SHIFT ON THE FLY(7EX) (B)	8-94455-344-2	01	1	9505-9506	●
392	04.383 RING; OUTSIDE,SYN SHIFT ON THE FLY(7EX) (B)	8-94455-344-2	01	1	9507-9612	●	●
392	04.383 RING; OUTSIDE,SYN SHIFT ON THE FLY(7EX)	8-97169-514-0	01	1	9701-	●	●
392	04.383 RING; OUTSIDE,SYN (A) OD=90.0	8-94363-055-0	02	1	9505-	●

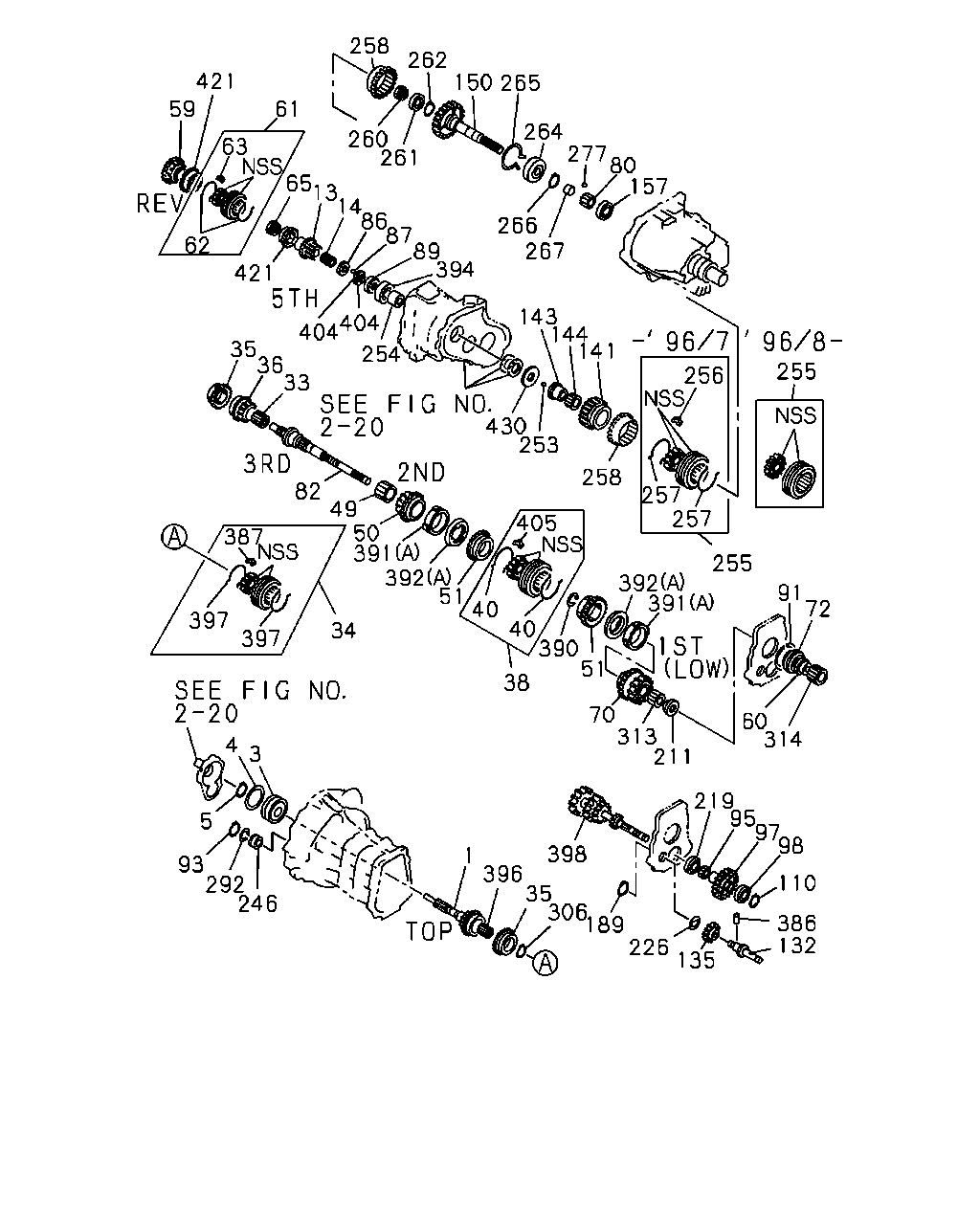

258 262 260 61 421 59 62 63 421 404 404 65 261 13 14 86 87 89 394 254 143 266 267 150 265 264 277 80 157 144 141 430 253 35 36 33 82 49 50 391 392 387 397 397 34 4 3 5 93 292 246 1 396 35 306 189 226 135 398 132 386 98 97 95 110 219 211 313 70 51 390 38 40 51 40 405 258 392 391 314 60 72 91 255 257 257 256 255

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.351 SHAFT; TOP GEAR,TRANS 4JG2 ENG(RJC),4JG1 ENG(RLT),6VD1 SOHC ENG(RLU) Z=25	8-97041-579-2	01	1	9112-9312	●
1	04.351 SHAFT; TOP GEAR,TRANS Z=25	8-97041-579-3	01	1	9401-9409	●
1	04.351 SHAFT; TOP GEAR,TRANS Z=25	8-97100-908-3	01	1	9410-9709	●
1	04.351 SHAFT; TOP GEAR,TRANS Z=25	8-97182-212-0	01	1	9710-	●
1	04.351 SHAFT; TOP GEAR,TRANS 4ZE1 ENG(RLJ) Z=25	8-94421-856-5	01	1	9112-9312	●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-94380-015-1	01	1	9112-	●
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT NSK	8-94422-083-0	01	1	9112-	●
5	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 08.934 ID=37.0	9-09180-040-0	01	1	9112-9303	●
5	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 04.525 ID=37.0 OD=53.0	8-94422-093-0	01	1	9304-	●
13	04.415 GEAR; 5TH,MAINSHAFT Z=22	8-94377-431-0	01	1	9112-9206	●
13	04.415 GEAR; 5TH,MAINSHAFT Z=22	8-97071-686-0	01	1	9207-9409	●
13	04.415 GEAR; 5TH,MAINSHAFT Z=22	8-97104-023-2	01	1	9410-	●
14	04.419 BEARING; NEEDLE,5TH NSK	8-97029-341-0	01	1	9112-	●
33	04.352 BEARING; NEEDLE,3RD GEAR 04.419 NSK	1-09811-028-1	01	1	9112-	●
34	04.380 SYNCHRONIZER; 4TH & 3RD	8-94421-869-2	01	1	9112-9412	●
34	04.380 SYNCHRONIZER; 4TH & 3RD	8-97104-027-0	01	1	9501-	●
35	04.383 RING; BLOCK,4TH & 3RD Z=45	8-94151-510-3	02	1	9112-	●
36	04.415 GEAR; 3RD,MAINSHAFT Z=29	8-97065-100-0	01	1	9112-9409	●
36	04.415 GEAR; 3RD,MAINSHAFT Z=29	8-97104-022-2	01	1	9410-	●
38	04.384 SYNCHRONIZER; LOW & 2ND	8-94363-059-1	01	1	9112-	●
40	04.384 SPRING; INSERT,LOW & 2ND	8-94448-045-0	02	1	9112-	●
49	04.352 BEARING; NEEDLE,2ND GEAR KOYO	9-00096-625-0	01	1	9112-	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=33	8-97025-872-0	01	1	9112-	●
51	04.383 RING; BLOCK,LOW & 2ND Z=48	8-94363-054-0	02	1	9112-	●
59	04.417 GEAR; REV MAINSHAFT Z=40	8-94336-492-1	01	1	9112-9206	●
59	04.417 GEAR; REV MAINSHAFT Z=40	8-97071-683-0	01	1	9207-9209	●
59	04.417 GEAR; REV MAINSHAFT Z=40	8-94336-492-2	01	1	9210-9409	●
59	04.417 GEAR; REV MAINSHAFT Z=40	8-97104-024-2	01	1	9410-	●
60	04.419 COLLAR; REV MAIN	8-97031-079-0	01	1	9112-	●
61	04.380 SYNCHRONIZER; REV & 5TH	8-97030-106-1	01	1	9112-	●
62	04.384 SPRING; INSERT,REV & 5TH	5-33264-012-0	02	1	9112-	●
63	04.384 INSERT; SYN,REV & 5TH	5-33263-001-0	03	1	9112-	●
65	04.356 NUT; MAINSHAFT M34	8-94422-071-1	01	1	9112-	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=43	8-94363-057-0	01	1	9112-	●
72	04.352 BEARING; BALL,MAINSHAFT NSK	8-94380-017-1	01	1	9112-	●
80	04.343 GEAR; SPD DRIVE Z=6	8-94333-535-2	01	1	9112-	●	●
82	04.403 SHAFT; MAIN,TRANS Z=28-34-26-27	8-97029-307-0	01	1	9112-9503	●
82	04.403 SHAFT; MAIN,TRANS Z=28-34-26-27	8-97120-039-0	01	1	9504-	●
86	04.416 WASHER; THRUST,5TH T=7.90 WHITE	8-94422-110-2	01	1	9112-	●
86	04.416 WASHER; THRUST,5TH T=8.00 YELLOW	8-94422-111-2	01	1	9112-	●
86	04.416 WASHER; THRUST,5TH T=8.10 GREEN	8-94422-112-2	01	1	9112-	●
86	04.416 WASHER; THRUST,5TH T=8.20 BLUE	8-94422-113-2	01	1	9112-	●
87	04.416 BALL; THRUST WASHER	8-94201-356-0	01	1	9112-	●
89	04.416 RING; RET,THRUST RING	8-94422-395-0	01	1	9112-	●
91	04.416 RING; SNAP,CENTER BRG,MAINSHAFT ID=76.2	8-94322-411-0	01	1	9112-	●
93	04.422 RING; SNAP,COUNTER FRT BRG 08.934 ID=23.2	9-09180-025-0	01	1	9112-	●
95	04.417 GEAR; REV,COUNTER Z=19	8-94377-433-0	01	1	9112-	●
97	04.415 GEAR; 5TH,COUNTER Z=50	8-94377-434-0	01	1	9112-	●
98	04.422 BEARING; BALL,COUNTER END NSK	8-97018-535-1	01	1	9112-	●
110	04.422 RING; SNAP,COUNTER BRG T=1.10 WHITE	8-94422-103-0	01	1	9112-	●
110	04.422 RING; SNAP,COUNTER BRG T=1.20 YELLOW	8-94422-104-0	01	1	9112-	●
110	04.422 RING; SNAP,COUNTER BRG T=1.30 BLUE	8-94422-105-0	01	1	9112-	●
110	04.422 RING; SNAP,COUNTER BRG T=1.40 PINK	8-94422-106-0	01	1	9112-	●
110	04.422 RING; SNAP,COUNTER BRG T=1.50 GREEN	8-94422-107-0	01	1	9112-	●
110	04.422 RING; SNAP,COUNTER BRG T=1.60 BROWN	8-94422-108-0	01	1	9112-	●
132	04.433 SHAFT; REV	8-97019-155-0	01	1	9112-	●
135	04.430 GEAR; REV IDLER Z=33	8-94377-435-0	01	1	9112-	●
141	04.535 GEAR; INPUT,TRANSFER Z=34	8-97018-362-0	01	1	9112-9502	●	●
141	04.535 GEAR; INPUT,TRANSFER Z=34	8-97120-121-0	01	1	9503-9607	●	●
141	04.535 GEAR; INPUT,TRANSFER Z=34	8-97141-878-0	01	1	9608-	●	●
143	04.525 COLLAR; INPUT GEAR BRG,TRANSFER	8-94482-579-1	01	1	9112-	●	●
144	04.525 BEARING; NEEDLE,INPUT GEAR 04.419 NSK	1-09811-028-1	01	1	9112-	●	●
150	04.530 SHAFT; OUTPUT,RR WHEEL DRIVE Z=47	8-97018-363-1	01	1	9112-9501	●	●
150	04.530 SHAFT; OUTPUT,RR WHEEL DRIVE Z=47	8-97113-405-0	01	1	9502-9502	●	●
150	04.530 SHAFT; OUTPUT,RR WHEEL DRIVE Z=47	8-97120-122-0	01	1	9503-9607	●	●
150	04.530 SHAFT; OUTPUT,RR WHEEL DRIVE Z=49	8-97141-879-0	01	1	9608-9703	●	●
150	04.530 SHAFT; OUTPUT,RR WHEEL DRIVE Z=49	8-97166-156-0	01	1	9704-	●	●
157	04.520 BEARING; BALL,OUTPUT SHAFT NSK	8-94422-050-0	01	1	9112-	●	●
189	04.435 RING; SNAP,REV,GEAR T=1.20 WHITE	8-94422-100-0	01	1	9112-	●
189	04.435 RING; SNAP,REV,GEAR T=1.30 YELLOW	8-94422-101-0	01	1	9112-	●
189	04.435 RING; SNAP,REV,GEAR T=1.40 BLUE	8-94422-102-0	01	1	9112-	●
211	04.419 BEARING; THRUST NEEDLE,1ST GEAR NSK	8-94148-935-0	01	1	9112-	●
219	04.422 BEARING; BALL,CLUSTER,RR NSK	8-94436-929-0	01	1	9112-	●
226	04.437 WASHER; THRUST,REV GEAR,COUNTER ID=30.0	8-94223-069-0	01	1	9112-	●
246	04.422 BEARING; ROLLER,COUNTER SHAFT FR NSK	8-97029-600-3	01	1	9112-	●
253	04.535 BALL; INPUT 04.416	8-94201-356-0	01	1	9112-	●	●
254	04.525 COLLAR; TRANSFER	8-94483-030-2	01	1	9112-	●
255	04.538 SYNCHRONIZER ASM; LOW-HIGH,TRANS	8-97030-109-0	01	1	9112-9607	●
255	04.538 SYNCHRONIZER ASM; LOW-HIGH,TRANS	8-97141-885-1	01	1	9608-	●	●
255	04.538 SYNCHRONIZER ASM; LOW-HIGH,TRANS	8-97033-098-0	01	1	9112-9607		●
256	04.538 INSERT; SYN,LOW-HIGH,TRANSFER 04.384	8-94363-062-0	03	1	9112-9607	●
257	04.538 SPRING; INSERT,LOW-HIGH SYN,TRAN 04.384	8-94448-045-0	02	1	9112-9607	●
258	04.538 RING; BLOCK,LOW-HIGH SYN,TRANSFE Z=42	8-97019-042-0	02	1	9112-9607	●
260	04.412 NUT; MAINSHAFT END M30	8-94422-072-1	01	1	9112-	●
260	04.412 NUT; MAINSHAFT END M27	8-94388-182-1	01	1	9112-		●
261	04.525 BEARING; PILOT,OUTPUT SHAFT NSK	8-94422-176-0	01	1	9112-	●	●
262	04.525 RING; SNAP,PILOT BRG 08.934 ID=23.2	9-09180-025-0	01	1	9112-	●	●
264	04.520 BEARING; RR OUTPUT SHAFT,FRT NSK	8-94422-054-0	01	1	9112-9308	●	●
264	04.520 BEARING; RR OUTPUT SHAFT,FRT KOYO	8-94422-055-1	01	1	9505-	●	●
264	04.520 BEARING; RR OUTPUT SHAFT,FRT NSK	8-94422-054-0	01	1	9309-	●	●
265	04.525 RING; SNAP,BRG OUTER OD=95.0	8-94422-091-0	01	1	9112-	●	●
266	04.525 RING; SNAP,BRG INNER ID=37.0 OD=53.0	8-94422-093-0	01	1	9112-	●	●
267	04.338 COLLAR; RR OUTPUT SHAFT,TRANSFER	8-94368-835-1	01	1	9112-9501	●	●
277	04.345 BALL; SPD DRIVE GEAR 04.416	8-94201-356-0	01	1	9112-	●	●
292	04.422 RING; SNAP,BRG OUTER NSK	8-94422-081-0	01	1	9112-	●
306	04.416 RING; SNAP,MAINSHAFT T=1.80 WHITE	8-94422-094-0	01	1	9112-9504	●
306	04.416 RING; SNAP,MAINSHAFT T=1.80 WHITE	8-97129-617-0	01	1	9505-	●
306	04.416 RING; SNAP,MAINSHAFT T=1.85 YELLOW	8-94422-095-0	01	1	9112-9504	●
306	04.416 RING; SNAP,MAINSHAFT T=1.85 YELLOW	8-97129-616-0	01	1	9505-	●
306	04.416 RING; SNAP,MAINSHAFT T=1.90 BLUE	8-94422-096-0	01	1	9112-9504	●
306	04.416 RING; SNAP,MAINSHAFT T=1.90 BLUE	8-97129-615-0	01	1	9505-	●
313	04.419 BEARING; NEEDLE,LOW GEAR NSK	1-09811-028-1	01	1	9112-	●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-94422-064-0	01	1	9112-	●
386	04.435 PIN; REV SHAFT OD=6 L=40	9-08150-640-0	01	1	9112-	●
387	04.384 INSERT; SYN,4TH & 3RD	8-94448-202-1	03	1	9112-9412	●
390	04.383 RING; SNAP,CLU HUB T=1.80 WHITE	8-94422-088-2	01	1	9112-	●
390	04.383 RING; SNAP,CLU HUB T=1.85 YELLOW	8-94422-089-1	01	1	9112-	●
390	04.383 RING; SNAP,CLU HUB T=1.90 BLUE	8-94422-090-2	01	1	9112-	●
391	04.383 RING; INSIDE,SYN (A)	8-94363-056-0	02	1	9112-9504	●
391	04.383 RING; INSIDE,SYN SHIFT ON THE FLY(7EX) (B)	8-97101-452-0	01	1	9505-9506	●
391	04.383 RING; INSIDE,SYN SHIFT ON THE FLY(7EX) (B)	8-97101-452-0	01	1	9507-	●	●
391	04.383 RING; INSIDE,SYN (A)	8-94363-056-0	02	1	9505-	●
392	04.383 RING; OUTSIDE,SYN (A) OD=90.0	8-94363-055-0	02	1	9112-9504	●
392	04.383 RING; OUTSIDE,SYN SHIFT ON THE FLY(7EX) (B)	8-94455-344-2	01	1	9505-9506	●
392	04.383 RING; OUTSIDE,SYN SHIFT ON THE FLY(7EX) (B)	8-94455-344-2	01	1	9507-9612	●	●
392	04.383 RING; OUTSIDE,SYN SHIFT ON THE FLY(7EX)	8-97169-514-0	01	1	9701-	●	●
392	04.383 RING; OUTSIDE,SYN (A) OD=90.0	8-94363-055-0	02	1	9505-	●
394	04.419 BEARING; BALL,MAINSHAFT RR 04.352 NSK	8-97018-921-1	01	1	9112-	●
396	04.352 BEARING; NEEDLE,MAINSHAFT NSK	8-94422-068-1	01	1	9112-	●
397	04.384 SPRING; INSERT,4TH & 3RD	8-94422-075-0	02	1	9112-9412	●
398	04.421 GEAR; COUNTER Z=46-38-27-21	8-97025-871-1	01	1	9112-9409	●
398	04.421 GEAR; COUNTER Z=46-38-27-21	8-97100-912-0	01	1	9410-	●
404	04.307 PLATE; THRUST	8-94421-892-0	02	1	9112-	●
405	04.384 INSERT; SYN,LOW & 2ND	8-94363-062-0	03	1	9112-	●
421	04.383 RING; BLOCK,REV & 5TH REV	8-94377-438-0	01	1	9112-9206	●
421	04.383 RING; BLOCK,REV & 5TH 5TH	8-94421-888-0	01	1	9112-9206	●
421	04.383 RING; BLOCK,REV & 5TH REV & 5TH Z=36	8-97071-688-0	02	1	9207-9208	●
421	04.383 RING; BLOCK,REV & 5TH REV	8-94377-438-1	01	1	9209-9409	●
421	04.383 RING; BLOCK,REV & 5TH 5TH Z=36	8-97071-688-0	01	1	9209-9409	●
421	04.383 RING; BLOCK,REV & 5TH REV & 5TH Z=36	8-97071-688-0	02	1	9410-	●
430	04.525 PLATE; OIL SEAL,TRANSFER 04.537	8-94482-379-2	01	1	9112-	●

271 268 269 274 272 273 270 163 275 391 392 377 377 66 167 323 375 375

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
66	04.383 RING; BLOCK,SYN SHIFT ON THE FLY(7EX)	8-97102-296-0	01	1	9505-9506	●
66	04.383 RING; BLOCK,SYN SHIFT ON THE FLY(7EX)	8-97102-296-0	01	1	9507-9612	●	●
66	04.383 RING; BLOCK,SYN SHIFT ON THE FLY(7EX)	8-97169-516-0	01	1	9701-	●	●
163	04.535 GEAR; COUNTER,TRANSFER Z=38-23	8-94367-604-0	01	1	9112-9502	●	●
163	04.535 GEAR; COUNTER,TRANSFER Z=38-23	8-97120-124-0	01	1	9503-9607	●	●
163	04.535 GEAR; COUNTER,TRANSFER Z=37-26	8-97165-317-0	01	1	9608-	●	●
167	04.422 PLATE; LK,COUNTER SHAFT,TRANSFER SHIFT ON THE FLY(7EX)	8-97102-940-0	01	1	9505-	●	●
268	04.537 PLATE; ANTI LASH,COUNTER	8-94320-567-0	01	1	9112-9607	●	●
268	04.537 PLATE; ANTI LASH,COUNTER	8-97164-348-0	01	1	9608-	●	●
269	04.537 SPACER; ANTI LASH PLATE,COUNTER	8-94482-469-1	01	1	9112-	●	●
270	04.520 SPRING; BELLEVILLE,ANTI LASH,TRA 04.537	8-94482-498-0	01	1	9112-	●	●
271	04.520 BEARING; COUNTER GEAR,FRT NSK	8-94422-050-0	01	1	9112-	●	●
272	04.525 RING; SNAP,BRG INNER T=1.50 WHITE	8-94448-808-0	01	1	9112-9403	●
272	04.525 RING; SNAP,BRG INNER T=1.55 YELLOW	8-94448-809-0	01	1	9404-	●
272	04.525 RING; SNAP,BRG INNER T=1.60 BLUE	8-94448-810-0	01	1	9112-	●
272	04.525 RING; SNAP,BRG INNER T=1.55 YELLOW	8-94448-809-0	01	1	9112-9403	●	●
272	04.525 RING; SNAP,BRG INNER T=1.50 WHITE	8-94448-808-0	01	1	9404-	●	●
273	04.525 RING; SNAP,BRG OUTER OD=77.0	8-94422-092-0	01	1	9112-	●	●
274	04.520 BEARING; COUNTER GEAR,RR NSK	8-94422-058-1	01	1	9112-9112	●	●
274	04.520 BEARING; COUNTER GEAR,RR NSK	8-97075-338-0	01	1	9201-9203	●	●
274	04.520 BEARING; COUNTER GEAR,RR NSK	8-97080-183-0	01	1	9204-9210	●	●
274	04.520 BEARING; COUNTER GEAR,RR NSK	8-97080-184-0	01	1	9211-9405	●	●
274	04.520 BEARING; COUNTER GEAR,RR NSK	8-97113-429-0	01	1	9406-9706	●	●
274	04.520 BEARING; COUNTER GEAR,RR NSK	8-97080-184-0	01	1	9707-	●	●
274	04.520 BEARING; COUNTER GEAR,RR KOYO	8-97080-185-0	01	1	9309-9405	●	●
274	04.520 BEARING; COUNTER GEAR,RR KOYO	8-97113-430-0	01	1	9406-9706	●	●
274	04.520 BEARING; COUNTER GEAR,RR KOYO	8-97080-185-0	01	1	9707-	●	●
275	04.525 RING; SNAP,COUNTER GEAR BRG 08.934 ID=23.2	9-09180-025-0	01	1	9112-	●	●
323	04.384 INSERT	8-94448-202-1	03	1	9501-9504	●
323	04.384 INSERT SHIFT ON THE FLY(7EX)	8-94448-202-1	03	1	9505-	●	●
375	04.380 SYNCHRONIZER ASM; 2ND & 4TH 04.538 (A)	8-94457-785-1	01	1	9112-9412	●	●
375	04.380 SYNCHRONIZER ASM; 2ND & 4TH (A)	8-97104-026-0	01	1	9501-9504	●	●
375	04.380 SYNCHRONIZER ASM; 2ND & 4TH EXC. SHIFT ON THE FLY(7EX) (A)	8-97104-026-0	01	1	9505-	●	●
375	04.380 SYNCHRONIZER ASM; 2ND & 4TH SHIFT ON THE FLY(7EX) (B)	8-97104-027-0	01	1	9505-	●	●
377	04.384 SPRING; INSERT,4X2-4X4 SYN,TRANS	8-94422-075-0	02	1	9501-9504	●
377	04.384 SPRING; INSERT,4X2-4X4 SYN,TRANS SHIFT ON THE FLY(7EX)	8-94422-075-0	02	1	9505-	●	●
391	04.383 RING; INSIDE,SYN (A)	8-94363-056-0	02	1	9112-9504	●
391	04.383 RING; INSIDE,SYN SHIFT ON THE FLY(7EX) (B)	8-97101-452-0	01	1	9505-9506	●
391	04.383 RING; INSIDE,SYN SHIFT ON THE FLY(7EX) (B)	8-97101-452-0	01	1	9507-	●	●
391	04.383 RING; INSIDE,SYN (A)	8-94363-056-0	02	1	9505-	●
392	04.383 RING; OUTSIDE,SYN (A) OD=90.0	8-94363-055-0	02	1	9112-9504	●
392	04.383 RING; OUTSIDE,SYN SHIFT ON THE FLY(7EX) (B)	8-94455-344-2	01	1	9505-9506	●
392	04.383 RING; OUTSIDE,SYN SHIFT ON THE FLY(7EX) (B)	8-94455-344-2	01	1	9507-9612	●	●
392	04.383 RING; OUTSIDE,SYN SHIFT ON THE FLY(7EX)	8-97169-514-0	01	1	9701-	●	●
392	04.383 RING; OUTSIDE,SYN (A) OD=90.0	8-94363-055-0	02	1	9505-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
