Sayfa 2-25 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50658 - UBS-RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-25 - SPEEDOMETER DRIVEN GEAR ▶

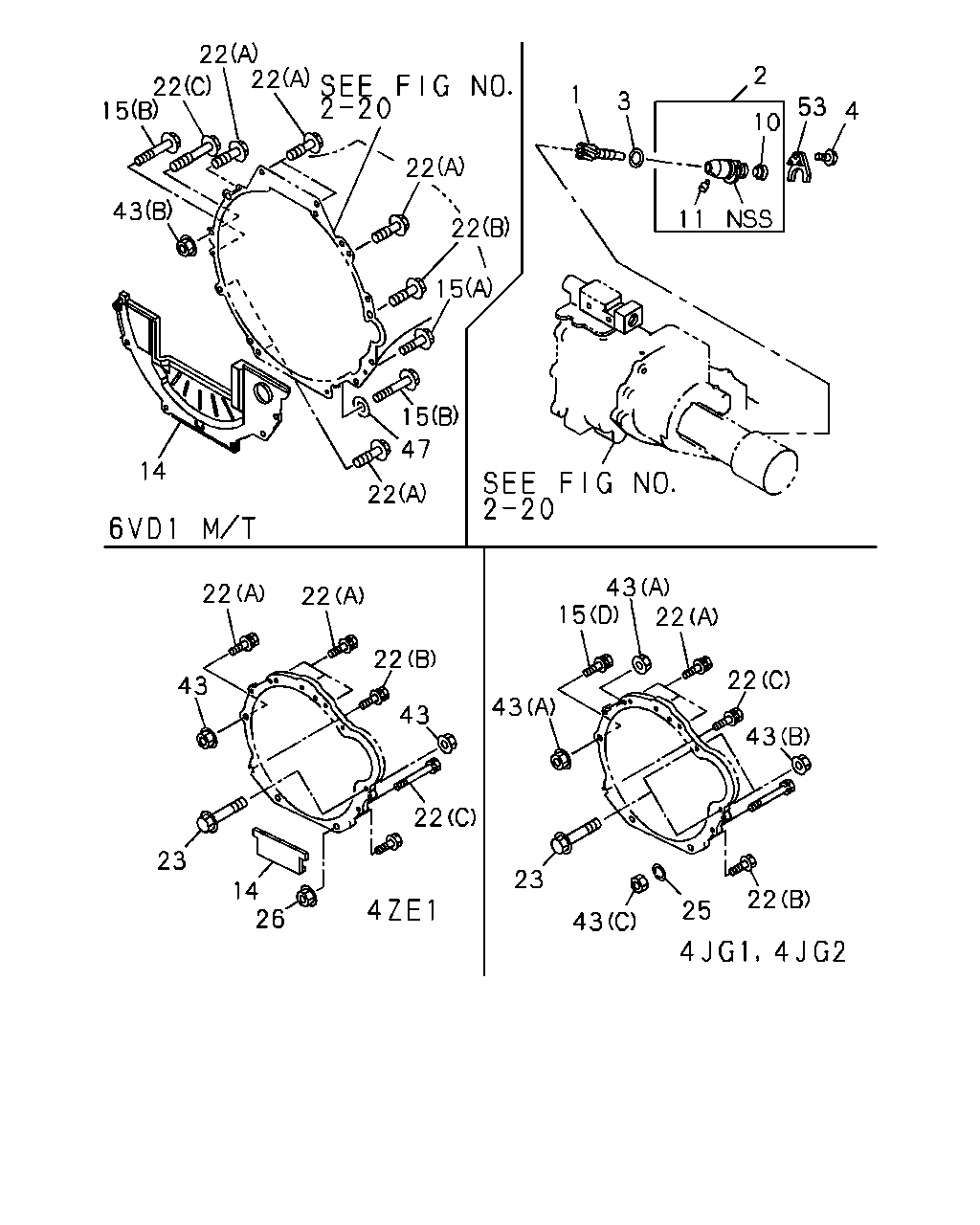

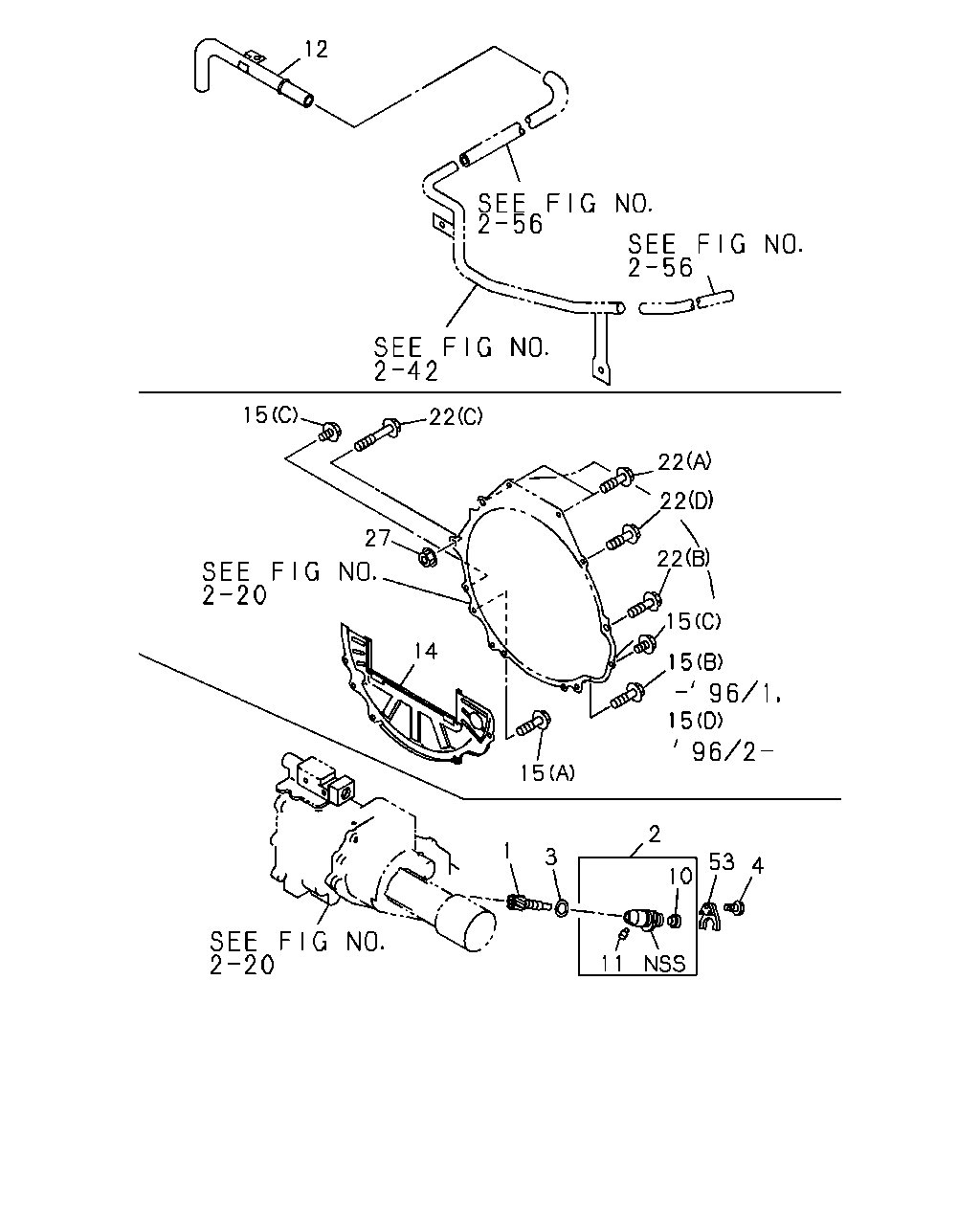

2-25 — SPEEDOMETER DRIVEN GEAR (#44871) — 142 parça

22 22 15 43 14 22 15 47 15 22 22 1 3 2 11 10 53 4 43 15 22 22 43 22 25 43 23 43 43 22 22 22 43 23 14 26 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/9(HC6) Z=18	8-97012-086-1	01	1	9112-9202	●	●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/9(HC6) EXC. AUSTRALIA EQUIPMENT(RR3) Z=18	8-97012-086-1	01	1	9203-9607	●	●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 43/10(S7C) AUSTRALIA EQUIPMENT(RR3) Z=18	8-97012-086-1	01	1	9203-9607	●	●
1	04.337 GEAR; DRIVEN,SPD 4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) Z=18	8-97012-086-1	01	1	9608-	●	●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 43/9(S2J) Z=19	8-94473-303-1	01	1	9112-9202	●	●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/9(HC6) AUSTRALIA EQUIPMENT(RR3) Z=19	8-94473-303-1	01	1	9203-9607	●	●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 43/9(S2J) EXC. AUSTRALIA EQUIPMENT(RR3) Z=19	8-94473-303-1	01	1	9203-9607	●	●
1	04.337 GEAR; DRIVEN,SPD 4JG2 ENG(RJC),4ZE1 ENG(RLJ) Z=19	8-94473-303-1	01	1	9608-	●	●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 43/10(S7C) Z=17	8-97012-085-1	01	1	9112-9202	●	●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 43/10(S7C) EXC. AUSTRALIA EQUIPMENT(RR3) Z=17	8-97012-085-1	01	1	9203-9607	●	●
1	04.337 GEAR; DRIVEN,SPD 6VD1 SOHC ENG(RLU) Z=17	8-97012-085-1	01	1	9608-	●	●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER	8-97021-133-4	01	1	9112-	●	●
3	04.338 GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T).	9-09921-100-0	01	1	9112-	●	●
4	04.338 BOLT; RET,DRIVEN GEAR M8X18	0-28010-818-0	01	1	9112-9204	●	●
4	04.338 BOLT; RET,DRIVEN GEAR 08.900 M8X18 FLANGE	0-28080-818-0	01	1	9205-9609	●	●
4	04.338 BOLT; RET,DRIVEN GEAR 07.010 M8X20 FLANGE	0-28080-820-0	01	1	9610-	●	●
10	04.338 SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-113-0	01	1	9112-9505	●	●
10	04.338 SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97131-328-0	01	1	9506-	●	●
11	04.338 FILTER; BUSHING,SPEEDOMETER DRIV	8-94446-571-1	01	1	9112-	●	●
14	00.679 COVER; UNDER,TRANS 4ZE1 ENG(RLJ)	8-94310-655-2	01	1	9112-	●
14	00.679 COVER; UNDER,TRANS 6VD1 SOHC ENG(RLU)	8-94380-152-1	01	1	9112-9309	●
14	00.679 COVER; UNDER,TRANS 6VD1 SOHC ENG(RLU)	8-97105-840-1	01	1	9310-	●
14	00.679 COVER; UNDER,TRANS	8-94374-537-0	01	1	9112-		●
15	00.685 BOLT; UNDER COVER TO TRANS 6VD1 SOHC ENG(RLU) 00.206 (B) M6X45 FLANGE	0-28080-645-0	01	1	9706-	●
15	00.685 BOLT; UNDER COVER TO TRANS 4JG2 ENG(RJC) TURBOCHARGER<K51> 04.525 (D) M10X40 FLANGE	0-28081-040-0	01	1	9505-9601	●
15	00.685 BOLT; UNDER COVER TO TRANS 4JG2 ENG(RJC) TURBOCHARGER<K51> 04.525 (D) M10X40 FLANGE	0-28081-040-0	01	1	9602-	●
15	00.685 BOLT; UNDER COVER TO TRANS 6VD1 SOHC ENG(RLU) 04.525 (D) M10X40 FLANGE	0-28081-040-0	01	1	9602-		●
15	00.685 BOLT; UNDER COVER TO TRANS 4JG2 ENG(RJC),4JG1 ENG(RLT) (D) M10X45 FLANGE	0-28081-045-0	01	1	9112-9504	●
15	00.685 BOLT; UNDER COVER TO TRANS 4JG2 ENG(RJC) EXC. TURBOCHARGER<K51> (D) M10X45 FLANGE	0-28081-045-0	01	1	9505-	●
15	00.685 BOLT; UNDER COVER TO TRANS 6VD1 SOHC ENG(RLU) 04.686 (A) M6X25	0-28010-625-0	01	1	9112-9204	●
15	00.685 BOLT; UNDER COVER TO TRANS 6VD1 SOHC ENG(RLU) 04.686 (A) M6X25 FLANGE	0-28080-625-0	01	1	9205-	●
15	00.685 BOLT; UNDER COVER TO TRANS 6VD1 SOHC ENG(RLU) (B) M6X40	0-28010-640-0	02	1	9112-9204	●
15	00.685 BOLT; UNDER COVER TO TRANS 6VD1 SOHC ENG(RLU) (B) M6X40 FLANGE	0-28080-640-0	02	1	9205-9705	●
15	00.685 BOLT; UNDER COVER TO TRANS 6VD1 SOHC ENG(RLU) (B) M6X40 FLANGE	0-28080-640-0	01	1	9706-	●
15	00.685 BOLT; UNDER COVER TO TRANS 08.900 (A) M6X16	0-28010-616-0	02	1	9112-9204		●
15	00.685 BOLT; UNDER COVER TO TRANS 00.738 (A) M6X16 FLANGE	0-28080-616-0	02	1	9205-9601		●
15	00.685 BOLT; UNDER COVER TO TRANS 04.439 (A) M6X16 FLANGE	0-28680-616-0	02	1	9602-		●
15	00.685 BOLT; UNDER COVER TO TRANS (B) M10X35	0-28011-035-0	01	1	9112-9204		●
15	00.685 BOLT; UNDER COVER TO TRANS (B) M10X35 FLANGE	0-28081-035-0	01	1	9205-9601		●
15	00.685 BOLT; UNDER COVER TO TRANS 04.510 (C) M10X35 FLANGE	0-28181-035-0	02	1	9112-9601		●
15	00.685 BOLT; UNDER COVER TO TRANS 04.510 (C) M10X40 FLANGE	0-28181-040-0	02	1	9602-		●
22	00.685 BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC),4JG1 ENG(RLT) 04.525 (A) M10X40 FLANGE	0-28081-040-0	03	1	9112-9504	●
22	00.685 BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC) 04.525 (A) M10X40 FLANGE	0-28081-040-0	03	1	9505-	●
22	00.685 BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC),4JG1 ENG(RLT) (B) M10X60 FLANGE	0-28081-060-0	02	1	9112-9504	●
22	00.685 BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC) (B) M10X60 FLANGE	0-28081-060-0	02	1	9505-	●
22	00.685 BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC),4JG1 ENG(RLT) 09.171 (C) M12X40 FLANGE	0-28081-240-0	01	1	9112-9504	●
22	00.685 BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC) 09.171 (C) M12X40 FLANGE	0-28081-240-0	01	1	9505-	●
22	00.685 BOLT; TRANS CASE TO ENG 4ZE1 ENG(RLJ) (A) M10X30 FLANGE	0-28081-030-0	02	1	9112-	●
22	00.685 BOLT; TRANS CASE TO ENG 4ZE1 ENG(RLJ) (A) M10X35 FLANGE	0-28081-035-0	02	1	9112-	●
22	00.685 BOLT; TRANS CASE TO ENG 4ZE1 ENG(RLJ) 04.525 (A) M10X40 FLANGE	0-28081-040-0	01	1	9112-	●
22	00.685 BOLT; TRANS CASE TO ENG 4ZE1 ENG(RLJ) (B) M10X45 FLANGE	0-28081-045-0	02	1	9112-	●
22	00.685 BOLT; TRANS CASE TO ENG 4ZE1 ENG(RLJ) (C) M10X50 FLANGE	0-28081-050-0	02	1	9112-	●
22	00.685 BOLT; TRANS CASE TO ENG 6VD1 SOHC ENG(RLU) (A) M12X45 FLANGE	0-28181-245-0	06	1	9112-9607	●
22	00.685 BOLT; TRANS CASE TO ENG 6VD1 SOHC ENG(RLU) (A) M12X45 FLANGE	0-28181-245-0	04	1	9608-	●
22	00.685 BOLT; TRANS CASE TO ENG 6VD1 SOHC ENG(RLU) 00.780 (C) M12X85 FLANGE	8-94480-345-1	01	1	9112-	●
22	00.685 BOLT; TRANS CASE TO ENG 6VD1 SOHC ENG(RLU) (B) M12X50 FLANGE	0-28181-250-0	01	1	9112-	●	●
22	00.685 BOLT; TRANS CASE TO ENG 09.181 (C) M12X40 FLANGE	0-28181-240-0	01	1	9112-		●
22	00.685 BOLT; TRANS CASE TO ENG (A) M12X45 FLANGE	0-28181-245-0	03	1	9112-		●
22	00.685 BOLT; TRANS CASE TO ENG (D) M12X68 FLANGE	8-94480-344-1	01	1	9112-		●
23	00.685 BOLT; STARTER TO TRANS CASE 4JG2 ENG(RJC),4JG1 ENG(RLT) M12X68 FLANGE	8-94480-344-1	02	1	9112-9504	●
23	00.685 BOLT; STARTER TO TRANS CASE 4JG2 ENG(RJC) M12X68 FLANGE	8-94480-344-1	02	1	9505-	●
23	00.685 BOLT; STARTER TO TRANS CASE 4ZE1 ENG(RLJ) 04.510 M10X35 FLANGE	0-28181-035-0	01	1	9112-9504	●
23	00.685 BOLT; STARTER TO TRANS CASE 4ZE1 ENG(RLJ) 04.525 M10X40 FLANGE	0-28081-040-0	01	1	9602-9602	●
23	00.685 BOLT; STARTER TO TRANS CASE 4ZE1 ENG(RLJ) 04.510 M10X35 FLANGE	0-28181-035-0	01	1	9603-9608	●
23	00.685 BOLT; STARTER TO TRANS CASE 4ZE1 ENG(RLJ) M10X35 FLANGE	0-28781-035-0	01	1	9608-	●
25	00.685 WASHER; PL,TRANS CASE 4JG2 ENG(RJC),4JG1 ENG(RLT) 03.430 ID=12.5	9-09160-512-0	01	1	9112-9504	●
25	00.685 WASHER; PL,TRANS CASE 4JG2 ENG(RJC) 03.430 ID=12.5	9-09160-512-0	01	1	9505-	●
26	00.685 NUT; UNDER COVER,TRANS 4ZE1 ENG(RLJ) 04.594 M6 FLANGE	0-91150-106-0	02	1	9112-	●
43	00.685 NUT; TRANS CASE 4JG2 ENG(RJC),4JG1 ENG(RLT) 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	9112-9504	●
43	00.685 NUT; TRANS CASE 4JG2 ENG(RJC) 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	9505-	●
43	00.685 NUT; TRANS CASE 4JG2 ENG(RJC),4JG1 ENG(RLT) 05.586 (B) M12 FLANGE	0-91150-112-0	02	1	9112-9504	●
43	00.685 NUT; TRANS CASE 4JG2 ENG(RJC) 05.586 (B) M12 FLANGE	0-91150-112-0	02	1	9505-	●
43	00.685 NUT; TRANS CASE 4JG2 ENG(RJC),4JG1 ENG(RLT) 05.816 (C) M12	9-99110-412-0	01	1	9112-9504	●
43	00.685 NUT; TRANS CASE 4JG2 ENG(RJC) 05.816 (C) M12	9-99110-412-0	01	1	9505-	●
43	00.685 NUT; TRANS CASE 4ZE1 ENG(RLJ) 04.785 M10 FLANGE	0-91150-110-0	03	1	9112-9609	●
43	00.685 NUT; TRANS CASE 4ZE1 ENG(RLJ) 04.785 M10 FLANGE	0-91150-110-0	03	1	9610-	●
43	00.685 NUT; TRANS CASE 6VD1 SOHC ENG(RLU) 05.586 (B) M12 FLANGE	0-91150-112-0	01	1	9112-	●
47	00.685 WASHER; PL,UNDER COVER,TRANS 6VD1 SOHC ENG(RLU) 02.334 ID=6.4 OD=22	9-09164-806-0	01	1	9706-	●
53	04.338 PLATE; LOCK,DRIVEN GEAR	8-97021-019-0	01	1	9112-	●	●

12 15 27 22 22 22 22 15 15 15 15 14 1 3 2 4 53 10 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/9(HC6) Z=18	8-97012-086-1	01	1	9112-9202	●	●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/9(HC6) EXC. AUSTRALIA EQUIPMENT(RR3) Z=18	8-97012-086-1	01	1	9203-9607	●	●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 43/10(S7C) AUSTRALIA EQUIPMENT(RR3) Z=18	8-97012-086-1	01	1	9203-9607	●	●
1	04.337 GEAR; DRIVEN,SPD 4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) Z=18	8-97012-086-1	01	1	9608-	●	●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 43/9(S2J) Z=19	8-94473-303-1	01	1	9112-9202	●	●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/9(HC6) AUSTRALIA EQUIPMENT(RR3) Z=19	8-94473-303-1	01	1	9203-9607	●	●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 43/9(S2J) EXC. AUSTRALIA EQUIPMENT(RR3) Z=19	8-94473-303-1	01	1	9203-9607	●	●
1	04.337 GEAR; DRIVEN,SPD 4JG2 ENG(RJC),4ZE1 ENG(RLJ) Z=19	8-94473-303-1	01	1	9608-	●	●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 43/10(S7C) Z=17	8-97012-085-1	01	1	9112-9202	●	●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 43/10(S7C) EXC. AUSTRALIA EQUIPMENT(RR3) Z=17	8-97012-085-1	01	1	9203-9607	●	●
1	04.337 GEAR; DRIVEN,SPD 6VD1 SOHC ENG(RLU) Z=17	8-97012-085-1	01	1	9608-	●	●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER	8-97021-133-4	01	1	9112-	●	●
3	04.338 GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T).	9-09921-100-0	01	1	9112-	●	●
4	04.338 BOLT; RET,DRIVEN GEAR M8X18	0-28010-818-0	01	1	9112-9204	●	●
4	04.338 BOLT; RET,DRIVEN GEAR 08.900 M8X18 FLANGE	0-28080-818-0	01	1	9205-9609	●	●
4	04.338 BOLT; RET,DRIVEN GEAR 07.010 M8X20 FLANGE	0-28080-820-0	01	1	9610-	●	●
10	04.338 SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-113-0	01	1	9112-9505	●	●
10	04.338 SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97131-328-0	01	1	9506-	●	●
11	04.338 FILTER; BUSHING,SPEEDOMETER DRIV	8-94446-571-1	01	1	9112-	●	●
12	04.104 BREATHER; AIR,TRANS	8-97163-210-0	01	1	9608-9612		●
12	04.104 BREATHER; AIR,TRANS	8-97169-421-0	01	1	9701-		●
14	00.679 COVER; UNDER,TRANS 4ZE1 ENG(RLJ)	8-94310-655-2	01	1	9112-	●
14	00.679 COVER; UNDER,TRANS 6VD1 SOHC ENG(RLU)	8-94380-152-1	01	1	9112-9309	●
14	00.679 COVER; UNDER,TRANS 6VD1 SOHC ENG(RLU)	8-97105-840-1	01	1	9310-	●
14	00.679 COVER; UNDER,TRANS	8-94374-537-0	01	1	9112-		●
15	00.685 BOLT; UNDER COVER TO TRANS 6VD1 SOHC ENG(RLU) 00.206 (B) M6X45 FLANGE	0-28080-645-0	01	1	9706-	●
15	00.685 BOLT; UNDER COVER TO TRANS 4JG2 ENG(RJC) TURBOCHARGER<K51> 04.525 (D) M10X40 FLANGE	0-28081-040-0	01	1	9505-9601	●
15	00.685 BOLT; UNDER COVER TO TRANS 4JG2 ENG(RJC) TURBOCHARGER<K51> 04.525 (D) M10X40 FLANGE	0-28081-040-0	01	1	9602-	●
15	00.685 BOLT; UNDER COVER TO TRANS 6VD1 SOHC ENG(RLU) 04.525 (D) M10X40 FLANGE	0-28081-040-0	01	1	9602-		●
15	00.685 BOLT; UNDER COVER TO TRANS 4JG2 ENG(RJC),4JG1 ENG(RLT) (D) M10X45 FLANGE	0-28081-045-0	01	1	9112-9504	●
15	00.685 BOLT; UNDER COVER TO TRANS 4JG2 ENG(RJC) EXC. TURBOCHARGER<K51> (D) M10X45 FLANGE	0-28081-045-0	01	1	9505-	●
15	00.685 BOLT; UNDER COVER TO TRANS 6VD1 SOHC ENG(RLU) 04.686 (A) M6X25	0-28010-625-0	01	1	9112-9204	●
15	00.685 BOLT; UNDER COVER TO TRANS 6VD1 SOHC ENG(RLU) 04.686 (A) M6X25 FLANGE	0-28080-625-0	01	1	9205-	●
15	00.685 BOLT; UNDER COVER TO TRANS 6VD1 SOHC ENG(RLU) (B) M6X40	0-28010-640-0	02	1	9112-9204	●
15	00.685 BOLT; UNDER COVER TO TRANS 6VD1 SOHC ENG(RLU) (B) M6X40 FLANGE	0-28080-640-0	02	1	9205-9705	●
15	00.685 BOLT; UNDER COVER TO TRANS 6VD1 SOHC ENG(RLU) (B) M6X40 FLANGE	0-28080-640-0	01	1	9706-	●
15	00.685 BOLT; UNDER COVER TO TRANS 08.900 (A) M6X16	0-28010-616-0	02	1	9112-9204		●
15	00.685 BOLT; UNDER COVER TO TRANS 00.738 (A) M6X16 FLANGE	0-28080-616-0	02	1	9205-9601		●
15	00.685 BOLT; UNDER COVER TO TRANS 04.439 (A) M6X16 FLANGE	0-28680-616-0	02	1	9602-		●
15	00.685 BOLT; UNDER COVER TO TRANS (B) M10X35	0-28011-035-0	01	1	9112-9204		●
15	00.685 BOLT; UNDER COVER TO TRANS (B) M10X35 FLANGE	0-28081-035-0	01	1	9205-9601		●
15	00.685 BOLT; UNDER COVER TO TRANS 04.510 (C) M10X35 FLANGE	0-28181-035-0	02	1	9112-9601		●
15	00.685 BOLT; UNDER COVER TO TRANS 04.510 (C) M10X40 FLANGE	0-28181-040-0	02	1	9602-		●
22	00.685 BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC),4JG1 ENG(RLT) 04.525 (A) M10X40 FLANGE	0-28081-040-0	03	1	9112-9504	●
22	00.685 BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC) 04.525 (A) M10X40 FLANGE	0-28081-040-0	03	1	9505-	●
22	00.685 BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC),4JG1 ENG(RLT) (B) M10X60 FLANGE	0-28081-060-0	02	1	9112-9504	●
22	00.685 BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC) (B) M10X60 FLANGE	0-28081-060-0	02	1	9505-	●
22	00.685 BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC),4JG1 ENG(RLT) 09.171 (C) M12X40 FLANGE	0-28081-240-0	01	1	9112-9504	●
22	00.685 BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC) 09.171 (C) M12X40 FLANGE	0-28081-240-0	01	1	9505-	●
22	00.685 BOLT; TRANS CASE TO ENG 4ZE1 ENG(RLJ) (A) M10X30 FLANGE	0-28081-030-0	02	1	9112-	●
22	00.685 BOLT; TRANS CASE TO ENG 4ZE1 ENG(RLJ) (A) M10X35 FLANGE	0-28081-035-0	02	1	9112-	●
22	00.685 BOLT; TRANS CASE TO ENG 4ZE1 ENG(RLJ) 04.525 (A) M10X40 FLANGE	0-28081-040-0	01	1	9112-	●
22	00.685 BOLT; TRANS CASE TO ENG 4ZE1 ENG(RLJ) (B) M10X45 FLANGE	0-28081-045-0	02	1	9112-	●
22	00.685 BOLT; TRANS CASE TO ENG 4ZE1 ENG(RLJ) (C) M10X50 FLANGE	0-28081-050-0	02	1	9112-	●
22	00.685 BOLT; TRANS CASE TO ENG 6VD1 SOHC ENG(RLU) (A) M12X45 FLANGE	0-28181-245-0	06	1	9112-9607	●
22	00.685 BOLT; TRANS CASE TO ENG 6VD1 SOHC ENG(RLU) (A) M12X45 FLANGE	0-28181-245-0	04	1	9608-	●
22	00.685 BOLT; TRANS CASE TO ENG 6VD1 SOHC ENG(RLU) 00.780 (C) M12X85 FLANGE	8-94480-345-1	01	1	9112-	●
22	00.685 BOLT; TRANS CASE TO ENG 6VD1 SOHC ENG(RLU) (B) M12X50 FLANGE	0-28181-250-0	01	1	9112-	●	●
22	00.685 BOLT; TRANS CASE TO ENG 09.181 (C) M12X40 FLANGE	0-28181-240-0	01	1	9112-		●
22	00.685 BOLT; TRANS CASE TO ENG (A) M12X45 FLANGE	0-28181-245-0	03	1	9112-		●
22	00.685 BOLT; TRANS CASE TO ENG (D) M12X68 FLANGE	8-94480-344-1	01	1	9112-		●
27	00.685 NUT; CLU HSG TO TRANS 05.586 M12 FLANGE	0-91150-112-0	01	1	9112-		●
53	04.338 PLATE; LOCK,DRIVEN GEAR	8-97021-019-0	01	1	9112-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
