◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 10676 - LT 111,112,132,133 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-01 - EMBLEM AND NAME PLATE ▶
7-01 — EMBLEM AND NAME PLATE (#4487) — 33 parça

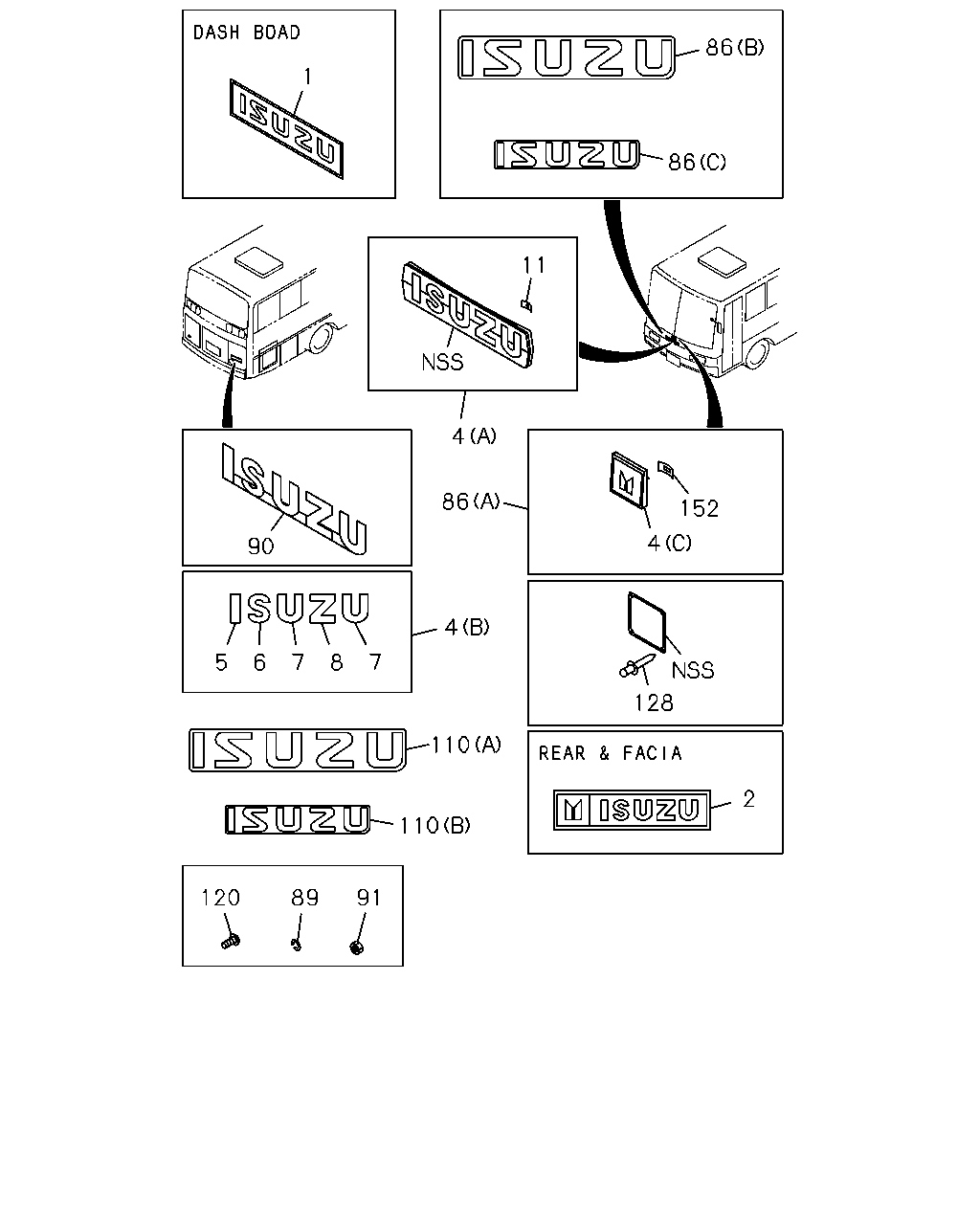

çizim 36865
86 1 86 11 4 86 152 4 90 4 5 6 7 8 7 128 110 2 110 120 89 91
BalonParca AdiParca NoAdetTipApplied Date A B
1 MARK; ISUZU
DASH BOAD 		1-76210-585-0 01 1 9505- ● ●
2 MARK; ISUZU,DASH BOARD
REAR & FACIA 		1-76210-310-0 02 1 9101-9504 ● ●
2 MARK; ISUZU,DASH BOARD
BUS BODY APPLICATION<SS8> REAR & FACIA 		1-76210-310-0 02 1 9101-9504 ● ●
4 EMBLEM; RAD GRILLE
BUS BODY APPLICATION<SS8> (C) FRONT ORNAMENT 		1-76210-047-1 02 1 9101-9504 ● ●
4 EMBLEM; RAD GRILLE
BUS BODY APPLICATION<SS8> (B) FRONT MARK KIT 		1-76230-040-0 01 1 9101-9504 ● ●
4 EMBLEM; RAD GRILLE
EXC. CENTER MARK LETTER ISUZU<RS4> (B) FRONT MARK KIT 		1-76230-040-0 01 1 9101-9504 ● ●
4 EMBLEM; RAD GRILLE
CENTER MARK LETTER ISUZU<RS4> (A) FRONT MARK KIT 		1-76230-023-0 01 1 9101-9504 ● ●
5 MARK; "I"
BUS BODY APPLICATION<SS8> 		1-76231-020-0 01 1 9101-9504 ● ●
5 MARK; "I"
EXC. CENTER MARK LETTER ISUZU<RS4> 		1-76231-020-0 01 1 9101-9504 ● ●
6 MARK; "S"
BUS BODY APPLICATION<SS8> 		1-76231-021-0 01 1 9101-9504 ● ●
6 MARK; "S"
EXC. CENTER MARK LETTER ISUZU<RS4> 		1-76231-021-0 01 1 9101-9504 ● ●
7 MARK; "U"
BUS BODY APPLICATION<SS8> 		1-76231-022-0 02 1 9101-9504 ● ●
7 MARK; "U"
EXC. CENTER MARK LETTER ISUZU<RS4> 		1-76231-022-0 02 1 9101-9504 ● ●
8 MARK; "Z"
BUS BODY APPLICATION<SS8> 		1-76231-023-0 01 1 9101-9504 ● ●
8 MARK; "Z"
EXC. CENTER MARK LETTER ISUZU<RS4> 		1-76231-023-0 01 1 9101-9504 ● ●
11 RETAINER; EMBLEM
CENTER MARK LETTER ISUZU<RS4> SPRING NUT 		1-76290-014-0 04 1 9101-9504 ● ●
86 EMBLEM; SYMBOL,BODY FRT
(A) MARK KIT 		1-76210-048-1 02 1 9101-9504 ● ●
86 EMBLEM; SYMBOL,BODY FRT
LETTER MARK "ISUZU" LARGE SIZE<WU7> (B) L=576 		1-76210-634-0 01 1 9505-1212 ● ●
86 EMBLEM; SYMBOL,BODY FRT
LETTER MARK "ISUZU" LARGE SIZE<WU7> (B) 		1-76210-691-0 01 1 1301- ● ●
86 EMBLEM; SYMBOL,BODY FRT
EXC. LETTER MARK "ISUZU" LARGE SIZE<WU7> (C) L=282 		1-76210-580-1 01 1 9505- ● ●
89 WASHER; LK,MARK
ID=3.1 		9-09150-503-0 04 1 9101-9504 ● ●
89 WASHER; LK,MARK
BUS BODY APPLICATION<SS8> ID=3.1 		9-09150-503-0 04 1 9101-9504 ● ●
90 EMBLEM; "ISUZU" BODY RR END 5-76217-046-1 01 1 9101-9504 ● ●
90 EMBLEM; "ISUZU" BODY RR END
BUS BODY APPLICATION<SS8> 		5-76217-046-1 01 1 9101-9504 ● ●
91 NUT; MARK
M3 		9-99110-403-0 04 1 9101-9504 ● ●
91 NUT; MARK
BUS BODY APPLICATION<SS8> M3 		9-99110-403-0 04 1 9101-9504 ● ●
110 EMBLEM; "ISUZU",RR BODY
LETTER MARK "ISUZU" LARGE SIZE<WU7> (A) L=576 		1-76210-634-0 01 1 9505-1212 ● ●
110 EMBLEM; "ISUZU",RR BODY
LETTER MARK "ISUZU" LARGE SIZE<WU7> (A) 		1-76210-691-0 01 1 1301- ● ●
110 EMBLEM; "ISUZU",RR BODY
EXC. LETTER MARK "ISUZU" LARGE SIZE<WU7> (B) L=280 		1-76210-582-0 01 1 9505- ● ●
120 SCREW; MARK 9-93290-310-0 04 1 9101-9504 ● ●
120 SCREW; MARK
BUS BODY APPLICATION<SS8> 		9-93290-310-0 04 1 9101-9504 ● ●
128 RIVET; POP,NAME PLATE 5-09734-001-0 04 1 9101-9510 ● ●
152 RETAINER; MARK
BUS BODY APPLICATION<SS8> SPRING NUT FRONT ORNAMENT 		1-76290-013-0 04 1 9101-9504 ● ●
