◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50775 - UBS-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-10 - REPAIR KIT; TRANSMISSION OVERHAUL ▶
2-10 — REPAIR KIT; TRANSMISSION OVERHAUL (#44869) — 12 parça

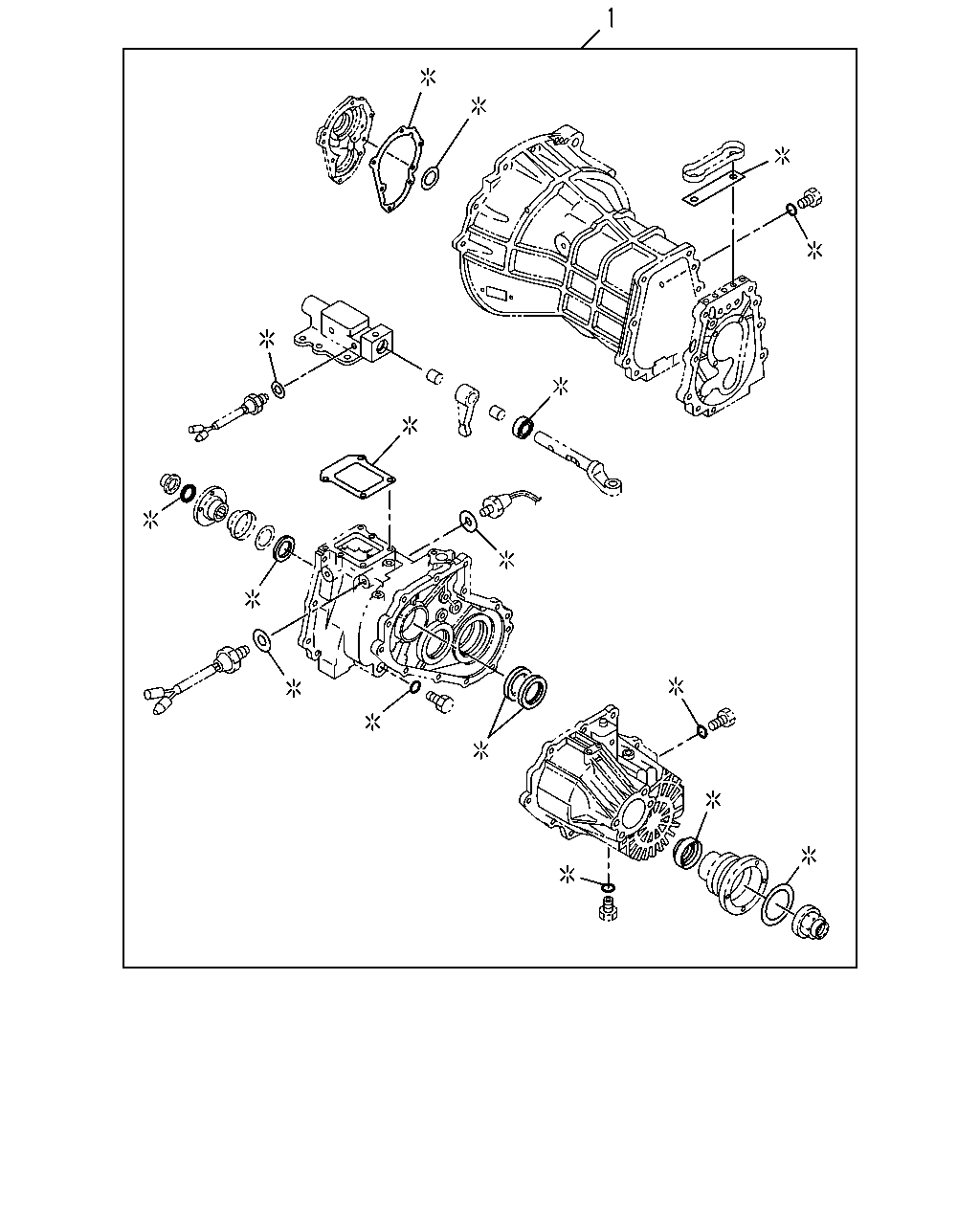

çizim 18090
1
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.005 GASKET SET; TRANS OVERHAUL
4JG2 ENG(RJC) FINAL GEAR RATIO 43/9(S2J) SHIFT ON THE FLY(7EX) EXC. ONE TOUCH 4X4 SYSTEM(7QY) 		5-87831-456-1 01 1 9712-9804 ●
1 04.005 GASKET SET; TRANS OVERHAUL
4JG2 ENG(RJC) FINAL GEAR RATIO 43/9(S2J) SHIFT ON THE FLY(7EX) ONE TOUCH 4X4 SYSTEM(7QY) 		5-87831-457-1 01 1 9712-9804 ●
1 04.005 GASKET SET; TRANS OVERHAUL
4JG2 ENG(RJC) FINAL GEAR RATIO 43/9(S2J) EXC. SHIFT ON THE FLY(7EX),ONE TOUCH 4X4 SYSTEM(7QY) 		5-87831-457-1 01 1 9712-9804 ●
1 04.005 GASKET SET; TRANS OVERHAUL
4JG2 ENG(RJC),6VD1 ENG(RLV) FINAL GEAR RATIO 41/9(HC6) 		5-87831-457-1 01 1 9712-9804 ●
1 04.005 GASKET SET; TRANS OVERHAUL 5-87831-457-1 01 1 9805- ●
1 04.005 GASKET SET; TRANS OVERHAUL 8-97184-794-0 01 1 9712- ●

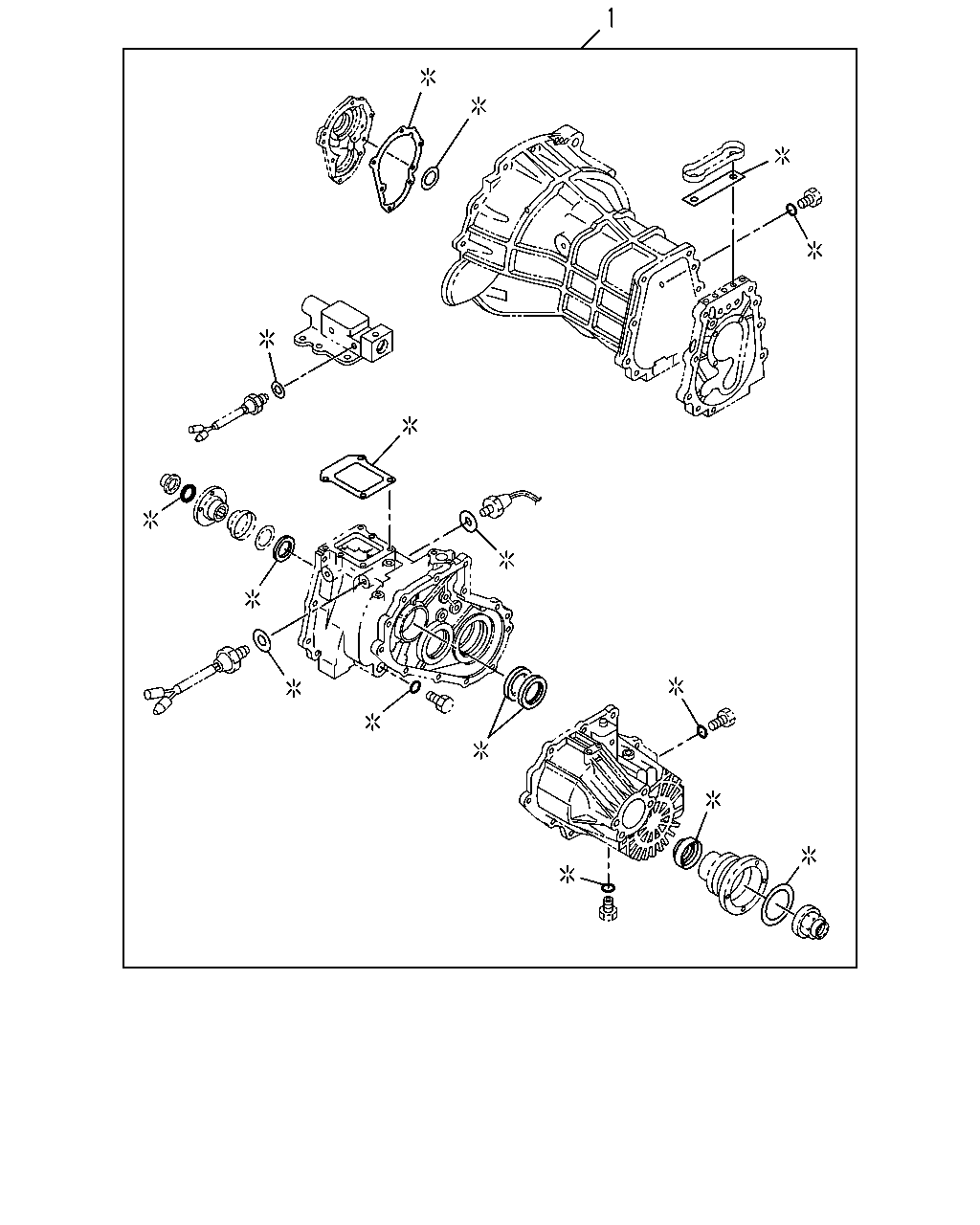

çizim 18349
1
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.005 GASKET SET; TRANS OVERHAUL
4JG2 ENG(RJC) FINAL GEAR RATIO 43/9(S2J) SHIFT ON THE FLY(7EX) EXC. ONE TOUCH 4X4 SYSTEM(7QY) 		5-87831-456-1 01 1 9712-9804 ●
1 04.005 GASKET SET; TRANS OVERHAUL
4JG2 ENG(RJC) FINAL GEAR RATIO 43/9(S2J) SHIFT ON THE FLY(7EX) ONE TOUCH 4X4 SYSTEM(7QY) 		5-87831-457-1 01 1 9712-9804 ●
1 04.005 GASKET SET; TRANS OVERHAUL
4JG2 ENG(RJC) FINAL GEAR RATIO 43/9(S2J) EXC. SHIFT ON THE FLY(7EX),ONE TOUCH 4X4 SYSTEM(7QY) 		5-87831-457-1 01 1 9712-9804 ●
1 04.005 GASKET SET; TRANS OVERHAUL
4JG2 ENG(RJC),6VD1 ENG(RLV) FINAL GEAR RATIO 41/9(HC6) 		5-87831-457-1 01 1 9712-9804 ●
1 04.005 GASKET SET; TRANS OVERHAUL 5-87831-457-1 01 1 9805- ●
1 04.005 GASKET SET; TRANS OVERHAUL 8-97184-794-0 01 1 9712- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
