Sayfa 2-06 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50775 - UBS-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-06 - CLUTCH SLAVE CYLINDER ▶

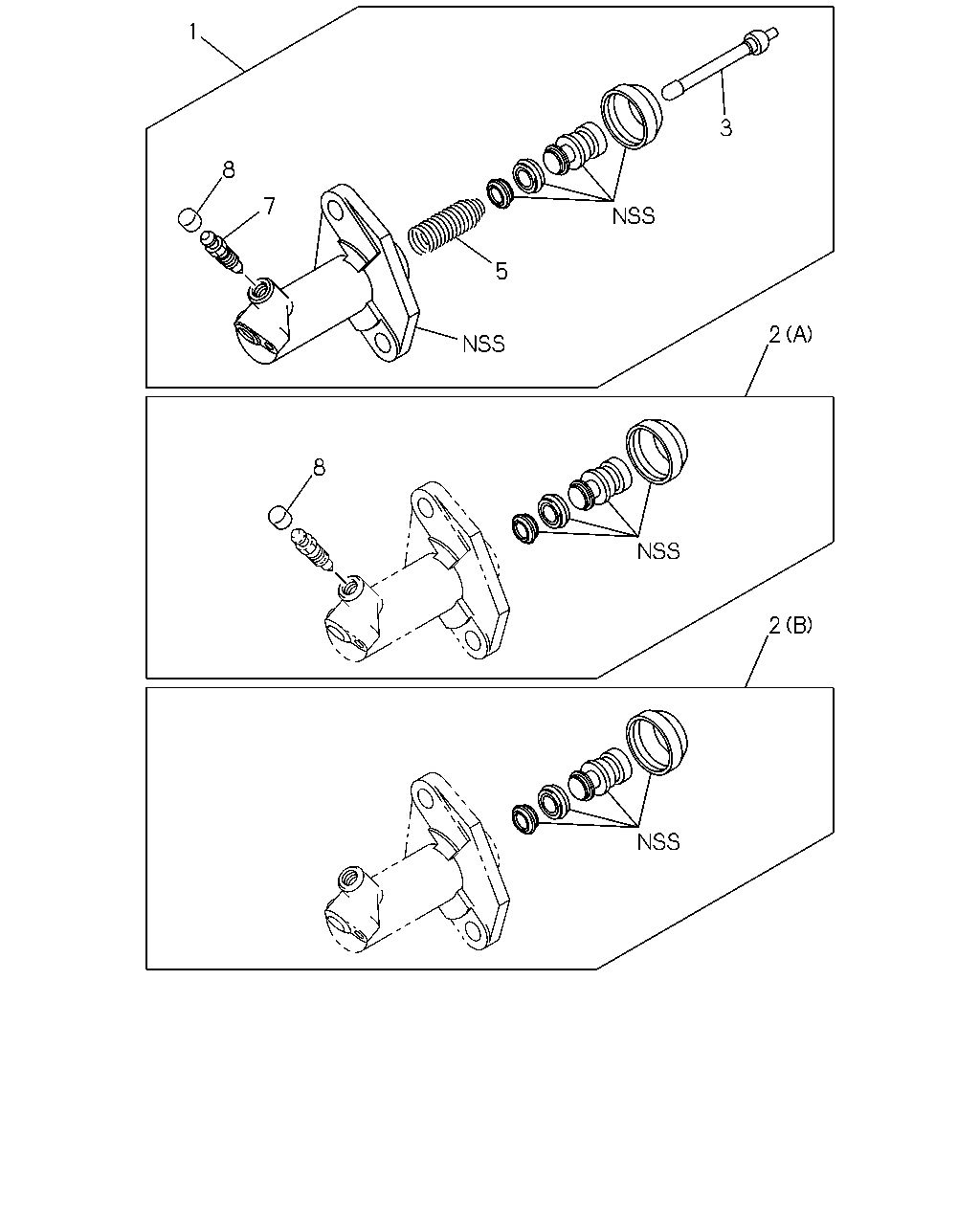

2-06 — CLUTCH SLAVE CYLINDER (#44867) — 52 parça

1 3 8 7 5 2 8 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.780 CYLINDER; SLAVE,CLU M/T MUA 5 SPEED(RMN)	8-94389-195-1	01	1	9712-0105	●
1	00.780 CYLINDER; SLAVE,CLU	8-94389-195-1	01	1	0106-	●
1	00.780 CYLINDER; SLAVE,CLU M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK)	8-97040-866-2	01	1	9712-9812		●	●	●
1	00.780 CYLINDER; SLAVE,CLU M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK)	8-97188-414-2	01	1	9901-		●	●	●
2	00.780 REPAIR KIT; CLU SLAVE CYL M/T MUA 5 SPEED(RMN) (C)	5-87830-813-2	01	1	9712-0005	●
2	00.780 REPAIR KIT; CLU SLAVE CYL (C)	5-87830-813-2	01	1	0006-	●
2	00.780 REPAIR KIT; CLU SLAVE CYL M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) (A)	5-87831-388-0	01	1	9712-9812		●	●	●
2	00.780 REPAIR KIT; CLU SLAVE CYL M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) (B)	5-87831-762-0	01	1	9901-		●	●	●
3	00.780 ROD; PUSH,SLAVE CYL M/T MUA 5 SPEED(RMN)	8-94136-252-0	01	1	9712-0105	●
3	00.780 ROD; PUSH,SLAVE CYL	8-94136-252-0	01	1	0106-	●
3	00.780 ROD; PUSH,SLAVE CYL M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK)	8-97062-923-0	01	1	9712-9812		●	●	●
3	00.780 ROD; PUSH,SLAVE CYL M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK)	8-97188-417-0	01	1	9901-		●	●	●
5	00.780 SPRING ASM; PISTON,SLAVE CYL M/T MUA 5 SPEED(RMN)	8-97016-024-0	01	1	9712-0105	●
5	00.780 SPRING ASM; PISTON,SLAVE CYL	8-97016-024-0	01	1	0106-	●
5	00.780 SPRING ASM; PISTON,SLAVE CYL M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK)	8-97028-736-0	01	1	9712-9812		●	●	●
5	00.780 SPRING ASM; PISTON,SLAVE CYL M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK)	8-97188-405-0	01	1	9901-		●	●	●
7	00.780 SCREW; BLEEDER,SLAVE CYL M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) M8X10	8-94115-113-0	01	1	9712-9812	●		●	●
7	00.780 SCREW; BLEEDER,SLAVE CYL 4X4(UBS***) M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) M8X10	8-94115-113-0	01	1	9712-9812		●
7	00.780 SCREW; BLEEDER,SLAVE CYL M/T MUA 5 SPEED(RMN) M8X10	8-94115-113-0	01	1	9901-0105	●
7	00.780 SCREW; BLEEDER,SLAVE CYL M8X10	8-94115-113-0	01	1	0106-	●
7	00.780 SCREW; BLEEDER,SLAVE CYL M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK)	8-97188-329-0	01	1	9901-		●	●	●
8	00.780 CAP; BLEEDER,SLAVE CYL M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) OD=9.5	9-47619-005-0	01	1	9712-9812	●		●	●
8	00.780 CAP; BLEEDER,SLAVE CYL 4X4(UBS***) M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) OD=9.5	9-47619-005-0	01	1	9712-9812		●
8	00.780 CAP; BLEEDER,SLAVE CYL M/T MUA 5 SPEED(RMN) OD=9.5	9-47619-005-0	01	1	9901-0105	●
8	00.780 CAP; BLEEDER,SLAVE CYL OD=9.5	9-47619-005-0	01	1	0106-	●
8	00.780 CAP; BLEEDER,SLAVE CYL M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK)	8-97188-330-0	01	1	9901-		●	●	●

1 3 5 7 8 2 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.780 CYLINDER; SLAVE,CLU M/T MUA 5 SPEED(RMN)	8-94389-195-1	01	1	9712-0105	●
1	00.780 CYLINDER; SLAVE,CLU	8-94389-195-1	01	1	0106-	●
1	00.780 CYLINDER; SLAVE,CLU M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK)	8-97040-866-2	01	1	9712-9812		●	●	●
1	00.780 CYLINDER; SLAVE,CLU M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK)	8-97188-414-2	01	1	9901-		●	●	●
2	00.780 REPAIR KIT; CLU SLAVE CYL M/T MUA 5 SPEED(RMN) (C)	5-87830-813-2	01	1	9712-0005	●
2	00.780 REPAIR KIT; CLU SLAVE CYL (C)	5-87830-813-2	01	1	0006-	●
2	00.780 REPAIR KIT; CLU SLAVE CYL M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) (A)	5-87831-388-0	01	1	9712-9812		●	●	●
2	00.780 REPAIR KIT; CLU SLAVE CYL M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) (B)	5-87831-762-0	01	1	9901-		●	●	●
3	00.780 ROD; PUSH,SLAVE CYL M/T MUA 5 SPEED(RMN)	8-94136-252-0	01	1	9712-0105	●
3	00.780 ROD; PUSH,SLAVE CYL	8-94136-252-0	01	1	0106-	●
3	00.780 ROD; PUSH,SLAVE CYL M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK)	8-97062-923-0	01	1	9712-9812		●	●	●
3	00.780 ROD; PUSH,SLAVE CYL M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK)	8-97188-417-0	01	1	9901-		●	●	●
5	00.780 SPRING ASM; PISTON,SLAVE CYL M/T MUA 5 SPEED(RMN)	8-97016-024-0	01	1	9712-0105	●
5	00.780 SPRING ASM; PISTON,SLAVE CYL	8-97016-024-0	01	1	0106-	●
5	00.780 SPRING ASM; PISTON,SLAVE CYL M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK)	8-97028-736-0	01	1	9712-9812		●	●	●
5	00.780 SPRING ASM; PISTON,SLAVE CYL M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK)	8-97188-405-0	01	1	9901-		●	●	●
7	00.780 SCREW; BLEEDER,SLAVE CYL M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) M8X10	8-94115-113-0	01	1	9712-9812	●		●	●
7	00.780 SCREW; BLEEDER,SLAVE CYL 4X4(UBS***) M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) M8X10	8-94115-113-0	01	1	9712-9812		●
7	00.780 SCREW; BLEEDER,SLAVE CYL M/T MUA 5 SPEED(RMN) M8X10	8-94115-113-0	01	1	9901-0105	●
7	00.780 SCREW; BLEEDER,SLAVE CYL M8X10	8-94115-113-0	01	1	0106-	●
7	00.780 SCREW; BLEEDER,SLAVE CYL M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK)	8-97188-329-0	01	1	9901-		●	●	●
8	00.780 CAP; BLEEDER,SLAVE CYL M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) OD=9.5	9-47619-005-0	01	1	9712-9812	●		●	●
8	00.780 CAP; BLEEDER,SLAVE CYL 4X4(UBS***) M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) OD=9.5	9-47619-005-0	01	1	9712-9812		●
8	00.780 CAP; BLEEDER,SLAVE CYL M/T MUA 5 SPEED(RMN) OD=9.5	9-47619-005-0	01	1	9901-0105	●
8	00.780 CAP; BLEEDER,SLAVE CYL OD=9.5	9-47619-005-0	01	1	0106-	●
8	00.780 CAP; BLEEDER,SLAVE CYL M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK)	8-97188-330-0	01	1	9901-		●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
