◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50775 - UBS-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-05 - CLUTCH PIPING ▶
2-05 — CLUTCH PIPING (#44866) — 60 parça
çizim 17086
82 42 7 4 5 3 3 2
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 00.782 BOLT; EYE,SLAVE CYL
M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) 04.665 M10X22 		5-09675-017-0 01 1 9712- ● ● ● ●
3 00.785 GASKET; FLEX HOSE,CLU
M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) 08.955 ID=10.2 OD=16.0 		9-09571-410-0 02 1 9712- ● ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) (A) 		8-94436-216-0 01 1 9712-9712 ● ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) (A) 		8-94436-216-0 01 1 9801- ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
(D) 		8-97191-379-0 02 1 9712-9712 ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
(B) 		8-97204-216-0 01 1 9801-9908 ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
M/T AR-5 5 SPEED(RNK) (B) 		8-97204-216-0 01 1 9909- ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
(C) 		8-97204-217-0 01 1 9801-9908 ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
M/T AR-5 5 SPEED(RNK) (C) 		8-97204-217-0 01 1 9909- ●
5 00.785 HOSE; FLEX,CLU PIPE
M/T MUA 5 SPEED(RMN) 		8-97066-439-0 01 1 9712-0105 ●
5 00.785 HOSE; FLEX,CLU PIPE 8-97066-439-0 01 1 0106- ●
5 00.785 HOSE; FLEX,CLU PIPE 8-97190-915-0 01 1 9712-9908 ●
5 00.785 HOSE; FLEX,CLU PIPE
M/T AR-5 5 SPEED(RNK) 		8-97190-915-0 01 1 9909- ●
5 00.785 HOSE; FLEX,CLU PIPE
M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) 		8-97184-646-0 01 1 9712- ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) 07.633 M8 FLANGE 		0-91150-108-0 01 1 9712- ● ● ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
M/T MUA 5 SPEED(RMN) 		8-97130-249-1 01 1 9712-0105 ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT 8-97130-249-1 01 1 0106- ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) 		8-97182-767-3 01 1 9712- ● ●
82 00.785 PIPE; OIL,M/CYL TO FLEX HOSE
M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) 		8-97163-442-3 01 1 9712- ● ●

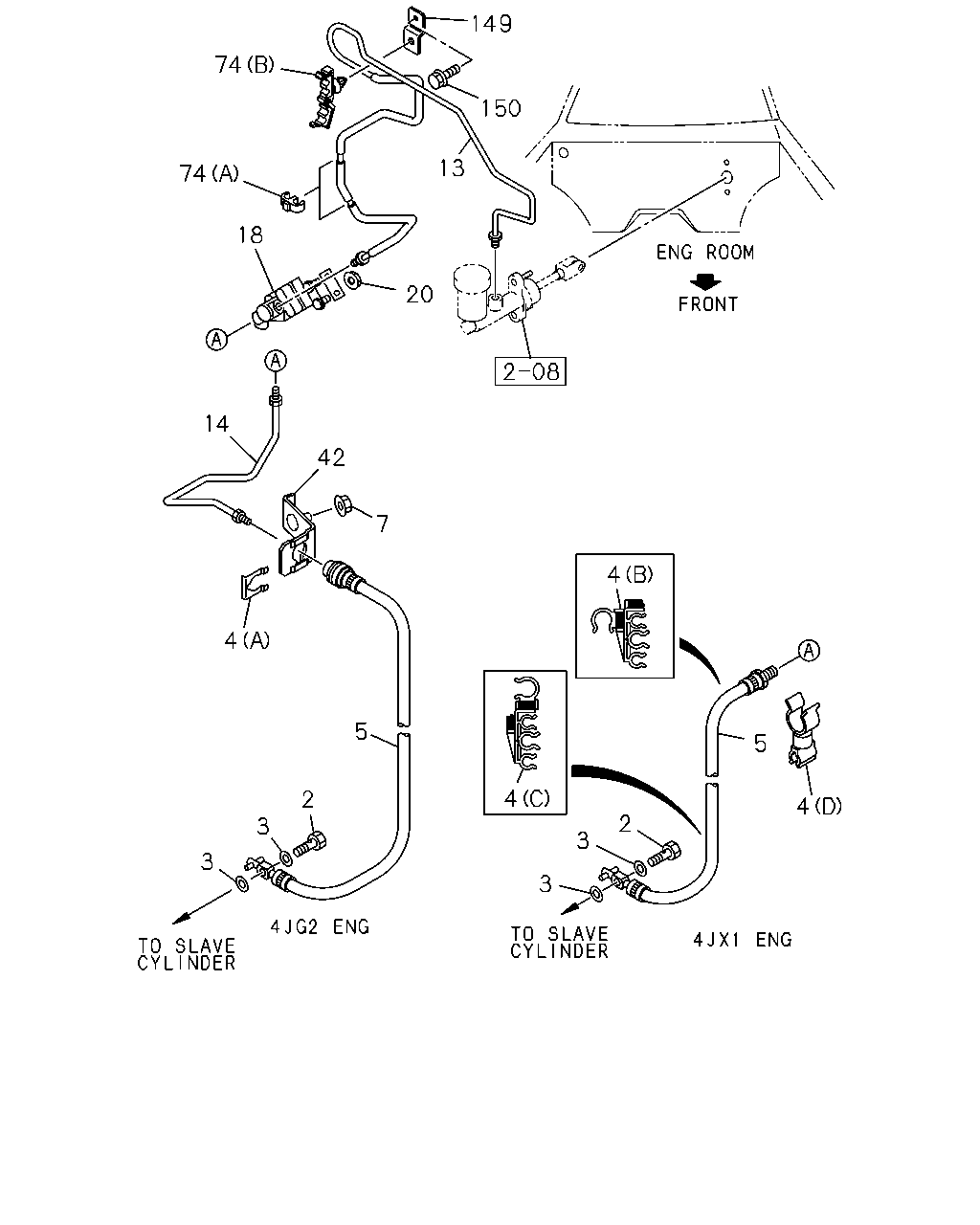

çizim 70005
149 74 150 13 74 18 20 14 42 7 4 4 5 5 4 2 4 2 3 3 3 3
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 00.782 BOLT; EYE,SLAVE CYL
M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) 04.665 M10X22 		5-09675-017-0 01 1 9712- ● ● ● ●
3 00.785 GASKET; FLEX HOSE,CLU
M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) 08.955 ID=10.2 OD=16.0 		9-09571-410-0 02 1 9712- ● ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) (A) 		8-94436-216-0 01 1 9712-9712 ● ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) (A) 		8-94436-216-0 01 1 9801- ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
(D) 		8-97191-379-0 02 1 9712-9712 ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
(B) 		8-97204-216-0 01 1 9801-9908 ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
M/T AR-5 5 SPEED(RNK) (B) 		8-97204-216-0 01 1 9909- ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
(C) 		8-97204-217-0 01 1 9801-9908 ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
M/T AR-5 5 SPEED(RNK) (C) 		8-97204-217-0 01 1 9909- ●
5 00.785 HOSE; FLEX,CLU PIPE
M/T MUA 5 SPEED(RMN) 		8-97066-439-0 01 1 9712-0105 ●
5 00.785 HOSE; FLEX,CLU PIPE 8-97066-439-0 01 1 0106- ●
5 00.785 HOSE; FLEX,CLU PIPE 8-97190-915-0 01 1 9712-9908 ●
5 00.785 HOSE; FLEX,CLU PIPE
M/T AR-5 5 SPEED(RNK) 		8-97190-915-0 01 1 9909- ●
5 00.785 HOSE; FLEX,CLU PIPE
M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) 		8-97184-646-0 01 1 9712- ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) 07.633 M8 FLANGE 		0-91150-108-0 01 1 9712- ● ● ●
13 00.785 PIPE; OIL,FLEX HOSE TO CLU M/CYL 8-97167-763-1 01 1 9712- ●
13 00.785 PIPE; OIL,FLEX HOSE TO CLU M/CYL
4X4(UBS***) 		8-97200-728-1 01 1 9712-9902 ●
13 00.785 PIPE; OIL,FLEX HOSE TO CLU M/CYL
4X4(UBS***) 		8-97213-254-0 01 1 9903-0105 ●
13 00.785 PIPE; OIL,FLEX HOSE TO CLU M/CYL
4X4(UBS***) 		8-97309-463-1 01 1 0106- ●
14 00.785 PIPE ASM; OIL,OIL DAMPER TO SLAV 8-97066-883-3 01 1 9712- ●
18 00.830 DAMPER ASM; CLU OIL 8-97132-841-0 01 1 9712- ●
18 00.830 DAMPER ASM; CLU OIL 8-97190-926-0 01 1 9712-9908 ●
18 00.830 DAMPER ASM; CLU OIL
M/T AR-5 5 SPEED(RNK) 		8-97190-926-0 01 1 9909- ●
20 00.837 NUT; CLU OIL DAMPER
04.594 M6 FLANGE 		0-91150-106-0 02 1 9712- ●
20 00.837 NUT; CLU OIL DAMPER
4X4(UBS***) 04.594 M6 FLANGE 		0-91150-106-0 02 1 9712- ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
M/T MUA 5 SPEED(RMN) 		8-97130-249-1 01 1 9712-0105 ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT 8-97130-249-1 01 1 0106- ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) 		8-97182-767-3 01 1 9712- ● ●
74 00.785 CLIP; CLU OIL PIPE
M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) 04.686 (B) 		8-97035-570-3 02 1 9712-9908 ● ●
74 00.785 CLIP; CLU OIL PIPE
04.686 (B) 		8-97035-570-3 02 1 9909- ●
74 00.785 CLIP; CLU OIL PIPE
4X4(UBS***) 04.686 (B) 		8-97035-570-3 02 1 9909- ●
74 00.785 CLIP; CLU OIL PIPE
M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) 03.162 (A) ID=6.35 & 6.35 		8-94474-113-0 02 1 9712-9908 ●
74 00.785 CLIP; CLU OIL PIPE
M/T AR-5 5 SPEED(RNK) ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH> 03.162 (A) ID=6.35 & 6.35 		8-94474-113-0 02 1 9909- ●
149 00.785 BRACKET; CLIP,OIL PIPE
M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) 		8-97167-728-1 01 1 9712-9908 ● ●
149 00.785 BRACKET; CLIP,OIL PIPE 8-97167-728-1 01 1 9909- ●
149 00.785 BRACKET; CLIP,OIL PIPE
4X4(UBS***) 		8-97167-728-1 01 1 9909- ●
150 00.785 BOLT; BRKT,PIPE CLIP
M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) 02.559 M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 9712-9908 ● ●
150 00.785 BOLT; BRKT,PIPE CLIP
02.559 M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 9909-0111 ●
150 00.785 BOLT; BRKT,PIPE CLIP
4X4(UBS***) 02.559 M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 9909-0111 ●
150 00.785 BOLT; BRKT,PIPE CLIP
04.439 M6X16 FLANGE 		0-28680-616-0 01 1 0112- ●
150 00.785 BOLT; BRKT,PIPE CLIP
4X4(UBS***) 04.439 M6X16 FLANGE 		0-28680-616-0 01 1 0112- ●
