◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50775 - UBS-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-01 - CLUTCH ▶
2-01 — CLUTCH (#44864) — 71 parça

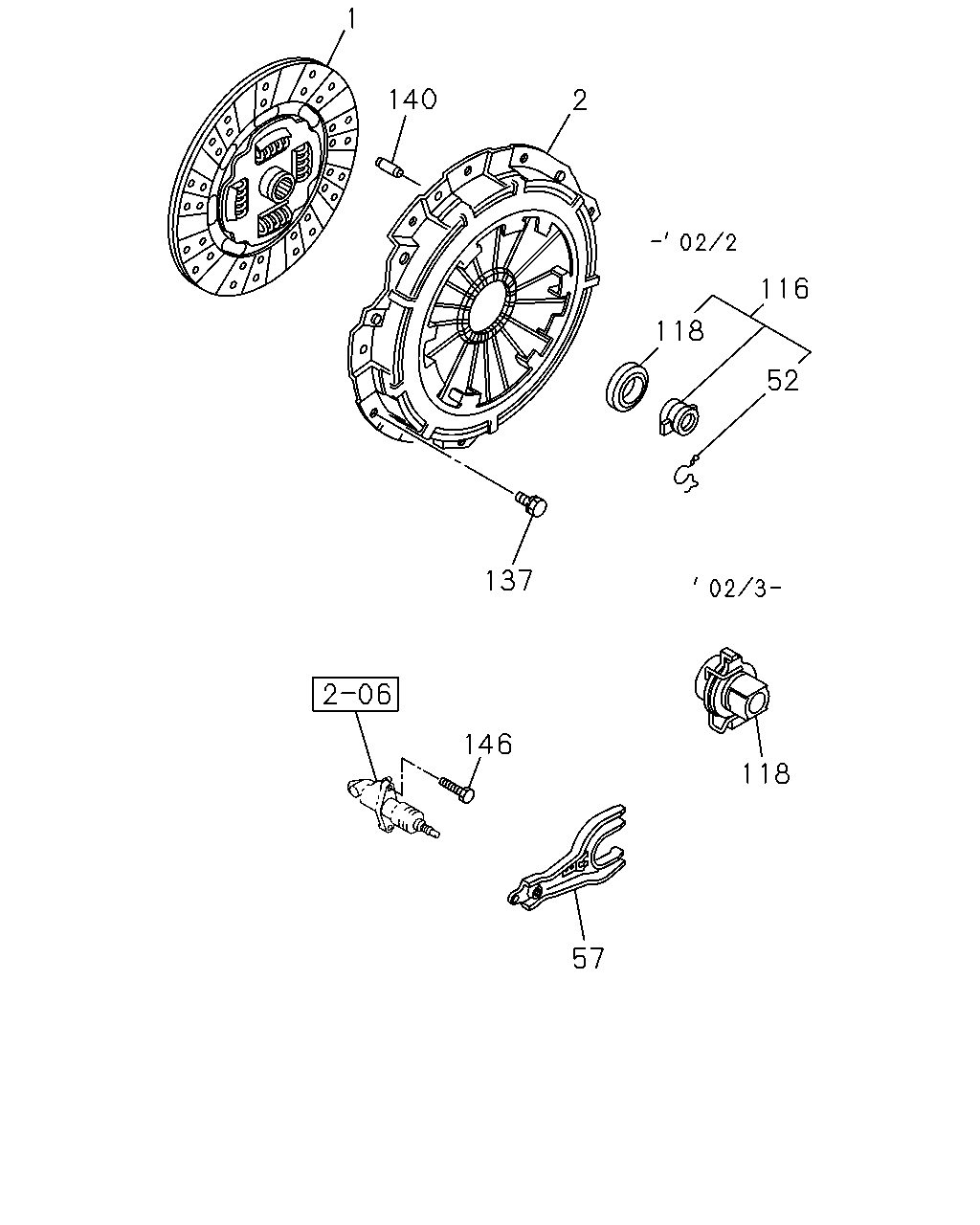

çizim 18846
1 140 2 116 118 52 137 146 118 57
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.886 DISC; CLUTCH 8-97135-492-0 01 1 9712-9806 ●
1 00.886 DISC; CLUTCH 8-97207-245-0 01 1 9807-9809 ●
1 00.886 DISC; CLUTCH 8-97217-985-0 01 1 9810-0008 ●
1 00.886 DISC; CLUTCH 8-97257-124-0 01 1 0009-0105 ●
1 00.886 DISC; CLUTCH
M/T MUA 5 SPEED(RMN) 		8-97257-124-0 01 1 0106-0403 ●
1 00.886 DISC; CLUTCH
M/T MUA 5 SPEED(RMN) 		8-97377-899-0 01 1 0404- ●
1 00.886 DISC; CLUTCH 8-97143-146-1 01 1 9712-9908 ●
1 00.886 DISC; CLUTCH
M/T AR-5 5 SPEED(RNK) 		8-97143-146-1 01 1 9909- ●
1 00.886 DISC; CLUTCH
M/T AR-5 5 SPEED(RNK) 		8-97163-194-0 01 1 9712- ●
1 00.886 DISC; CLUTCH
M/T MUA 5 SPEED(RMN) 		8-97138-135-0 01 1 9712-0309 ●
1 00.886 DISC; CLUTCH
M/T MUA 5 SPEED(RMN) 		8-97138-138-0 01 1 0310- ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-97109-246-0 01 1 9712-0105 ●
2 00.859 PLATE ASM; PRESSURE,CLU
M/T MUA 5 SPEED(RMN) 		8-97109-246-0 01 1 0106- ●
2 00.859 PLATE ASM; PRESSURE,CLU
M/T AR-5 5 SPEED(RNK) 		8-97136-535-0 01 1 9712- ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
M/T MUA 5 SPEED(RMN) 		8-94374-897-8 01 1 9712- ●
52 00.797 SPRING; SHIFT BLOCK TO FORK 8-94311-807-0 01 1 9712-0112 ●
57 00.795 FORK; SHIFT,CLU 8-97039-266-0 01 1 9712-0305 ●
57 00.795 FORK; SHIFT,CLU 8-97365-654-0 01 1 0306- ●
57 00.795 FORK; SHIFT,CLU
M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) 		8-94370-379-2 01 1 9712-9809 ● ● ●
57 00.795 FORK; SHIFT,CLU
4X4(UBS***) 		8-94370-379-3 01 1 9810- ●
57 00.795 FORK; SHIFT,CLU
M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) 		8-94370-379-3 01 1 9810- ● ●
116 00.799 BLOCK; SHIFT,CLU 8-94379-441-0 01 1 9712-0112 ●
116 00.799 BLOCK; SHIFT,CLU
M/T MUA 5 SPEED(RMN) 		8-94377-417-1 01 1 9810- ●
118 00.799 BEARING; CLU RELEASE
KOYO 		8-94379-499-0 01 1 9712-0112 ●
118 00.799 BEARING; CLU RELEASE
NSK 		8-97316-591-0 01 1 0201- ●
118 00.799 BEARING; CLU RELEASE
M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) 		8-94377-417-1 01 1 9712-9809 ● ● ●
118 00.799 BEARING; CLU RELEASE
M/T AR-5 5 SPEED(RNK) 		8-94377-417-1 01 1 9810- ● ●
137 00.862 BOLT; CLU COVER
01.062 M8X16 FLANGE 		0-28080-816-0 06 1 9712-0105 ●
137 00.862 BOLT; CLU COVER
M/T MUA 5 SPEED(RMN) 01.062 M8X16 FLANGE 		0-28080-816-0 06 1 0106- ●
137 00.862 BOLT; CLU COVER
M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) 01.062 M8X16 FLANGE 		0-28080-816-0 09 1 9712- ● ● ●
140 00.862 PIN; STRAIGHT
OD=6 L=24 		9-09878-532-0 02 1 9712-0105 ●
140 00.862 PIN; STRAIGHT
M/T MUA 5 SPEED(RMN) OD=6 L=24 		9-09878-532-0 02 1 0106- ●
140 00.862 PIN; STRAIGHT
M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) OD=6 L=24 		9-09878-532-0 03 1 9712- ● ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
M/T MUA 5 SPEED(RMN) M12X85 FLANGE 		8-94480-345-1 02 1 9712- ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) 08.900 M10X30 FLANGE 		0-28781-030-0 02 1 9712- ● ● ●

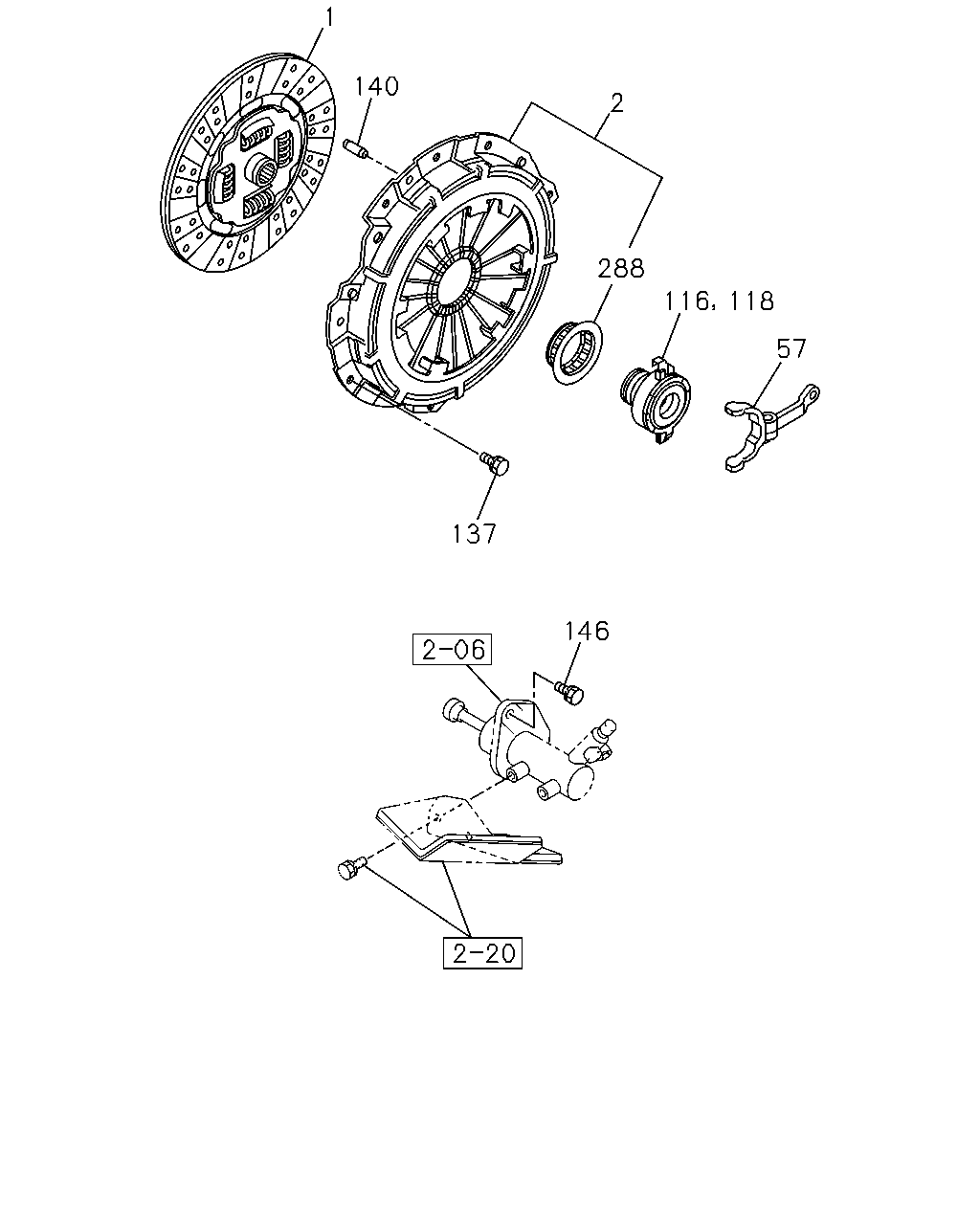

çizim 69042
1 140 2 288 116 118 57 137 146
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.886 DISC; CLUTCH 8-97135-492-0 01 1 9712-9806 ●
1 00.886 DISC; CLUTCH 8-97207-245-0 01 1 9807-9809 ●
1 00.886 DISC; CLUTCH 8-97217-985-0 01 1 9810-0008 ●
1 00.886 DISC; CLUTCH 8-97257-124-0 01 1 0009-0105 ●
1 00.886 DISC; CLUTCH
M/T MUA 5 SPEED(RMN) 		8-97257-124-0 01 1 0106-0403 ●
1 00.886 DISC; CLUTCH
M/T MUA 5 SPEED(RMN) 		8-97377-899-0 01 1 0404- ●
1 00.886 DISC; CLUTCH 8-97143-146-1 01 1 9712-9908 ●
1 00.886 DISC; CLUTCH
M/T AR-5 5 SPEED(RNK) 		8-97143-146-1 01 1 9909- ●
1 00.886 DISC; CLUTCH
M/T AR-5 5 SPEED(RNK) 		8-97163-194-0 01 1 9712- ●
1 00.886 DISC; CLUTCH
M/T MUA 5 SPEED(RMN) 		8-97138-135-0 01 1 9712-0309 ●
1 00.886 DISC; CLUTCH
M/T MUA 5 SPEED(RMN) 		8-97138-138-0 01 1 0310- ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-97109-246-0 01 1 9712-0105 ●
2 00.859 PLATE ASM; PRESSURE,CLU
M/T MUA 5 SPEED(RMN) 		8-97109-246-0 01 1 0106- ●
2 00.859 PLATE ASM; PRESSURE,CLU
M/T AR-5 5 SPEED(RNK) 		8-97136-535-0 01 1 9712- ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
M/T MUA 5 SPEED(RMN) 		8-94374-897-8 01 1 9712- ●
57 00.795 FORK; SHIFT,CLU 8-97039-266-0 01 1 9712-0305 ●
57 00.795 FORK; SHIFT,CLU 8-97365-654-0 01 1 0306- ●
57 00.795 FORK; SHIFT,CLU
M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) 		8-94370-379-2 01 1 9712-9809 ● ● ●
57 00.795 FORK; SHIFT,CLU
4X4(UBS***) 		8-94370-379-3 01 1 9810- ●
57 00.795 FORK; SHIFT,CLU
M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) 		8-94370-379-3 01 1 9810- ● ●
116 00.799 BLOCK; SHIFT,CLU 8-94379-441-0 01 1 9712-0112 ●
116 00.799 BLOCK; SHIFT,CLU
M/T MUA 5 SPEED(RMN) 		8-94377-417-1 01 1 9810- ●
118 00.799 BEARING; CLU RELEASE
KOYO 		8-94379-499-0 01 1 9712-0112 ●
118 00.799 BEARING; CLU RELEASE
NSK 		8-97316-591-0 01 1 0201- ●
118 00.799 BEARING; CLU RELEASE
M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) 		8-94377-417-1 01 1 9712-9809 ● ● ●
118 00.799 BEARING; CLU RELEASE
M/T AR-5 5 SPEED(RNK) 		8-94377-417-1 01 1 9810- ● ●
137 00.862 BOLT; CLU COVER
01.062 M8X16 FLANGE 		0-28080-816-0 06 1 9712-0105 ●
137 00.862 BOLT; CLU COVER
M/T MUA 5 SPEED(RMN) 01.062 M8X16 FLANGE 		0-28080-816-0 06 1 0106- ●
137 00.862 BOLT; CLU COVER
M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) 01.062 M8X16 FLANGE 		0-28080-816-0 09 1 9712- ● ● ●
140 00.862 PIN; STRAIGHT
OD=6 L=24 		9-09878-532-0 02 1 9712-0105 ●
140 00.862 PIN; STRAIGHT
M/T MUA 5 SPEED(RMN) OD=6 L=24 		9-09878-532-0 02 1 0106- ●
140 00.862 PIN; STRAIGHT
M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) OD=6 L=24 		9-09878-532-0 03 1 9712- ● ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
M/T MUA 5 SPEED(RMN) M12X85 FLANGE 		8-94480-345-1 02 1 9712- ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) 08.900 M10X30 FLANGE 		0-28781-030-0 02 1 9712- ● ● ●
288 00.863 COLLAR; WEDGE
M/T AR-5 5 SPEED(RNK) 		8-97065-073-0 01 1 9909- ● ●
288 00.863 COLLAR; WEDGE
M/T MUA 5 SPEED(RMN) 		8-97065-073-0 01 1 9909- ●
