◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50775 - UBS-LHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-45 - WATER SEDIMENTER; FUEL ▶

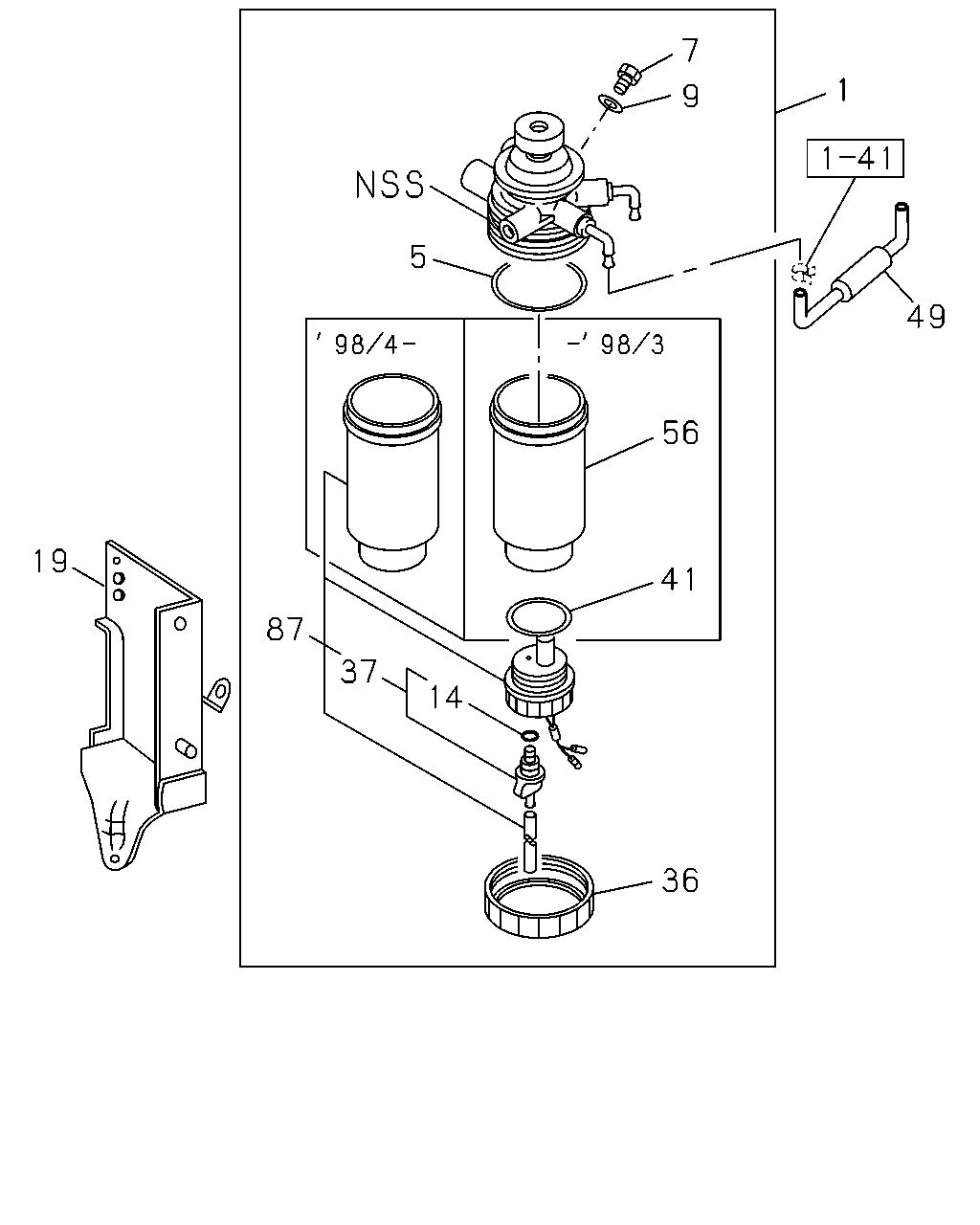

1-45 — WATER SEDIMENTER; FUEL (#44861) — 22 parça

7 1 9 5 49 56 19 41 87 37 14 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.890 SEDIMENTER; FUEL EXC. EUROPE EQUIPMENT(EK4)	8-97038-183-3	01	1	9712-0005
1	03.890 SEDIMENTER; FUEL EXC. EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ)	8-97038-183-4	01	1	0006-
5	03.890 GASKET; UPR COVER,SEDIMENTER EXC. EUROPE EQUIPMENT(EK4)	5-09623-075-0	01	1	9712-0005
5	03.890 GASKET; UPR COVER,SEDIMENTER EXC. EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ)	5-09623-075-0	01	1	0006-
7	03.890 PLUG; DRAIN,SEDIMENTER EXC. EUROPE EQUIPMENT(EK4)	8-94132-674-0	01	1	9712-0005
7	03.890 PLUG; DRAIN,SEDIMENTER EXC. EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ)	8-94132-674-0	01	1	0006-
9	03.890 GASKET; DRAIN PLUG & CONNECTOR EXC. EUROPE EQUIPMENT(EK4)	8-94132-675-0	01	1	9712-0005
9	03.890 GASKET; DRAIN PLUG & CONNECTOR EXC. EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ)	8-94132-675-0	01	1	0006-
14	03.890 GASKET; SENSOR TO CENTER BOLT EXC. EUROPE EQUIPMENT(EK4)	8-94447-156-0	01	1	9712-0005
14	03.890 GASKET; SENSOR TO CENTER BOLT EXC. EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ)	8-94447-156-0	01	1	0006-
19	03.890 BRACKET; FUEL SEDIMENTER	8-97074-768-0	01	1	9712-
36	03.890 RING; BODY TO CASE EXC. EUROPE EQUIPMENT(EK4)	5-13234-010-0	01	1	9712-0005
36	03.890 RING; BODY TO CASE EXC. EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ)	5-13234-010-0	01	1	0006-
37	03.890 PLUG; SENSOR EXC. EUROPE EQUIPMENT(EK4)	5-13220-002-0	01	1	9712-9803
37	03.890 PLUG; SENSOR EXC. EUROPE EQUIPMENT(EK4)	8-94453-746-0	01	1	9804-0005
37	03.890 PLUG; SENSOR EXC. EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ)	8-94453-746-0	01	1	0006-
41	03.890 GASKET; SENSOR TO CASE EXC. EUROPE EQUIPMENT(EK4) 08.927	9-09563-334-0	01	1	9712-9803
49	03.890 HOSE; RUBBER,FUEL FILTER TO SEDI	8-97038-297-0	01	1	9712-
56	03.890 CASE; FUEL SEDIMENTER EXC. EUROPE EQUIPMENT(EK4)	5-13211-030-1	01	1	9712-9803
87	03.890 CASE ASM; SEDIMENTER EXC. EUROPE EQUIPMENT(EK4)	8-97064-711-1	01	1	9804-9809
87	03.890 CASE ASM; SEDIMENTER EXC. EUROPE EQUIPMENT(EK4)	8-97219-651-0	01	1	9810-0005
87	03.890 CASE ASM; SEDIMENTER EXC. EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ)	8-97219-651-0	01	1	0006-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
