Sayfa 1-41 - Isuzu EPC

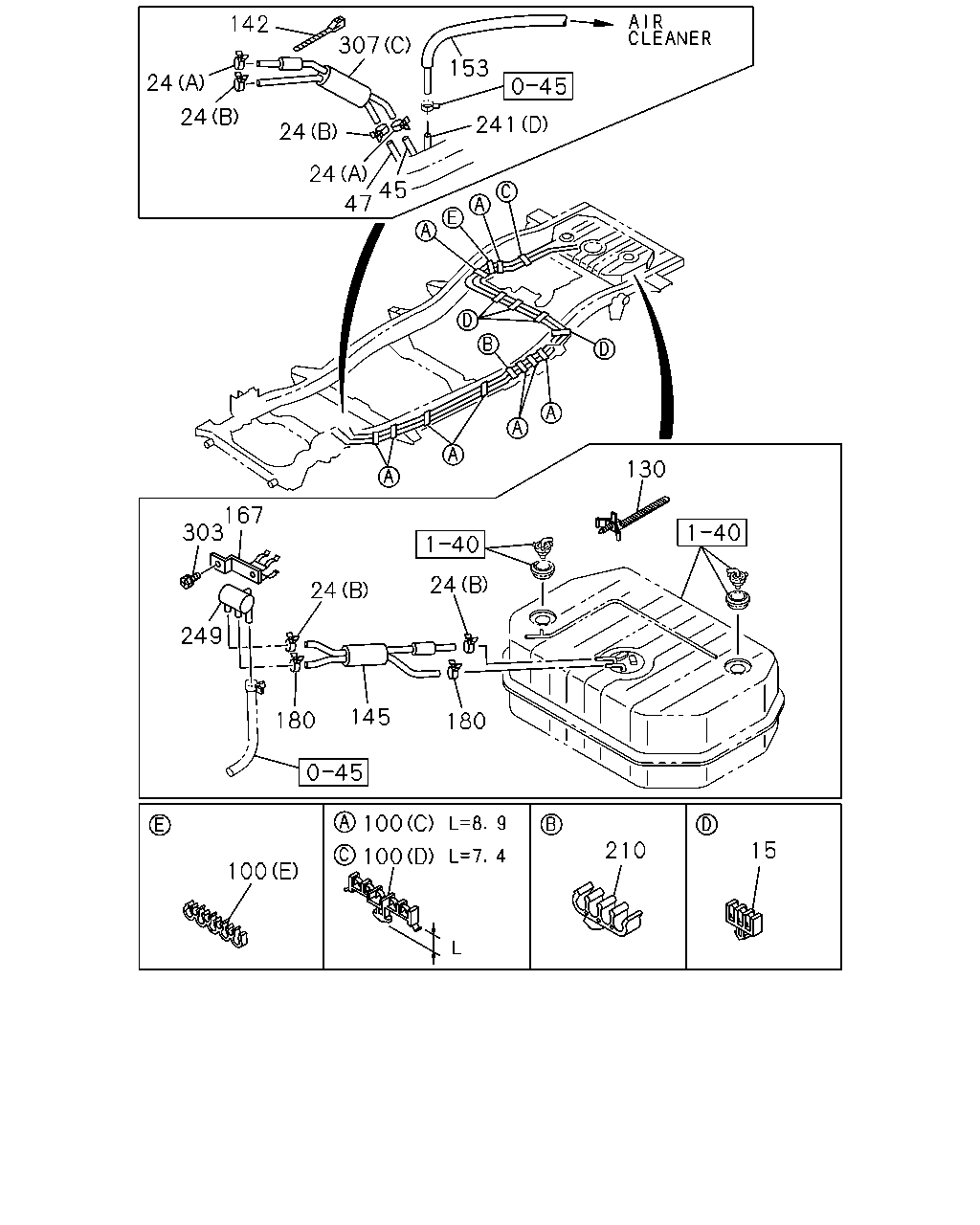

1-41 — FUEL PIPING; CHASSIS (#44860) — 484 parça

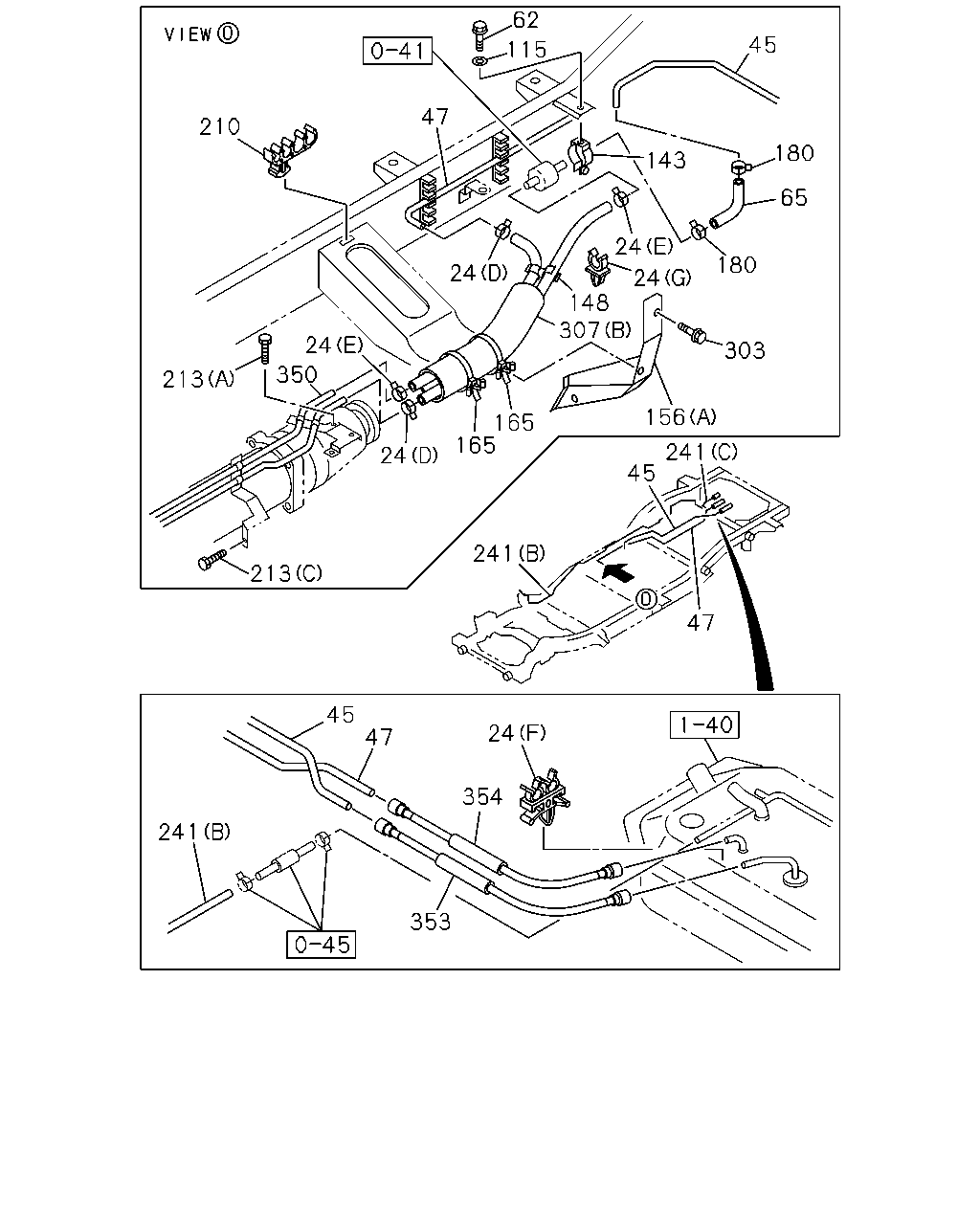

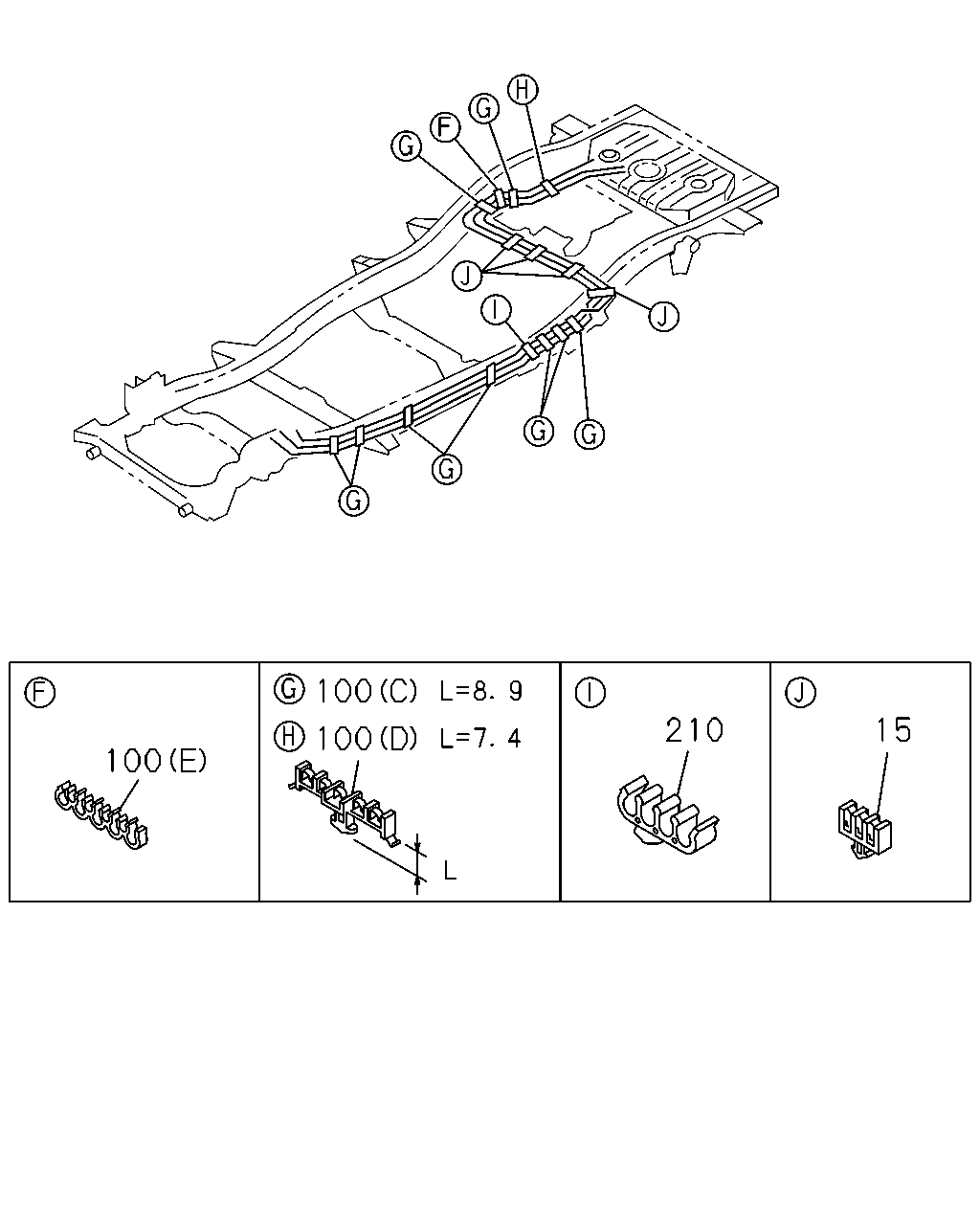

100 210 15 100 100

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
15	03.162 CLIP; FUEL PIPE 2 DOOR SHORT(UB***C)	8-97012-498-1	03	1	9712-	●	●
15	03.162 CLIP; FUEL PIPE 4X4 4 DOOR LONG(UBS**F)	8-97012-498-1	04	1	9712-0007	●	●
15	03.162 CLIP; FUEL PIPE 4X4 4 DOOR LONG(UBS**F)	8-97012-498-1	04	1	0008-	●
15	03.162 CLIP; FUEL PIPE 4 DOOR LONG(UB***F)	8-97012-498-1	04	1	0008-		●
100	03.162 CLIP; FUEL PIPE 2 DOOR SHORT(UB***C) (C) L=8.9	8-94435-551-1	07	1	9712-0201	●	●	●	●
100	03.162 CLIP; FUEL PIPE 4X4 4 DOOR LONG(UBS**F) (C) L=8.9	8-94435-551-1	07	1	0202-	●
100	03.162 CLIP; FUEL PIPE 4 DOOR LONG(UB***F) (C) L=8.9	8-94435-551-1	07	1	0202-		●
100	03.162 CLIP; FUEL PIPE 2 DOOR SHORT(UB***C) (C) L=8.9	8-94435-551-1	07	1	0202-			●	●
100	03.162 CLIP; FUEL PIPE 2 DOOR SHORT(UB***C) (C) L=8.9	8-94435-551-1	06	1	0202-	●	●
100	03.162 CLIP; FUEL PIPE 4X4 4 DOOR LONG(UBS**F) (C) L=8.9	8-94435-551-1	09	1	9712-0007	●	●	●	●
100	03.162 CLIP; FUEL PIPE 4X4 4 DOOR LONG(UBS**F) (C) L=8.9	8-94435-551-1	09	1	0008-0201	●		●	●
100	03.162 CLIP; FUEL PIPE 4 DOOR LONG(UB***F) (C) L=8.9	8-94435-551-1	09	1	0008-0201		●
100	03.162 CLIP; FUEL PIPE 4X4 4 DOOR LONG(UBS**F) (C) L=8.9	8-94435-551-1	09	1	0202-			●	●
100	03.162 CLIP; FUEL PIPE (D) L=7.4	8-94435-550-0	01	1	9712-9908	●	●	●	●
100	03.162 CLIP; FUEL PIPE (D) L=7.4	8-94435-550-0	01	1	9909-0007	●		●	●
100	03.162 CLIP; FUEL PIPE 4X4(UBS***) (D) L=7.4	8-94435-550-0	01	1	9909-0007		●
100	03.162 CLIP; FUEL PIPE (D) L=7.4	8-94435-550-0	01	1	0008-	●	●	●	●
100	03.162 CLIP; FUEL PIPE (E)	8-97073-935-0	01	1	9712-9908	●	●	●	●
100	03.162 CLIP; FUEL PIPE (E)	8-97073-935-0	01	1	9909-0007	●		●	●
100	03.162 CLIP; FUEL PIPE 4X4(UBS***) (E)	8-97073-935-0	01	1	9909-0007		●
100	03.162 CLIP; FUEL PIPE (E)	8-97073-935-0	01	1	0008-	●	●	●	●
100	03.162 CLIP; FUEL PIPE (A) ID=11.5	8-97138-011-0	02	1	9712-0008			●	●
100	03.162 CLIP; FUEL PIPE EXC. TORQUE ON DEMAND<7HA> (A) ID=11.5	8-97138-011-0	02	1	0009-			●	●
100	03.162 CLIP; FUEL PIPE TORQUE ON DEMAND<7HA> (A) ID=11.5	8-97138-011-0	01	1	0009-			●	●
100	03.162 CLIP; FUEL PIPE (B) ID=12	8-97148-892-0	02	1	9712-0008			●	●
100	03.162 CLIP; FUEL PIPE EXC. TORQUE ON DEMAND<7HA> (B) ID=12	8-97148-892-1	02	1	0009-			●	●
100	03.162 CLIP; FUEL PIPE TORQUE ON DEMAND<7HA> (B) ID=12	8-97148-892-1	01	1	0009-			●	●
210	03.162 CLIP; FEED PIPE	8-97069-378-0	01	1	9712-	●	●	●	●
210	03.162 CLIP; FEED PIPE	8-97069-378-0	01	1	9712-	●	●

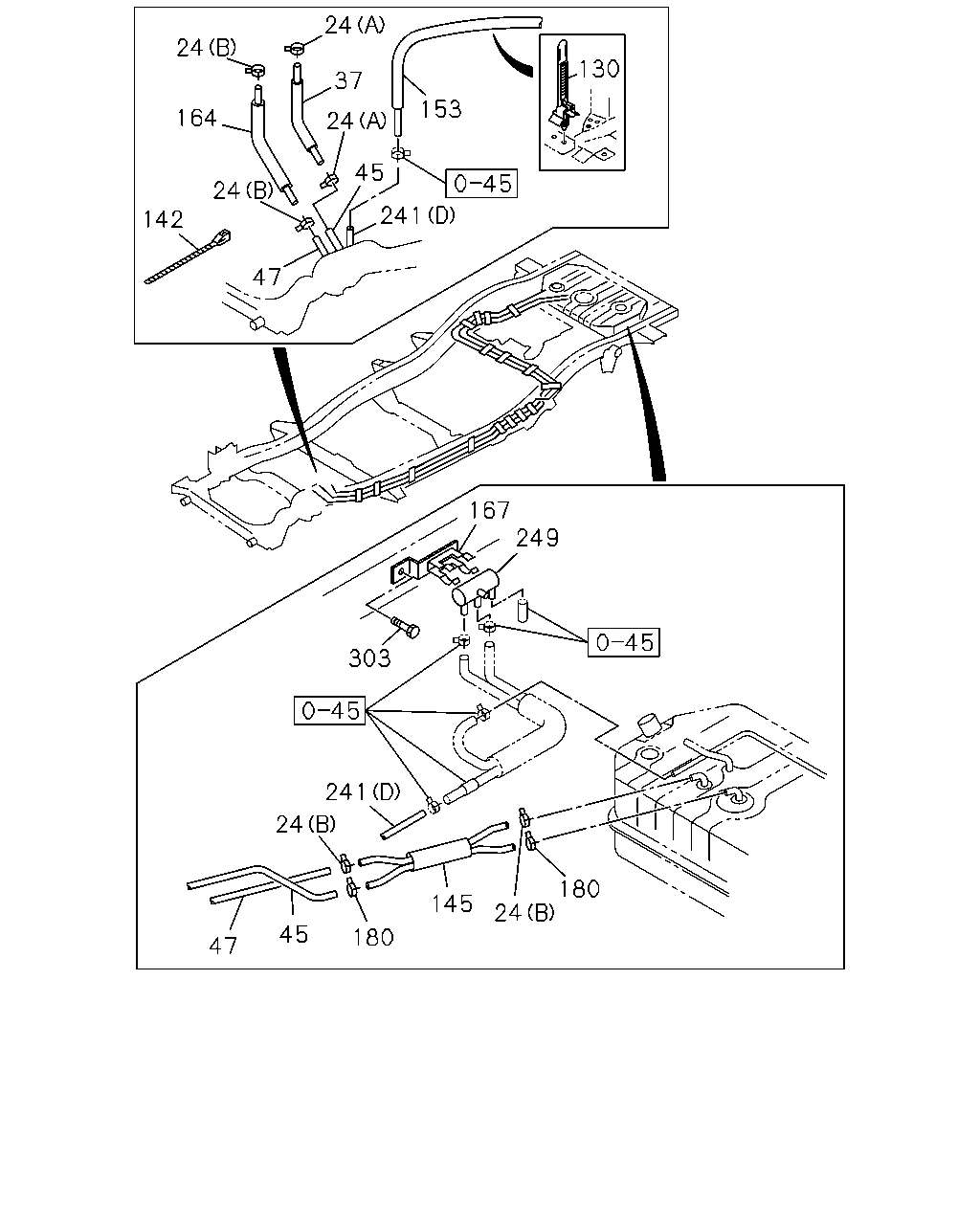

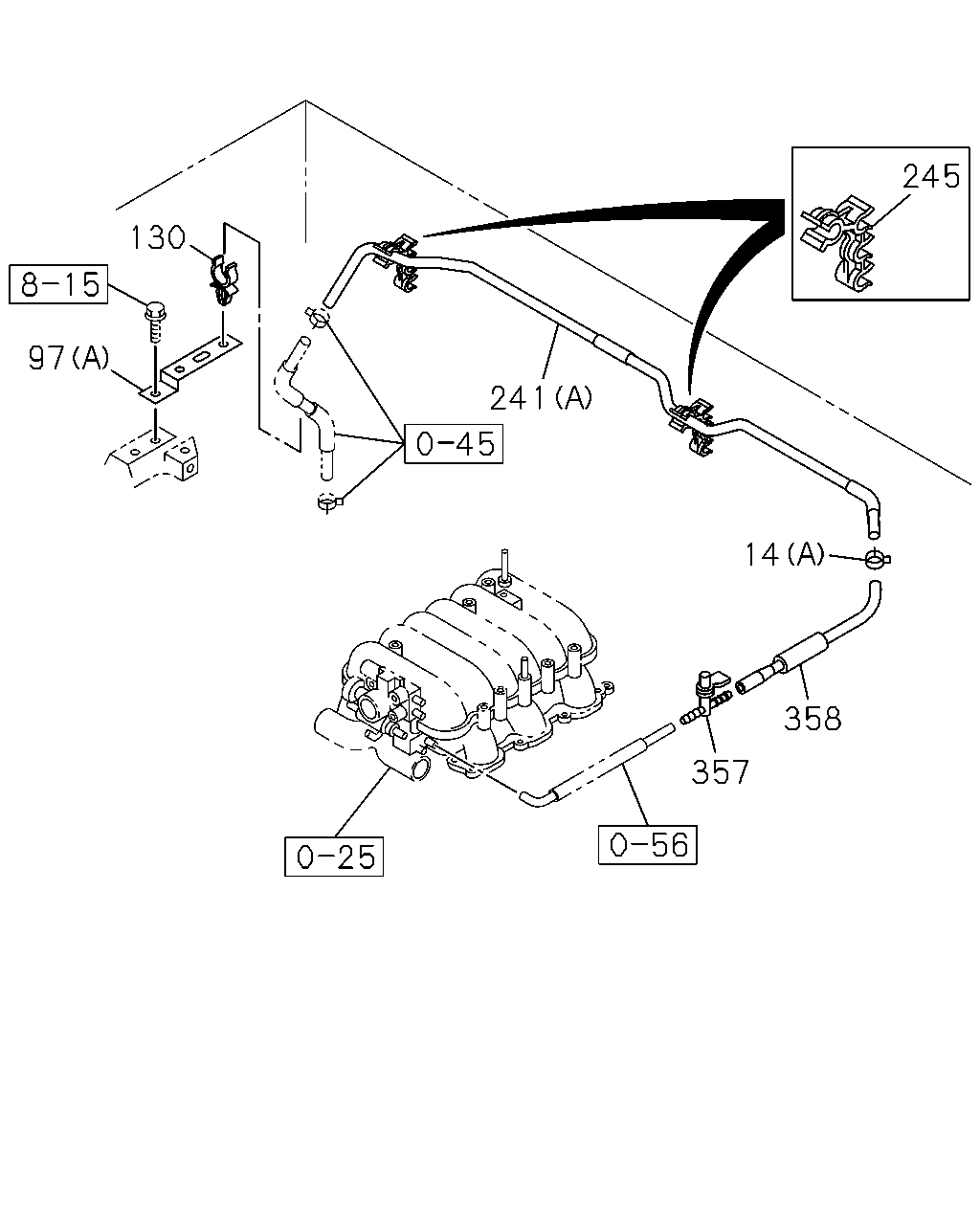

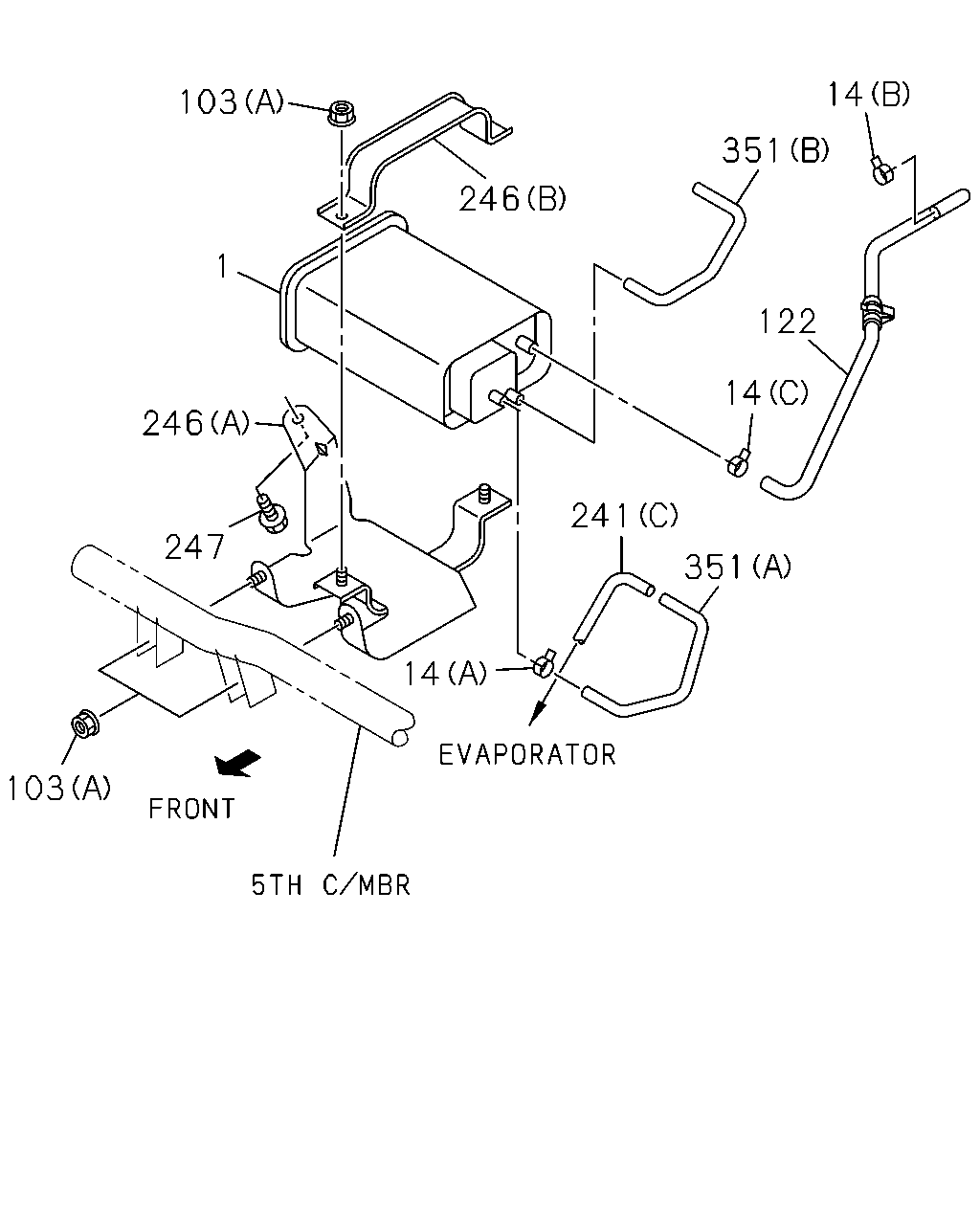

14 14 14 157 14 24 14 14 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
14	03.162 CLIP; HOSE (D) ID=14.2	8-97087-056-1	04	1	9712-	●
14	03.162 CLIP; HOSE (D) ID=14.2	8-97087-056-1	02	1	9712-		●
14	03.162 CLIP; HOSE 04.930 (C) ID=16	8-94238-568-0	01	1	9712-9801			●	●
14	03.162 CLIP; HOSE 04.681 (C) ID=16	8-97173-222-0	01	1	9802-			●	●
14	03.162 CLIP; HOSE 03.163 (A) ID=11	8-94238-570-0	01	1	9712-0103			●	●
14	03.162 CLIP; HOSE 03.163 (A) ID=11	8-97173-219-0	01	1	0104-			●	●
14	03.162 CLIP; HOSE 01.166 (B) ID=14	8-94238-572-0	01	1	9712-9801			●	●
14	03.162 CLIP; HOSE (B) ID=14	8-97173-221-0	01	1	9802-			●	●
24	03.162 CLIP; FUEL HOSE (A) ID=14.2	8-97087-056-1	02	1	9712-	●	●
24	03.162 CLIP; FUEL HOSE (B) ID=13	8-97173-220-0	04	1	9712-	●	●
24	03.162 CLIP; FUEL HOSE 02.589 (C) ID=13 & 16.5	8-94169-028-0	01	1	9712-		●
24	03.162 CLIP; FUEL HOSE (D) ID=11.5	8-97138-011-0	02	1	9712-			●	●
24	03.162 CLIP; FUEL HOSE (E) ID=12	8-97148-892-1	02	1	9712-			●	●
24	03.162 CLIP; FUEL HOSE (F)	8-97180-781-0	01	1	9712-			●	●
24	03.162 CLIP; FUEL HOSE 4X4 4 DOOR LONG(UBS**F) 01.240 (G) ID=13.8	8-97016-932-0	01	1	9712-			●	●
157	03.163 HOSE; FUEL FILTER TO FEED PIPE	8-97132-542-0	01	1	9712-	●
157	03.163 HOSE; FUEL FILTER TO FEED PIPE	8-97173-003-3	01	1	9712-0004		●
157	03.163 HOSE; FUEL FILTER TO FEED PIPE 4X4(UBS***) EXC. FUEL SEDIMENTER<ET9>	8-97173-003-3	01	1	0005-		●
157	03.163 HOSE; FUEL FILTER TO FEED PIPE FUEL SEDIMENTER<ET9>	8-97239-254-0	01	1	0005-		●

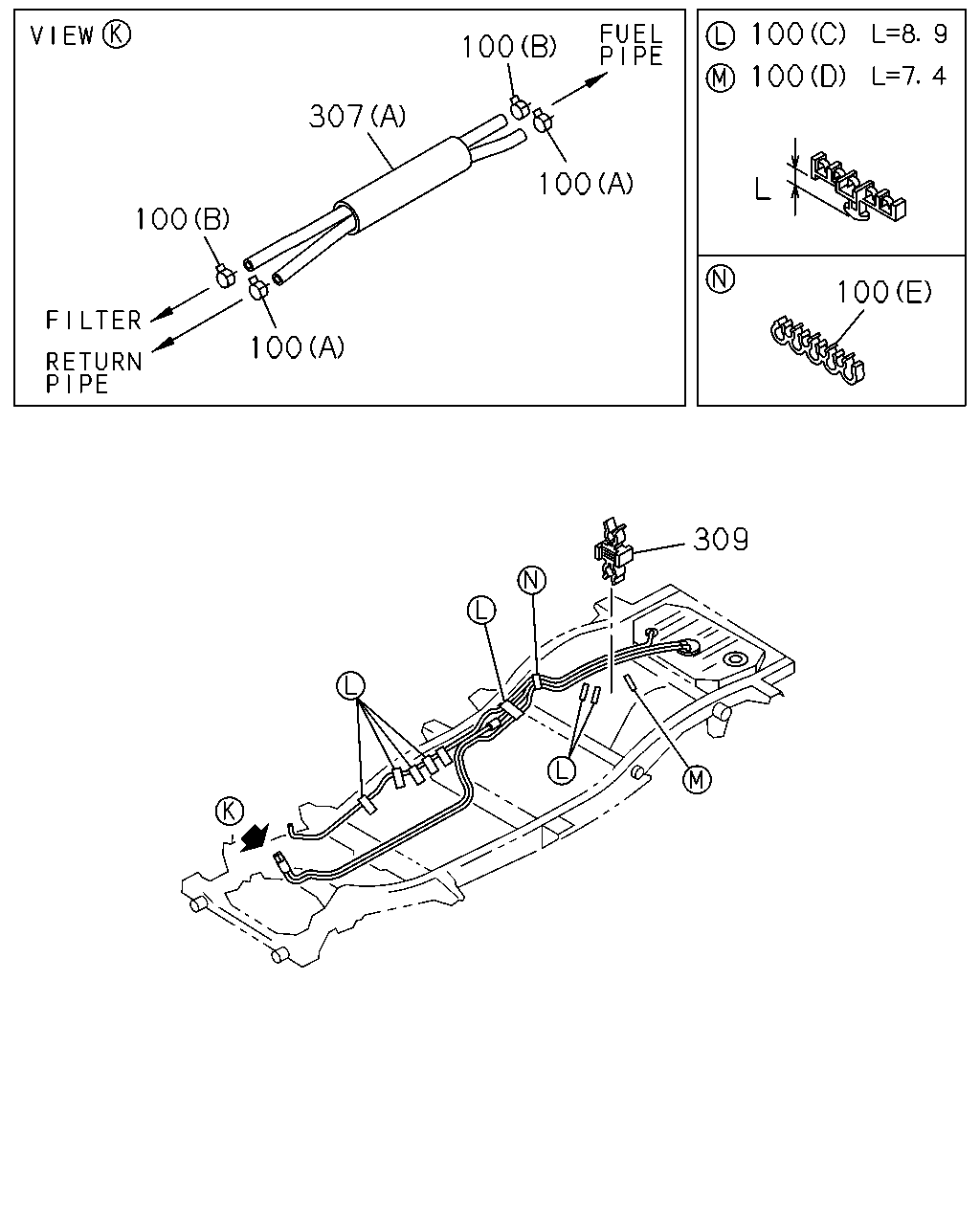

100 100 100 307 100 100 100 100 309

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
100	03.162 CLIP; FUEL PIPE 2 DOOR SHORT(UB***C) (C) L=8.9	8-94435-551-1	07	1	9712-0201	●	●	●	●
100	03.162 CLIP; FUEL PIPE 4X4 4 DOOR LONG(UBS**F) (C) L=8.9	8-94435-551-1	07	1	0202-	●
100	03.162 CLIP; FUEL PIPE 4 DOOR LONG(UB***F) (C) L=8.9	8-94435-551-1	07	1	0202-		●
100	03.162 CLIP; FUEL PIPE 2 DOOR SHORT(UB***C) (C) L=8.9	8-94435-551-1	07	1	0202-			●	●
100	03.162 CLIP; FUEL PIPE 2 DOOR SHORT(UB***C) (C) L=8.9	8-94435-551-1	06	1	0202-	●	●
100	03.162 CLIP; FUEL PIPE 4X4 4 DOOR LONG(UBS**F) (C) L=8.9	8-94435-551-1	09	1	9712-0007	●	●	●	●
100	03.162 CLIP; FUEL PIPE 4X4 4 DOOR LONG(UBS**F) (C) L=8.9	8-94435-551-1	09	1	0008-0201	●		●	●
100	03.162 CLIP; FUEL PIPE 4 DOOR LONG(UB***F) (C) L=8.9	8-94435-551-1	09	1	0008-0201		●
100	03.162 CLIP; FUEL PIPE 4X4 4 DOOR LONG(UBS**F) (C) L=8.9	8-94435-551-1	09	1	0202-			●	●
100	03.162 CLIP; FUEL PIPE (D) L=7.4	8-94435-550-0	01	1	9712-9908	●	●	●	●
100	03.162 CLIP; FUEL PIPE (D) L=7.4	8-94435-550-0	01	1	9909-0007	●		●	●
100	03.162 CLIP; FUEL PIPE 4X4(UBS***) (D) L=7.4	8-94435-550-0	01	1	9909-0007		●
100	03.162 CLIP; FUEL PIPE (D) L=7.4	8-94435-550-0	01	1	0008-	●	●	●	●
100	03.162 CLIP; FUEL PIPE (E)	8-97073-935-0	01	1	9712-9908	●	●	●	●
100	03.162 CLIP; FUEL PIPE (E)	8-97073-935-0	01	1	9909-0007	●		●	●
100	03.162 CLIP; FUEL PIPE 4X4(UBS***) (E)	8-97073-935-0	01	1	9909-0007		●
100	03.162 CLIP; FUEL PIPE (E)	8-97073-935-0	01	1	0008-	●	●	●	●
100	03.162 CLIP; FUEL PIPE (A) ID=11.5	8-97138-011-0	02	1	9712-0008			●	●
100	03.162 CLIP; FUEL PIPE EXC. TORQUE ON DEMAND<7HA> (A) ID=11.5	8-97138-011-0	02	1	0009-			●	●
100	03.162 CLIP; FUEL PIPE TORQUE ON DEMAND<7HA> (A) ID=11.5	8-97138-011-0	01	1	0009-			●	●
100	03.162 CLIP; FUEL PIPE (B) ID=12	8-97148-892-0	02	1	9712-0008			●	●
100	03.162 CLIP; FUEL PIPE EXC. TORQUE ON DEMAND<7HA> (B) ID=12	8-97148-892-1	02	1	0009-			●	●
100	03.162 CLIP; FUEL PIPE TORQUE ON DEMAND<7HA> (B) ID=12	8-97148-892-1	01	1	0009-			●	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN AIR BAG DRIVER<AJ3> (C)	8-97134-374-0	01	1	9712-	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN EXC. AIR BAG DRIVER<AJ3> (C)	8-97182-160-0	01	1	9712-	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN (B)	8-97174-384-2	01	1	9712-9908			●	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN M/T AR-5 5 SPEED(RNK) (B)	8-97229-401-1	01	1	9909-9912			●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN M/T MUA 5 SPEED(RMN) (B)	8-97229-401-1	01	1	9909-9912				●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN M/T AR-5 5 SPEED(RNK) (B)	8-97249-656-2	01	1	0001-			●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN M/T MUA 5 SPEED(RMN) (B)	8-97249-656-2	01	1	0001-				●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN A/T THM(RMQ) (B)	8-97229-400-1	01	1	9909-9912			●	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN A/T THM(RMQ) (B)	8-97249-655-0	01	1	0001-0008			●	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN A/T THM(RMQ) EXC. TORQUE ON DEMAND<7HA> (B)	8-97249-655-2	01	1	0009-			●	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN TORQUE ON DEMAND<7HA> (B)	8-97289-613-0	01	1	0009-			●	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN 2 DOOR SHORT(UB***C) A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) (A)	8-97170-309-3	01	1	9712-9908			●	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN 2 DOOR SHORT(UB***C) A/T AISIN(RMD),A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) (A)	8-97170-309-5	01	1	9909-			●	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN 4X4 4 DOOR LONG(UBS**F) A/T THM(RMQ) (A)	8-97163-847-4	01	1	9712-9908			●	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN 4X4 4 DOOR LONG(UBS**F) A/T AISIN(RMD),A/T THM(RMQ) EXC. TORQUE ON DEMAND<7HA> (A)	8-97163-847-6	01	1	9909-			●	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN 4X4 4 DOOR LONG(UBS**F) A/T THM(RMQ) TORQUE ON DEMAND<7HA> (A)	8-97163-846-6	01	1	9911-			●	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN 4X4 4 DOOR LONG(UBS**F) M/T AR-5 5 SPEED(RNK) (A)	8-97188-829-1	01	1	9712-9908			●	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN 4X4 4 DOOR LONG(UBS**F) M/T AR-5 5 SPEED(RNK) EXC. TORQUE ON DEMAND<7HA> (A)	8-97188-829-3	01	1	9909-			●	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN 2 DOOR SHORT(UB***C) M/T MUA 5 SPEED(RMN) (A)	8-97170-310-4	01	1	9712-				●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN 4X4 4 DOOR LONG(UBS**F) M/T MUA 5 SPEED(RMN) (A)	8-97169-260-4	01	1	9712-				●
309	03.162 CLIP; PIPE 03.483 ID=6 & 6	8-94463-708-0	01	1	9712-			●	●

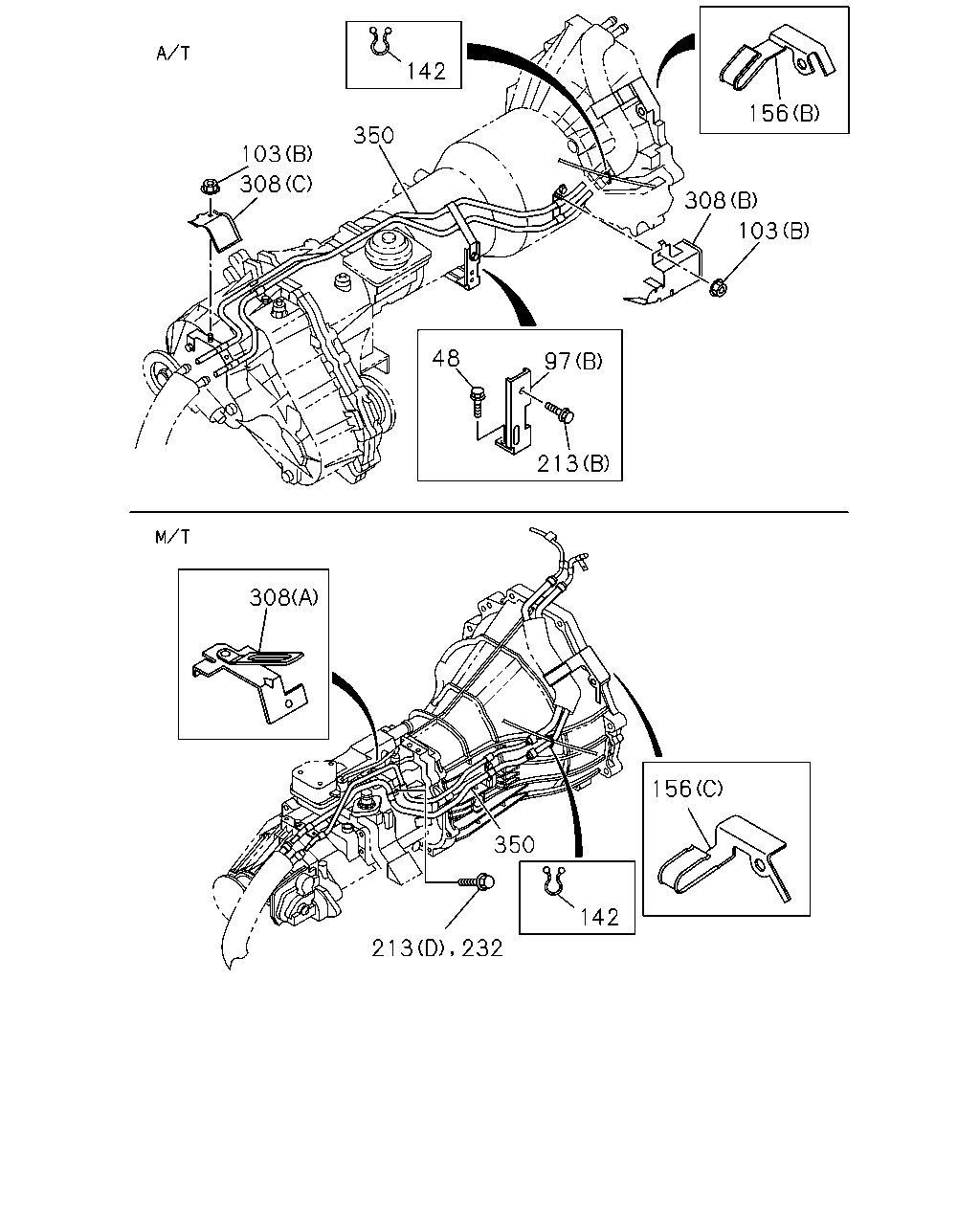

142 156 350 103 308 308 103 48 97 213 232 350 156 232 142

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
48	03.162 BOLT; BRKT A/T THM(RMQ) 02.334 M6X25 FLANGE	0-28680-625-0	01	1	9712-			●	●
97	03.162 BRACKET; CLIP (A)	8-97049-707-1	01	1	9712-0005			●	●
97	03.162 BRACKET; CLIP A/T THM(RMQ) (B)	8-97175-938-1	01	1	9712-			●	●
103	03.130 NUT; BRKT 07.633 (A) M8 FLANGE	0-91150-108-0	04	1	9712-			●	●
103	03.130 NUT; BRKT TORQUE ON DEMAND<7HA> 04.594 (B) M6 FLANGE	0-91150-106-0	02	1	0009-			●	●
142	03.162 CLIP; BAND,FUEL HOSE 02.559 L=250	5-09707-030-1	01	1	9802-	●
142	03.162 CLIP; BAND,FUEL HOSE 02.559 L=250	5-09707-030-0	01	1	9712-9712	●	●
142	03.162 CLIP; BAND,FUEL HOSE 02.559 L=250	5-09707-030-0	01	1	9801-9801	●
142	03.162 CLIP; BAND,FUEL HOSE 03.430 L=200	8-94464-835-0	01	1	9801-		●
142	03.162 CLIP; BAND,FUEL HOSE EUROPE EQUIPMENT(EK4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 16.065 ID=20	1-09709-068-0	01	1	9712-0005			●	●
142	03.162 CLIP; BAND,FUEL HOSE EUROPE EQUIPMENT(EK4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) ,ARGENTINA EQUIPMENT(7SZ) 16.065 ID=20	1-09709-068-0	01	1	0006-0007			●	●
142	03.162 CLIP; BAND,FUEL HOSE CATALYSIS CONTROL(6MZ) 16.065 ID=20	1-09709-068-0	01	1	0008-0008			●	●
142	03.162 CLIP; BAND,FUEL HOSE 2 DOOR SHORT(UB***C) CATALYSIS CONTROL(6MZ) 16.065 ID=20	1-09709-068-0	01	1	0009-			●	●
142	03.162 CLIP; BAND,FUEL HOSE 4X4 4 DOOR LONG(UBS**F) CATALYSIS CONTROL(6MZ) EXC. TORQUE ON DEMAND<7HA> 16.065 ID=20	1-09709-068-0	01	1	0009-			●	●
156	03.162 BRACKET; FUEL HOSE M/T AR-5 5 SPEED(RNK) (B)	8-97179-586-0	01	1	9712-			●
156	03.162 BRACKET; FUEL HOSE (A)	8-97174-660-0	01	1	9712-0105			●	●
156	03.162 BRACKET; FUEL HOSE (A)	8-97312-339-0	01	1	0106-			●	●
156	03.162 BRACKET; FUEL HOSE A/T THM(RMQ) (B)	8-97170-282-0	01	1	9712-			●	●
156	03.162 BRACKET; FUEL HOSE M/T MUA 5 SPEED(RMN) (C)	8-97179-620-0	01	1	9712-				●
213	03.162 BOLT; FUEL PIPE FIX 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	9712-			●	●
213	03.162 BOLT; FUEL PIPE FIX A/T THM(RMQ) 04.439 (B) M6X16 FLANGE	0-28680-616-0	01	1	9712-			●	●
213	03.162 BOLT; FUEL PIPE FIX A/T THM(RMQ) 04.930 (C) M6X20 FLANGE	0-28680-620-0	01	1	9712-9910			●	●
213	03.162 BOLT; FUEL PIPE FIX A/T THM(RMQ) EXC. TORQUE ON DEMAND<7HA> 04.930 (C) M6X20 FLANGE	0-28680-620-0	01	1	9911-			●	●
213	03.162 BOLT; FUEL PIPE FIX M/T MUA 5 SPEED(RMN) 01.428 (D) M6X12 FLANGE	0-28080-612-0	02	1	9712-9908				●
232	03.162 BOLT; CLIP,PIPE M/T AR-5 5 SPEED(RNK) 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9712-9908			●
232	03.162 BOLT; CLIP,PIPE M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9909-			●	●
308	03.162 BRACKET; FUEL PIPE TORQUE ON DEMAND<7HA> (B)	8-97213-915-1	01	1	0009-			●	●
308	03.162 BRACKET; FUEL PIPE TORQUE ON DEMAND<7HA> (C)	8-97213-916-0	01	1	0009-			●	●
308	03.162 BRACKET; FUEL PIPE M/T MUA 5 SPEED(RMN) (A)	8-97170-802-1	01	1	9712-				●
350	03.163 PIPE; FUEL,DEL & RET M/T AR-5 5 SPEED(RNK)	8-97163-757-6	01	1	9712-			●
350	03.163 PIPE; FUEL,DEL & RET A/T THM(RMQ) EXC. TORQUE ON DEMAND<7HA>	8-97163-759-5	01	1	9712-9911			●	●
350	03.163 PIPE; FUEL,DEL & RET A/T THM(RMQ) EXC. TORQUE ON DEMAND<7HA>	8-97240-939-0	01	1	9912-			●	●
350	03.163 PIPE; FUEL,DEL & RET 4X4 4 DOOR LONG(UBS**F) A/T THM(RMQ) TORQUE ON DEMAND<7HA>	8-97163-758-5	01	1	9911-0008			●	●
350	03.163 PIPE; FUEL,DEL & RET TORQUE ON DEMAND<7HA>	8-97213-913-0	01	1	0009-			●	●
350	03.163 PIPE; FUEL,DEL & RET M/T MUA 5 SPEED(RMN)	8-97168-963-4	01	1	9712-				●

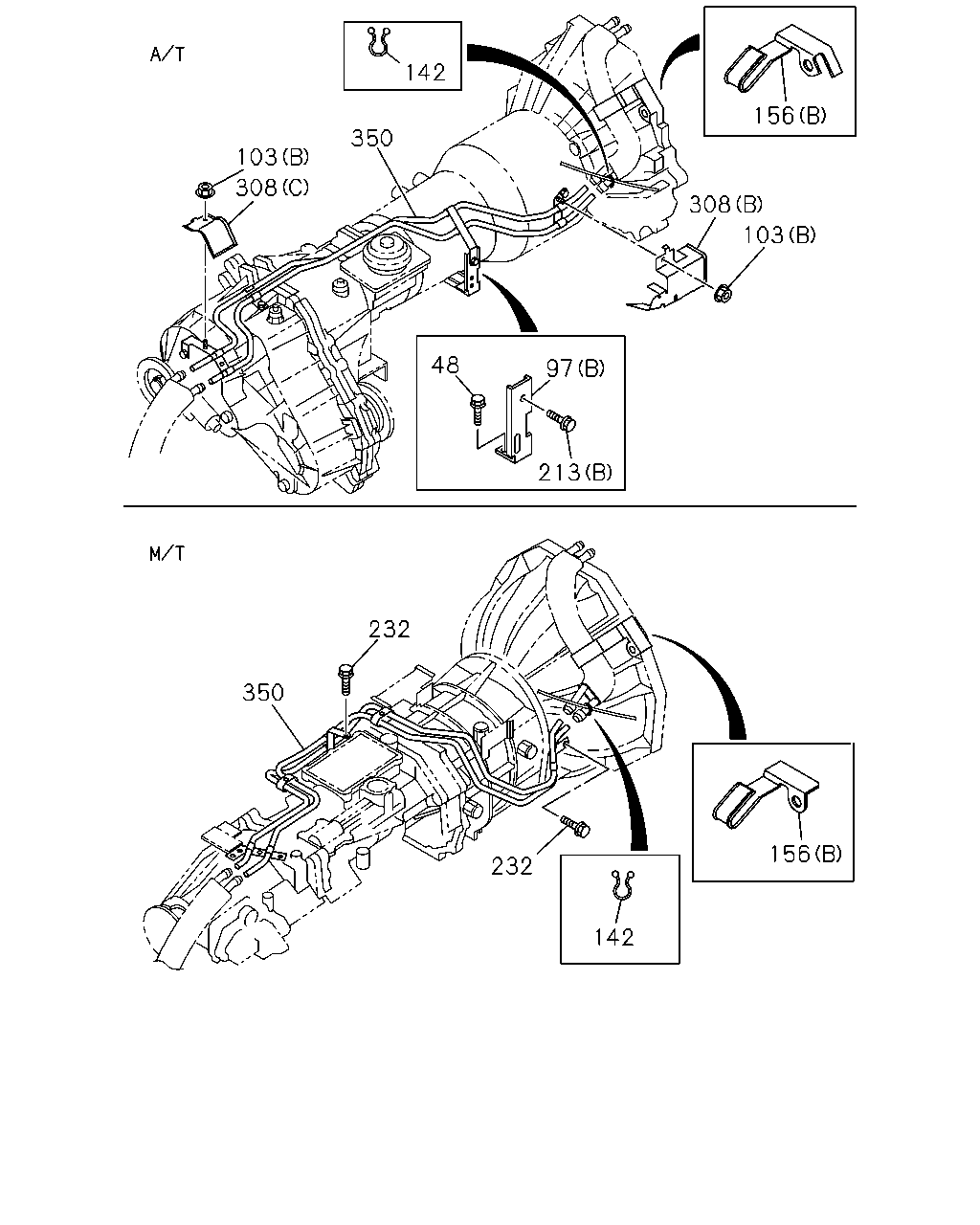

142 156 350 103 308 308 103 48 97 213 308 156 350 142 213 232

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
48	03.162 BOLT; BRKT A/T THM(RMQ) 02.334 M6X25 FLANGE	0-28680-625-0	01	1	9712-			●	●
97	03.162 BRACKET; CLIP (A)	8-97049-707-1	01	1	9712-0005			●	●
97	03.162 BRACKET; CLIP A/T THM(RMQ) (B)	8-97175-938-1	01	1	9712-			●	●
103	03.130 NUT; BRKT 07.633 (A) M8 FLANGE	0-91150-108-0	04	1	9712-			●	●
103	03.130 NUT; BRKT TORQUE ON DEMAND<7HA> 04.594 (B) M6 FLANGE	0-91150-106-0	02	1	0009-			●	●
142	03.162 CLIP; BAND,FUEL HOSE 02.559 L=250	5-09707-030-1	01	1	9802-	●
142	03.162 CLIP; BAND,FUEL HOSE 02.559 L=250	5-09707-030-0	01	1	9712-9712	●	●
142	03.162 CLIP; BAND,FUEL HOSE 02.559 L=250	5-09707-030-0	01	1	9801-9801	●
142	03.162 CLIP; BAND,FUEL HOSE 03.430 L=200	8-94464-835-0	01	1	9801-		●
142	03.162 CLIP; BAND,FUEL HOSE EUROPE EQUIPMENT(EK4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 16.065 ID=20	1-09709-068-0	01	1	9712-0005			●	●
142	03.162 CLIP; BAND,FUEL HOSE EUROPE EQUIPMENT(EK4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) ,ARGENTINA EQUIPMENT(7SZ) 16.065 ID=20	1-09709-068-0	01	1	0006-0007			●	●
142	03.162 CLIP; BAND,FUEL HOSE CATALYSIS CONTROL(6MZ) 16.065 ID=20	1-09709-068-0	01	1	0008-0008			●	●
142	03.162 CLIP; BAND,FUEL HOSE 2 DOOR SHORT(UB***C) CATALYSIS CONTROL(6MZ) 16.065 ID=20	1-09709-068-0	01	1	0009-			●	●
142	03.162 CLIP; BAND,FUEL HOSE 4X4 4 DOOR LONG(UBS**F) CATALYSIS CONTROL(6MZ) EXC. TORQUE ON DEMAND<7HA> 16.065 ID=20	1-09709-068-0	01	1	0009-			●	●
156	03.162 BRACKET; FUEL HOSE M/T AR-5 5 SPEED(RNK) (B)	8-97179-586-0	01	1	9712-			●
156	03.162 BRACKET; FUEL HOSE (A)	8-97174-660-0	01	1	9712-0105			●	●
156	03.162 BRACKET; FUEL HOSE (A)	8-97312-339-0	01	1	0106-			●	●
156	03.162 BRACKET; FUEL HOSE A/T THM(RMQ) (B)	8-97170-282-0	01	1	9712-			●	●
156	03.162 BRACKET; FUEL HOSE M/T MUA 5 SPEED(RMN) (C)	8-97179-620-0	01	1	9712-				●
213	03.162 BOLT; FUEL PIPE FIX 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	9712-			●	●
213	03.162 BOLT; FUEL PIPE FIX A/T THM(RMQ) 04.439 (B) M6X16 FLANGE	0-28680-616-0	01	1	9712-			●	●
213	03.162 BOLT; FUEL PIPE FIX A/T THM(RMQ) 04.930 (C) M6X20 FLANGE	0-28680-620-0	01	1	9712-9910			●	●
213	03.162 BOLT; FUEL PIPE FIX A/T THM(RMQ) EXC. TORQUE ON DEMAND<7HA> 04.930 (C) M6X20 FLANGE	0-28680-620-0	01	1	9911-			●	●
213	03.162 BOLT; FUEL PIPE FIX M/T MUA 5 SPEED(RMN) 01.428 (D) M6X12 FLANGE	0-28080-612-0	02	1	9712-9908				●
232	03.162 BOLT; CLIP,PIPE M/T AR-5 5 SPEED(RNK) 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9712-9908			●
232	03.162 BOLT; CLIP,PIPE M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9909-			●	●
308	03.162 BRACKET; FUEL PIPE TORQUE ON DEMAND<7HA> (B)	8-97213-915-1	01	1	0009-			●	●
308	03.162 BRACKET; FUEL PIPE TORQUE ON DEMAND<7HA> (C)	8-97213-916-0	01	1	0009-			●	●
308	03.162 BRACKET; FUEL PIPE M/T MUA 5 SPEED(RMN) (A)	8-97170-802-1	01	1	9712-				●
350	03.163 PIPE; FUEL,DEL & RET M/T AR-5 5 SPEED(RNK)	8-97163-757-6	01	1	9712-			●
350	03.163 PIPE; FUEL,DEL & RET A/T THM(RMQ) EXC. TORQUE ON DEMAND<7HA>	8-97163-759-5	01	1	9712-9911			●	●
350	03.163 PIPE; FUEL,DEL & RET A/T THM(RMQ) EXC. TORQUE ON DEMAND<7HA>	8-97240-939-0	01	1	9912-			●	●
350	03.163 PIPE; FUEL,DEL & RET 4X4 4 DOOR LONG(UBS**F) A/T THM(RMQ) TORQUE ON DEMAND<7HA>	8-97163-758-5	01	1	9911-0008			●	●
350	03.163 PIPE; FUEL,DEL & RET TORQUE ON DEMAND<7HA>	8-97213-913-0	01	1	0009-			●	●
350	03.163 PIPE; FUEL,DEL & RET M/T MUA 5 SPEED(RMN)	8-97168-963-4	01	1	9712-				●

245 130 97 241 14 358 357

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
14	03.162 CLIP; HOSE (D) ID=14.2	8-97087-056-1	04	1	9712-	●
14	03.162 CLIP; HOSE (D) ID=14.2	8-97087-056-1	02	1	9712-		●
14	03.162 CLIP; HOSE 04.930 (C) ID=16	8-94238-568-0	01	1	9712-9801			●	●
14	03.162 CLIP; HOSE 04.681 (C) ID=16	8-97173-222-0	01	1	9802-			●	●
14	03.162 CLIP; HOSE 03.163 (A) ID=11	8-94238-570-0	01	1	9712-0103			●	●
14	03.162 CLIP; HOSE 03.163 (A) ID=11	8-97173-219-0	01	1	0104-			●	●
14	03.162 CLIP; HOSE 01.166 (B) ID=14	8-94238-572-0	01	1	9712-9801			●	●
14	03.162 CLIP; HOSE (B) ID=14	8-97173-221-0	01	1	9802-			●	●
97	03.162 BRACKET; CLIP (A)	8-97049-707-1	01	1	9712-0005			●	●
97	03.162 BRACKET; CLIP A/T THM(RMQ) (B)	8-97175-938-1	01	1	9712-			●	●
130	03.162 CLIP; RUBBER HOSE 4X4(UBS***) EUROPE EQUIPMENT(EK4) 02.559 L=135	8-94473-399-0	01	1	9712-9712		●
130	03.162 CLIP; RUBBER HOSE EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) 02.559 L=135	8-94473-399-0	01	1	9801-9908	●
130	03.162 CLIP; RUBBER HOSE 4X4(UBS***) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) 02.559 L=135	8-94473-399-0	01	1	9801-9908		●
130	03.162 CLIP; RUBBER HOSE EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) 02.559 L=135	8-94473-399-0	01	1	9909-0005	●	●
130	03.162 CLIP; RUBBER HOSE EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),ARGENTINA EQUIPMENT(7SZ) 02.559 L=135	8-94473-399-0	01	1	0006-0007	●	●
130	03.162 CLIP; RUBBER HOSE EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),PHILIPPINE EQUIPMENT(S2U), ARGENTINA EQUIPMENT(7SZ) 02.559 L=135	8-94473-399-0	01	1	0008-0211	●	●
130	03.162 CLIP; RUBBER HOSE 03.680 ID=10.7	8-94400-275-0	01	1	9712-0005			●	●
241	03.163 PIPE; EVAP 2 DOOR SHORT(UB***C) EUROPE EQUIPMENT(EK4) (D)	8-97168-955-2	01	1	9712-0211	●	●
241	03.163 PIPE; EVAP 4X4 4 DOOR LONG(UBS**F) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) (D)	8-97168-956-1	01	1	9712-0005	●	●
241	03.163 PIPE; EVAP 4X4 4 DOOR LONG(UBS**F) EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),ARGENTINA EQUIPMENT(7SZ) (D)	8-97168-956-1	01	1	0006-0007	●	●
241	03.163 PIPE; EVAP 4X4 4 DOOR LONG(UBS**F) EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),PHILIPPINE EQUIPMENT(S2U),ARGEN TINA EQUIPMENT(7SZ) (D)	8-97168-956-2	01	1	0008-0211	●	●
241	03.163 PIPE; EVAP 4X2(UBR***) (D)	8-97168-956-2	01	1	0008-0211		●
241	03.163 PIPE; EVAP (C)	8-97147-245-1	01	1	9712-			●	●
241	03.163 PIPE; EVAP (A)	8-97163-443-4	01	1	9712-			●	●
241	03.163 PIPE; EVAP 2 DOOR SHORT(UB***C) (B)	8-97168-964-0	01	1	9712-			●	●
241	03.163 PIPE; EVAP 4X4 4 DOOR LONG(UBS**F) (B)	8-97163-762-1	01	1	9712-			●	●
245	03.162 CLIP; EVAP HOSE ID=6.4 & 4.8 & 4.8 & 4.8	8-97035-565-2	02	1	9712-9801			●	●
245	03.162 CLIP; EVAP HOSE 04.686 ID=6.4 & 4.8 & 4.8 & 4.8	8-97204-275-0	02	1	9802-			●	●
357	03.130 VALVE; CHECK,EVAPORATOR EUROPE EQUIPMENT(EK4)	8-97126-016-0	01	1	0106-			●
358	03.163 HOSE; RUBBER,PURGE EUROPE EQUIPMENT(EK4)	8-97163-239-0	01	1	0106-			●

142 307 153 24 24 241 24 24 45 47 130 167 303 24 24 249 145 180 180 100 210 15 100 100

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
15	03.162 CLIP; FUEL PIPE 2 DOOR SHORT(UB***C)	8-97012-498-1	03	1	9712-	●	●
15	03.162 CLIP; FUEL PIPE 4X4 4 DOOR LONG(UBS**F)	8-97012-498-1	04	1	9712-0007	●	●
15	03.162 CLIP; FUEL PIPE 4X4 4 DOOR LONG(UBS**F)	8-97012-498-1	04	1	0008-	●
15	03.162 CLIP; FUEL PIPE 4 DOOR LONG(UB***F)	8-97012-498-1	04	1	0008-		●
24	03.162 CLIP; FUEL HOSE (A) ID=14.2	8-97087-056-1	02	1	9712-	●	●
24	03.162 CLIP; FUEL HOSE (B) ID=13	8-97173-220-0	04	1	9712-	●	●
24	03.162 CLIP; FUEL HOSE 02.589 (C) ID=13 & 16.5	8-94169-028-0	01	1	9712-		●
24	03.162 CLIP; FUEL HOSE (D) ID=11.5	8-97138-011-0	02	1	9712-			●	●
24	03.162 CLIP; FUEL HOSE (E) ID=12	8-97148-892-1	02	1	9712-			●	●
24	03.162 CLIP; FUEL HOSE (F)	8-97180-781-0	01	1	9712-			●	●
24	03.162 CLIP; FUEL HOSE 4X4 4 DOOR LONG(UBS**F) 01.240 (G) ID=13.8	8-97016-932-0	01	1	9712-			●	●
45	03.163 PIPE; FUEL,DELIVERY 2 DOOR SHORT(UB***C)	8-97168-949-3	01	1	9712-	●
45	03.163 PIPE; FUEL,DELIVERY 4X4 4 DOOR LONG(UBS**F)	8-97168-948-3	01	1	9712-	●
45	03.163 PIPE; FUEL,DELIVERY 2 DOOR SHORT(UB***C)	8-97191-219-2	01	1	9712-		●
45	03.163 PIPE; FUEL,DELIVERY 4X4 4 DOOR LONG(UBS**F)	8-97191-218-0	01	1	9712-0007		●
45	03.163 PIPE; FUEL,DELIVERY 4 DOOR LONG(UB***F)	8-97191-218-2	01	1	0008-		●
45	03.163 PIPE; FUEL,DELIVERY	8-97163-761-2	01	1	9712-			●	●
47	03.163 PIPE; FUEL,RETURN 2 DOOR SHORT(UB***C)	8-97168-953-2	01	1	9712-	●	●
47	03.163 PIPE; FUEL,RETURN 4X4 4 DOOR LONG(UBS**F)	8-97168-954-1	01	1	9712-0007	●	●
47	03.163 PIPE; FUEL,RETURN 4X4 4 DOOR LONG(UBS**F)	8-97168-954-2	01	1	0008-	●
47	03.163 PIPE; FUEL,RETURN 4 DOOR LONG(UB***F)	8-97168-954-2	01	1	0008-		●
47	03.163 PIPE; FUEL,RETURN 2 DOOR SHORT(UB***C)	8-97168-950-2	01	1	9712-			●	●
47	03.163 PIPE; FUEL,RETURN 4X4 4 DOOR LONG(UBS**F)	8-97163-760-2	01	1	9712-			●	●
100	03.162 CLIP; FUEL PIPE 2 DOOR SHORT(UB***C) (C) L=8.9	8-94435-551-1	07	1	9712-0201	●	●	●	●
100	03.162 CLIP; FUEL PIPE 4X4 4 DOOR LONG(UBS**F) (C) L=8.9	8-94435-551-1	07	1	0202-	●
100	03.162 CLIP; FUEL PIPE 4 DOOR LONG(UB***F) (C) L=8.9	8-94435-551-1	07	1	0202-		●
100	03.162 CLIP; FUEL PIPE 2 DOOR SHORT(UB***C) (C) L=8.9	8-94435-551-1	07	1	0202-			●	●
100	03.162 CLIP; FUEL PIPE 2 DOOR SHORT(UB***C) (C) L=8.9	8-94435-551-1	06	1	0202-	●	●
100	03.162 CLIP; FUEL PIPE 4X4 4 DOOR LONG(UBS**F) (C) L=8.9	8-94435-551-1	09	1	9712-0007	●	●	●	●
100	03.162 CLIP; FUEL PIPE 4X4 4 DOOR LONG(UBS**F) (C) L=8.9	8-94435-551-1	09	1	0008-0201	●		●	●
100	03.162 CLIP; FUEL PIPE 4 DOOR LONG(UB***F) (C) L=8.9	8-94435-551-1	09	1	0008-0201		●
100	03.162 CLIP; FUEL PIPE 4X4 4 DOOR LONG(UBS**F) (C) L=8.9	8-94435-551-1	09	1	0202-			●	●
100	03.162 CLIP; FUEL PIPE (D) L=7.4	8-94435-550-0	01	1	9712-9908	●	●	●	●
100	03.162 CLIP; FUEL PIPE (D) L=7.4	8-94435-550-0	01	1	9909-0007	●		●	●
100	03.162 CLIP; FUEL PIPE 4X4(UBS***) (D) L=7.4	8-94435-550-0	01	1	9909-0007		●
100	03.162 CLIP; FUEL PIPE (D) L=7.4	8-94435-550-0	01	1	0008-	●	●	●	●
100	03.162 CLIP; FUEL PIPE (E)	8-97073-935-0	01	1	9712-9908	●	●	●	●
100	03.162 CLIP; FUEL PIPE (E)	8-97073-935-0	01	1	9909-0007	●		●	●
100	03.162 CLIP; FUEL PIPE 4X4(UBS***) (E)	8-97073-935-0	01	1	9909-0007		●
100	03.162 CLIP; FUEL PIPE (E)	8-97073-935-0	01	1	0008-	●	●	●	●
100	03.162 CLIP; FUEL PIPE (A) ID=11.5	8-97138-011-0	02	1	9712-0008			●	●
100	03.162 CLIP; FUEL PIPE EXC. TORQUE ON DEMAND<7HA> (A) ID=11.5	8-97138-011-0	02	1	0009-			●	●
100	03.162 CLIP; FUEL PIPE TORQUE ON DEMAND<7HA> (A) ID=11.5	8-97138-011-0	01	1	0009-			●	●
100	03.162 CLIP; FUEL PIPE (B) ID=12	8-97148-892-0	02	1	9712-0008			●	●
100	03.162 CLIP; FUEL PIPE EXC. TORQUE ON DEMAND<7HA> (B) ID=12	8-97148-892-1	02	1	0009-			●	●
100	03.162 CLIP; FUEL PIPE TORQUE ON DEMAND<7HA> (B) ID=12	8-97148-892-1	01	1	0009-			●	●
130	03.162 CLIP; RUBBER HOSE 4X4(UBS***) EUROPE EQUIPMENT(EK4) 02.559 L=135	8-94473-399-0	01	1	9712-9712		●
130	03.162 CLIP; RUBBER HOSE EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) 02.559 L=135	8-94473-399-0	01	1	9801-9908	●
130	03.162 CLIP; RUBBER HOSE 4X4(UBS***) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) 02.559 L=135	8-94473-399-0	01	1	9801-9908		●
130	03.162 CLIP; RUBBER HOSE EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) 02.559 L=135	8-94473-399-0	01	1	9909-0005	●	●
130	03.162 CLIP; RUBBER HOSE EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),ARGENTINA EQUIPMENT(7SZ) 02.559 L=135	8-94473-399-0	01	1	0006-0007	●	●
130	03.162 CLIP; RUBBER HOSE EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),PHILIPPINE EQUIPMENT(S2U), ARGENTINA EQUIPMENT(7SZ) 02.559 L=135	8-94473-399-0	01	1	0008-0211	●	●
130	03.162 CLIP; RUBBER HOSE 03.680 ID=10.7	8-94400-275-0	01	1	9712-0005			●	●
142	03.162 CLIP; BAND,FUEL HOSE 02.559 L=250	5-09707-030-1	01	1	9802-	●
142	03.162 CLIP; BAND,FUEL HOSE 02.559 L=250	5-09707-030-0	01	1	9712-9712	●	●
142	03.162 CLIP; BAND,FUEL HOSE 02.559 L=250	5-09707-030-0	01	1	9801-9801	●
142	03.162 CLIP; BAND,FUEL HOSE 03.430 L=200	8-94464-835-0	01	1	9801-		●
142	03.162 CLIP; BAND,FUEL HOSE EUROPE EQUIPMENT(EK4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 16.065 ID=20	1-09709-068-0	01	1	9712-0005			●	●
142	03.162 CLIP; BAND,FUEL HOSE EUROPE EQUIPMENT(EK4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) ,ARGENTINA EQUIPMENT(7SZ) 16.065 ID=20	1-09709-068-0	01	1	0006-0007			●	●
142	03.162 CLIP; BAND,FUEL HOSE CATALYSIS CONTROL(6MZ) 16.065 ID=20	1-09709-068-0	01	1	0008-0008			●	●
142	03.162 CLIP; BAND,FUEL HOSE 2 DOOR SHORT(UB***C) CATALYSIS CONTROL(6MZ) 16.065 ID=20	1-09709-068-0	01	1	0009-			●	●
142	03.162 CLIP; BAND,FUEL HOSE 4X4 4 DOOR LONG(UBS**F) CATALYSIS CONTROL(6MZ) EXC. TORQUE ON DEMAND<7HA> 16.065 ID=20	1-09709-068-0	01	1	0009-			●	●
145	03.163 HOSE; FUEL TANK TO RETURN PIPE	8-97018-368-1	01	1	9712-	●	●
153	03.162 HOSE; RUBBER,PIPE TO ACL ARGENTINA EQUIPMENT(7SZ)	8-97161-054-0	01	1	9801-9902	●
153	03.162 HOSE; RUBBER,PIPE TO ACL EUROPE EQUIPMENT(EK4)	8-97169-018-1	01	1	9712-9809		●
153	03.162 HOSE; RUBBER,PIPE TO ACL 4X4(UBS***) EUROPE EQUIPMENT(EK4)	8-97169-018-1	01	1	9810-9902		●
167	03.162 BRACKET EUROPE EQUIPMENT(EK4) 03.164	8-97038-829-0	01	1	9712-9712		●
167	03.162 BRACKET EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) 03.164	8-97038-829-0	01	1	9801-0005	●	●
167	03.162 BRACKET EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),ARGENTINA EQUIPMENT(7SZ) 03.164	8-97038-829-0	01	1	0006-0007	●	●
167	03.162 BRACKET EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),PHILIPPINE EQUIPMENT(S2U), ARGENTINA EQUIPMENT(7SZ) 03.164	8-97038-829-0	01	1	0008-0211	●	●
180	03.162 CLIP; DELIVERY & RETURN ID=14	8-97173-221-0	02	1	9712-	●	●
180	03.162 CLIP; DELIVERY & RETURN ID=12	8-97148-892-1	02	1	9712-			●	●
210	03.162 CLIP; FEED PIPE	8-97069-378-0	01	1	9712-	●	●	●	●
210	03.162 CLIP; FEED PIPE	8-97069-378-0	01	1	9712-	●	●
241	03.163 PIPE; EVAP 2 DOOR SHORT(UB***C) EUROPE EQUIPMENT(EK4) (D)	8-97168-955-2	01	1	9712-0211	●	●
241	03.163 PIPE; EVAP 4X4 4 DOOR LONG(UBS**F) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) (D)	8-97168-956-1	01	1	9712-0005	●	●
241	03.163 PIPE; EVAP 4X4 4 DOOR LONG(UBS**F) EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),ARGENTINA EQUIPMENT(7SZ) (D)	8-97168-956-1	01	1	0006-0007	●	●
241	03.163 PIPE; EVAP 4X4 4 DOOR LONG(UBS**F) EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),PHILIPPINE EQUIPMENT(S2U),ARGEN TINA EQUIPMENT(7SZ) (D)	8-97168-956-2	01	1	0008-0211	●	●
241	03.163 PIPE; EVAP 4X2(UBR***) (D)	8-97168-956-2	01	1	0008-0211		●
241	03.163 PIPE; EVAP (C)	8-97147-245-1	01	1	9712-			●	●
241	03.163 PIPE; EVAP (A)	8-97163-443-4	01	1	9712-			●	●
241	03.163 PIPE; EVAP 2 DOOR SHORT(UB***C) (B)	8-97168-964-0	01	1	9712-			●	●
241	03.163 PIPE; EVAP 4X4 4 DOOR LONG(UBS**F) (B)	8-97163-762-1	01	1	9712-			●	●
249	03.120 VALVE; CONT,EVAP EUROPE EQUIPMENT(EK4)	8-94367-933-0	01	1	9712-9712		●
249	03.120 VALVE; CONT,EVAP EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ)	8-94367-933-0	01	1	9801-0005	●	●
249	03.120 VALVE; CONT,EVAP EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),ARGENTINA EQUIPMENT(7SZ)	8-94367-933-0	01	1	0006-0007	●	●
249	03.120 VALVE; CONT,EVAP EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),PHILIPPINE EQUIPMENT(S2U), ARGENTINA EQUIPMENT(7SZ)	8-94367-933-0	01	1	0008-0211	●	●
303	03.130 BOLT; BRKT EUROPE EQUIPMENT(EK4) 06.635 M6X16 FLANGE	0-28480-616-0	01	1	9712-9712		●
303	03.130 BOLT; BRKT EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) 06.635 M6X16 FLANGE	0-28480-616-0	01	1	9801-0005	●	●
303	03.130 BOLT; BRKT EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),ARGENTINA EQUIPMENT(7SZ) 06.635 M6X16 FLANGE	0-28480-616-0	01	1	0006-0007	●	●
303	03.130 BOLT; BRKT EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),PHILIPPINE EQUIPMENT(S2U), ARGENTINA EQUIPMENT(7SZ) 06.635 M6X16 FLANGE	0-28480-616-0	01	1	0008-0211	●	●
303	03.130 BOLT; BRKT 12.187 M8X16 W/LK&PL WASHER	0-50140-816-0	01	1	9712-9807			●	●
303	03.130 BOLT; BRKT 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9808-			●	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN AIR BAG DRIVER<AJ3> (C)	8-97134-374-0	01	1	9712-	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN EXC. AIR BAG DRIVER<AJ3> (C)	8-97182-160-0	01	1	9712-	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN (B)	8-97174-384-2	01	1	9712-9908			●	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN M/T AR-5 5 SPEED(RNK) (B)	8-97229-401-1	01	1	9909-9912			●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN M/T MUA 5 SPEED(RMN) (B)	8-97229-401-1	01	1	9909-9912				●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN M/T AR-5 5 SPEED(RNK) (B)	8-97249-656-2	01	1	0001-			●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN M/T MUA 5 SPEED(RMN) (B)	8-97249-656-2	01	1	0001-				●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN A/T THM(RMQ) (B)	8-97229-400-1	01	1	9909-9912			●	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN A/T THM(RMQ) (B)	8-97249-655-0	01	1	0001-0008			●	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN A/T THM(RMQ) EXC. TORQUE ON DEMAND<7HA> (B)	8-97249-655-2	01	1	0009-			●	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN TORQUE ON DEMAND<7HA> (B)	8-97289-613-0	01	1	0009-			●	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN 2 DOOR SHORT(UB***C) A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) (A)	8-97170-309-3	01	1	9712-9908			●	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN 2 DOOR SHORT(UB***C) A/T AISIN(RMD),A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) (A)	8-97170-309-5	01	1	9909-			●	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN 4X4 4 DOOR LONG(UBS**F) A/T THM(RMQ) (A)	8-97163-847-4	01	1	9712-9908			●	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN 4X4 4 DOOR LONG(UBS**F) A/T AISIN(RMD),A/T THM(RMQ) EXC. TORQUE ON DEMAND<7HA> (A)	8-97163-847-6	01	1	9909-			●	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN 4X4 4 DOOR LONG(UBS**F) A/T THM(RMQ) TORQUE ON DEMAND<7HA> (A)	8-97163-846-6	01	1	9911-			●	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN 4X4 4 DOOR LONG(UBS**F) M/T AR-5 5 SPEED(RNK) (A)	8-97188-829-1	01	1	9712-9908			●	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN 4X4 4 DOOR LONG(UBS**F) M/T AR-5 5 SPEED(RNK) EXC. TORQUE ON DEMAND<7HA> (A)	8-97188-829-3	01	1	9909-			●	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN 2 DOOR SHORT(UB***C) M/T MUA 5 SPEED(RMN) (A)	8-97170-310-4	01	1	9712-				●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN 4X4 4 DOOR LONG(UBS**F) M/T MUA 5 SPEED(RMN) (A)	8-97169-260-4	01	1	9712-				●

14 103 351 246 1 122 14 246 241 247 351 14 103

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.130 CANISTER; FUEL	8-17097-118-0	01	1	9712-			●	●
14	03.162 CLIP; HOSE (D) ID=14.2	8-97087-056-1	04	1	9712-	●
14	03.162 CLIP; HOSE (D) ID=14.2	8-97087-056-1	02	1	9712-		●
14	03.162 CLIP; HOSE 04.930 (C) ID=16	8-94238-568-0	01	1	9712-9801			●	●
14	03.162 CLIP; HOSE 04.681 (C) ID=16	8-97173-222-0	01	1	9802-			●	●
14	03.162 CLIP; HOSE 03.163 (A) ID=11	8-94238-570-0	01	1	9712-0103			●	●
14	03.162 CLIP; HOSE 03.163 (A) ID=11	8-97173-219-0	01	1	0104-			●	●
14	03.162 CLIP; HOSE 01.166 (B) ID=14	8-94238-572-0	01	1	9712-9801			●	●
14	03.162 CLIP; HOSE (B) ID=14	8-97173-221-0	01	1	9802-			●	●
103	03.130 NUT; BRKT 07.633 (A) M8 FLANGE	0-91150-108-0	04	1	9712-			●	●
103	03.130 NUT; BRKT TORQUE ON DEMAND<7HA> 04.594 (B) M6 FLANGE	0-91150-106-0	02	1	0009-			●	●
122	03.163 HOSE; RUBBER,SEPARATOR	8-97145-319-1	01	1	9712-			●	●
241	03.163 PIPE; EVAP 2 DOOR SHORT(UB***C) EUROPE EQUIPMENT(EK4) (D)	8-97168-955-2	01	1	9712-0211	●	●
241	03.163 PIPE; EVAP 4X4 4 DOOR LONG(UBS**F) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) (D)	8-97168-956-1	01	1	9712-0005	●	●
241	03.163 PIPE; EVAP 4X4 4 DOOR LONG(UBS**F) EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),ARGENTINA EQUIPMENT(7SZ) (D)	8-97168-956-1	01	1	0006-0007	●	●
241	03.163 PIPE; EVAP 4X4 4 DOOR LONG(UBS**F) EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),PHILIPPINE EQUIPMENT(S2U),ARGEN TINA EQUIPMENT(7SZ) (D)	8-97168-956-2	01	1	0008-0211	●	●
241	03.163 PIPE; EVAP 4X2(UBR***) (D)	8-97168-956-2	01	1	0008-0211		●
241	03.163 PIPE; EVAP (C)	8-97147-245-1	01	1	9712-			●	●
241	03.163 PIPE; EVAP (A)	8-97163-443-4	01	1	9712-			●	●
241	03.163 PIPE; EVAP 2 DOOR SHORT(UB***C) (B)	8-97168-964-0	01	1	9712-			●	●
241	03.163 PIPE; EVAP 4X4 4 DOOR LONG(UBS**F) (B)	8-97163-762-1	01	1	9712-			●	●
246	03.130 BRACKET; CANISTER (A)	8-97145-320-4	01	1	9712-			●	●
246	03.130 BRACKET; CANISTER (B)	8-97161-204-1	01	1	9712-			●	●
247	03.130 BOLT; CANISTER BRKT 04.570 M8X25 W/LK&PL WASHER	8-94411-977-0	01	1	9712-			●	●
351	03.163 TUBE; PURGE,CANISTER (A)	8-97160-606-1	01	1	9712-			●	●
351	03.163 TUBE; PURGE,CANISTER (B)	8-97160-607-1	01	1	9712-			●	●

62 45 115 47 210 180 143 65 24 180 24 24 148 307 24 303 350 213 156 165 165 241 24 45 241 213 47 45 24 47 354 241 353

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
24	03.162 CLIP; FUEL HOSE (A) ID=14.2	8-97087-056-1	02	1	9712-	●	●
24	03.162 CLIP; FUEL HOSE (B) ID=13	8-97173-220-0	04	1	9712-	●	●
24	03.162 CLIP; FUEL HOSE 02.589 (C) ID=13 & 16.5	8-94169-028-0	01	1	9712-		●
24	03.162 CLIP; FUEL HOSE (D) ID=11.5	8-97138-011-0	02	1	9712-			●	●
24	03.162 CLIP; FUEL HOSE (E) ID=12	8-97148-892-1	02	1	9712-			●	●
24	03.162 CLIP; FUEL HOSE (F)	8-97180-781-0	01	1	9712-			●	●
24	03.162 CLIP; FUEL HOSE 4X4 4 DOOR LONG(UBS**F) 01.240 (G) ID=13.8	8-97016-932-0	01	1	9712-			●	●
45	03.163 PIPE; FUEL,DELIVERY 2 DOOR SHORT(UB***C)	8-97168-949-3	01	1	9712-	●
45	03.163 PIPE; FUEL,DELIVERY 4X4 4 DOOR LONG(UBS**F)	8-97168-948-3	01	1	9712-	●
45	03.163 PIPE; FUEL,DELIVERY 2 DOOR SHORT(UB***C)	8-97191-219-2	01	1	9712-		●
45	03.163 PIPE; FUEL,DELIVERY 4X4 4 DOOR LONG(UBS**F)	8-97191-218-0	01	1	9712-0007		●
45	03.163 PIPE; FUEL,DELIVERY 4 DOOR LONG(UB***F)	8-97191-218-2	01	1	0008-		●
45	03.163 PIPE; FUEL,DELIVERY	8-97163-761-2	01	1	9712-			●	●
47	03.163 PIPE; FUEL,RETURN 2 DOOR SHORT(UB***C)	8-97168-953-2	01	1	9712-	●	●
47	03.163 PIPE; FUEL,RETURN 4X4 4 DOOR LONG(UBS**F)	8-97168-954-1	01	1	9712-0007	●	●
47	03.163 PIPE; FUEL,RETURN 4X4 4 DOOR LONG(UBS**F)	8-97168-954-2	01	1	0008-	●
47	03.163 PIPE; FUEL,RETURN 4 DOOR LONG(UB***F)	8-97168-954-2	01	1	0008-		●
47	03.163 PIPE; FUEL,RETURN 2 DOOR SHORT(UB***C)	8-97168-950-2	01	1	9712-			●	●
47	03.163 PIPE; FUEL,RETURN 4X4 4 DOOR LONG(UBS**F)	8-97163-760-2	01	1	9712-			●	●
62	03.162 BOLT; CLIP FIX 04.439 M6X16 FLANGE	0-28680-616-0	01	1	9712-			●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.901 L=100 SERVICED BY L=3000	0-01458-300-0	01	1	9712-			●	●
115	03.162 WASHER; PL,CLIP 02.334 ID=6.4 OD=22	9-09164-806-0	01	1	9712-			●	●
143	03.162 CLAMP; FUEL FILTER	8-97049-810-1	01	1	9712-			●	●
148	03.162 CLIP; HOSE,FUEL 2 DOOR SHORT(UB***C) 08.846 ID=13 & 12	8-94178-797-0	01	1	9903-			●	●
156	03.162 BRACKET; FUEL HOSE M/T AR-5 5 SPEED(RNK) (B)	8-97179-586-0	01	1	9712-			●
156	03.162 BRACKET; FUEL HOSE (A)	8-97174-660-0	01	1	9712-0105			●	●
156	03.162 BRACKET; FUEL HOSE (A)	8-97312-339-0	01	1	0106-			●	●
156	03.162 BRACKET; FUEL HOSE A/T THM(RMQ) (B)	8-97170-282-0	01	1	9712-			●	●
156	03.162 BRACKET; FUEL HOSE M/T MUA 5 SPEED(RMN) (C)	8-97179-620-0	01	1	9712-				●
165	03.162 CLIP; FUEL HOSE 02.559 L=212	8-94107-652-0	02	1	9712-9812			●	●
165	03.162 CLIP; FUEL HOSE 02.587 L=172	8-94232-620-0	02	1	9901-0106			●	●
165	03.162 CLIP; FUEL HOSE 02.559 L=212	8-94107-652-0	02	1	0107-			●	●
180	03.162 CLIP; DELIVERY & RETURN ID=14	8-97173-221-0	02	1	9712-	●	●
180	03.162 CLIP; DELIVERY & RETURN ID=12	8-97148-892-1	02	1	9712-			●	●
210	03.162 CLIP; FEED PIPE	8-97069-378-0	01	1	9712-	●	●	●	●
210	03.162 CLIP; FEED PIPE	8-97069-378-0	01	1	9712-	●	●
213	03.162 BOLT; FUEL PIPE FIX 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	9712-			●	●
213	03.162 BOLT; FUEL PIPE FIX A/T THM(RMQ) 04.439 (B) M6X16 FLANGE	0-28680-616-0	01	1	9712-			●	●
213	03.162 BOLT; FUEL PIPE FIX A/T THM(RMQ) 04.930 (C) M6X20 FLANGE	0-28680-620-0	01	1	9712-9910			●	●
213	03.162 BOLT; FUEL PIPE FIX A/T THM(RMQ) EXC. TORQUE ON DEMAND<7HA> 04.930 (C) M6X20 FLANGE	0-28680-620-0	01	1	9911-			●	●
213	03.162 BOLT; FUEL PIPE FIX M/T MUA 5 SPEED(RMN) 01.428 (D) M6X12 FLANGE	0-28080-612-0	02	1	9712-9908				●
241	03.163 PIPE; EVAP 2 DOOR SHORT(UB***C) EUROPE EQUIPMENT(EK4) (D)	8-97168-955-2	01	1	9712-0211	●	●
241	03.163 PIPE; EVAP 4X4 4 DOOR LONG(UBS**F) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) (D)	8-97168-956-1	01	1	9712-0005	●	●
241	03.163 PIPE; EVAP 4X4 4 DOOR LONG(UBS**F) EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),ARGENTINA EQUIPMENT(7SZ) (D)	8-97168-956-1	01	1	0006-0007	●	●
241	03.163 PIPE; EVAP 4X4 4 DOOR LONG(UBS**F) EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),PHILIPPINE EQUIPMENT(S2U),ARGEN TINA EQUIPMENT(7SZ) (D)	8-97168-956-2	01	1	0008-0211	●	●
241	03.163 PIPE; EVAP 4X2(UBR***) (D)	8-97168-956-2	01	1	0008-0211		●
241	03.163 PIPE; EVAP (C)	8-97147-245-1	01	1	9712-			●	●
241	03.163 PIPE; EVAP (A)	8-97163-443-4	01	1	9712-			●	●
241	03.163 PIPE; EVAP 2 DOOR SHORT(UB***C) (B)	8-97168-964-0	01	1	9712-			●	●
241	03.163 PIPE; EVAP 4X4 4 DOOR LONG(UBS**F) (B)	8-97163-762-1	01	1	9712-			●	●
303	03.130 BOLT; BRKT EUROPE EQUIPMENT(EK4) 06.635 M6X16 FLANGE	0-28480-616-0	01	1	9712-9712		●
303	03.130 BOLT; BRKT EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) 06.635 M6X16 FLANGE	0-28480-616-0	01	1	9801-0005	●	●
303	03.130 BOLT; BRKT EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),ARGENTINA EQUIPMENT(7SZ) 06.635 M6X16 FLANGE	0-28480-616-0	01	1	0006-0007	●	●
303	03.130 BOLT; BRKT EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),PHILIPPINE EQUIPMENT(S2U), ARGENTINA EQUIPMENT(7SZ) 06.635 M6X16 FLANGE	0-28480-616-0	01	1	0008-0211	●	●
303	03.130 BOLT; BRKT 12.187 M8X16 W/LK&PL WASHER	0-50140-816-0	01	1	9712-9807			●	●
303	03.130 BOLT; BRKT 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9808-			●	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN AIR BAG DRIVER<AJ3> (C)	8-97134-374-0	01	1	9712-	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN EXC. AIR BAG DRIVER<AJ3> (C)	8-97182-160-0	01	1	9712-	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN (B)	8-97174-384-2	01	1	9712-9908			●	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN M/T AR-5 5 SPEED(RNK) (B)	8-97229-401-1	01	1	9909-9912			●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN M/T MUA 5 SPEED(RMN) (B)	8-97229-401-1	01	1	9909-9912				●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN M/T AR-5 5 SPEED(RNK) (B)	8-97249-656-2	01	1	0001-			●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN M/T MUA 5 SPEED(RMN) (B)	8-97249-656-2	01	1	0001-				●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN A/T THM(RMQ) (B)	8-97229-400-1	01	1	9909-9912			●	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN A/T THM(RMQ) (B)	8-97249-655-0	01	1	0001-0008			●	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN A/T THM(RMQ) EXC. TORQUE ON DEMAND<7HA> (B)	8-97249-655-2	01	1	0009-			●	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN TORQUE ON DEMAND<7HA> (B)	8-97289-613-0	01	1	0009-			●	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN 2 DOOR SHORT(UB***C) A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) (A)	8-97170-309-3	01	1	9712-9908			●	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN 2 DOOR SHORT(UB***C) A/T AISIN(RMD),A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) (A)	8-97170-309-5	01	1	9909-			●	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN 4X4 4 DOOR LONG(UBS**F) A/T THM(RMQ) (A)	8-97163-847-4	01	1	9712-9908			●	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN 4X4 4 DOOR LONG(UBS**F) A/T AISIN(RMD),A/T THM(RMQ) EXC. TORQUE ON DEMAND<7HA> (A)	8-97163-847-6	01	1	9909-			●	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN 4X4 4 DOOR LONG(UBS**F) A/T THM(RMQ) TORQUE ON DEMAND<7HA> (A)	8-97163-846-6	01	1	9911-			●	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN 4X4 4 DOOR LONG(UBS**F) M/T AR-5 5 SPEED(RNK) (A)	8-97188-829-1	01	1	9712-9908			●	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN 4X4 4 DOOR LONG(UBS**F) M/T AR-5 5 SPEED(RNK) EXC. TORQUE ON DEMAND<7HA> (A)	8-97188-829-3	01	1	9909-			●	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN 2 DOOR SHORT(UB***C) M/T MUA 5 SPEED(RMN) (A)	8-97170-310-4	01	1	9712-				●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN 4X4 4 DOOR LONG(UBS**F) M/T MUA 5 SPEED(RMN) (A)	8-97169-260-4	01	1	9712-				●
350	03.163 PIPE; FUEL,DEL & RET M/T AR-5 5 SPEED(RNK)	8-97163-757-6	01	1	9712-			●
350	03.163 PIPE; FUEL,DEL & RET A/T THM(RMQ) EXC. TORQUE ON DEMAND<7HA>	8-97163-759-5	01	1	9712-9911			●	●
350	03.163 PIPE; FUEL,DEL & RET A/T THM(RMQ) EXC. TORQUE ON DEMAND<7HA>	8-97240-939-0	01	1	9912-			●	●
350	03.163 PIPE; FUEL,DEL & RET 4X4 4 DOOR LONG(UBS**F) A/T THM(RMQ) TORQUE ON DEMAND<7HA>	8-97163-758-5	01	1	9911-0008			●	●
350	03.163 PIPE; FUEL,DEL & RET TORQUE ON DEMAND<7HA>	8-97213-913-0	01	1	0009-			●	●
350	03.163 PIPE; FUEL,DEL & RET M/T MUA 5 SPEED(RMN)	8-97168-963-4	01	1	9712-				●
353	03.163 TUBE; FUEL,DELIVERY	8-97164-249-5	01	1	9712-			●	●
354	03.163 TUBE; FUEL,RETURN	8-97164-250-6	01	1	9712-			●	●

24 24 130 37 153 164 24 45 24 241 142 47 167 249 303 241 24 180 24 145 45 180 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
24	03.162 CLIP; FUEL HOSE (A) ID=14.2	8-97087-056-1	02	1	9712-	●	●
24	03.162 CLIP; FUEL HOSE (B) ID=13	8-97173-220-0	04	1	9712-	●	●
24	03.162 CLIP; FUEL HOSE 02.589 (C) ID=13 & 16.5	8-94169-028-0	01	1	9712-		●
24	03.162 CLIP; FUEL HOSE (D) ID=11.5	8-97138-011-0	02	1	9712-			●	●
24	03.162 CLIP; FUEL HOSE (E) ID=12	8-97148-892-1	02	1	9712-			●	●
24	03.162 CLIP; FUEL HOSE (F)	8-97180-781-0	01	1	9712-			●	●
24	03.162 CLIP; FUEL HOSE 4X4 4 DOOR LONG(UBS**F) 01.240 (G) ID=13.8	8-97016-932-0	01	1	9712-			●	●
37	03.163 HOSE; RUBBER DELIVERY	8-97191-338-2	01	1	9712-0004		●
37	03.163 HOSE; RUBBER DELIVERY 4X4(UBS***) EXC. FUEL SEDIMENTER<ET9>	8-97191-338-2	01	1	0005-		●
37	03.163 HOSE; RUBBER DELIVERY FUEL SEDIMENTER<ET9>	8-97239-278-1	01	1	0005-		●
45	03.163 PIPE; FUEL,DELIVERY 2 DOOR SHORT(UB***C)	8-97168-949-3	01	1	9712-	●
45	03.163 PIPE; FUEL,DELIVERY 4X4 4 DOOR LONG(UBS**F)	8-97168-948-3	01	1	9712-	●
45	03.163 PIPE; FUEL,DELIVERY 2 DOOR SHORT(UB***C)	8-97191-219-2	01	1	9712-		●
45	03.163 PIPE; FUEL,DELIVERY 4X4 4 DOOR LONG(UBS**F)	8-97191-218-0	01	1	9712-0007		●
45	03.163 PIPE; FUEL,DELIVERY 4 DOOR LONG(UB***F)	8-97191-218-2	01	1	0008-		●
45	03.163 PIPE; FUEL,DELIVERY	8-97163-761-2	01	1	9712-			●	●
47	03.163 PIPE; FUEL,RETURN 2 DOOR SHORT(UB***C)	8-97168-953-2	01	1	9712-	●	●
47	03.163 PIPE; FUEL,RETURN 4X4 4 DOOR LONG(UBS**F)	8-97168-954-1	01	1	9712-0007	●	●
47	03.163 PIPE; FUEL,RETURN 4X4 4 DOOR LONG(UBS**F)	8-97168-954-2	01	1	0008-	●
47	03.163 PIPE; FUEL,RETURN 4 DOOR LONG(UB***F)	8-97168-954-2	01	1	0008-		●
47	03.163 PIPE; FUEL,RETURN 2 DOOR SHORT(UB***C)	8-97168-950-2	01	1	9712-			●	●
47	03.163 PIPE; FUEL,RETURN 4X4 4 DOOR LONG(UBS**F)	8-97163-760-2	01	1	9712-			●	●
130	03.162 CLIP; RUBBER HOSE 4X4(UBS***) EUROPE EQUIPMENT(EK4) 02.559 L=135	8-94473-399-0	01	1	9712-9712		●
130	03.162 CLIP; RUBBER HOSE EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) 02.559 L=135	8-94473-399-0	01	1	9801-9908	●
130	03.162 CLIP; RUBBER HOSE 4X4(UBS***) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) 02.559 L=135	8-94473-399-0	01	1	9801-9908		●
130	03.162 CLIP; RUBBER HOSE EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) 02.559 L=135	8-94473-399-0	01	1	9909-0005	●	●
130	03.162 CLIP; RUBBER HOSE EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),ARGENTINA EQUIPMENT(7SZ) 02.559 L=135	8-94473-399-0	01	1	0006-0007	●	●
130	03.162 CLIP; RUBBER HOSE EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),PHILIPPINE EQUIPMENT(S2U), ARGENTINA EQUIPMENT(7SZ) 02.559 L=135	8-94473-399-0	01	1	0008-0211	●	●
130	03.162 CLIP; RUBBER HOSE 03.680 ID=10.7	8-94400-275-0	01	1	9712-0005			●	●
142	03.162 CLIP; BAND,FUEL HOSE 02.559 L=250	5-09707-030-1	01	1	9802-	●
142	03.162 CLIP; BAND,FUEL HOSE 02.559 L=250	5-09707-030-0	01	1	9712-9712	●	●
142	03.162 CLIP; BAND,FUEL HOSE 02.559 L=250	5-09707-030-0	01	1	9801-9801	●
142	03.162 CLIP; BAND,FUEL HOSE 03.430 L=200	8-94464-835-0	01	1	9801-		●
142	03.162 CLIP; BAND,FUEL HOSE EUROPE EQUIPMENT(EK4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 16.065 ID=20	1-09709-068-0	01	1	9712-0005			●	●
142	03.162 CLIP; BAND,FUEL HOSE EUROPE EQUIPMENT(EK4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) ,ARGENTINA EQUIPMENT(7SZ) 16.065 ID=20	1-09709-068-0	01	1	0006-0007			●	●
142	03.162 CLIP; BAND,FUEL HOSE CATALYSIS CONTROL(6MZ) 16.065 ID=20	1-09709-068-0	01	1	0008-0008			●	●
142	03.162 CLIP; BAND,FUEL HOSE 2 DOOR SHORT(UB***C) CATALYSIS CONTROL(6MZ) 16.065 ID=20	1-09709-068-0	01	1	0009-			●	●
142	03.162 CLIP; BAND,FUEL HOSE 4X4 4 DOOR LONG(UBS**F) CATALYSIS CONTROL(6MZ) EXC. TORQUE ON DEMAND<7HA> 16.065 ID=20	1-09709-068-0	01	1	0009-			●	●
145	03.163 HOSE; FUEL TANK TO RETURN PIPE	8-97018-368-1	01	1	9712-	●	●
153	03.162 HOSE; RUBBER,PIPE TO ACL ARGENTINA EQUIPMENT(7SZ)	8-97161-054-0	01	1	9801-9902	●
153	03.162 HOSE; RUBBER,PIPE TO ACL EUROPE EQUIPMENT(EK4)	8-97169-018-1	01	1	9712-9809		●
153	03.162 HOSE; RUBBER,PIPE TO ACL 4X4(UBS***) EUROPE EQUIPMENT(EK4)	8-97169-018-1	01	1	9810-9902		●
164	03.163 HOSE; RUBBER,FUEL RETURN	8-97191-339-0	01	1	9712-9802		●
164	03.163 HOSE; RUBBER,FUEL RETURN	8-97209-194-0	01	1	9803-		●
167	03.162 BRACKET EUROPE EQUIPMENT(EK4) 03.164	8-97038-829-0	01	1	9712-9712		●
167	03.162 BRACKET EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) 03.164	8-97038-829-0	01	1	9801-0005	●	●
167	03.162 BRACKET EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),ARGENTINA EQUIPMENT(7SZ) 03.164	8-97038-829-0	01	1	0006-0007	●	●
167	03.162 BRACKET EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),PHILIPPINE EQUIPMENT(S2U), ARGENTINA EQUIPMENT(7SZ) 03.164	8-97038-829-0	01	1	0008-0211	●	●
180	03.162 CLIP; DELIVERY & RETURN ID=14	8-97173-221-0	02	1	9712-	●	●
180	03.162 CLIP; DELIVERY & RETURN ID=12	8-97148-892-1	02	1	9712-			●	●
241	03.163 PIPE; EVAP 2 DOOR SHORT(UB***C) EUROPE EQUIPMENT(EK4) (D)	8-97168-955-2	01	1	9712-0211	●	●
241	03.163 PIPE; EVAP 4X4 4 DOOR LONG(UBS**F) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) (D)	8-97168-956-1	01	1	9712-0005	●	●
241	03.163 PIPE; EVAP 4X4 4 DOOR LONG(UBS**F) EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),ARGENTINA EQUIPMENT(7SZ) (D)	8-97168-956-1	01	1	0006-0007	●	●
241	03.163 PIPE; EVAP 4X4 4 DOOR LONG(UBS**F) EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),PHILIPPINE EQUIPMENT(S2U),ARGEN TINA EQUIPMENT(7SZ) (D)	8-97168-956-2	01	1	0008-0211	●	●
241	03.163 PIPE; EVAP 4X2(UBR***) (D)	8-97168-956-2	01	1	0008-0211		●
241	03.163 PIPE; EVAP (C)	8-97147-245-1	01	1	9712-			●	●
241	03.163 PIPE; EVAP (A)	8-97163-443-4	01	1	9712-			●	●
241	03.163 PIPE; EVAP 2 DOOR SHORT(UB***C) (B)	8-97168-964-0	01	1	9712-			●	●
241	03.163 PIPE; EVAP 4X4 4 DOOR LONG(UBS**F) (B)	8-97163-762-1	01	1	9712-			●	●
249	03.120 VALVE; CONT,EVAP EUROPE EQUIPMENT(EK4)	8-94367-933-0	01	1	9712-9712		●
249	03.120 VALVE; CONT,EVAP EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ)	8-94367-933-0	01	1	9801-0005	●	●
249	03.120 VALVE; CONT,EVAP EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),ARGENTINA EQUIPMENT(7SZ)	8-94367-933-0	01	1	0006-0007	●	●
249	03.120 VALVE; CONT,EVAP EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),PHILIPPINE EQUIPMENT(S2U), ARGENTINA EQUIPMENT(7SZ)	8-94367-933-0	01	1	0008-0211	●	●
303	03.130 BOLT; BRKT EUROPE EQUIPMENT(EK4) 06.635 M6X16 FLANGE	0-28480-616-0	01	1	9712-9712		●
303	03.130 BOLT; BRKT EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) 06.635 M6X16 FLANGE	0-28480-616-0	01	1	9801-0005	●	●
303	03.130 BOLT; BRKT EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),ARGENTINA EQUIPMENT(7SZ) 06.635 M6X16 FLANGE	0-28480-616-0	01	1	0006-0007	●	●
303	03.130 BOLT; BRKT EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),PHILIPPINE EQUIPMENT(S2U), ARGENTINA EQUIPMENT(7SZ) 06.635 M6X16 FLANGE	0-28480-616-0	01	1	0008-0211	●	●
303	03.130 BOLT; BRKT 12.187 M8X16 W/LK&PL WASHER	0-50140-816-0	01	1	9712-9807			●	●
303	03.130 BOLT; BRKT 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9808-			●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
