1-10 — RADIATOR (#44854) — 149 parça

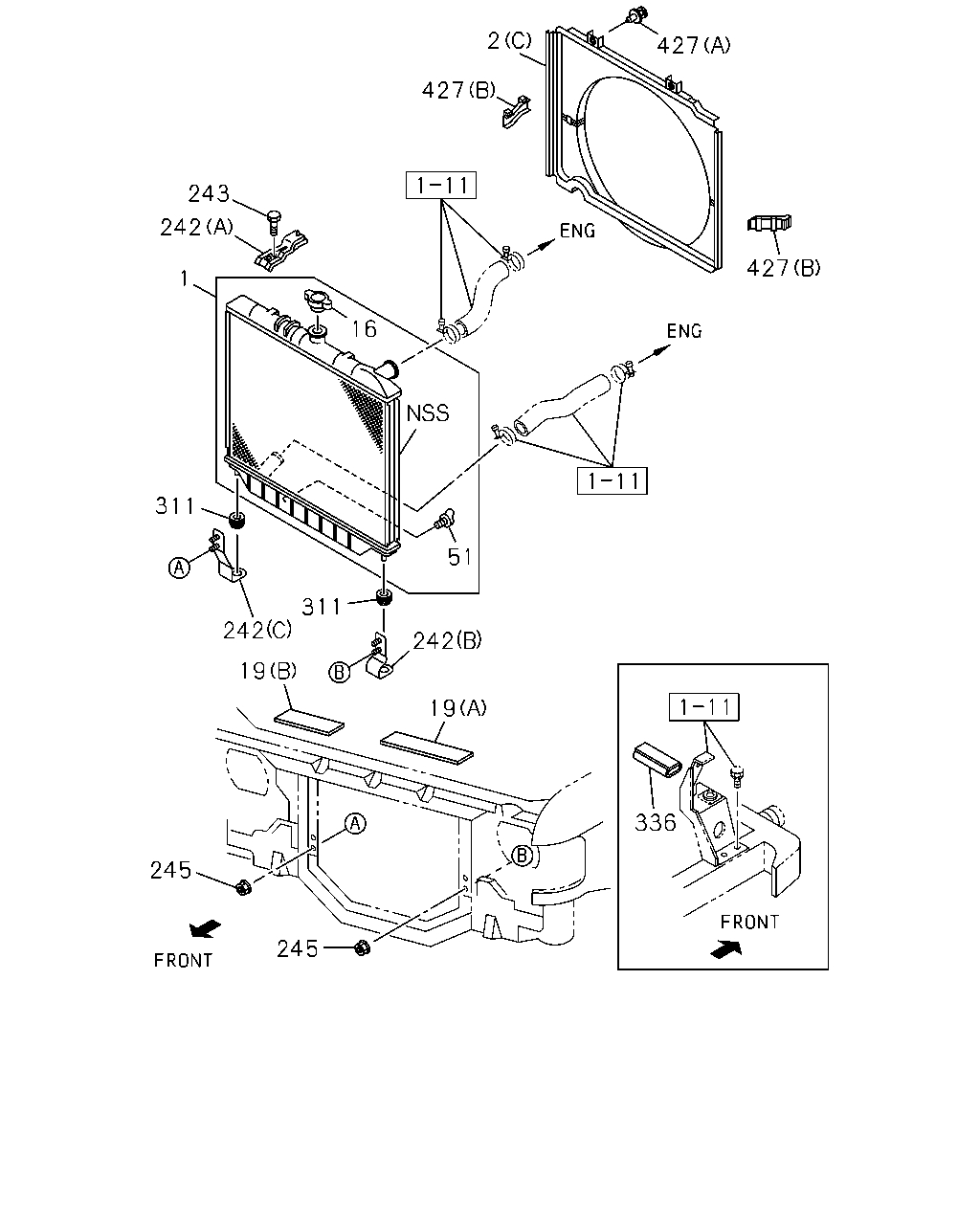

çizim 69427
2 427 427 243 242 427 1 16 311 51 311 242 242 19 19 336 245 245
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 01.219 RADIATOR ASM
A/T AISIN(RMD) 		8-97169-025-0 01 1 0106- ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED(RMN) 		8-97169-024-0 01 1 9712-9809 ●
1 01.219 RADIATOR ASM
M/T AR-5 5 SPEED(RNK) 		8-97169-024-0 01 1 9712-9809 ●
1 01.219 RADIATOR ASM
A/T AISIN(RMD) 		8-97212-528-1 01 1 9909- ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED(RMN) 		8-97169-024-0 01 1 9810-9905 ●
1 01.219 RADIATOR ASM
M/T AR-5 5 SPEED(RNK) 		8-97169-024-0 01 1 9810-9905 ●
1 01.219 RADIATOR ASM
M/T AR-5 5 SPEED(RNK) 		8-97164-187-0 01 1 9712-9905 ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED(RMN) 		8-97164-187-0 01 1 9712-9905 ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED(RMN) 		8-97164-187-0 01 1 9906-9908 ● ●
1 01.219 RADIATOR ASM
M/T AR-5 5 SPEED(RNK) 		8-97164-187-0 01 1 9906-9908 ● ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED(RMN) 		8-97171-430-0 01 1 9909-0102 ● ●
1 01.219 RADIATOR ASM
M/T AR-5 5 SPEED(RNK) 		8-97171-430-0 01 1 9909-0102 ● ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) 		8-97171-430-0 01 1 0103- ● ● ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED(RMN) EXC. RADIATOR KIT VAR.1<64J> 		8-97171-430-0 01 1 0103- ●
1 01.219 RADIATOR ASM
A/T THM(RMQ) 		8-97164-188-0 01 1 9712-9908 ● ●
1 01.219 RADIATOR ASM
A/T THM(RMQ) 		8-97171-431-0 01 1 9909-0102 ● ●
1 01.219 RADIATOR ASM
A/T THM(RMQ) EXC. RADIATOR KIT VAR.1<64J> 		8-97171-431-0 01 1 0103-0105 ● ●
1 01.219 RADIATOR ASM
A/T THM(RMQ) EXC. RADIATOR KIT VAR.1<64J> 		8-97237-051-0 01 1 0106- ● ●
1 01.219 RADIATOR ASM
A/T THM(RMQ) RADIATOR KIT VAR.1<64J> 		8-97036-933-3 01 1 0103- ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED(RMN) RADIATOR KIT VAR.1<64J> 		8-97036-932-1 01 1 0103- ●
2 01.277 GUIDE; FAN
(C) 		8-97186-587-1 01 1 9712- ● ●
2 01.277 GUIDE; FAN
(B) 		8-97166-239-0 01 1 9712-0102 ● ●
2 01.277 GUIDE; FAN
EXC. RADIATOR KIT VAR.1<64J> (B) 		8-97166-239-0 01 1 0103- ● ●
2 01.277 GUIDE; FAN
RADIATOR KIT VAR.1<64J> (B) 		8-94375-337-5 01 1 0103- ●
2 01.277 GUIDE; FAN
A/T THM(RMQ) EXC. SAUDI ARABIA EQUIPMENT(EU2) (A) 		8-97033-101-2 01 1 9712- ● ●
2 01.277 GUIDE; FAN
SAUDI ARABIA EQUIPMENT(EU2) (A) 		8-97033-101-2 01 1 9712- ● ●
16 01.203 CAP; RAD 8-97171-436-0 01 1 9712-9908 ● ● ● ●
16 01.203 CAP; RAD 8-97239-187-0 01 1 9909-0102 ● ● ●
16 01.203 CAP; RAD
M/T AR-5 5 SPEED(RNK) 		8-97239-187-0 01 1 9909-0102 ●
16 01.203 CAP; RAD
M/T MUA 5 SPEED(RMN) 		8-97239-187-0 01 1 0103- ● ●
16 01.203 CAP; RAD 8-97239-187-0 01 1 0103- ●
16 01.203 CAP; RAD
EXC. RADIATOR KIT VAR.1<64J> 		8-97239-187-0 01 1 0103- ●
16 01.203 CAP; RAD
A/T AISIN(RMD) 		8-97171-436-0 01 1 9909-0105 ●
16 01.203 CAP; RAD
A/T AISIN(RMD) 		8-97171-436-0 01 1 0106- ● ●
16 01.203 CAP; RAD
RADIATOR KIT VAR.1<64J> 		8-97104-194-0 01 1 0103- ●
19 01.270 SEAL; RAD UPR
(B) L=300 		8-97164-207-1 01 1 9712-0102 ● ● ● ●
19 01.270 SEAL; RAD UPR
(B) L=300 		8-97164-207-1 01 1 0103- ● ● ●
19 01.270 SEAL; RAD UPR
EXC. RADIATOR KIT VAR.1<64J> (B) L=300 		8-97164-207-1 01 1 0103- ●
19 01.270 SEAL; RAD UPR
RADIATOR KIT VAR.1<64J> (B) L=300 		8-97110-821-0 01 1 0103- ●
19 01.270 SEAL; RAD UPR
(A) L=360 		8-97164-208-1 01 1 9712-0102 ● ● ● ●
19 01.270 SEAL; RAD UPR
(A) L=360 		8-97164-208-1 01 1 0103- ● ● ●
19 01.270 SEAL; RAD UPR
EXC. RADIATOR KIT VAR.1<64J> (A) L=360 		8-97164-208-1 01 1 0103- ●
19 01.270 SEAL; RAD UPR
RADIATOR KIT VAR.1<64J> (A) L=380 		8-97110-822-0 01 1 0103- ●
51 08.951 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 9712-9908 ● ● ● ●
51 08.951 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 9909-0102 ● ● ●
51 08.951 PLUG; DRAIN
M/T AR-5 5 SPEED(RNK) W/GASKET 		8-97171-437-0 01 1 9909-0102 ●
51 08.951 PLUG; DRAIN
M/T MUA 5 SPEED(RMN) W/GASKET 		8-97171-437-0 01 1 0103-0105 ● ●
51 08.951 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 0103-0105 ●
51 08.951 PLUG; DRAIN
EXC. RADIATOR KIT VAR.1<64J> W/GASKET 		8-97171-437-0 01 1 0103-0105 ●
51 08.951 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 0106- ● ●
51 08.951 PLUG; DRAIN
M/T AR-5 5 SPEED(RNK) W/GASKET 		8-97171-437-0 01 1 0106- ●
51 08.951 PLUG; DRAIN
EXC. RADIATOR KIT VAR.1<64J> W/GASKET 		8-97171-437-0 01 1 0106- ●
51 08.951 PLUG; DRAIN
A/T AISIN(RMD) 		8-97212-527-0 01 1 9909- ●
51 08.951 PLUG; DRAIN
RADIATOR KIT VAR.1<64J> 		8-97036-939-0 01 1 0103- ●
242 01.219 BRACKET; RAD
(B) 		8-97084-635-1 01 1 9712- ● ● ● ●
242 01.219 BRACKET; RAD
(C) 		8-97084-636-1 01 1 9712- ● ● ● ●
242 01.219 BRACKET; RAD
(A) 		8-97123-089-1 01 1 9712- ● ● ● ●
243 01.219 BOLT; BRKT
08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 9712- ● ● ● ●
245 01.219 NUT; BRKT
04.010 M8 FLANGE 		8-97046-127-0 04 1 9712- ● ● ● ●
311 01.270 RUBBER; MTG,RAD 8-94375-183-1 02 1 9712-9910 ● ● ● ●
311 01.270 RUBBER; MTG,RAD 8-97231-024-0 02 1 9911- ● ● ● ●
336 01.270 SEAL; LWR,RAD 8-97124-393-0 02 1 9712-0206 ● ● ● ●
336 01.270 SEAL; LWR,RAD 8-97257-011-0 02 1 0207- ● ● ● ●
427 01.240 CLIP; FAN GUIDE
01.277 (A) 		8-97043-862-0 02 1 9712-0007 ● ● ● ●
427 01.240 CLIP; FAN GUIDE
01.277 (A) 		8-97043-862-0 02 1 0008-0102 ● ● ● ●
427 01.240 CLIP; FAN GUIDE
01.277 (A) 		8-97043-862-0 02 1 0103- ● ● ●
427 01.240 CLIP; FAN GUIDE
EXC. RADIATOR KIT VAR.1<64J> 01.277 (A) 		8-97043-862-0 02 1 0103- ●
427 01.240 CLIP; FAN GUIDE
(B) 		8-97066-962-0 04 1 9712-0007 ● ● ● ●
427 01.240 CLIP; FAN GUIDE
(B) 		8-97066-962-0 04 1 0008-0102 ● ● ● ●
427 01.240 CLIP; FAN GUIDE
EXC. RADIATOR KIT VAR.1<64J> (B) 		8-97066-962-0 04 1 0103- ● ● ● ●
427 01.240 CLIP; FAN GUIDE
A/T THM(RMQ) EXC. SAUDI ARABIA EQUIPMENT(EU2) (C) 		8-97043-199-0 02 1 9712- ● ●
427 01.240 CLIP; FAN GUIDE
SAUDI ARABIA EQUIPMENT(EU2) (C) 		8-97043-199-0 02 1 9712- ● ●

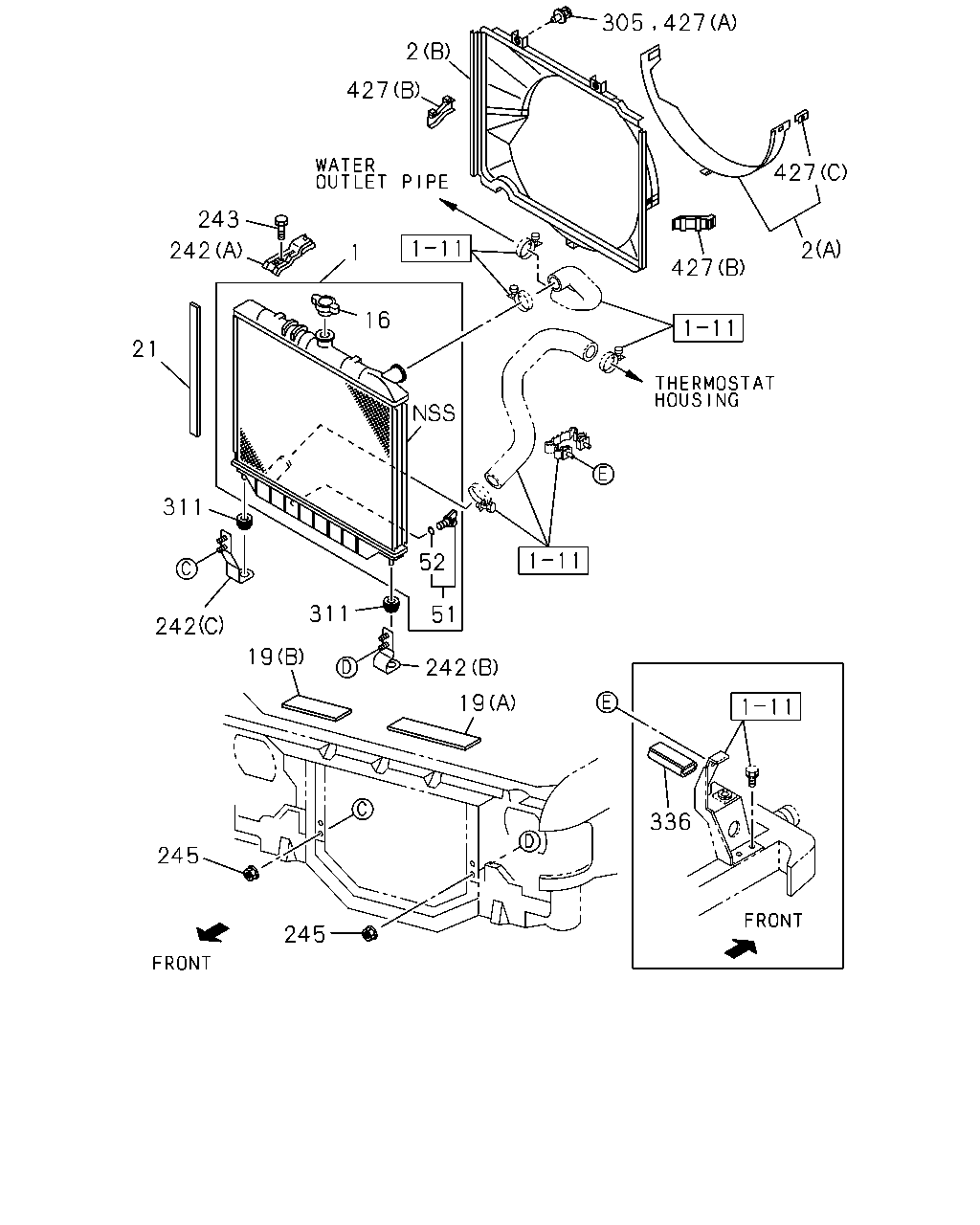

çizim 71782
2 427 427 243 2 242 1 427 16 21 311 52 311 51 242 19 242 19 336 245 245 305 427
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 01.219 RADIATOR ASM
A/T AISIN(RMD) 		8-97169-025-0 01 1 0106- ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED(RMN) 		8-97169-024-0 01 1 9712-9809 ●
1 01.219 RADIATOR ASM
M/T AR-5 5 SPEED(RNK) 		8-97169-024-0 01 1 9712-9809 ●
1 01.219 RADIATOR ASM
A/T AISIN(RMD) 		8-97212-528-1 01 1 9909- ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED(RMN) 		8-97169-024-0 01 1 9810-9905 ●
1 01.219 RADIATOR ASM
M/T AR-5 5 SPEED(RNK) 		8-97169-024-0 01 1 9810-9905 ●
1 01.219 RADIATOR ASM
M/T AR-5 5 SPEED(RNK) 		8-97164-187-0 01 1 9712-9905 ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED(RMN) 		8-97164-187-0 01 1 9712-9905 ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED(RMN) 		8-97164-187-0 01 1 9906-9908 ● ●
1 01.219 RADIATOR ASM
M/T AR-5 5 SPEED(RNK) 		8-97164-187-0 01 1 9906-9908 ● ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED(RMN) 		8-97171-430-0 01 1 9909-0102 ● ●
1 01.219 RADIATOR ASM
M/T AR-5 5 SPEED(RNK) 		8-97171-430-0 01 1 9909-0102 ● ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) 		8-97171-430-0 01 1 0103- ● ● ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED(RMN) EXC. RADIATOR KIT VAR.1<64J> 		8-97171-430-0 01 1 0103- ●
1 01.219 RADIATOR ASM
A/T THM(RMQ) 		8-97164-188-0 01 1 9712-9908 ● ●
1 01.219 RADIATOR ASM
A/T THM(RMQ) 		8-97171-431-0 01 1 9909-0102 ● ●
1 01.219 RADIATOR ASM
A/T THM(RMQ) EXC. RADIATOR KIT VAR.1<64J> 		8-97171-431-0 01 1 0103-0105 ● ●
1 01.219 RADIATOR ASM
A/T THM(RMQ) EXC. RADIATOR KIT VAR.1<64J> 		8-97237-051-0 01 1 0106- ● ●
1 01.219 RADIATOR ASM
A/T THM(RMQ) RADIATOR KIT VAR.1<64J> 		8-97036-933-3 01 1 0103- ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED(RMN) RADIATOR KIT VAR.1<64J> 		8-97036-932-1 01 1 0103- ●
2 01.277 GUIDE; FAN
(C) 		8-97186-587-1 01 1 9712- ● ●
2 01.277 GUIDE; FAN
(B) 		8-97166-239-0 01 1 9712-0102 ● ●
2 01.277 GUIDE; FAN
EXC. RADIATOR KIT VAR.1<64J> (B) 		8-97166-239-0 01 1 0103- ● ●
2 01.277 GUIDE; FAN
RADIATOR KIT VAR.1<64J> (B) 		8-94375-337-5 01 1 0103- ●
2 01.277 GUIDE; FAN
A/T THM(RMQ) EXC. SAUDI ARABIA EQUIPMENT(EU2) (A) 		8-97033-101-2 01 1 9712- ● ●
2 01.277 GUIDE; FAN
SAUDI ARABIA EQUIPMENT(EU2) (A) 		8-97033-101-2 01 1 9712- ● ●
16 01.203 CAP; RAD 8-97171-436-0 01 1 9712-9908 ● ● ● ●
16 01.203 CAP; RAD 8-97239-187-0 01 1 9909-0102 ● ● ●
16 01.203 CAP; RAD
M/T AR-5 5 SPEED(RNK) 		8-97239-187-0 01 1 9909-0102 ●
16 01.203 CAP; RAD
M/T MUA 5 SPEED(RMN) 		8-97239-187-0 01 1 0103- ● ●
16 01.203 CAP; RAD 8-97239-187-0 01 1 0103- ●
16 01.203 CAP; RAD
EXC. RADIATOR KIT VAR.1<64J> 		8-97239-187-0 01 1 0103- ●
16 01.203 CAP; RAD
A/T AISIN(RMD) 		8-97171-436-0 01 1 9909-0105 ●
16 01.203 CAP; RAD
A/T AISIN(RMD) 		8-97171-436-0 01 1 0106- ● ●
16 01.203 CAP; RAD
RADIATOR KIT VAR.1<64J> 		8-97104-194-0 01 1 0103- ●
19 01.270 SEAL; RAD UPR
(B) L=300 		8-97164-207-1 01 1 9712-0102 ● ● ● ●
19 01.270 SEAL; RAD UPR
(B) L=300 		8-97164-207-1 01 1 0103- ● ● ●
19 01.270 SEAL; RAD UPR
EXC. RADIATOR KIT VAR.1<64J> (B) L=300 		8-97164-207-1 01 1 0103- ●
19 01.270 SEAL; RAD UPR
RADIATOR KIT VAR.1<64J> (B) L=300 		8-97110-821-0 01 1 0103- ●
19 01.270 SEAL; RAD UPR
(A) L=360 		8-97164-208-1 01 1 9712-0102 ● ● ● ●
19 01.270 SEAL; RAD UPR
(A) L=360 		8-97164-208-1 01 1 0103- ● ● ●
19 01.270 SEAL; RAD UPR
EXC. RADIATOR KIT VAR.1<64J> (A) L=360 		8-97164-208-1 01 1 0103- ●
19 01.270 SEAL; RAD UPR
RADIATOR KIT VAR.1<64J> (A) L=380 		8-97110-822-0 01 1 0103- ●
21 01.276 SEAL; RAD
A/T THM(RMQ) 		8-97033-102-3 01 1 9712- ● ●
21 01.276 SEAL; RAD
A/T THM(RMQ) 		8-97047-002-3 01 1 9712- ● ●
21 01.276 SEAL; RAD
A/T THM(RMQ) RADIATOR KIT VAR.1<64J> 		8-97036-937-0 02 1 0103- ●
51 08.951 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 9712-9908 ● ● ● ●
51 08.951 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 9909-0102 ● ● ●
51 08.951 PLUG; DRAIN
M/T AR-5 5 SPEED(RNK) W/GASKET 		8-97171-437-0 01 1 9909-0102 ●
51 08.951 PLUG; DRAIN
M/T MUA 5 SPEED(RMN) W/GASKET 		8-97171-437-0 01 1 0103-0105 ● ●
51 08.951 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 0103-0105 ●
51 08.951 PLUG; DRAIN
EXC. RADIATOR KIT VAR.1<64J> W/GASKET 		8-97171-437-0 01 1 0103-0105 ●
51 08.951 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 0106- ● ●
51 08.951 PLUG; DRAIN
M/T AR-5 5 SPEED(RNK) W/GASKET 		8-97171-437-0 01 1 0106- ●
51 08.951 PLUG; DRAIN
EXC. RADIATOR KIT VAR.1<64J> W/GASKET 		8-97171-437-0 01 1 0106- ●
51 08.951 PLUG; DRAIN
A/T AISIN(RMD) 		8-97212-527-0 01 1 9909- ●
51 08.951 PLUG; DRAIN
RADIATOR KIT VAR.1<64J> 		8-97036-939-0 01 1 0103- ●
52 08.951 GASKET; DRAIN PLUG
RADIATOR KIT VAR.1<64J> 04.133 ID=9.8 		9-09561-110-0 01 1 0103- ●
242 01.219 BRACKET; RAD
(B) 		8-97084-635-1 01 1 9712- ● ● ● ●
242 01.219 BRACKET; RAD
(C) 		8-97084-636-1 01 1 9712- ● ● ● ●
242 01.219 BRACKET; RAD
(A) 		8-97123-089-1 01 1 9712- ● ● ● ●
243 01.219 BOLT; BRKT
08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 9712- ● ● ● ●
245 01.219 NUT; BRKT
04.010 M8 FLANGE 		8-97046-127-0 04 1 9712- ● ● ● ●
305 01.277 CLIP; FAN COVER TO FAN GUIDE
RADIATOR KIT VAR.1<64J> 		8-97043-862-0 02 1 0103- ●
311 01.270 RUBBER; MTG,RAD 8-94375-183-1 02 1 9712-9910 ● ● ● ●
311 01.270 RUBBER; MTG,RAD 8-97231-024-0 02 1 9911- ● ● ● ●
336 01.270 SEAL; LWR,RAD 8-97124-393-0 02 1 9712-0206 ● ● ● ●
336 01.270 SEAL; LWR,RAD 8-97257-011-0 02 1 0207- ● ● ● ●
427 01.240 CLIP; FAN GUIDE
01.277 (A) 		8-97043-862-0 02 1 9712-0007 ● ● ● ●
427 01.240 CLIP; FAN GUIDE
01.277 (A) 		8-97043-862-0 02 1 0008-0102 ● ● ● ●
427 01.240 CLIP; FAN GUIDE
01.277 (A) 		8-97043-862-0 02 1 0103- ● ● ●
427 01.240 CLIP; FAN GUIDE
EXC. RADIATOR KIT VAR.1<64J> 01.277 (A) 		8-97043-862-0 02 1 0103- ●
427 01.240 CLIP; FAN GUIDE
(B) 		8-97066-962-0 04 1 9712-0007 ● ● ● ●
427 01.240 CLIP; FAN GUIDE
(B) 		8-97066-962-0 04 1 0008-0102 ● ● ● ●
427 01.240 CLIP; FAN GUIDE
EXC. RADIATOR KIT VAR.1<64J> (B) 		8-97066-962-0 04 1 0103- ● ● ● ●
427 01.240 CLIP; FAN GUIDE
A/T THM(RMQ) EXC. SAUDI ARABIA EQUIPMENT(EU2) (C) 		8-97043-199-0 02 1 9712- ● ●
427 01.240 CLIP; FAN GUIDE
SAUDI ARABIA EQUIPMENT(EU2) (C) 		8-97043-199-0 02 1 9712- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
