◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50775 - UBS-LHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-01 - ACCELERATOR PEDAL AND CONTROL ▶
1-01 — ACCELERATOR PEDAL AND CONTROL (#44852) — 200 parça
çizim 18091
243 65 1 14 39 232 404 334 334
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 03.451 LEVER; PEDAL SIDE 8-97035-025-2 01 1 9712-0105 ● ● ●
1 03.451 LEVER; PEDAL SIDE 8-97035-025-2 01 1 0106- ● ●
1 03.451 LEVER; PEDAL SIDE
EXC. EUROPE EQUIPMENT(EK4) 		8-97035-025-2 01 1 0106- ●
1 03.451 LEVER; PEDAL SIDE 8-97177-680-1 01 1 9712-9908 ●
1 03.451 LEVER; PEDAL SIDE 8-97220-536-2 01 1 9909- ●
1 03.451 LEVER; PEDAL SIDE
A/T THM(RMQ) EUROPE EQUIPMENT(EK4) 		8-97220-538-3 01 1 0106- ●
1 03.451 LEVER; PEDAL SIDE
M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) 		8-97231-700-2 01 1 0106- ●
14 03.451 PAD; PEDAL,ACCEL 8-97044-894-2 01 1 9712-0105 ● ● ●
14 03.451 PAD; PEDAL,ACCEL 8-97044-894-2 01 1 0106- ● ●
14 03.451 PAD; PEDAL,ACCEL
EXC. EUROPE EQUIPMENT(EK4) 		8-97044-894-2 01 1 0106- ●
14 03.451 PAD; PEDAL,ACCEL 8-94473-376-1 01 1 9712-0105 ●
14 03.451 PAD; PEDAL,ACCEL 8-94473-376-1 01 1 0106- ●
14 03.451 PAD; PEDAL,ACCEL
EUROPE EQUIPMENT(EK4) 		8-94473-376-1 01 1 0106- ●
39 03.459 NUT; ACCEL PEDAL STOPPER
02.559 M8 		9-09110-408-0 01 1 9712- ● ● ● ●
65 03.483 BOLT
02.500 M6X10 FLANGE 		0-28080-610-0 02 1 9712-9908 ● ● ● ●
65 03.483 BOLT
16.505 M6X12 FLANGE 		0-28480-612-0 02 1 9909-0111 ● ● ● ●
65 03.483 BOLT
06.635 M6X16 FLANGE 		0-28480-616-0 02 1 0112- ● ● ● ●
232 03.459 BOLT; STOPPER,ACCEL PEDAL
07.395 M8X28 		0-20800-828-0 01 1 9712- ● ● ● ●
243 03.425 SENSOR; ACCEL 8-97163-164-0 01 1 9712- ●
243 03.425 SENSOR; ACCEL
EUROPE EQUIPMENT(EK4) 		8-97193-713-0 01 1 0106- ●
334 03.425 PLUG; ACCEL CABLE
16.069 (B) OD=12 L=14.8 		8-94279-921-0 01 1 9712-9908 ● ●
334 03.425 PLUG; ACCEL CABLE
12.804 (A) 		8-94147-164-1 01 1 9712-0105 ●
334 03.425 PLUG; ACCEL CABLE
12.804 (A) 		8-94147-164-1 01 1 0106- ●
334 03.425 PLUG; ACCEL CABLE
EUROPE EQUIPMENT(EK4) 12.804 (A) 		8-94147-164-1 01 1 0106- ●
334 03.425 PLUG; ACCEL CABLE
4X4(UBS***) A/T AISIN(RMD) 16.069 (B) OD=12 L=14.8 		8-94279-921-0 01 1 9909-0007 ●
334 03.425 PLUG; ACCEL CABLE
4X2(UBR***) 16.069 (B) OD=12 L=14.8 		8-94279-921-0 01 1 0008- ●
334 03.425 PLUG; ACCEL CABLE
4X4(UBS***) A/T AISIN(RMD) 16.069 (B) OD=12 L=14.8 		8-94279-921-0 01 1 0008- ●
404 03.483 CLIP; CABLE
09.647 ID=4.8 		8-94128-483-0 01 1 9712-9908 ● ● ●
404 03.483 CLIP; CABLE
09.647 ID=4.8 		8-94128-483-0 01 1 9909-0007 ● ● ●
404 03.483 CLIP; CABLE
4X4(UBS***) 09.647 ID=4.8 		8-94128-483-0 01 1 9909-0007 ●
404 03.483 CLIP; CABLE
09.647 ID=4.8 		8-94128-483-0 01 1 0008-0105 ● ● ● ●
404 03.483 CLIP; CABLE
09.647 ID=4.8 		8-94128-483-0 01 1 0106- ● ● ●
404 03.483 CLIP; CABLE
A/T THM(RMQ) EUROPE EQUIPMENT(EK4) 09.647 ID=4.8 		8-94128-483-0 01 1 0106- ●
404 03.483 CLIP; CABLE
EXC. EUROPE EQUIPMENT(EK4) 09.647 ID=4.8 		8-94128-483-0 01 1 0106- ●
çizim 19973
54 65 19 713 1 35 32 18 404 14 39 67 232 334
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 03.451 LEVER; PEDAL SIDE 8-97035-025-2 01 1 9712-0105 ● ● ●
1 03.451 LEVER; PEDAL SIDE 8-97035-025-2 01 1 0106- ● ●
1 03.451 LEVER; PEDAL SIDE
EXC. EUROPE EQUIPMENT(EK4) 		8-97035-025-2 01 1 0106- ●
1 03.451 LEVER; PEDAL SIDE 8-97177-680-1 01 1 9712-9908 ●
1 03.451 LEVER; PEDAL SIDE 8-97220-536-2 01 1 9909- ●
1 03.451 LEVER; PEDAL SIDE
A/T THM(RMQ) EUROPE EQUIPMENT(EK4) 		8-97220-538-3 01 1 0106- ●
1 03.451 LEVER; PEDAL SIDE
M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) 		8-97231-700-2 01 1 0106- ●
14 03.451 PAD; PEDAL,ACCEL 8-97044-894-2 01 1 9712-0105 ● ● ●
14 03.451 PAD; PEDAL,ACCEL 8-97044-894-2 01 1 0106- ● ●
14 03.451 PAD; PEDAL,ACCEL
EXC. EUROPE EQUIPMENT(EK4) 		8-97044-894-2 01 1 0106- ●
14 03.451 PAD; PEDAL,ACCEL 8-94473-376-1 01 1 9712-0105 ●
14 03.451 PAD; PEDAL,ACCEL 8-94473-376-1 01 1 0106- ●
14 03.451 PAD; PEDAL,ACCEL
EUROPE EQUIPMENT(EK4) 		8-94473-376-1 01 1 0106- ●
18 03.459 NUT; JOINT LK
03.452 D=17.5 		8-94368-617-0 01 1 9712-0105 ● ● ●
18 03.459 NUT; JOINT LK
03.452 D=17.5 		8-94368-617-0 01 1 0106- ● ●
18 03.459 NUT; JOINT LK
EXC. EUROPE EQUIPMENT(EK4) 03.452 D=17.5 		8-94368-617-0 01 1 0106- ●
19 03.452 BRACKET; ACCEL PEDAL 8-97121-026-1 01 1 9712-9812 ● ●
19 03.452 BRACKET; ACCEL PEDAL 8-97121-026-1 01 1 9901-0005 ● ●
19 03.452 BRACKET; ACCEL PEDAL
EXC. EUROPE EQUIPMENT(EK4) 		8-97121-026-1 01 1 9901-0005 ●
19 03.452 BRACKET; ACCEL PEDAL 8-97121-026-1 01 1 0006-0105 ● ●
19 03.452 BRACKET; ACCEL PEDAL
EXC. EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) 		8-97121-026-1 01 1 0006-0105 ●
19 03.452 BRACKET; ACCEL PEDAL 8-97121-026-1 01 1 0106- ● ●
19 03.452 BRACKET; ACCEL PEDAL
EXC. EUROPE EQUIPMENT(EK4) 		8-97121-026-1 01 1 0106- ●
19 03.452 BRACKET; ACCEL PEDAL 8-97131-827-1 01 1 9712-9812 ●
19 03.452 BRACKET; ACCEL PEDAL
EUROPE EQUIPMENT(EK4) 		8-97131-827-1 01 1 9901-0005 ●
19 03.452 BRACKET; ACCEL PEDAL
EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) 		8-97131-827-1 01 1 0006-0105 ●
32 03.459 SPRING; RETURN,ACCEL PEDAL 8-97107-141-0 01 1 9712-0105 ● ● ●
32 03.459 SPRING; RETURN,ACCEL PEDAL 8-97107-141-0 01 1 0106- ● ●
32 03.459 SPRING; RETURN,ACCEL PEDAL
EXC. EUROPE EQUIPMENT(EK4) 		8-97107-141-0 01 1 0106- ●
35 03.459 STOPPER; ACCEL PEDAL 8-97036-050-0 01 1 9712-0105 ● ● ●
35 03.459 STOPPER; ACCEL PEDAL 8-97036-050-0 01 1 0106- ● ●
35 03.459 STOPPER; ACCEL PEDAL
EXC. EUROPE EQUIPMENT(EK4) 		8-97036-050-0 01 1 0106- ●
39 03.459 NUT; ACCEL PEDAL STOPPER
02.559 M8 		9-09110-408-0 01 1 9712- ● ● ● ●
54 03.430 CABLE; ENG CONT 8-97078-147-2 01 1 9712-0105 ●
54 03.430 CABLE; ENG CONT 8-97314-220-1 01 1 0106- ●
54 03.430 CABLE; ENG CONT 8-97164-192-2 01 1 9712-0105 ● ●
54 03.430 CABLE; ENG CONT
EXC. EUROPE EQUIPMENT(EK4) 		8-97164-192-4 01 1 0106- ●
54 03.430 CABLE; ENG CONT 8-97164-192-4 01 1 0106- ●
65 03.483 BOLT
02.500 M6X10 FLANGE 		0-28080-610-0 02 1 9712-9908 ● ● ● ●
65 03.483 BOLT
16.505 M6X12 FLANGE 		0-28480-612-0 02 1 9909-0111 ● ● ● ●
65 03.483 BOLT
06.635 M6X16 FLANGE 		0-28480-616-0 02 1 0112- ● ● ● ●
67 03.480 CABLE ASM; IDLE CONT
DARK GRAY 		8-97153-188-0 01 1 9712-9908 ●
67 03.480 CABLE ASM; IDLE CONT
INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY 		8-97153-188-1 01 1 9909- ●
67 03.480 CABLE ASM; IDLE CONT
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97291-479-1 01 1 9909- ●
232 03.459 BOLT; STOPPER,ACCEL PEDAL
07.395 M8X28 		0-20800-828-0 01 1 9712- ● ● ● ●
334 03.425 PLUG; ACCEL CABLE
16.069 (B) OD=12 L=14.8 		8-94279-921-0 01 1 9712-9908 ● ●
334 03.425 PLUG; ACCEL CABLE
12.804 (A) 		8-94147-164-1 01 1 9712-0105 ●
334 03.425 PLUG; ACCEL CABLE
12.804 (A) 		8-94147-164-1 01 1 0106- ●
334 03.425 PLUG; ACCEL CABLE
EUROPE EQUIPMENT(EK4) 12.804 (A) 		8-94147-164-1 01 1 0106- ●
334 03.425 PLUG; ACCEL CABLE
4X4(UBS***) A/T AISIN(RMD) 16.069 (B) OD=12 L=14.8 		8-94279-921-0 01 1 9909-0007 ●
334 03.425 PLUG; ACCEL CABLE
4X2(UBR***) 16.069 (B) OD=12 L=14.8 		8-94279-921-0 01 1 0008- ●
334 03.425 PLUG; ACCEL CABLE
4X4(UBS***) A/T AISIN(RMD) 16.069 (B) OD=12 L=14.8 		8-94279-921-0 01 1 0008- ●
404 03.483 CLIP; CABLE
09.647 ID=4.8 		8-94128-483-0 01 1 9712-9908 ● ● ●
404 03.483 CLIP; CABLE
09.647 ID=4.8 		8-94128-483-0 01 1 9909-0007 ● ● ●
404 03.483 CLIP; CABLE
4X4(UBS***) 09.647 ID=4.8 		8-94128-483-0 01 1 9909-0007 ●
404 03.483 CLIP; CABLE
09.647 ID=4.8 		8-94128-483-0 01 1 0008-0105 ● ● ● ●
404 03.483 CLIP; CABLE
09.647 ID=4.8 		8-94128-483-0 01 1 0106- ● ● ●
404 03.483 CLIP; CABLE
A/T THM(RMQ) EUROPE EQUIPMENT(EK4) 09.647 ID=4.8 		8-94128-483-0 01 1 0106- ●
404 03.483 CLIP; CABLE
EXC. EUROPE EQUIPMENT(EK4) 09.647 ID=4.8 		8-94128-483-0 01 1 0106- ●
713 03.463 WASHER; PL
16.674 ID=8.4 		9-09160-508-0 01 1 9712-0105 ● ● ●
713 03.463 WASHER; PL
16.674 ID=8.4 		9-09160-508-0 01 1 0106- ● ●
713 03.463 WASHER; PL
EXC. EUROPE EQUIPMENT(EK4) 16.674 ID=8.4 		9-09160-508-0 01 1 0106- ●
çizim 69009
1 243 65 1 14 39 232 404 334
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 03.451 LEVER; PEDAL SIDE 8-97035-025-2 01 1 9712-0105 ● ● ●
1 03.451 LEVER; PEDAL SIDE 8-97035-025-2 01 1 0106- ● ●
1 03.451 LEVER; PEDAL SIDE
EXC. EUROPE EQUIPMENT(EK4) 		8-97035-025-2 01 1 0106- ●
1 03.451 LEVER; PEDAL SIDE 8-97177-680-1 01 1 9712-9908 ●
1 03.451 LEVER; PEDAL SIDE 8-97220-536-2 01 1 9909- ●
1 03.451 LEVER; PEDAL SIDE
A/T THM(RMQ) EUROPE EQUIPMENT(EK4) 		8-97220-538-3 01 1 0106- ●
1 03.451 LEVER; PEDAL SIDE
M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) 		8-97231-700-2 01 1 0106- ●
14 03.451 PAD; PEDAL,ACCEL 8-97044-894-2 01 1 9712-0105 ● ● ●
14 03.451 PAD; PEDAL,ACCEL 8-97044-894-2 01 1 0106- ● ●
14 03.451 PAD; PEDAL,ACCEL
EXC. EUROPE EQUIPMENT(EK4) 		8-97044-894-2 01 1 0106- ●
14 03.451 PAD; PEDAL,ACCEL 8-94473-376-1 01 1 9712-0105 ●
14 03.451 PAD; PEDAL,ACCEL 8-94473-376-1 01 1 0106- ●
14 03.451 PAD; PEDAL,ACCEL
EUROPE EQUIPMENT(EK4) 		8-94473-376-1 01 1 0106- ●
39 03.459 NUT; ACCEL PEDAL STOPPER
02.559 M8 		9-09110-408-0 01 1 9712- ● ● ● ●
65 03.483 BOLT
02.500 M6X10 FLANGE 		0-28080-610-0 02 1 9712-9908 ● ● ● ●
65 03.483 BOLT
16.505 M6X12 FLANGE 		0-28480-612-0 02 1 9909-0111 ● ● ● ●
65 03.483 BOLT
06.635 M6X16 FLANGE 		0-28480-616-0 02 1 0112- ● ● ● ●
232 03.459 BOLT; STOPPER,ACCEL PEDAL
07.395 M8X28 		0-20800-828-0 01 1 9712- ● ● ● ●
243 03.425 SENSOR; ACCEL 8-97163-164-0 01 1 9712- ●
243 03.425 SENSOR; ACCEL
EUROPE EQUIPMENT(EK4) 		8-97193-713-0 01 1 0106- ●
334 03.425 PLUG; ACCEL CABLE
16.069 (B) OD=12 L=14.8 		8-94279-921-0 01 1 9712-9908 ● ●
334 03.425 PLUG; ACCEL CABLE
12.804 (A) 		8-94147-164-1 01 1 9712-0105 ●
334 03.425 PLUG; ACCEL CABLE
12.804 (A) 		8-94147-164-1 01 1 0106- ●
334 03.425 PLUG; ACCEL CABLE
EUROPE EQUIPMENT(EK4) 12.804 (A) 		8-94147-164-1 01 1 0106- ●
334 03.425 PLUG; ACCEL CABLE
4X4(UBS***) A/T AISIN(RMD) 16.069 (B) OD=12 L=14.8 		8-94279-921-0 01 1 9909-0007 ●
334 03.425 PLUG; ACCEL CABLE
4X2(UBR***) 16.069 (B) OD=12 L=14.8 		8-94279-921-0 01 1 0008- ●
334 03.425 PLUG; ACCEL CABLE
4X4(UBS***) A/T AISIN(RMD) 16.069 (B) OD=12 L=14.8 		8-94279-921-0 01 1 0008- ●
404 03.483 CLIP; CABLE
09.647 ID=4.8 		8-94128-483-0 01 1 9712-9908 ● ● ●
404 03.483 CLIP; CABLE
09.647 ID=4.8 		8-94128-483-0 01 1 9909-0007 ● ● ●
404 03.483 CLIP; CABLE
4X4(UBS***) 09.647 ID=4.8 		8-94128-483-0 01 1 9909-0007 ●
404 03.483 CLIP; CABLE
09.647 ID=4.8 		8-94128-483-0 01 1 0008-0105 ● ● ● ●
404 03.483 CLIP; CABLE
09.647 ID=4.8 		8-94128-483-0 01 1 0106- ● ● ●
404 03.483 CLIP; CABLE
A/T THM(RMQ) EUROPE EQUIPMENT(EK4) 09.647 ID=4.8 		8-94128-483-0 01 1 0106- ●
404 03.483 CLIP; CABLE
EXC. EUROPE EQUIPMENT(EK4) 09.647 ID=4.8 		8-94128-483-0 01 1 0106- ●

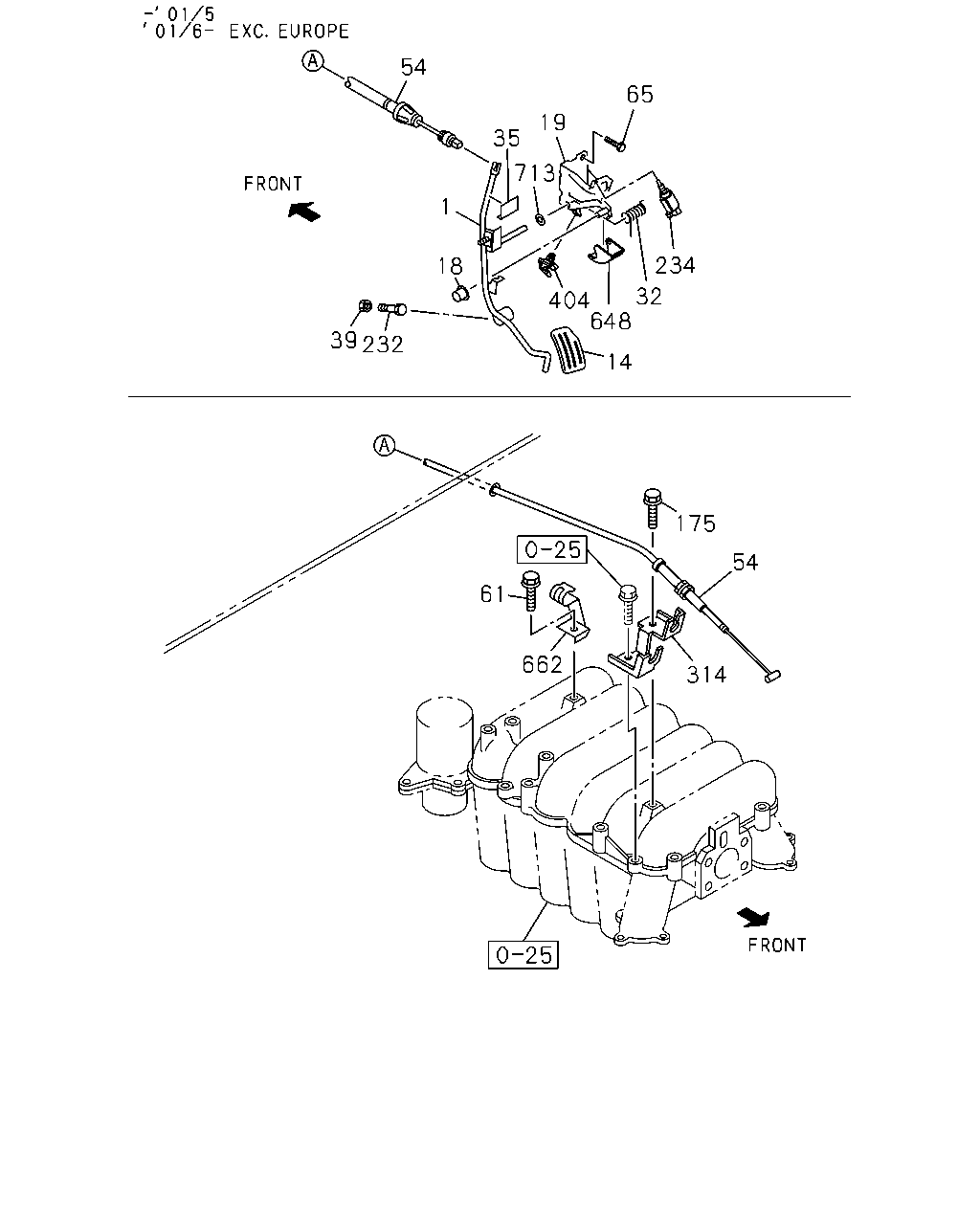

çizim 72305
54 65 19 35 713 1 234 18 404 32 648 39 232 14 175 54 61 662 314
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 03.451 LEVER; PEDAL SIDE 8-97035-025-2 01 1 9712-0105 ● ● ●
1 03.451 LEVER; PEDAL SIDE 8-97035-025-2 01 1 0106- ● ●
1 03.451 LEVER; PEDAL SIDE
EXC. EUROPE EQUIPMENT(EK4) 		8-97035-025-2 01 1 0106- ●
1 03.451 LEVER; PEDAL SIDE 8-97177-680-1 01 1 9712-9908 ●
1 03.451 LEVER; PEDAL SIDE 8-97220-536-2 01 1 9909- ●
1 03.451 LEVER; PEDAL SIDE
A/T THM(RMQ) EUROPE EQUIPMENT(EK4) 		8-97220-538-3 01 1 0106- ●
1 03.451 LEVER; PEDAL SIDE
M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) 		8-97231-700-2 01 1 0106- ●
14 03.451 PAD; PEDAL,ACCEL 8-97044-894-2 01 1 9712-0105 ● ● ●
14 03.451 PAD; PEDAL,ACCEL 8-97044-894-2 01 1 0106- ● ●
14 03.451 PAD; PEDAL,ACCEL
EXC. EUROPE EQUIPMENT(EK4) 		8-97044-894-2 01 1 0106- ●
14 03.451 PAD; PEDAL,ACCEL 8-94473-376-1 01 1 9712-0105 ●
14 03.451 PAD; PEDAL,ACCEL 8-94473-376-1 01 1 0106- ●
14 03.451 PAD; PEDAL,ACCEL
EUROPE EQUIPMENT(EK4) 		8-94473-376-1 01 1 0106- ●
18 03.459 NUT; JOINT LK
03.452 D=17.5 		8-94368-617-0 01 1 9712-0105 ● ● ●
18 03.459 NUT; JOINT LK
03.452 D=17.5 		8-94368-617-0 01 1 0106- ● ●
18 03.459 NUT; JOINT LK
EXC. EUROPE EQUIPMENT(EK4) 03.452 D=17.5 		8-94368-617-0 01 1 0106- ●
19 03.452 BRACKET; ACCEL PEDAL 8-97121-026-1 01 1 9712-9812 ● ●
19 03.452 BRACKET; ACCEL PEDAL 8-97121-026-1 01 1 9901-0005 ● ●
19 03.452 BRACKET; ACCEL PEDAL
EXC. EUROPE EQUIPMENT(EK4) 		8-97121-026-1 01 1 9901-0005 ●
19 03.452 BRACKET; ACCEL PEDAL 8-97121-026-1 01 1 0006-0105 ● ●
19 03.452 BRACKET; ACCEL PEDAL
EXC. EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) 		8-97121-026-1 01 1 0006-0105 ●
19 03.452 BRACKET; ACCEL PEDAL 8-97121-026-1 01 1 0106- ● ●
19 03.452 BRACKET; ACCEL PEDAL
EXC. EUROPE EQUIPMENT(EK4) 		8-97121-026-1 01 1 0106- ●
19 03.452 BRACKET; ACCEL PEDAL 8-97131-827-1 01 1 9712-9812 ●
19 03.452 BRACKET; ACCEL PEDAL
EUROPE EQUIPMENT(EK4) 		8-97131-827-1 01 1 9901-0005 ●
19 03.452 BRACKET; ACCEL PEDAL
EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) 		8-97131-827-1 01 1 0006-0105 ●
32 03.459 SPRING; RETURN,ACCEL PEDAL 8-97107-141-0 01 1 9712-0105 ● ● ●
32 03.459 SPRING; RETURN,ACCEL PEDAL 8-97107-141-0 01 1 0106- ● ●
32 03.459 SPRING; RETURN,ACCEL PEDAL
EXC. EUROPE EQUIPMENT(EK4) 		8-97107-141-0 01 1 0106- ●
35 03.459 STOPPER; ACCEL PEDAL 8-97036-050-0 01 1 9712-0105 ● ● ●
35 03.459 STOPPER; ACCEL PEDAL 8-97036-050-0 01 1 0106- ● ●
35 03.459 STOPPER; ACCEL PEDAL
EXC. EUROPE EQUIPMENT(EK4) 		8-97036-050-0 01 1 0106- ●
39 03.459 NUT; ACCEL PEDAL STOPPER
02.559 M8 		9-09110-408-0 01 1 9712- ● ● ● ●
54 03.430 CABLE; ENG CONT 8-97078-147-2 01 1 9712-0105 ●
54 03.430 CABLE; ENG CONT 8-97314-220-1 01 1 0106- ●
54 03.430 CABLE; ENG CONT 8-97164-192-2 01 1 9712-0105 ● ●
54 03.430 CABLE; ENG CONT
EXC. EUROPE EQUIPMENT(EK4) 		8-97164-192-4 01 1 0106- ●
54 03.430 CABLE; ENG CONT 8-97164-192-4 01 1 0106- ●
61 03.483 BOLT; BRKT TO FRAME ENG CONT CAB
02.500 M6X10 FLANGE 		0-28080-610-0 01 1 9712-0105 ● ●
61 03.483 BOLT; BRKT TO FRAME ENG CONT CAB
EXC. EUROPE EQUIPMENT(EK4) 02.500 M6X10 FLANGE 		0-28080-610-0 01 1 0106- ●
61 03.483 BOLT; BRKT TO FRAME ENG CONT CAB
02.500 M6X10 FLANGE 		0-28080-610-0 01 1 0106- ●
65 03.483 BOLT
02.500 M6X10 FLANGE 		0-28080-610-0 02 1 9712-9908 ● ● ● ●
65 03.483 BOLT
16.505 M6X12 FLANGE 		0-28480-612-0 02 1 9909-0111 ● ● ● ●
65 03.483 BOLT
06.635 M6X16 FLANGE 		0-28480-616-0 02 1 0112- ● ● ● ●
175 03.483 BOLT; BRKT,ACCEL CABLE
01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9712-0105 ● ●
175 03.483 BOLT; BRKT,ACCEL CABLE
SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 0106- ●
175 03.483 BOLT; BRKT,ACCEL CABLE
01.428 M6X12 FLANGE 		0-28080-612-0 01 1 0106- ●
232 03.459 BOLT; STOPPER,ACCEL PEDAL
07.395 M8X28 		0-20800-828-0 01 1 9712- ● ● ● ●
234 03.452 SWITCH; ACCEL
A/T THM(RMQ) 04.054 		8-94368-343-0 01 1 9712-0105 ● ●
234 03.452 SWITCH; ACCEL
A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4) 04.054 		8-94368-343-0 01 1 0106-0211 ● ●
234 03.452 SWITCH; ACCEL
A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4) 03.636 		8-97358-315-0 01 1 0212- ● ●
314 03.481 BRACKET; ACCEL CABLE 8-97136-145-3 01 1 9712-0105 ● ●
314 03.481 BRACKET; ACCEL CABLE
SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) 		8-97136-145-3 01 1 0106- ●
314 03.481 BRACKET; ACCEL CABLE 8-97136-145-3 01 1 0106- ●
404 03.483 CLIP; CABLE
09.647 ID=4.8 		8-94128-483-0 01 1 9712-9908 ● ● ●
404 03.483 CLIP; CABLE
09.647 ID=4.8 		8-94128-483-0 01 1 9909-0007 ● ● ●
404 03.483 CLIP; CABLE
4X4(UBS***) 09.647 ID=4.8 		8-94128-483-0 01 1 9909-0007 ●
404 03.483 CLIP; CABLE
09.647 ID=4.8 		8-94128-483-0 01 1 0008-0105 ● ● ● ●
404 03.483 CLIP; CABLE
09.647 ID=4.8 		8-94128-483-0 01 1 0106- ● ● ●
404 03.483 CLIP; CABLE
A/T THM(RMQ) EUROPE EQUIPMENT(EK4) 09.647 ID=4.8 		8-94128-483-0 01 1 0106- ●
404 03.483 CLIP; CABLE
EXC. EUROPE EQUIPMENT(EK4) 09.647 ID=4.8 		8-94128-483-0 01 1 0106- ●
648 03.483 PROTECTOR 8-97131-825-0 01 1 9712-9812 ●
648 03.483 PROTECTOR
EUROPE EQUIPMENT(EK4) 		8-97131-825-0 01 1 9901-0005 ●
648 03.483 PROTECTOR
EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) 		8-97131-825-0 01 1 0006-0105 ●
662 03.430 CLIP; ACCEL CONT CABLE 8-97179-325-1 01 1 9712-0105 ● ●
662 03.430 CLIP; ACCEL CONT CABLE
EXC. EUROPE EQUIPMENT(EK4) 		8-97179-325-1 01 1 0106- ●
662 03.430 CLIP; ACCEL CONT CABLE 8-97179-325-1 01 1 0106- ●
713 03.463 WASHER; PL
16.674 ID=8.4 		9-09160-508-0 01 1 9712-0105 ● ● ●
713 03.463 WASHER; PL
16.674 ID=8.4 		9-09160-508-0 01 1 0106- ● ●
713 03.463 WASHER; PL
EXC. EUROPE EQUIPMENT(EK4) 16.674 ID=8.4 		9-09160-508-0 01 1 0106- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
