1 |

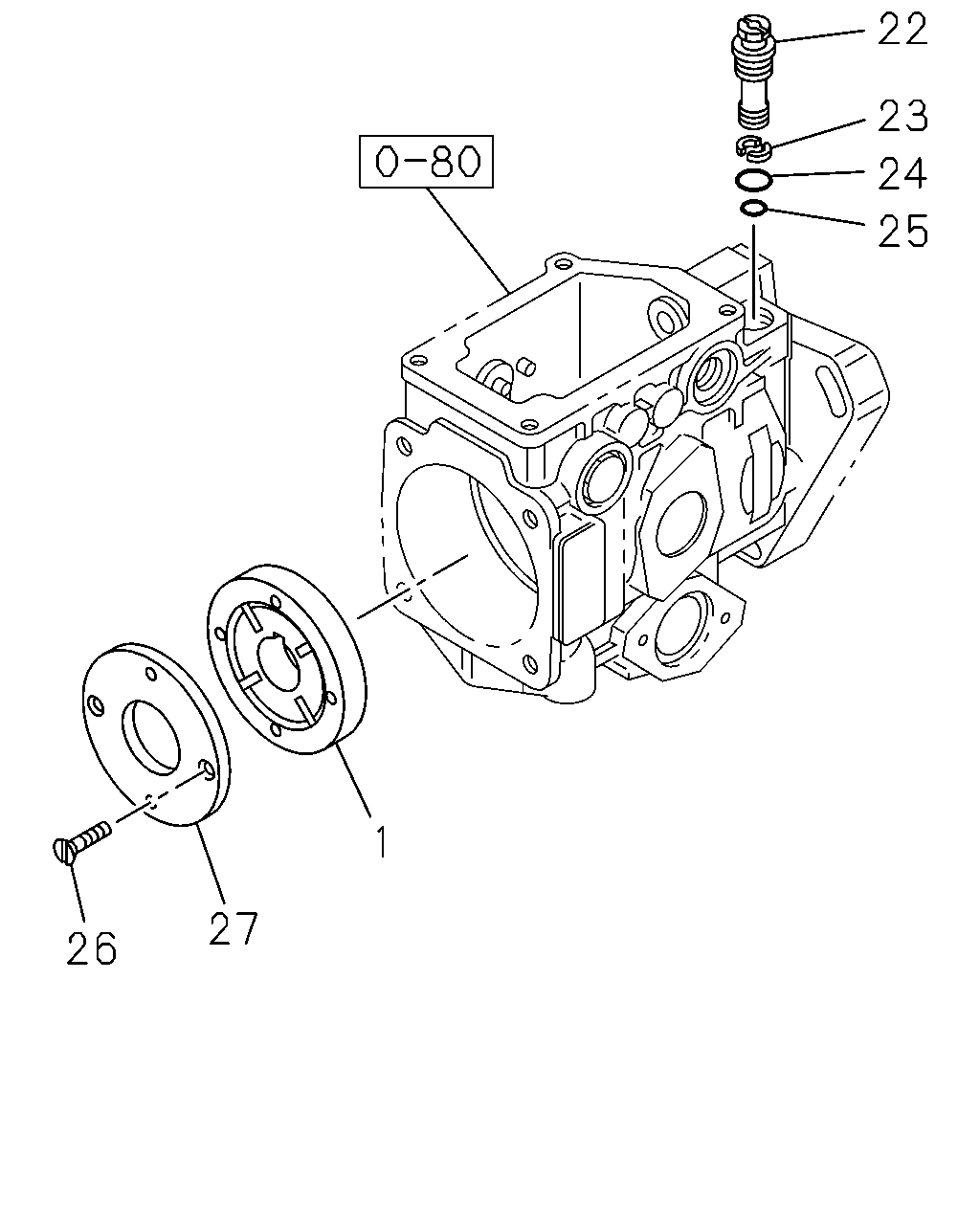

03.900 PUMP ASM; FUEL FEED,INJ PUMP
03.340
ASM PART: A = 8-97110-559-0, 97110559, B = 8-97110-560-0, 97110560,
C = 8-97110-561-0, 97110561, D = 8-97110-562-0, 97110562,
E = 8-97110-563-0, 97110563, J = 8-97188-432-0, 97188432,
K = 8-97189-160-0, 97189160, L = 8-97252-442-0, 97252442,
M = 8-97252-443-0, 97252443, N = 8-97300-263-0, 97300263,
O = 8-97300-264-0, 97300264
|
8-94227-477-0 |
01 |
1 |
- |
| |
1 |
03.900 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: F = 8-97124-762-0, 97124762, G = 8-97124-763-0, 97124763,
H = 8-97133-847-1, 97133847, I = 8-97133-848-1, 97133848
|
8-94478-848-0 |
01 |
1 |
- |
| |
22 |
03.901 VALVE; REGULATING,INJ PUMP
ASM PART: A = 8-97110-559-0, 97110559, B = 8-97110-560-0, 97110560,
C = 8-97110-561-0, 97110561, D = 8-97110-562-0, 97110562,
E = 8-97110-563-0, 97110563, F = 8-97124-762-0, 97124762,
G = 8-97124-763-0, 97124763, H = 8-97133-847-1, 97133847,
I = 8-97133-848-1, 97133848, J = 8-97188-432-0, 97188432,
K = 8-97189-160-0, 97189160, L = 8-97252-442-0, 97252442,
M = 8-97252-443-0, 97252443, N = 8-97300-263-0, 97300263,
O = 8-97300-264-0, 97300264
|
8-94424-194-0 |
01 |
1 |
- |
| |
23 |
03.901 RING; SPRING,REGULATING VLV,INJ
03.320
ASM PART: A = 8-97110-559-0, 97110559, B = 8-97110-560-0, 97110560,
C = 8-97110-561-0, 97110561, D = 8-97110-562-0, 97110562,
E = 8-97110-563-0, 97110563, F = 8-97124-762-0, 97124762,
G = 8-97124-763-0, 97124763, H = 8-97133-847-1, 97133847,
I = 8-97133-848-1, 97133848, J = 8-97188-432-0, 97188432,
K = 8-97189-160-0, 97189160, L = 8-97252-442-0, 97252442,
M = 8-97252-443-0, 97252443, N = 8-97300-263-0, 97300263,
O = 8-97300-264-0, 97300264
|
8-94227-643-0 |
01 |
1 |
- |
| |
24 |
03.904 GASKET; REGULATING VLV,INJ PUMP
03.330
ASM PART: A = 8-97110-559-0, 97110559, B = 8-97110-560-0, 97110560,
C = 8-97110-561-0, 97110561, D = 8-97110-562-0, 97110562,
E = 8-97110-563-0, 97110563, F = 8-97124-762-0, 97124762,
G = 8-97124-763-0, 97124763, H = 8-97133-847-1, 97133847,
I = 8-97133-848-1, 97133848, J = 8-97188-432-0, 97188432,
K = 8-97189-160-0, 97189160, L = 8-97252-442-0, 97252442,
M = 8-97252-443-0, 97252443, N = 8-97300-263-0, 97300263,
O = 8-97300-264-0, 97300264
|
8-94227-641-0 |
01 |
1 |
- |
| |
25 |
03.904 GASKET; REGULATING VLV,INJ PUMP
03.330
ASM PART: A = 8-97110-559-0, 97110559, B = 8-97110-560-0, 97110560,
C = 8-97110-561-0, 97110561, D = 8-97110-562-0, 97110562,
E = 8-97110-563-0, 97110563, F = 8-97124-762-0, 97124762,
G = 8-97124-763-0, 97124763, H = 8-97133-847-1, 97133847,
I = 8-97133-848-1, 97133848, J = 8-97188-432-0, 97188432,
K = 8-97189-160-0, 97189160, L = 8-97252-442-0, 97252442,
M = 8-97252-443-0, 97252443, N = 8-97300-263-0, 97300263,
O = 8-97300-264-0, 97300264
|
8-94227-640-0 |
01 |
1 |
- |
| |
26 |
03.901 SCREW; COVER FIX,FUEL FEED PUMP
03.330
ASM PART: A = 8-97110-559-0, 97110559, B = 8-97110-560-0, 97110560,
C = 8-97110-561-0, 97110561, D = 8-97110-562-0, 97110562,
E = 8-97110-563-0, 97110563, F = 8-97124-762-0, 97124762,
G = 8-97124-763-0, 97124763, H = 8-97133-847-1, 97133847,
I = 8-97133-848-1, 97133848, J = 8-97188-432-0, 97188432,
K = 8-97189-160-0, 97189160, L = 8-97252-442-0, 97252442,
M = 8-97252-443-0, 97252443, N = 8-97300-263-0, 97300263,
O = 8-97300-264-0, 97300264
|
8-94227-479-0 |
02 |
1 |
- |
| |
27 |
03.910 COVER; FUEL FEED PUMP
03.322
ASM PART: A = 8-97110-559-0, 97110559, B = 8-97110-560-0, 97110560,
C = 8-97110-561-0, 97110561, D = 8-97110-562-0, 97110562,
E = 8-97110-563-0, 97110563, F = 8-97124-762-0, 97124762,
G = 8-97124-763-0, 97124763, H = 8-97133-847-1, 97133847,
I = 8-97133-848-1, 97133848, J = 8-97188-432-0, 97188432,
K = 8-97189-160-0, 97189160, L = 8-97252-442-0, 97252442,
M = 8-97252-443-0, 97252443, N = 8-97300-263-0, 97300263,
O = 8-97300-264-0, 97300264
|
8-94227-478-0 |
01 |
1 |
- |
