6-70 — FLOOR PANEL (#4485) — 46 parça

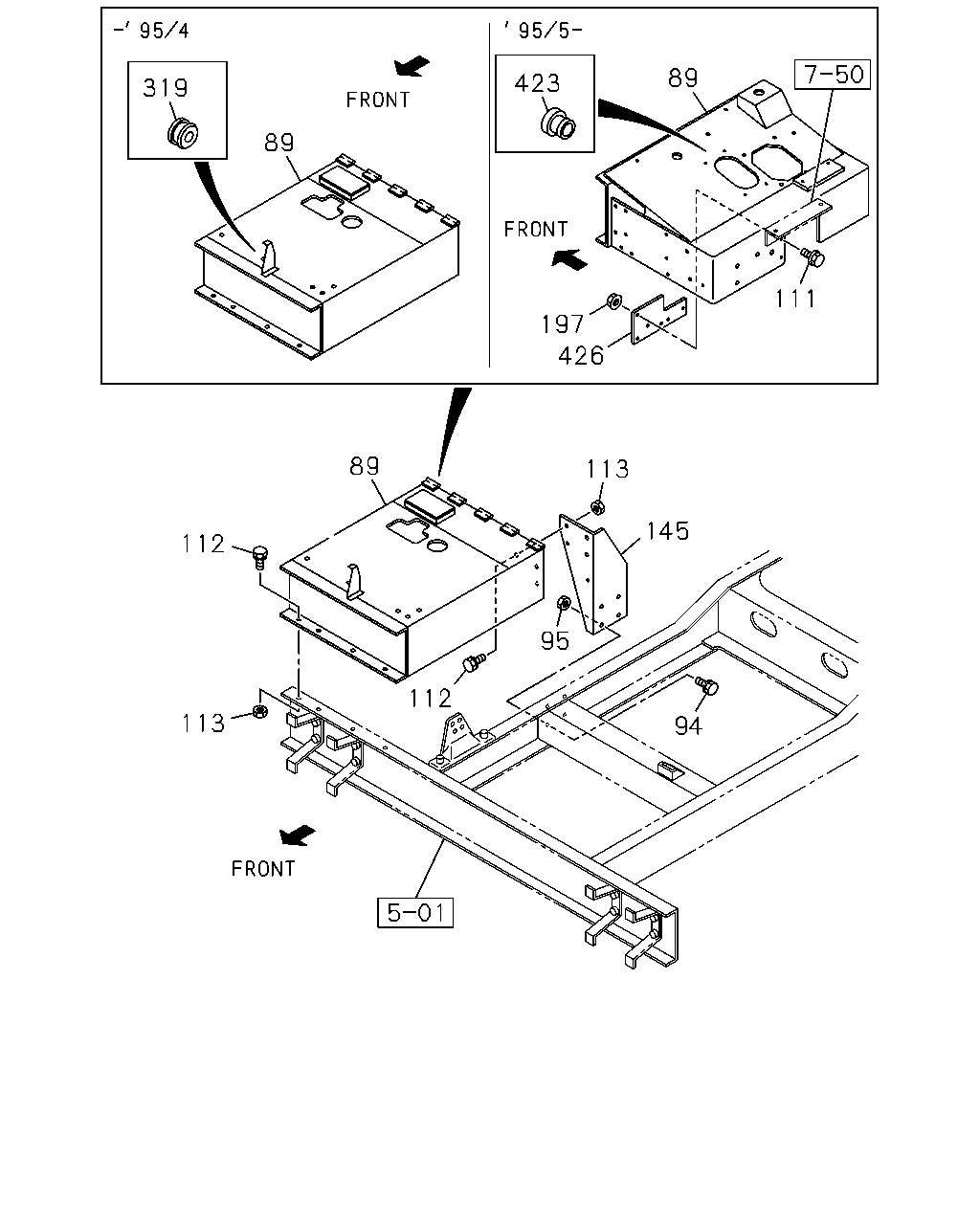

çizim 37095
89 423 319 89 111 197 426 89 113 145 112 95 112 113 94
BalonParca AdiParca NoAdetTipApplied Date A B
89 BOARD ASM; PEDAL
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-65600-365-5 01 1 9101-9201 ●
89 BOARD ASM; PEDAL
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-65600-416-4 01 1 9202-9504 ●
89 BOARD ASM; PEDAL
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-65600-320-6 01 1 9101-9504 ●
89 BOARD ASM; PEDAL
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-65600-345-0 01 1 9101-9504 ● ●
89 BOARD ASM; PEDAL 1-65600-463-1 01 1 9505-9506 ● ●
89 BOARD ASM; PEDAL 1-65600-482-5 01 1 9507- ● ●
89 BOARD ASM; PEDAL
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-65600-369-5 01 1 9101-9504 ●
89 BOARD ASM; PEDAL
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-65600-446-3 01 1 9102-9504 ●
94 BOLT; BRKT,PEDAL BOARD
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M12X30 W/LK WASHER 		0-50041-230-0 04 1 9101-9504 ● ●
94 BOLT; BRKT,PEDAL BOARD
M12X30 FLANGE 		0-28081-230-0 04 1 9505-9606 ● ●
94 BOLT; BRKT,PEDAL BOARD 0-28681-235-0 04 1 9607-0512 ● ●
94 BOLT; BRKT,PEDAL BOARD
M12X35 FLANGE 		0-28651-235-0 04 1 0601- ● ●
94 BOLT; BRKT,PEDAL BOARD
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M12X35 W/LK WASHER 		0-50041-235-0 02 1 9101-9504 ● ●
94 BOLT; BRKT,PEDAL BOARD
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M12X35 W/LK WASHER 		0-50041-235-0 04 1 9101-9504 ● ●
95 NUT; BRKT,PEDAL BOARD
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M12 		9-99110-512-0 06 1 9101-9504 ● ●
95 NUT; BRKT,PEDAL BOARD
M12 		9-99110-512-0 04 1 9505-9606 ● ●
95 NUT; BRKT,PEDAL BOARD
M12 FLANGE 		0-91150-212-0 04 1 9607-0602 ● ●
95 NUT; BRKT,PEDAL BOARD
M12 FLANGE 		0-91180-212-0 04 1 0603- ● ●
95 NUT; BRKT,PEDAL BOARD
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M12 		9-99110-512-0 04 1 9101-9504 ● ●
111 BOLT; PANEL
M8X25 FLANGE 		0-28080-825-0 03 1 9507-9606 ● ●
111 BOLT; PANEL
M8X30 FLANGE 		0-28680-830-0 03 1 9607-0512 ● ●
111 BOLT; PANEL
M8X30 FLANGE 		0-28650-830-0 03 1 0601- ● ●
112 BOLT; PEDAL BOARD
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M12X25 W/LK WASHER 		0-50041-225-0 07 1 9101-9504 ● ●
112 BOLT; PEDAL BOARD
M12X30 FLANGE 		0-28081-230-0 07 1 9505-9606 ● ●
112 BOLT; PEDAL BOARD
M12X35 FLANGE 		0-28681-235-0 07 1 9607-0512 ● ●
112 BOLT; PEDAL BOARD
M12X35 FLANGE 		0-28651-235-0 07 1 0601- ● ●
112 BOLT; PEDAL BOARD
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M12X25 W/LK WASHER 		0-50041-225-0 06 1 9101-9504 ● ●
113 NUT; PEDAL BOARD
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M12 		9-99110-512-0 07 1 9101-9504 ● ●
113 NUT; PEDAL BOARD
M12 		9-99110-512-0 07 1 9505-9606 ● ●
113 NUT; PEDAL BOARD
M12 FLANGE 		0-91150-212-0 07 1 9607-0602 ● ●
113 NUT; PEDAL BOARD
M12 FLANGE 		0-91180-212-0 07 1 0603- ● ●
113 NUT; PEDAL BOARD
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M12 		9-99110-512-0 06 1 9101-9504 ● ●
145 BRACKET; PEDAL BOARD
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-53497-251-3 01 1 9101-9504 ●
145 BRACKET; PEDAL BOARD 1-47477-492-2 01 1 9505- ●
145 BRACKET; PEDAL BOARD
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-53497-194-0 01 1 9101-9504 ●
145 BRACKET; PEDAL BOARD
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-53497-252-3 01 1 9101-9504 ●
145 BRACKET; PEDAL BOARD 1-47477-491-3 01 1 9505- ●
145 BRACKET; PEDAL BOARD
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-47475-521-1 01 1 9101-9101 ●
145 BRACKET; PEDAL BOARD
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-47476-734-2 01 1 9102-9504 ●
197 NUT; EXT PANEL
M8 		9-09110-508-0 03 1 9507-9606 ● ●
197 NUT; EXT PANEL
M8 FLANGE 		0-91150-108-0 03 1 9607-0602 ● ●
197 NUT; EXT PANEL
M8 FLANGE 		0-91180-108-0 03 1 0603- ● ●
319 GROMMET; PEDAL BOARD
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. TACHOGRAPH 120KM/H<SM8> 		9-09575-697-0 01 1 9101-9504 ● ●
319 GROMMET; PEDAL BOARD
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		9-09575-396-0 01 1 9101-9504 ● ●
423 BUSHING 1-09330-072-0 01 1 9505- ● ●
426 PANEL; PEDAL 1-65600-481-0 01 1 9507- ● ●
