Isuzu WW
▶
TRUCKS
▶
FVR
▶
11439 - FVR(IRAN)
▶
9 - Tools
▶
9-01 - TOOLS
▶
9-01 — TOOLS
(#44844) — 44 parça
◀
[901A] NO.2 (11 parça)
[901A] NO.1 (18 parça)
[901A] NO.3 (15 parça)
▶
127
125
126
143
144
129
153
151
154
156
163
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
125
PULLER ASM; KING PIN
L=450
1-85210-009-0
01
1
1110-
126
WRENCH; FRT HUB BRG NUT
L=350 B=75
1-85110-002-1
01
1
1110-
127
WRENCH ASM; HUB BRG NUT
L=400 B=116
8-98119-000-1
01
1
1110-
129
PULLER ASM; PITMAN ARM
1-85210-011-0
01
1
1110-
143
GUIDE; BOOT,TIE ROD END
1-85229-013-0
01
1
1110-
144
BASE; BOOT GUIDE,TIE ROD END
1-85229-009-0
01
1
1110-
151
REMOVER; OIL BRK,FRT RETURN SPR
ID=16
1-85237-002-0
01
1
1110-
153
DRIVER; WASHER,THRUST WASHER
1-85238-002-0
01
1
1110-
154
SLEEPER; KING PIN
1-85238-003-0
01
1
1110-
156
PULLER; ANCHOR PIN
1-85210-025-0
01
1
1110-
163
TOOL; SETTING
9-85221-231-0
01
1
1110-
9
1
12
23
13
22
21
20
17
115
29
29
29
230
237
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HANDLE; SPARE TIRE CARRIER
SPARE WHEEL CARRIER FRAME SIDE<P13>
9-23110-018-0
01
1
1110-
9
WRENCH; WHEEL PIN
B=33X30 L=450
1-85111-033-1
01
1
1110-
12
HANDLE; WRENCH,WHEEL PIN
OD=25 L=480
1-85116-011-0
01
1
1110-1501
12
HANDLE; WRENCH,WHEEL PIN
OD=25 L=480
8-98257-407-0
01
1
1502-
13
WRENCH; MONKEY
L=247
1-85117-006-0
01
1
1110-1407
13
WRENCH; MONKEY
L=255
8-98270-303-0
01
1
1408-
17
HAMMER
9-85121-406-0
01
1
1110-
20
WRENCH; 10X12
10X12
0-95902-510-0
01
1
1110-
21
WRENCH; 14X17
14X17
0-95902-514-0
01
1
1110-
22
WRENCH; 19X22
19X22
0-95902-519-0
01
1
1110-
23
WRENCH; 24X27
24X27
0-95902-524-0
01
1
1110-
29
DRIVER; SCREW
(C) <+>,<-> L=160
8-94242-798-1
01
1
1110-
29
DRIVER; SCREW
(B) <-> L=275
8-98061-105-0
01
1
1110-
29
DRIVER; SCREW
(A) <+> L=190
9-09595-522-0
01
1
1110-
115
PLIER
5-85171-002-0
01
1
1110-1410
115
PLIER
8-98282-845-0
01
1
1411-
230
PUMP; GREASE
1-85556-007-5
01
1
1110-
237
BAG; TOOL
8-97130-902-1
01
1
1110-
160
169
186
174
193
232
192
227
208
274
271
268
209

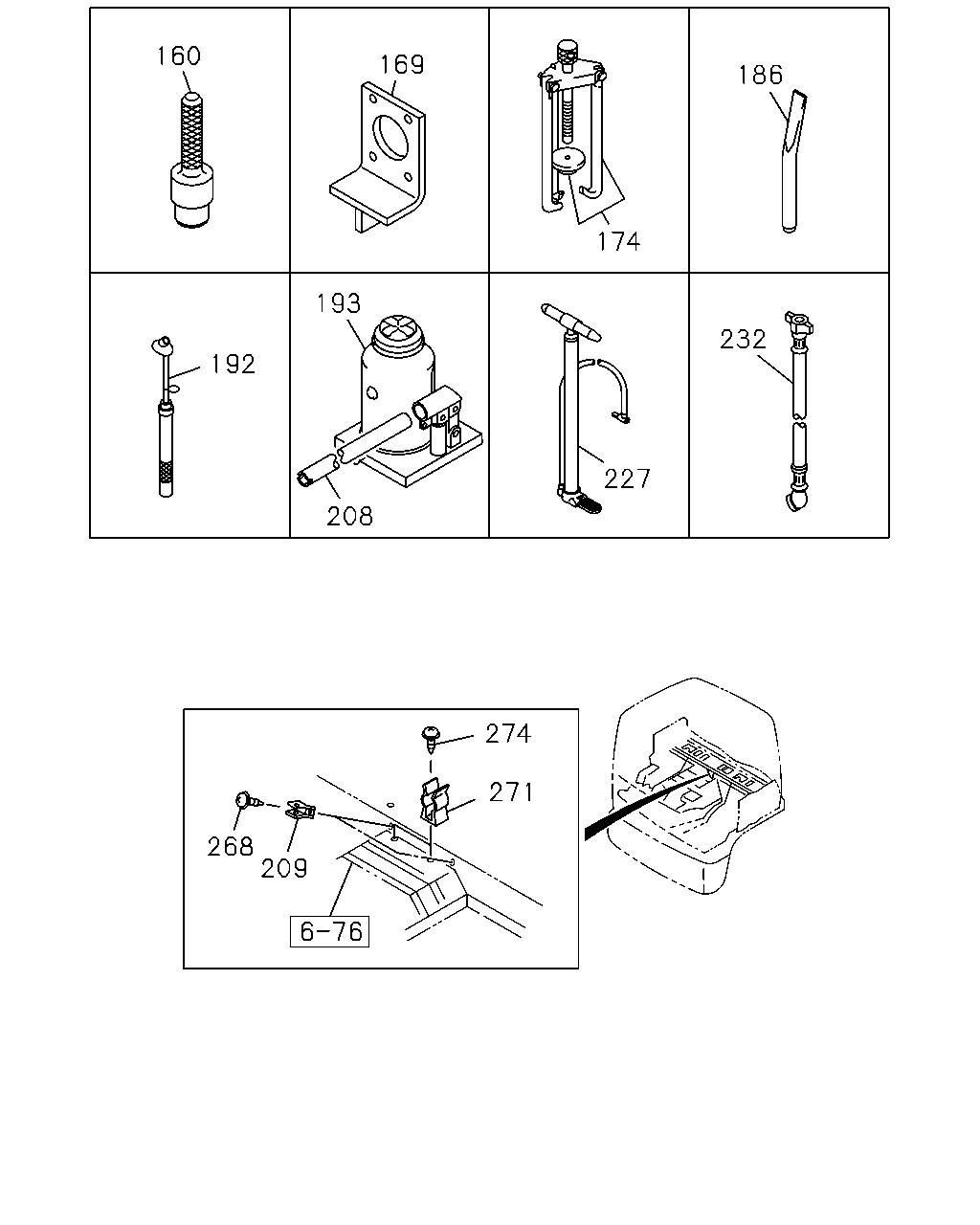

Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
160
REMOVER; NEEDLE BRG
L=220
1-85238-001-0
01
1
1110-
169
BRACKET; SPLINE YOKE
1-85221-317-0
01
1
1110-
174
PULLER ASM; MAIN CLU SHAFT
9-85210-148-0
01
1
1110-
186
ADJUSTER; BRAKE
1-85269-008-0
01
1
1110-
192
GAUGE; TIRE PRESSURE
1-85315-002-0
01
1
1110-
193
JACK ASM
10TON
8-97607-599-0
01
1
1110-
208
HANDLE; JACK
L=600
8-98181-437-0
01
1
1110-
209
CLIP; JACK HANDLE
8-98053-799-0
02
1
1110-
227
PUMP ASM; TIRE
9-85521-132-0
01
1
1110-
232
HOSE; AIR,AIR CHARGE
TIRE INFLATOR DEVICE<SG4>
1-09360-245-1
01
1
1110-
268
SCREW; CLIP
T25 M6X12 HEXALOBULAR SOCKET IRA
8-98177-720-0
02
1
1110-1212
268
SCREW; CLIP
T25 M6X12 HEXALOBULAR SOCKET
0-38050-612-0
02
1
1301-
271
CLIP; TIRE HANGER
8-98053-800-0
02
1
1110-
274
SCREW; CLIP
T25 M6X12 HEXALOBULAR SOCKET IRA
8-98177-720-0
02
1
1110-1212
274
SCREW; CLIP
T25 M6X12 HEXALOBULAR SOCKET
0-38050-612-0
02
1
1301-
