8-90 — RADIO AND TV (#44843) — 18 parça

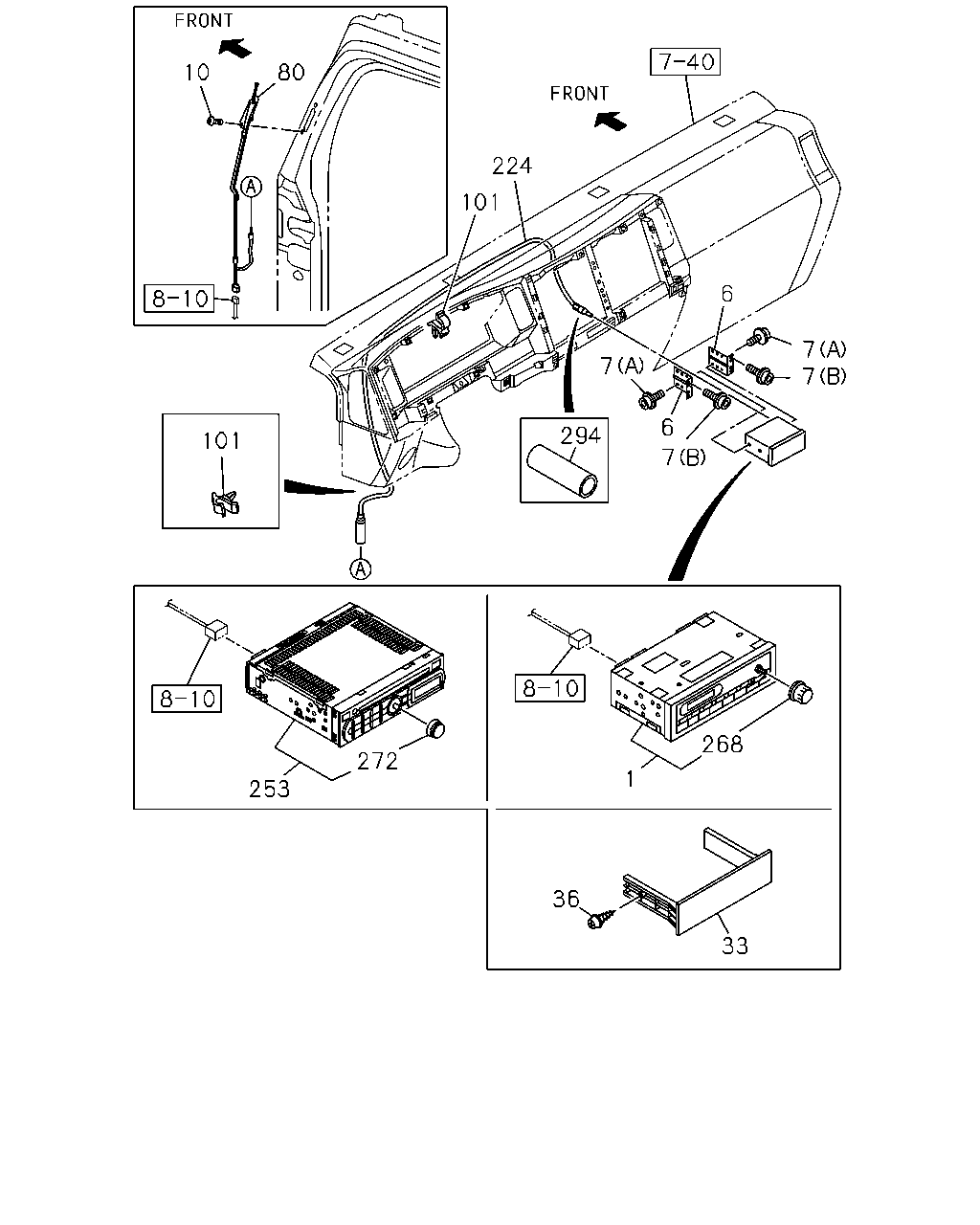

10 80 224 101 6 7 7 7 6 294 101 7 268 272 1 253 36 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	RADIO RADIO AM/FM<U69>	8-98032-643-0	01	1	1110-
6	BRACKET; RADIO TO PANEL	8-97585-617-0	02	1	1110-
7	SCREW; RADIO (B) M5X20 TAPPING HEXALOBULAR	0-72180-520-0	02	1	1110-
7	SCREW; RADIO RADIO AM/FM STEREO CD<UT3>,RADIO AM/FM<U69> (A) M5X7 HEXALOBULAR SOCKET IRA	8-98063-767-0	04	1	1110-
10	SCREW; ANTENNA CABLE M5X11	1-09981-536-1	02	1	1110-
33	COVER; RADIO EXC. RADIO AM/FM STEREO CD<UT3>,RADIO AM/FM<U69> BLACK	8-97407-896-2	01	1	1110-
36	SCREW; COVER EXC. RADIO AM/FM STEREO CD<UT3>,RADIO AM/FM<U69> T25 L=10 HEXALOBULAR	8-98058-632-0	02	1	1110-
80	ANTENNA	8-98139-014-0	01	1	1110-
101	CLIP; FEEDER TO BRKT ID=4.8	8-94128-483-0	03	1	1110-
224	CABLE; EXT,FEEDER	8-98063-002-1	01	1	1110-
253	DECK ASM; RADIO & CD RADIO AM/FM STEREO CD<UT3> TUNER BAND LATIN AMERICA<7DM>	8-98112-329-0	01	1	1110-
253	DECK ASM; RADIO & CD RADIO AM/FM STEREO CD<UT3> EXC. TUNER BAND LATIN AMERICA<7DM>	8-98017-752-0	01	1	1110-
268	KNOB; VOL RADIO AM/FM<U69> CLARION IRA	8-97375-820-0	01	1	1110-
272	KNOB; AUDIO CONTROL RADIO AM/FM STEREO CD<UT3> CLARION	8-98048-329-0	01	1	1110-
294	CAP; ANTENNA CABLE EXC. RADIO AM/FM STEREO CD<UT3>,RADIO AM/FM<U69>	8-98095-617-1	01	1	1110-

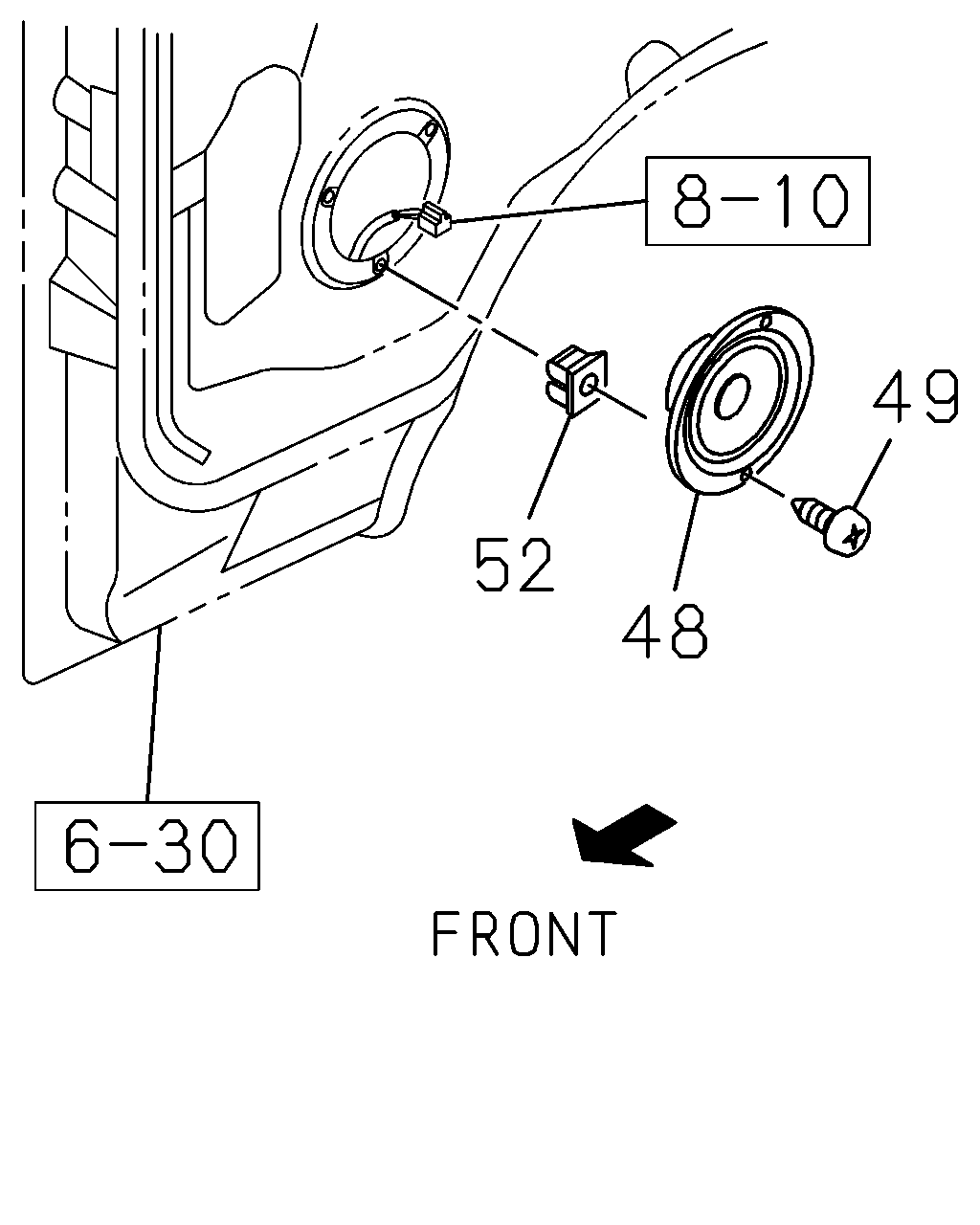

49 52 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	SPEAKER; AUDIO	8-97317-001-1	02	1	1110-
49	SCREW; SPEAKER M5X14 TAPPING W/TORQUES	8-98061-856-0	06	1	1110-
52	GROMMET; SCREW,SPEAKER D=8.6X7.7 L=7.5	8-94279-078-0	06	1	1110-
