Isuzu WW
▶
TRUCKS
▶
FVR
▶
11439 - FVR(IRAN)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-73 - BLOWER UNIT
▶

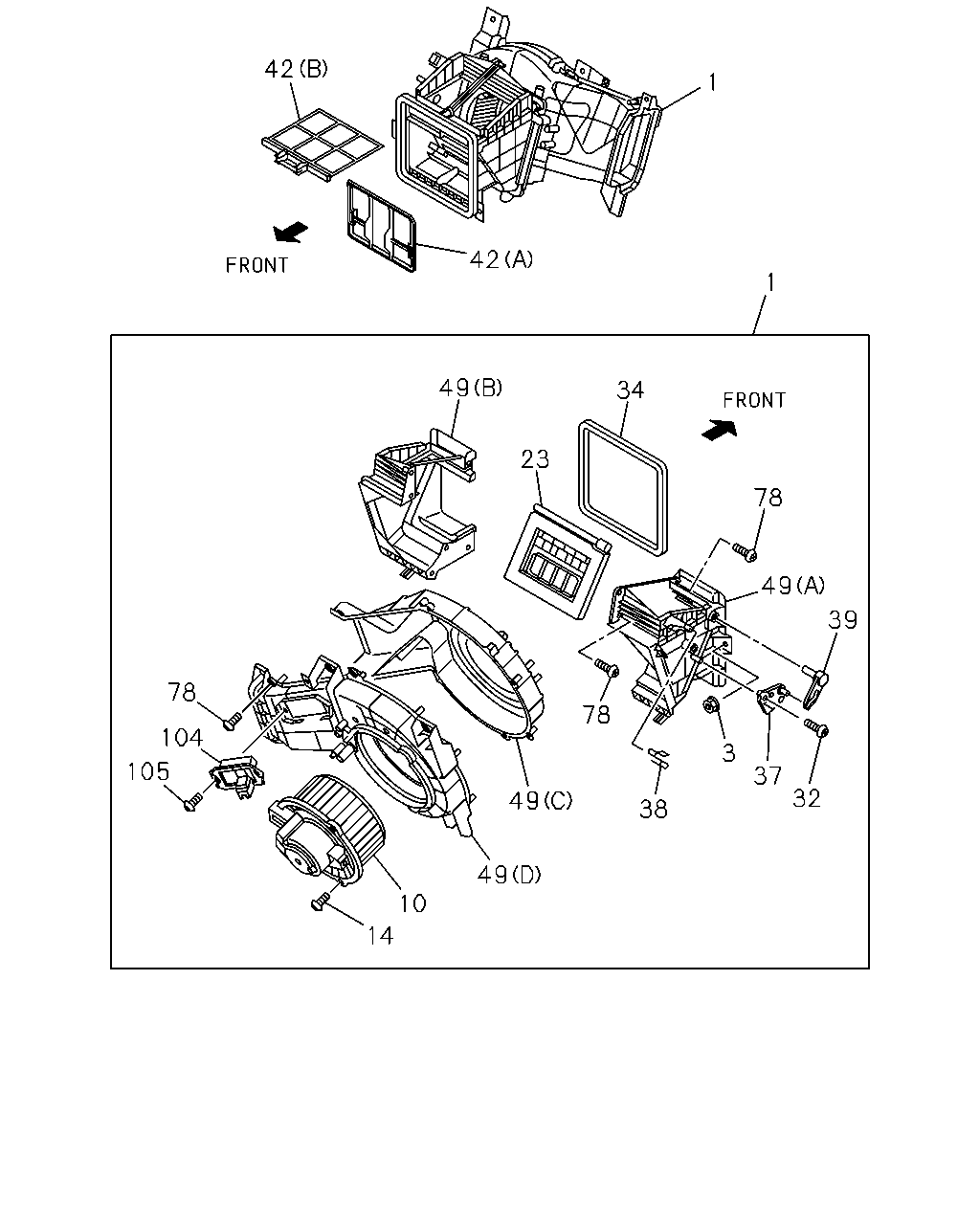

8-73 — BLOWER UNIT
(#44840) — 19 parça
42
1
42
1
49
34
23
78
49
39
78
78
104
3
105
37
32
49
38
49
10
14
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BLOWER ASM
AIR CONDITIONER MANUAL CONTROL(C60)
8-98183-598-0
01
1
1110-
3
NUT; CASE
AIR CONDITIONER MANUAL CONTROL(C60) M6
1-83539-354-0
02
1
1110-
10
MOTOR ASM; FAN,BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60)
8-98183-926-0
01
1
1110-
14
SCREW; COVER TO CASE
AIR CONDITIONER MANUAL CONTROL(C60) M5X16
8-98047-448-0
03
1
1110-
23
SHUTTER; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60)
8-98047-761-0
01
1
1110-
32
SCREW; LEVER
AIR CONDITIONER MANUAL CONTROL(C60) M4X16
8-98047-416-0
01
1
1110-
34
LINING; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60)
8-98096-453-0
01
1
1110-
37
LEVER; MODE LEVER
AIR CONDITIONER MANUAL CONTROL(C60)
8-98047-453-0
01
1
1110-
38
CLIP; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60)
8-98047-417-0
01
1
1110-
39
LEVER; SHUTTER,BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60)
8-98047-454-0
01
1
1110-
42
FILTER; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B)
8-98025-006-1
01
1
1110-
42
FILTER; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (A)
8-98041-327-0
01
1
1110-
49
CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (D)
8-98047-444-0
01
1
1110-
49
CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (C)
8-98047-445-0
01
1
1110-
49
CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B)
8-98077-415-0
01
1
1110-
49
CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (A)
8-98077-416-0
01
1
1110-
78
SCREW; CASE TO CASE
AIR CONDITIONER MANUAL CONTROL(C60) M4X16 TAPPING
8-97957-708-0
16
1
1110-
104
RESISTOR; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60)
8-98077-418-0
01
1
1110-
105
SCREW; RESISTOR
AIR CONDITIONER MANUAL CONTROL(C60) M4X16 TAPPING
8-97957-708-0
02
1
1110-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
