6-47 — MUD GUARD AND INSULATOR (#4484) — 120 parça

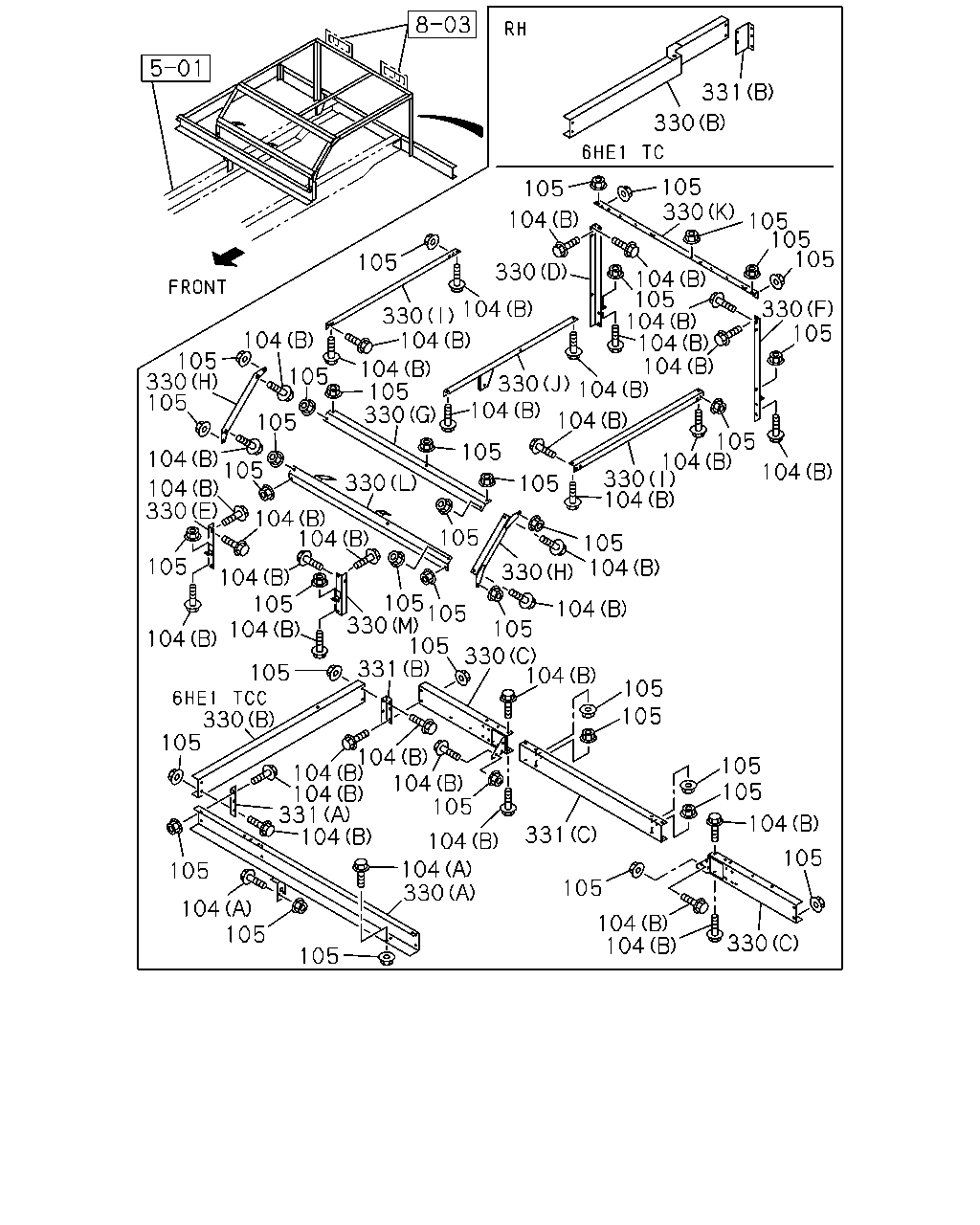

331 330 104 105 330 104 105 104 104 104 104 105 105 105 105 105 330 330 105 104 330 104 104 105 330 105 104 105 330 105 105 330 104 104 105 104 330 104 105 104 105 104 330 104 330 105 104 104 105 105 104 105 330 104 105 104 105 105 330 105 331 104 105 330 104 104 105 330 105 105 105 104 104 104 104 105 331 104 105 105 104 331 104 104 330 105 105 105 104 105 104 104 330 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
104	BOLT; BRKT 6HE1 TC ENG(57L) EMISSION PARTS<TCA> (C) M10X30 FLANGE	0-28681-030-0	32	1	9803-0203	●	●
104	BOLT; BRKT 6HE1 TCC ENG(76L) (A) M10X30 FLANGE	0-28681-030-0	04	1	9702-9709	●	●
104	BOLT; BRKT 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) (A) M10X30 FLANGE	0-28681-030-0	04	1	9710-0512	●	●
104	BOLT; BRKT 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) (A) M10X30 FLANGE	0-28651-030-0	04	1	0601-	●	●
104	BOLT; BRKT 6HE1 TCC ENG(76L) (B) M10X25 FLANGE	0-28681-025-0	54	1	9703-9709	●	●
104	BOLT; BRKT 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) (B) M10X25 FLANGE	0-28681-025-0	54	1	9710-0512	●	●
104	BOLT; BRKT 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) (B) M10X25 FLANGE	0-28651-025-0	54	1	0601-	●	●
105	NUT; BRKT 6HE1 TC ENG(57L) EMISSION PARTS<TCA> M10 FLANGE	0-91150-210-0	30	1	9803-0203	●	●
105	NUT; BRKT 6HE1 TCC ENG(76L) M10 FLANGE	0-91150-210-0	58	1	9703-9709	●	●
105	NUT; BRKT 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) M10 FLANGE	0-91150-210-0	58	1	9710-0602	●	●
105	NUT; BRKT 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) M10 FLANGE	0-91180-210-0	58	1	0603-	●	●
330	BRACKET; ENG COVER 6HE1 TC ENG(57L) (B) SIDE LOWER	1-65600-518-0	01	1	9710-9712	●	●
330	BRACKET; ENG COVER 6HE1 TC ENG(57L) (B) SIDE LOWER	1-65600-524-0	01	1	9801-	●	●
330	BRACKET; ENG COVER 6HE1 TC ENG(57L) EMISSION PARTS<TCA> (O)	1-65600-525-1	01	1	9803-0203	●	●
330	BRACKET; ENG COVER 6HE1 TC ENG(57L) EMISSION PARTS<TCA> (N)	1-65600-526-0	01	1	9803-0203	●	●
330	BRACKET; ENG COVER 6HE1 TC ENG(57L) EMISSION PARTS<TCA> (P)	1-65600-527-1	01	1	9803-0203	●	●
330	BRACKET; ENG COVER 6HE1 TC ENG(57L) EMISSION PARTS<TCA> (Q)	1-65600-532-1	01	1	9803-0203	●	●
330	BRACKET; ENG COVER 6HE1 TC ENG(57L) EMISSION PARTS<TCA> (R)	1-65600-533-1	01	1	9803-0203	●	●
330	BRACKET; ENG COVER 6HE1 TC ENG(57L) EMISSION PARTS<TCA> (S)	1-65600-534-0	01	1	9803-0203	●	●
330	BRACKET; ENG COVER 6HE1 TCC ENG(76L) (A) FRT LOWER	1-65600-485-0	01	1	9702-9705	●	●
330	BRACKET; ENG COVER 6HE1 TCC ENG(76L) (A) FRT LOWER	1-65600-513-0	01	1	9706-9709	●	●
330	BRACKET; ENG COVER 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) (A) FRT LOWER	1-65600-513-1	01	1	9710-	●	●
330	BRACKET; ENG COVER 6HE1 TCC ENG(76L) (L) FRT	1-65600-498-0	01	1	9702-9705	●	●
330	BRACKET; ENG COVER 6HE1 TCC ENG(76L) (L) FRT	1-65600-517-0	01	1	9706-9709	●	●
330	BRACKET; ENG COVER 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) (L) FRT	1-65600-517-0	01	1	9710-	●	●
330	BRACKET; ENG COVER 6HE1 TCC ENG(76L) (J) UPPER CENTER	1-65600-502-0	01	1	9702-9705	●	●
330	BRACKET; ENG COVER 6HE1 TCC ENG(76L) (B) SIDE LOWER	1-65600-516-0	01	1	9706-	●	●
330	BRACKET; ENG COVER 6HE1 TCC ENG(76L) (G) FRT UPPER	1-65600-504-0	01	1	9702-9709	●	●
330	BRACKET; ENG COVER 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) (G) FRT UPPER	1-65600-504-0	01	1	9710-	●	●
330	BRACKET; ENG COVER 6HE1 TCC ENG(76L) (C) RR LOWER	1-65600-505-0	02	1	9702-9709	●	●
330	BRACKET; ENG COVER 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) (C) RR LOWER LH & RH	1-65600-505-0	02	1	9710-	●	●
330	BRACKET; ENG COVER 6HE1 TCC ENG(76L) (F) SIDE FRT	1-65600-495-1	01	1	9702-9709	●	●
330	BRACKET; ENG COVER 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) (F) SIDE FRT	1-65600-495-1	01	1	9710-	●	●
330	BRACKET; ENG COVER 6HE1 TCC ENG(76L) (M) SIDE FRT	1-65600-496-0	01	1	9702-9709	●	●
330	BRACKET; ENG COVER 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) (M) SIDE FRT	1-65600-496-0	01	1	9710-	●	●
330	BRACKET; ENG COVER 6HE1 TCC ENG(76L) (B) SIDE LOWER	1-65600-487-0	01	1	9702-9705	●	●
330	BRACKET; ENG COVER 6HE1 TCC ENG(76L) (I) SIDE UPPER	1-65600-514-0	02	1	9706-9709	●	●
330	BRACKET; ENG COVER 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) (I) SIDE UPPER	1-65600-514-0	02	1	9710-	●	●
330	BRACKET; ENG COVER 6HE1 TCC ENG(76L) (D) SIDE RR	1-65600-494-1	01	1	9702-9709	●	●
330	BRACKET; ENG COVER 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) (D) SIDE RR	1-65600-494-1	01	1	9710-	●	●
330	BRACKET; ENG COVER 6HE1 TCC ENG(76L) (I) SIDE UPPER	1-65600-500-0	02	1	9703-9705	●	●
330	BRACKET; ENG COVER 6HE1 TCC ENG(76L) (J) UPPER CENTER	1-65600-515-0	01	1	9706-9709	●	●
330	BRACKET; ENG COVER 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) (J) UPPER CENTER	1-65600-515-0	01	1	9710-	●	●
330	BRACKET; ENG COVER 6HE1 TCC ENG(76L) (H) FRT SIDE UPPER	1-65600-503-0	02	1	9703-9709	●	●
330	BRACKET; ENG COVER 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) (H) FRT SIDE UPPER	1-65600-503-0	02	1	9710-	●	●
330	BRACKET; ENG COVER 6HE1 TCC ENG(76L) (K) UPPER RR	1-65600-506-0	01	1	9703-9709	●	●
330	BRACKET; ENG COVER 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) (K) UPPER RR	1-65600-506-0	01	1	9710-	●	●
330	BRACKET; ENG COVER 6HE1 TCC ENG(76L) (E) SIDE FRT	1-65600-497-0	01	1	9703-9709	●	●
330	BRACKET; ENG COVER 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) (E) SIDE FRT	1-65600-497-0	01	1	9710-	●	●
331	BRACKET; ENG COVER BRKT 6HE1 TC ENG(57L) (B) SIDE LOWER RR	1-65600-519-0	01	1	9710-9712	●	●
331	BRACKET; ENG COVER BRKT 6HE1 TC ENG(57L) (B) SIDE LOWER RR	1-65600-523-0	01	1	9801-	●	●
331	BRACKET; ENG COVER BRKT 6HE1 TC ENG(57L) EMISSION PARTS<TCA> (F)	1-65600-530-0	01	1	9803-0203	●	●
331	BRACKET; ENG COVER BRKT 6HE1 TC ENG(57L) EMISSION PARTS<TCA> (G)	1-65600-531-0	01	1	9803-0203	●	●
331	BRACKET; ENG COVER BRKT 6HE1 TC ENG(57L) EMISSION PARTS<TCA> (D) LOWER	1-65600-528-1	01	1	9803-0203	●	●
331	BRACKET; ENG COVER BRKT 6HE1 TC ENG(57L) EMISSION PARTS<TCA> (E)	1-65600-529-0	01	1	9803-0203	●	●
331	BRACKET; ENG COVER BRKT 6HE1 TCC ENG(76L) (C) RR LOWER CENTER	1-65600-493-0	01	1	9702-9709	●	●
331	BRACKET; ENG COVER BRKT 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) (C) RR LOWER CENTER	1-65600-493-2	01	1	9710-	●	●
331	BRACKET; ENG COVER BRKT 6HE1 TCC ENG(76L) (A) FRT LOWER SIDE	1-65600-489-0	01	1	9702-9709	●	●
331	BRACKET; ENG COVER BRKT 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) (A)	1-65600-489-0	01	1	9710-	●	●
331	BRACKET; ENG COVER BRKT 6HE1 TCC ENG(76L) (B) SIDE RR LOWER	1-65600-490-0	01	1	9702-	●	●

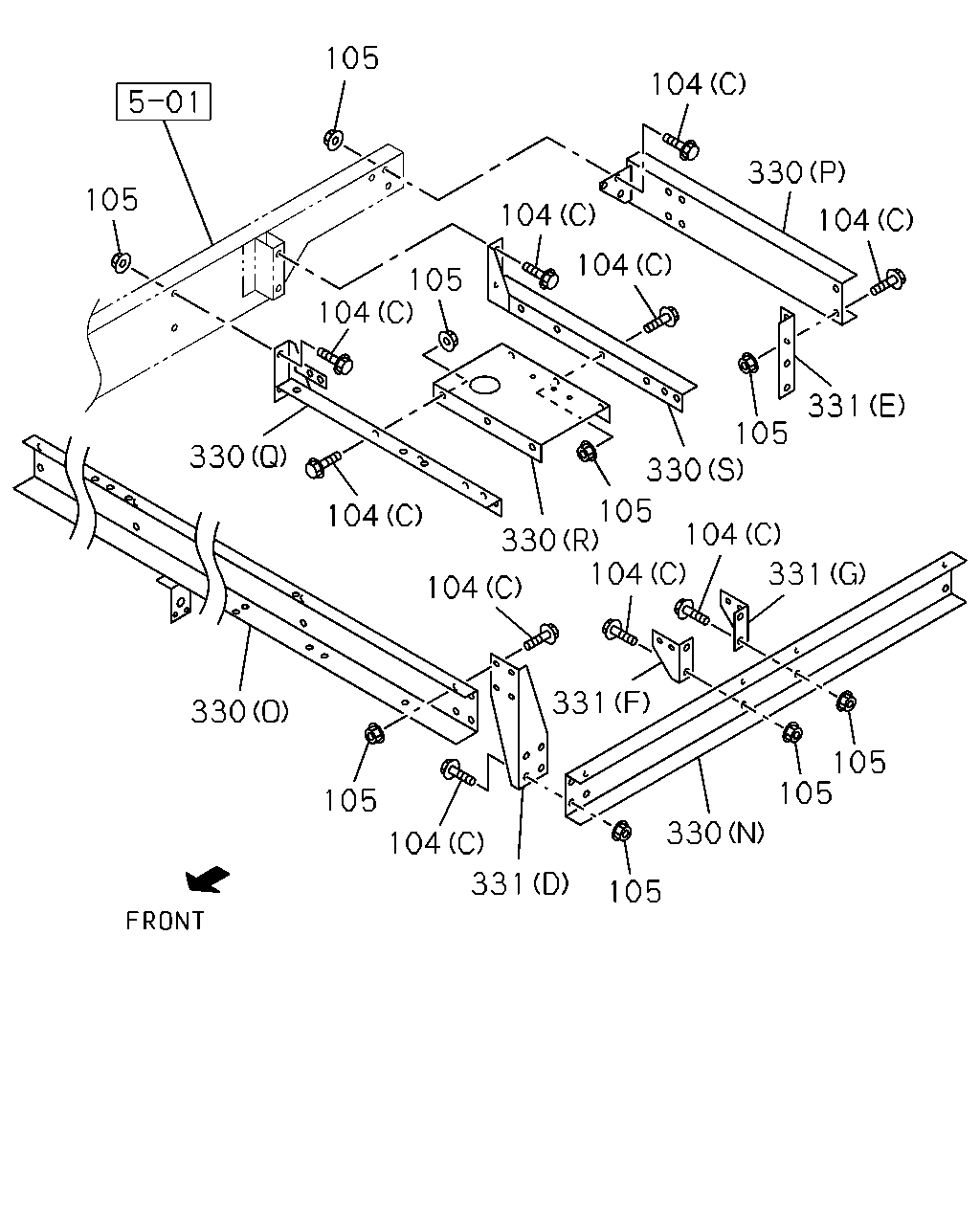

105 104 104 330 105 104 104 105 104 331 105 330 105 330 104 104 331 330 104 104 331 330 105 105 330 105 104 331 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
104	BOLT; BRKT 6HE1 TC ENG(57L) EMISSION PARTS<TCA> (C) M10X30 FLANGE	0-28681-030-0	32	1	9803-0203	●	●
104	BOLT; BRKT 6HE1 TCC ENG(76L) (A) M10X30 FLANGE	0-28681-030-0	04	1	9702-9709	●	●
104	BOLT; BRKT 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) (A) M10X30 FLANGE	0-28681-030-0	04	1	9710-0512	●	●
104	BOLT; BRKT 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) (A) M10X30 FLANGE	0-28651-030-0	04	1	0601-	●	●
104	BOLT; BRKT 6HE1 TCC ENG(76L) (B) M10X25 FLANGE	0-28681-025-0	54	1	9703-9709	●	●
104	BOLT; BRKT 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) (B) M10X25 FLANGE	0-28681-025-0	54	1	9710-0512	●	●
104	BOLT; BRKT 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) (B) M10X25 FLANGE	0-28651-025-0	54	1	0601-	●	●
105	NUT; BRKT 6HE1 TC ENG(57L) EMISSION PARTS<TCA> M10 FLANGE	0-91150-210-0	30	1	9803-0203	●	●
105	NUT; BRKT 6HE1 TCC ENG(76L) M10 FLANGE	0-91150-210-0	58	1	9703-9709	●	●
105	NUT; BRKT 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) M10 FLANGE	0-91150-210-0	58	1	9710-0602	●	●
105	NUT; BRKT 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) M10 FLANGE	0-91180-210-0	58	1	0603-	●	●
330	BRACKET; ENG COVER 6HE1 TC ENG(57L) (B) SIDE LOWER	1-65600-518-0	01	1	9710-9712	●	●
330	BRACKET; ENG COVER 6HE1 TC ENG(57L) (B) SIDE LOWER	1-65600-524-0	01	1	9801-	●	●
330	BRACKET; ENG COVER 6HE1 TC ENG(57L) EMISSION PARTS<TCA> (O)	1-65600-525-1	01	1	9803-0203	●	●
330	BRACKET; ENG COVER 6HE1 TC ENG(57L) EMISSION PARTS<TCA> (N)	1-65600-526-0	01	1	9803-0203	●	●
330	BRACKET; ENG COVER 6HE1 TC ENG(57L) EMISSION PARTS<TCA> (P)	1-65600-527-1	01	1	9803-0203	●	●
330	BRACKET; ENG COVER 6HE1 TC ENG(57L) EMISSION PARTS<TCA> (Q)	1-65600-532-1	01	1	9803-0203	●	●
330	BRACKET; ENG COVER 6HE1 TC ENG(57L) EMISSION PARTS<TCA> (R)	1-65600-533-1	01	1	9803-0203	●	●
330	BRACKET; ENG COVER 6HE1 TC ENG(57L) EMISSION PARTS<TCA> (S)	1-65600-534-0	01	1	9803-0203	●	●
330	BRACKET; ENG COVER 6HE1 TCC ENG(76L) (A) FRT LOWER	1-65600-485-0	01	1	9702-9705	●	●
330	BRACKET; ENG COVER 6HE1 TCC ENG(76L) (A) FRT LOWER	1-65600-513-0	01	1	9706-9709	●	●
330	BRACKET; ENG COVER 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) (A) FRT LOWER	1-65600-513-1	01	1	9710-	●	●
330	BRACKET; ENG COVER 6HE1 TCC ENG(76L) (L) FRT	1-65600-498-0	01	1	9702-9705	●	●
330	BRACKET; ENG COVER 6HE1 TCC ENG(76L) (L) FRT	1-65600-517-0	01	1	9706-9709	●	●
330	BRACKET; ENG COVER 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) (L) FRT	1-65600-517-0	01	1	9710-	●	●
330	BRACKET; ENG COVER 6HE1 TCC ENG(76L) (J) UPPER CENTER	1-65600-502-0	01	1	9702-9705	●	●
330	BRACKET; ENG COVER 6HE1 TCC ENG(76L) (B) SIDE LOWER	1-65600-516-0	01	1	9706-	●	●
330	BRACKET; ENG COVER 6HE1 TCC ENG(76L) (G) FRT UPPER	1-65600-504-0	01	1	9702-9709	●	●
330	BRACKET; ENG COVER 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) (G) FRT UPPER	1-65600-504-0	01	1	9710-	●	●
330	BRACKET; ENG COVER 6HE1 TCC ENG(76L) (C) RR LOWER	1-65600-505-0	02	1	9702-9709	●	●
330	BRACKET; ENG COVER 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) (C) RR LOWER LH & RH	1-65600-505-0	02	1	9710-	●	●
330	BRACKET; ENG COVER 6HE1 TCC ENG(76L) (F) SIDE FRT	1-65600-495-1	01	1	9702-9709	●	●
330	BRACKET; ENG COVER 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) (F) SIDE FRT	1-65600-495-1	01	1	9710-	●	●
330	BRACKET; ENG COVER 6HE1 TCC ENG(76L) (M) SIDE FRT	1-65600-496-0	01	1	9702-9709	●	●
330	BRACKET; ENG COVER 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) (M) SIDE FRT	1-65600-496-0	01	1	9710-	●	●
330	BRACKET; ENG COVER 6HE1 TCC ENG(76L) (B) SIDE LOWER	1-65600-487-0	01	1	9702-9705	●	●
330	BRACKET; ENG COVER 6HE1 TCC ENG(76L) (I) SIDE UPPER	1-65600-514-0	02	1	9706-9709	●	●
330	BRACKET; ENG COVER 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) (I) SIDE UPPER	1-65600-514-0	02	1	9710-	●	●
330	BRACKET; ENG COVER 6HE1 TCC ENG(76L) (D) SIDE RR	1-65600-494-1	01	1	9702-9709	●	●
330	BRACKET; ENG COVER 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) (D) SIDE RR	1-65600-494-1	01	1	9710-	●	●
330	BRACKET; ENG COVER 6HE1 TCC ENG(76L) (I) SIDE UPPER	1-65600-500-0	02	1	9703-9705	●	●
330	BRACKET; ENG COVER 6HE1 TCC ENG(76L) (J) UPPER CENTER	1-65600-515-0	01	1	9706-9709	●	●
330	BRACKET; ENG COVER 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) (J) UPPER CENTER	1-65600-515-0	01	1	9710-	●	●
330	BRACKET; ENG COVER 6HE1 TCC ENG(76L) (H) FRT SIDE UPPER	1-65600-503-0	02	1	9703-9709	●	●
330	BRACKET; ENG COVER 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) (H) FRT SIDE UPPER	1-65600-503-0	02	1	9710-	●	●
330	BRACKET; ENG COVER 6HE1 TCC ENG(76L) (K) UPPER RR	1-65600-506-0	01	1	9703-9709	●	●
330	BRACKET; ENG COVER 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) (K) UPPER RR	1-65600-506-0	01	1	9710-	●	●
330	BRACKET; ENG COVER 6HE1 TCC ENG(76L) (E) SIDE FRT	1-65600-497-0	01	1	9703-9709	●	●
330	BRACKET; ENG COVER 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) (E) SIDE FRT	1-65600-497-0	01	1	9710-	●	●
331	BRACKET; ENG COVER BRKT 6HE1 TC ENG(57L) (B) SIDE LOWER RR	1-65600-519-0	01	1	9710-9712	●	●
331	BRACKET; ENG COVER BRKT 6HE1 TC ENG(57L) (B) SIDE LOWER RR	1-65600-523-0	01	1	9801-	●	●
331	BRACKET; ENG COVER BRKT 6HE1 TC ENG(57L) EMISSION PARTS<TCA> (F)	1-65600-530-0	01	1	9803-0203	●	●
331	BRACKET; ENG COVER BRKT 6HE1 TC ENG(57L) EMISSION PARTS<TCA> (G)	1-65600-531-0	01	1	9803-0203	●	●
331	BRACKET; ENG COVER BRKT 6HE1 TC ENG(57L) EMISSION PARTS<TCA> (D) LOWER	1-65600-528-1	01	1	9803-0203	●	●
331	BRACKET; ENG COVER BRKT 6HE1 TC ENG(57L) EMISSION PARTS<TCA> (E)	1-65600-529-0	01	1	9803-0203	●	●
331	BRACKET; ENG COVER BRKT 6HE1 TCC ENG(76L) (C) RR LOWER CENTER	1-65600-493-0	01	1	9702-9709	●	●
331	BRACKET; ENG COVER BRKT 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) (C) RR LOWER CENTER	1-65600-493-2	01	1	9710-	●	●
331	BRACKET; ENG COVER BRKT 6HE1 TCC ENG(76L) (A) FRT LOWER SIDE	1-65600-489-0	01	1	9702-9709	●	●
331	BRACKET; ENG COVER BRKT 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) (A)	1-65600-489-0	01	1	9710-	●	●
331	BRACKET; ENG COVER BRKT 6HE1 TCC ENG(76L) (B) SIDE RR LOWER	1-65600-490-0	01	1	9702-	●	●
