◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11439 - FVR(IRAN) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-71 - COMPRESSOR; AIR CONDITIONING ▶
8-71 — COMPRESSOR; AIR CONDITIONING (#44839) — 9 parça

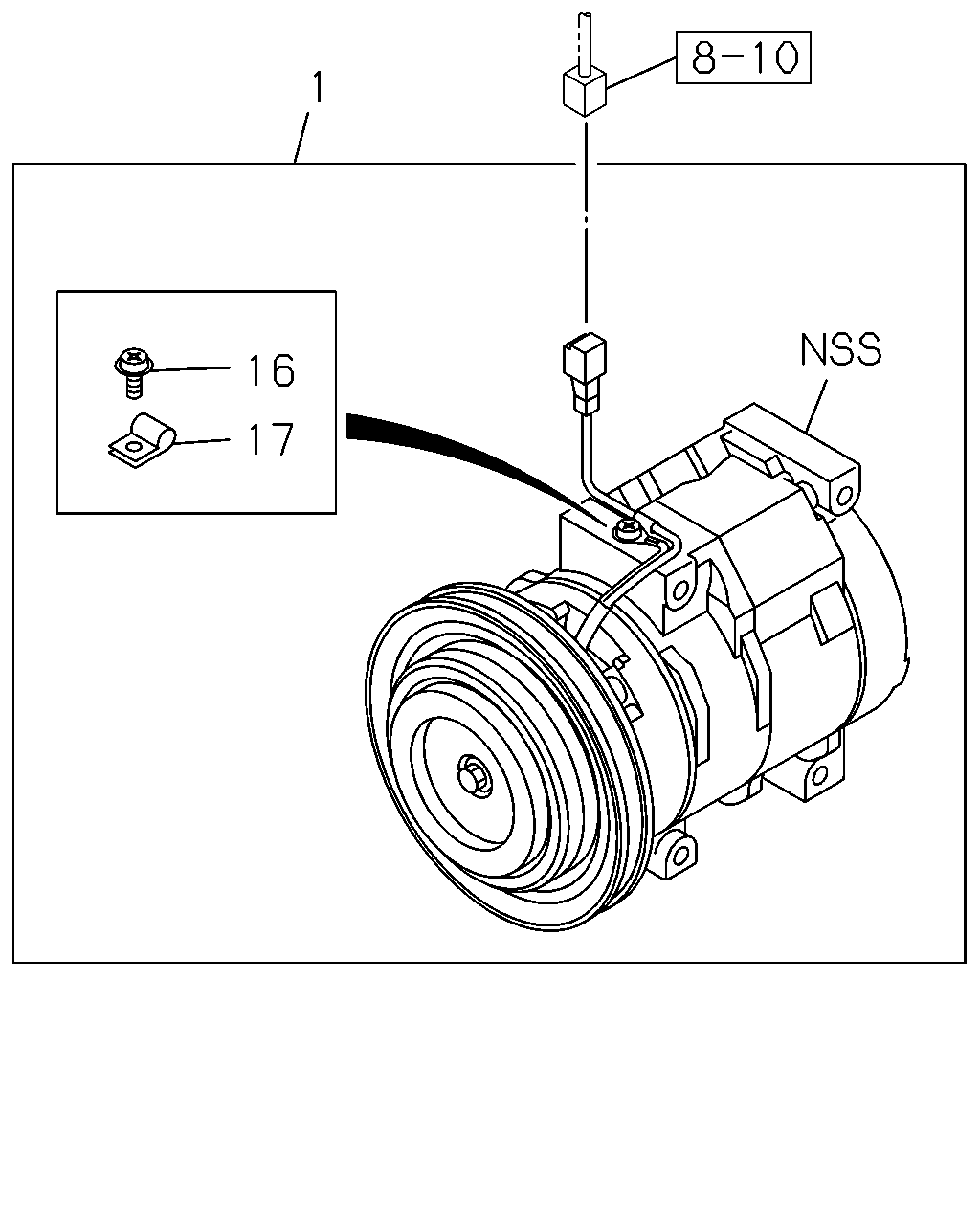

çizim 113750
1 16 17
BalonParca AdiParca NoAdetTipApplied Date
1 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83532-328-0 01 1 1110-1204
1 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60) GENERATOR 24V60A(KG2) 		1-83532-328-0 01 1 1205-1404
1 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83532-328-0 01 1 1405-
16 CLIP; WIRE,MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-893-0 01 1 1110-1204
16 CLIP; WIRE,MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60) GENERATOR 24V60A(KG2) 		1-83579-893-0 01 1 1205-1404
16 CLIP; WIRE,MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-893-0 01 1 1405-
17 SCREW; WIRE CLIP MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60) 		5-81129-130-0 01 1 1110-1204
17 SCREW; WIRE CLIP MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60) GENERATOR 24V60A(KG2) 		5-81129-130-0 01 1 1205-1404
17 SCREW; WIRE CLIP MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60) 		5-81129-130-0 01 1 1405-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
