Isuzu WW
▶
TRUCKS
▶
FVR
▶
11439 - FVR(IRAN)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-65 - CONTROL LEVER; HEATER AND AIR CON
▶

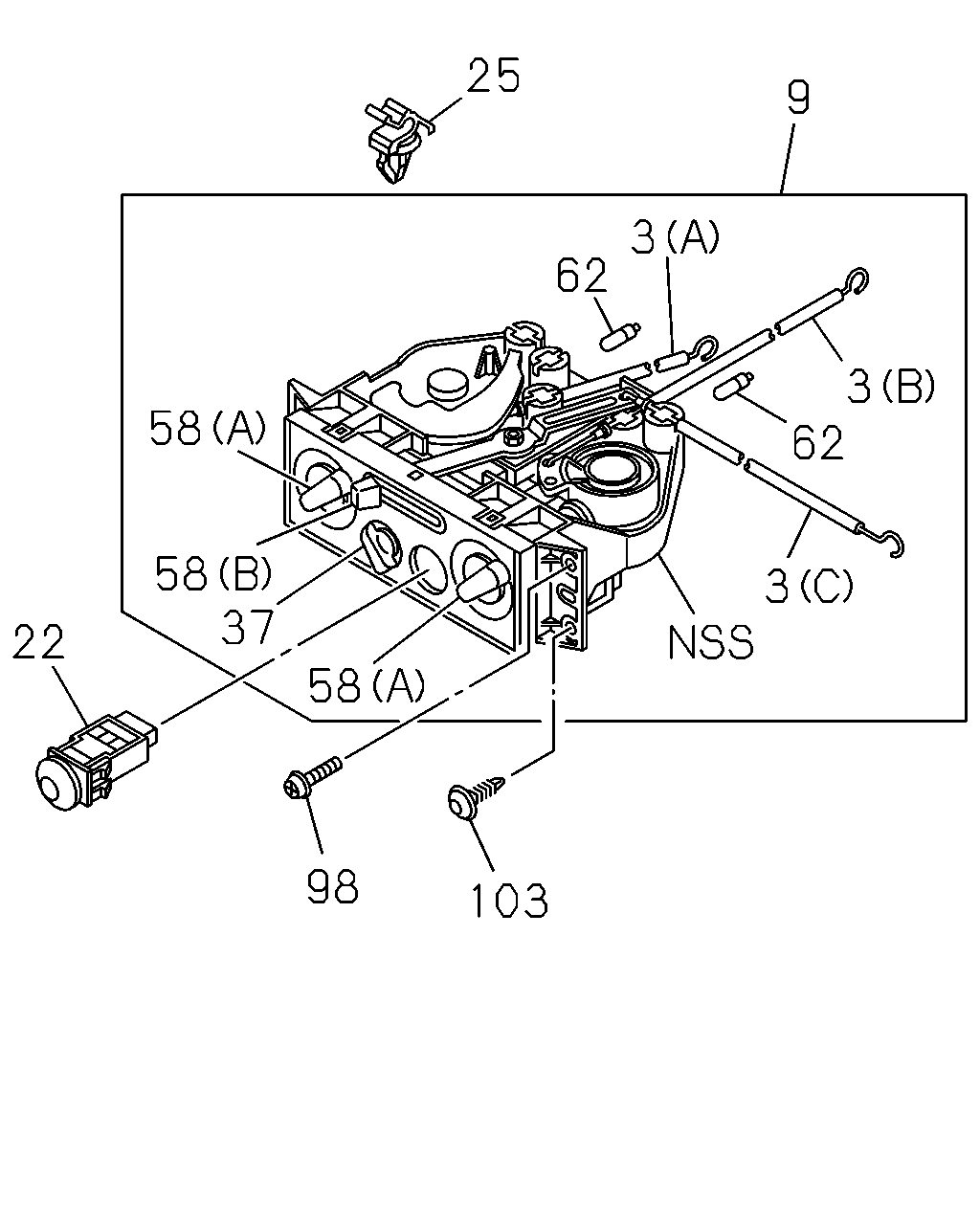

8-65 — CONTROL LEVER; HEATER AND AIR CON
(#44838) — 12 parça
25
9
3
62
3
62
58
58
37
58
3
22
98
103
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
CABLE; HTR CONT LVR
AIR CONDITIONER MANUAL CONTROL(C60) (C) R/F
8-98063-316-2
01
1
1110-
3
CABLE; HTR CONT LVR
AIR CONDITIONER MANUAL CONTROL(C60) (A) MODE
8-98065-643-0
01
1
1110-
3
CABLE; HTR CONT LVR
AIR CONDITIONER MANUAL CONTROL(C60) (B) A/M
8-98065-644-0
01
1
1110-
9
LEVER ASM; HTR & A/C CONT
AIR CONDITIONER MANUAL CONTROL(C60)
8-98062-747-2
01
1
1110-
22
SWITCH; A/C,MAIN
AIR CONDITIONER MANUAL CONTROL(C60)
8-98021-982-0
01
1
1110-
25
CLIP; CABLE,CONT LEVER
AIR CONDITIONER MANUAL CONTROL(C60) ID=4.8
8-94128-483-0
03
1
1110-
37
KNOB; SW,HTR CONT LVR
AIR CONDITIONER MANUAL CONTROL(C60)
8-98037-368-0
01
1
1110-
58
KNOB; LVR,HTR CONT LVR
AIR CONDITIONER MANUAL CONTROL(C60) (A)
8-98037-369-0
02
1
1110-
58
KNOB; LVR,HTR CONT LVR
AIR CONDITIONER MANUAL CONTROL(C60) (B)
8-98037-370-0
01
1
1110-
62
BULB; HTR CONT LVR
AIR CONDITIONER MANUAL CONTROL(C60) 24V 1.1W
8-98037-371-0
02
1
1110-
98
SCREW; CONT PANEL
AIR CONDITIONER MANUAL CONTROL(C60) M5X20 TAPPING HEXALOBULAR
0-72180-520-0
01
1
1110-
103
CLIP
AIR CONDITIONER MANUAL CONTROL(C60) DARK GRAY
8-97098-326-0
01
1
1110-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
