8-40 — HEATER SYSTEM (#44833) — 49 parça

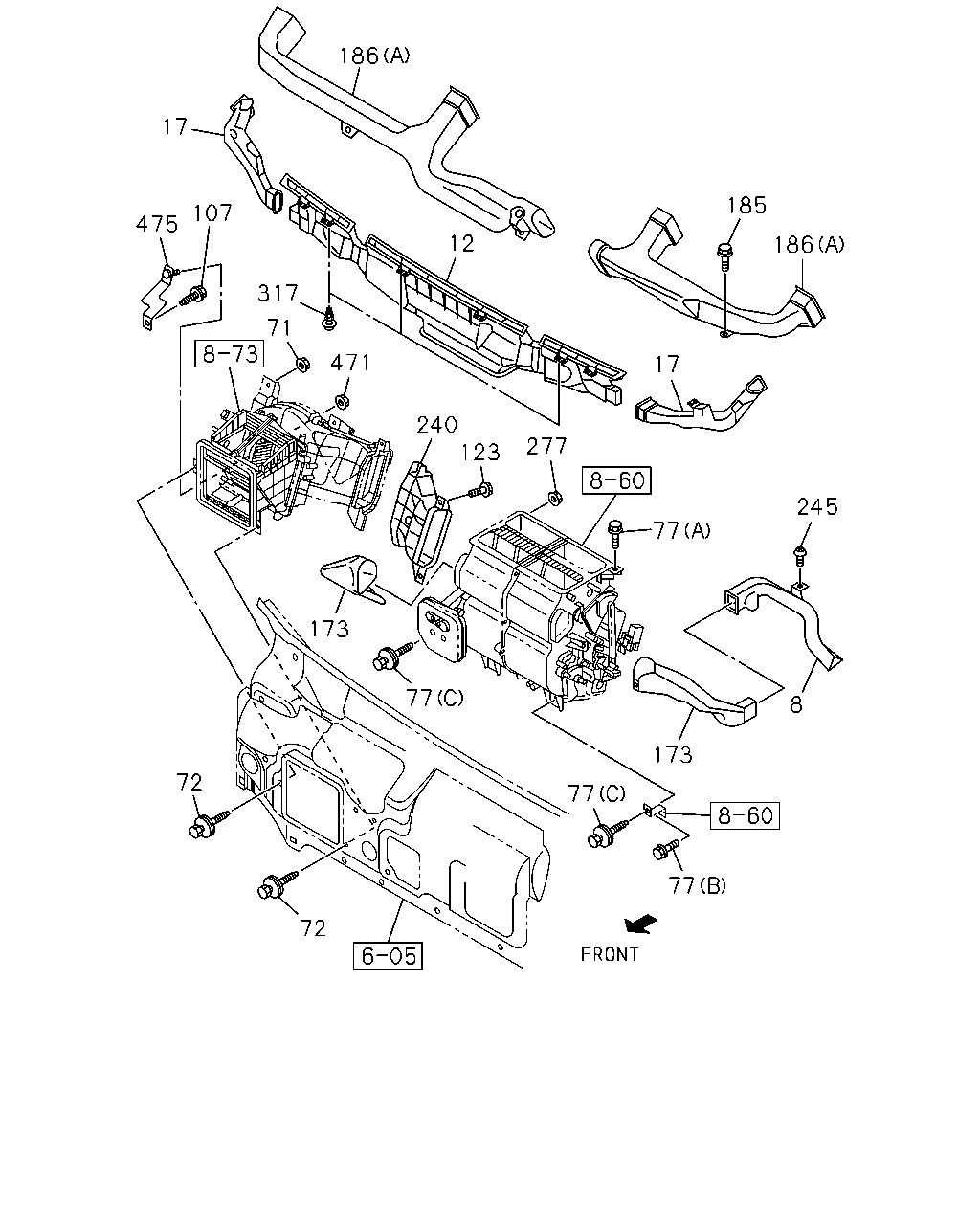

çizim 113606
186 17 185 107 475 12 186 317 71 471 17 240 123 277 245 77 173 77 8 173 72 77 77 72
BalonParca AdiParca NoAdetTipApplied Date
8 DUCT; HTR AIR,DRIVER FOOT
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98011-567-0 01 1 1110-
12 NOZZLE; DEFROSTER 8-98040-010-2 01 1 1110-
17 NOZZLE; DEFROSTER,SIDE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98040-014-0 01 1 1110-
17 NOZZLE; DEFROSTER,SIDE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98040-019-0 01 1 1110-
71 NUT; BLOWER UNIT TO DASH
AIR CONDITIONER MANUAL CONTROL(C60) M6 FLANGE 		0-91180-106-0 02 1 1110-
72 BOLT; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) M6X20 W/LK&PL WASHER 		8-98081-175-0 02 1 1110-
77 BOLT; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (A) M6X16 FLANGE 		0-28650-616-0 01 1 1110-
77 BOLT; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X20 FLANGE 		0-28650-620-0 02 1 1110-
77 BOLT; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (C) M6X20 W/LK&PL WASHER 		8-98081-175-0 03 1 1110-
107 BOLT; STAY,HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1110-
123 SCREW; DUCT
AIR CONDITIONER MANUAL CONTROL(C60) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1110-
173 DUCT; FOOT,HTR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97585-508-1 01 1 1110-
173 DUCT; FOOT,HTR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98036-923-1 01 1 1110-
185 SCREW; VENT DUCT
AIR CONDITIONER MANUAL CONTROL(C60) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1110-
186 DUCT; VENTILATOR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98102-130-2 01 1 1110-
186 DUCT; VENTILATOR
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98011-556-3 01 1 1110-1410
186 DUCT; VENTILATOR
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98285-573-0 01 1 1411-
186 DUCT; VENTILATOR
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98174-736-0 01 1 1110-1410
186 DUCT; VENTILATOR
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98285-575-0 01 1 1411-
240 DUCT; AIR,HTR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98062-749-1 01 1 1110-
245 CLIP; FOOT DUCT
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98056-059-0 03 1 1110-
277 NUT; HTR
AIR CONDITIONER MANUAL CONTROL(C60) M6 FLANGE 		0-91180-106-0 01 1 1110-
317 SCREW; DEFROSTER NOZZLE
AIR CONDITIONER MANUAL CONTROL(C60) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1110-
317 SCREW; DEFROSTER NOZZLE
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 06 1 1110-
471 NUT; BLOWER
AIR CONDITIONER MANUAL CONTROL(C60) M6 FLANGE 		0-91180-106-0 01 1 1110-
475 BRACKET; BLOWER
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98028-309-1 01 1 1110-
çizim 113723
223 50 476 247 206 407
BalonParca AdiParca NoAdetTipApplied Date
50 VALVE ASM; HTR 8-98080-998-1 01 1 1110-
206 GROMMET; A/C PIPE TO BLOWER UNIT 8-98019-649-0 01 1 1110-
223 GROMMET; SCREW
D=7.9X7.9 L=20 M5 		8-94441-539-0 01 1 1110-
247 SEAL; COVER,BLOWER MOTOR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 01 1 1110-
407 JOINT; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98041-758-0 01 1 1110-
476 SCREW; VALVE
M5X16 TAPPING HEXALOBULAR 		8-98062-675-0 01 1 1110-

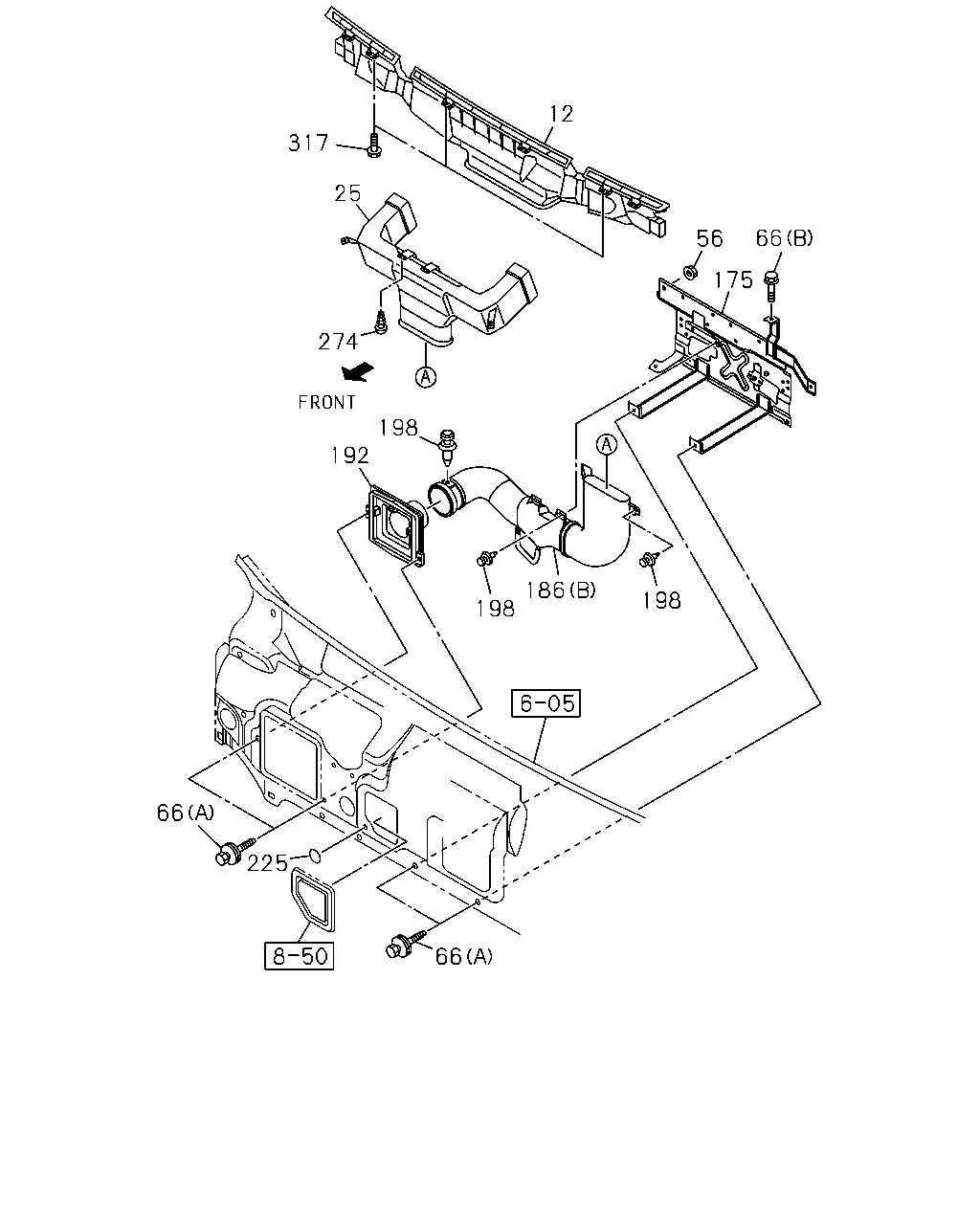

çizim 113734
12 317 25 66 56 175 274 198 192 186 198 198 66 225 66
BalonParca AdiParca NoAdetTipApplied Date
12 NOZZLE; DEFROSTER 8-98040-010-2 01 1 1110-
25 DUCT; CENTER
EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		8-98102-122-0 01 1 1110-
56 NUT; INL DUCT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) M6 FLANGE 		0-91180-106-0 01 1 1110-
66 BOLT; DUCT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X16 FLANGE 		0-28650-616-0 01 1 1110-
66 BOLT; DUCT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) M6X20 W/LK&PL WASHER 		8-98081-175-0 04 1 1110-
175 BRACKET; HTR DUCT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		8-98140-758-0 01 1 1110-
186 DUCT; VENTILATOR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98102-130-2 01 1 1110-
186 DUCT; VENTILATOR
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98011-556-3 01 1 1110-1410
186 DUCT; VENTILATOR
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98285-573-0 01 1 1411-
186 DUCT; VENTILATOR
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98174-736-0 01 1 1110-1410
186 DUCT; VENTILATOR
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98285-575-0 01 1 1411-
192 DUCT; RAM AIR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		8-98090-394-2 01 1 1110-
198 CLIP; DUCT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		8-98056-059-0 05 1 1110-
225 SEAL; WATER
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 01 1 1110-
274 SCREW; VENT DUCT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1110-
317 SCREW; DEFROSTER NOZZLE
AIR CONDITIONER MANUAL CONTROL(C60) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1110-
317 SCREW; DEFROSTER NOZZLE
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 06 1 1110-
