◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11439 - FVR(IRAN) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-27 - SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM ▶
8-27 — SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM (#44831) — 6 parça

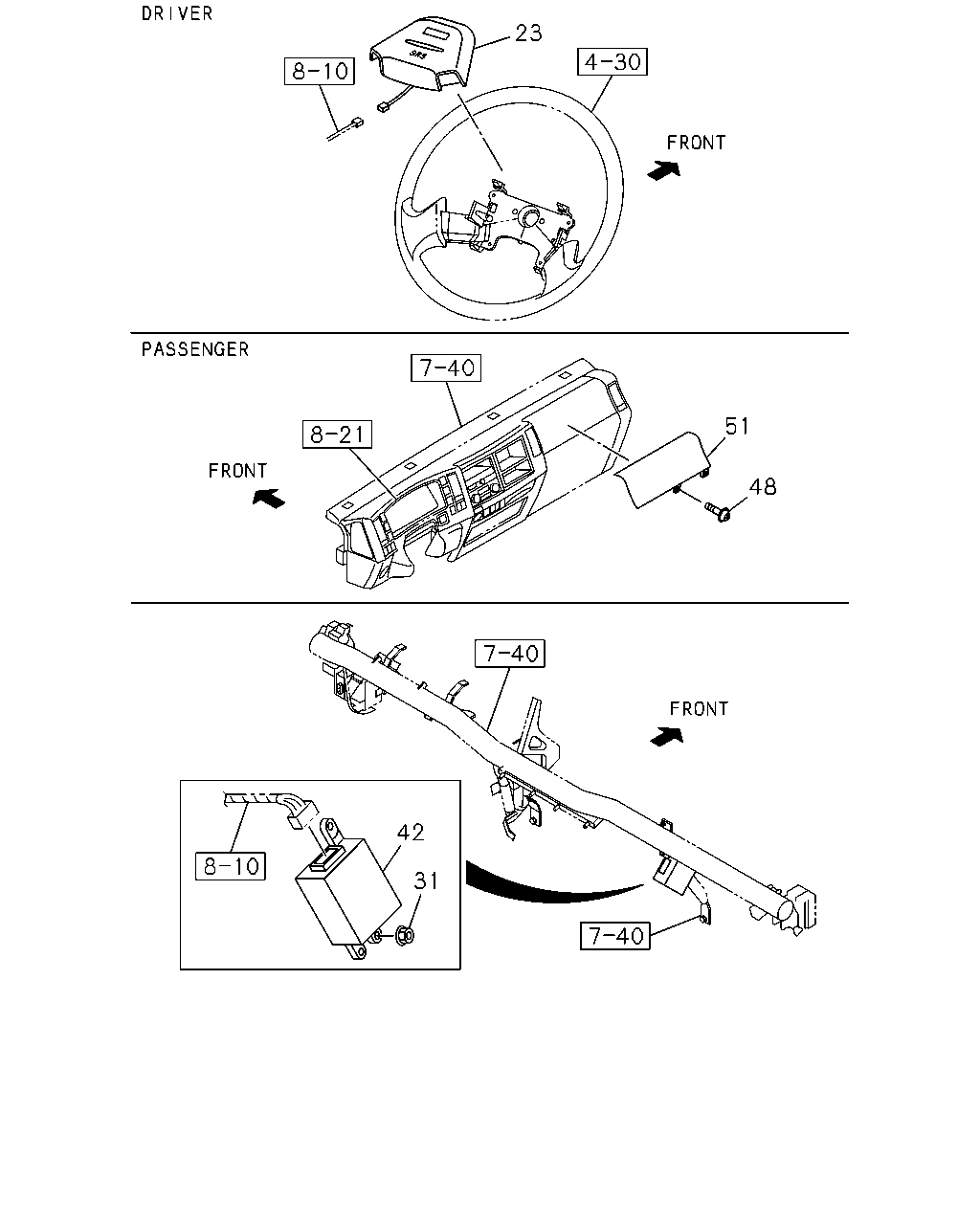

çizim 113733
23 51 48 42 31
BalonParca AdiParca NoAdetTipApplied Date
23 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER(AK5) DARK GRAY 		8-97418-100-0 01 1 1110-1210
23 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER(AK5) DARK GRAY 		8-97423-999-1 01 1 1211-
31 NUT
AIR BAG DRIVER & PASSENGER(AK5) M6 FLANGE 		0-91180-106-0 03 1 1110-
42 CONTROL UNIT; SRS
AIR BAG DRIVER & PASSENGER(AK5) 		8-98120-073-2 01 1 1110-
48 BOLT; INST PNL
AIR BAG DRIVER & PASSENGER(AK5) M6X16 W/LK&PL WASHER 		0-52010-616-0 02 1 1110-
51 AIR BAG ASM; P/S
AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97409-783-2 01 1 1110-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
