Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#44826) — 264 parça

48 305 305 306 48 16 305 305 16 48 213 581 16 213 48 48 48 48 16 305 305 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

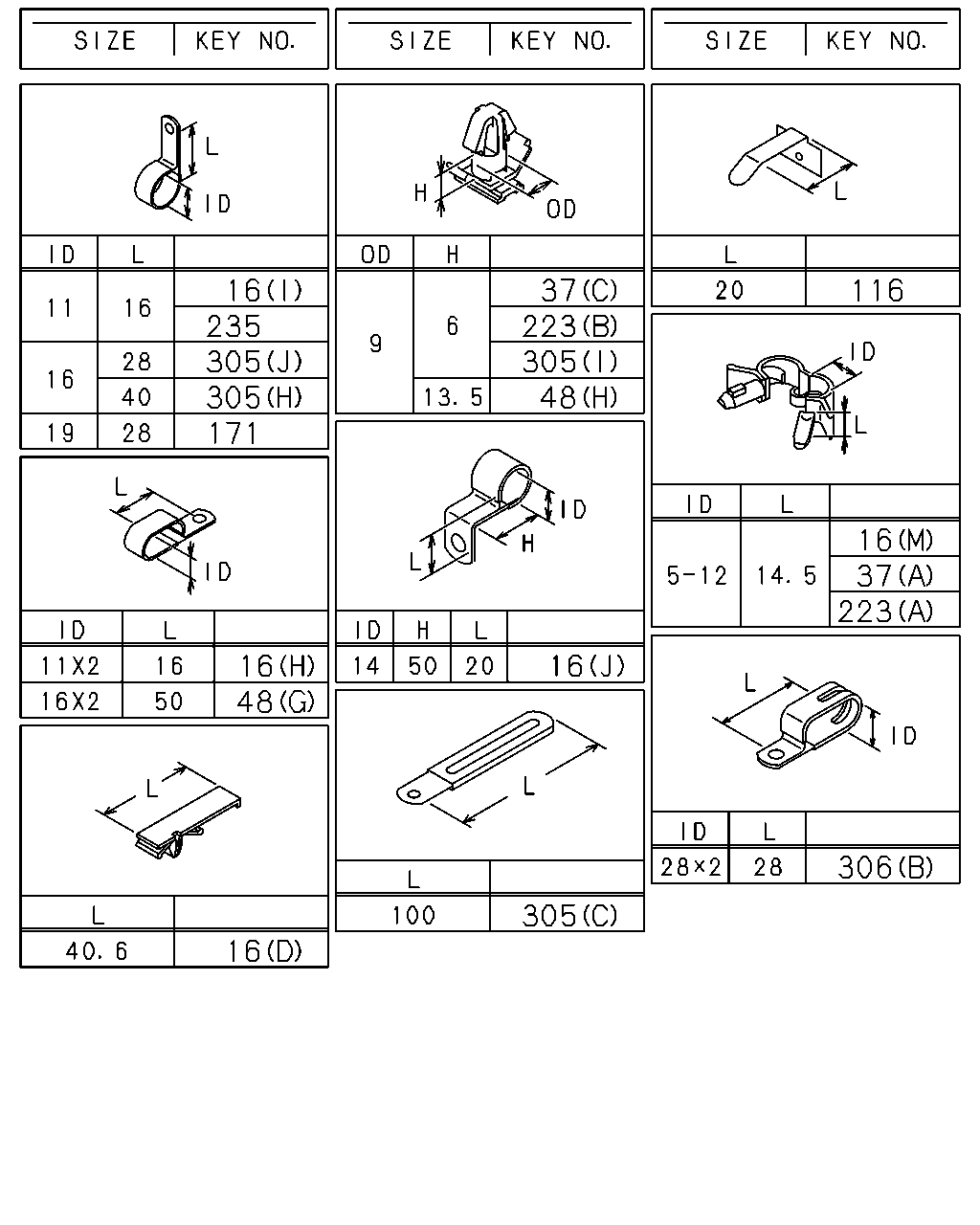

16	CLIP; HARNESS (I) ID=11 L=16	0-95235-025-0	02	1	1110-
16	CLIP; HARNESS (H) ID=11X2 L=16	0-95325-025-0	02	1	1110-
16	CLIP; HARNESS (E) ID=11 L=61	1-09700-484-0	01	1	1110-
16	CLIP; HARNESS (J) ID=14 H=50 L=20	1-09700-843-0	02	1	1110-
16	CLIP; HARNESS (G) ID=14.5 H=23 L=30	1-09700-859-0	01	1	1110-
16	CLIP; HARNESS (L) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	1110-
16	CLIP; HARNESS (M) ID=5-12 L=14.5	1-09987-221-0	02	1	1110-
16	CLIP; HARNESS (F) L=250	5-09707-030-1	04	1	1110-
16	CLIP; HARNESS (K) L=140	5-09707-031-1	01	1	1110-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1110-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	1110-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	1110-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (D) L=40.6	8-97229-357-0	02	1	1110-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (D) L=40.6	8-97229-357-0	02	1	1110-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	1110-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	1110-

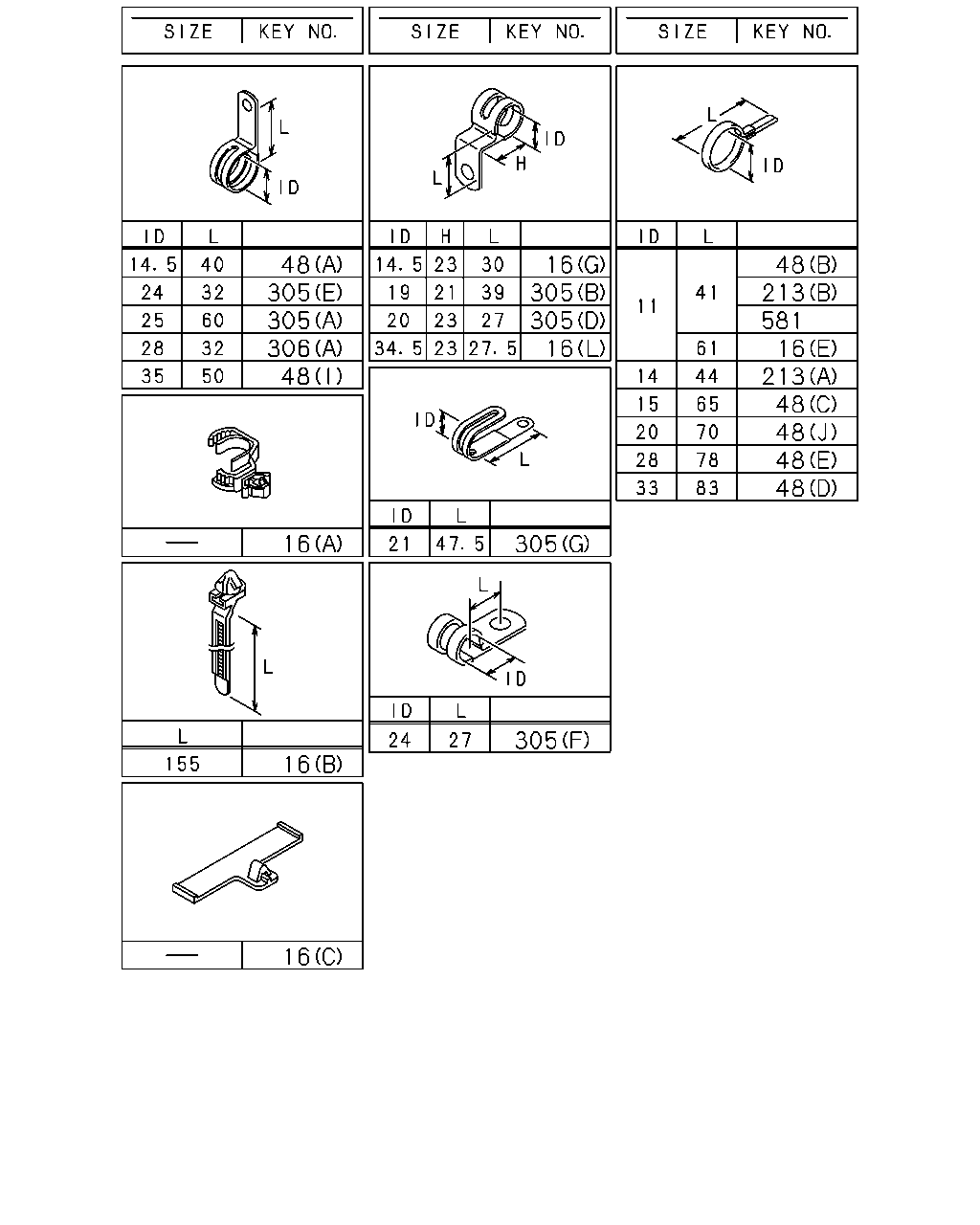

48	CLIP; FRAME HARNESS (G) ID=16X2 L=50	0-95325-586-0	01	1	1110-
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	1110-
48	CLIP; FRAME HARNESS (C) ID=15 L=65	1-09700-466-0	01	1	1110-1201
48	CLIP; FRAME HARNESS (J) ID=20 L=70	1-09700-485-0	01	1	1202-
48	CLIP; FRAME HARNESS (C) ID=15 L=65	1-09700-466-0	04	1	1110-
48	CLIP; FRAME HARNESS (J) ID=20 L=70	1-09700-485-0	03	1	1110-
48	CLIP; FRAME HARNESS (J) ID=20 L=70	1-09700-485-0	08	1	1110-
48	CLIP; FRAME HARNESS (E) ID=28 L=78	1-09700-858-0	02	1	1110-
48	CLIP; FRAME HARNESS (A) ID=14.5 L=40	1-09701-014-0	01	1	1110-
48	CLIP; FRAME HARNESS CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION FULL FLOATING<W16> (I) ID=35 L=50	1-09701-214-0	01	1	1110-1404
48	CLIP; FRAME HARNESS (D) ID=33 L=83	1-09701-291-0	01	1	1110-
48	CLIP; FRAME HARNESS (D) ID=33 L=83	1-09701-291-0	03	1	1110-
48	CLIP; FRAME HARNESS (H) OD=9 H=13.5	1-09709-180-0	01	1	1110-
48	CLIP; FRAME HARNESS (F) L=140	5-09707-031-1	02	1	1110-1404
48	CLIP; FRAME HARNESS (I) ID=35 L=50	1-09701-214-0	01	1	1405-
48	CLIP; FRAME HARNESS (J) ID=20 L=70	1-09700-485-0	01	1	1110-1201
48	CLIP; FRAME HARNESS (J) ID=20 L=70	1-09700-485-0	01	1	1110-1201
48	CLIP; FRAME HARNESS (C) ID=15 L=65	1-09700-466-0	01	1	1202-
48	CLIP; FRAME HARNESS (C) ID=15 L=65	1-09700-466-0	01	1	1202-
213	CLIP; END CROSS HARNESS (B) ID=11 L=41	1-09700-403-0	02	1	1110-
213	CLIP; END CROSS HARNESS (A) ID=14 L=44	9-09917-427-0	07	1	1110-
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	1110-
305	CLIP; ENG HARNESS (H) ID=16 L=40	0-95235-576-0	01	1	1110-
305	CLIP; ENG HARNESS (E) ID=24 L=32	1-09700-766-1	01	1	1110-
305	CLIP; ENG HARNESS (F) ID=24 L=27	1-09700-809-0	03	1	1110-
305	CLIP; ENG HARNESS (D) ID=20 H=23 L=27	1-09700-861-0	01	1	1110-
305	CLIP; ENG HARNESS (B) ID=19 L=39 H=21	1-09700-972-1	01	1	1110-
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	1110-
305	CLIP; ENG HARNESS (I) OD=9 H=6	1-09709-178-0	01	1	1110-
305	CLIP; ENG HARNESS (G) ID=21 L=47.5	8-94178-108-0	01	1	1110-
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	01	1	1110-1310
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	02	1	1311-
306	CLIP; HARNESS,ELEC GOV (A) ID=28 L=32	1-09701-107-1	01	1	1110-
306	CLIP; HARNESS,ELEC GOV (B) ID=28X2 L=28	1-09701-302-0	02	1	1110-
581	CLIP; HARNESS,REAR SUSP ID=11 L=41	1-09700-403-0	01	1	1110-

7 53 53 59 59 59 59 59 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

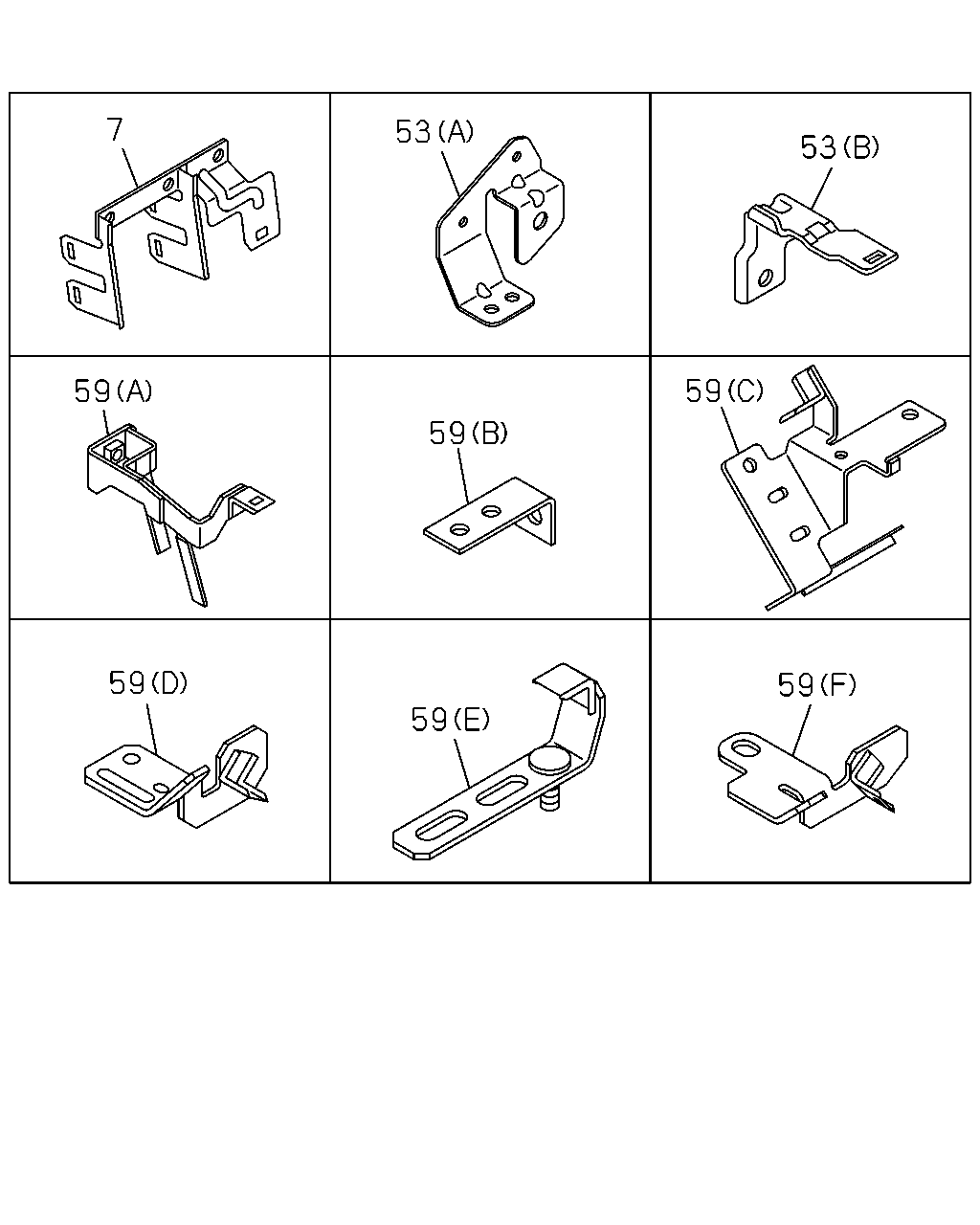

7	BRACKET; CONNECTOR	8-98090-846-0	01	1	1110-
53	BRACKET; HARNESS EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98084-699-0	01	1	1110-
53	BRACKET; HARNESS (B)	8-98052-458-0	01	1	1110-
59	BRACKET; FRAME HARNESS (B) L=62	1-21464-170-2	01	1	1110-
59	BRACKET; FRAME HARNESS (A)	8-97609-264-2	01	1	1110-
59	BRACKET; FRAME HARNESS (D)	8-97616-305-0	01	1	1110-1502
59	BRACKET; FRAME HARNESS (F)	8-98254-592-0	01	1	1503-
59	BRACKET; FRAME HARNESS (E)	8-98047-730-0	02	1	1110-
59	BRACKET; FRAME HARNESS (C)	8-98107-611-0	01	1	1110-

14 16 48 14 16 37 194 206 217 225 530 14 14 14 538 503 1 1 1 178 178 178

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SLEEVE; RUBBER GENERATOR 24V90A(K44) (C) ID=62 OD=69 L=70	8-98254-614-0	01	1	1405-
1	SLEEVE; RUBBER (B) ID=14 OD=18 L=60	1-09337-030-0	01	1	1110-
1	SLEEVE; RUBBER (A) ID=10 OD=14 L=30	9-09956-682-0	03	1	1110-
14	CLIP; BAND,HARNESS GENERATOR 24V90A(K44) (E) L=500	8-98216-422-0	01	1	1405-
14	CLIP; BAND,HARNESS (B) L=250	1-09707-126-0	02	1	1110-
14	CLIP; BAND,HARNESS (C) L=350	1-09707-183-0	01	1	1110-
14	CLIP; BAND,HARNESS (A) L=250	5-09707-030-1	08	1	1110-1205
14	CLIP; BAND,HARNESS (A) L=250	8-98216-430-0	08	1	1206-
14	CLIP; BAND,HARNESS (A) L=250	5-09707-030-1	30	1	1110-
14	CLIP; BAND,HARNESS (D) L=140	5-09707-031-1	01	1	1110-1110
16	CLIP; HARNESS (I) ID=11 L=16	0-95235-025-0	02	1	1110-
16	CLIP; HARNESS (H) ID=11X2 L=16	0-95325-025-0	02	1	1110-
16	CLIP; HARNESS (E) ID=11 L=61	1-09700-484-0	01	1	1110-
16	CLIP; HARNESS (J) ID=14 H=50 L=20	1-09700-843-0	02	1	1110-
16	CLIP; HARNESS (G) ID=14.5 H=23 L=30	1-09700-859-0	01	1	1110-
16	CLIP; HARNESS (L) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	1110-
16	CLIP; HARNESS (M) ID=5-12 L=14.5	1-09987-221-0	02	1	1110-
16	CLIP; HARNESS (F) L=250	5-09707-030-1	04	1	1110-
16	CLIP; HARNESS (K) L=140	5-09707-031-1	01	1	1110-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1110-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	1110-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	1110-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (D) L=40.6	8-97229-357-0	02	1	1110-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (D) L=40.6	8-97229-357-0	02	1	1110-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	1110-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	1110-
37	CLIP; HARNESS,POWER TILT AUTO CAB TILT<WV2> (A) ID=5-12 L=14.5	1-09987-221-0	02	1	1110-1404
37	CLIP; HARNESS,POWER TILT (A) ID=5-12 L=14.5	1-09987-221-0	02	1	1405-
37	CLIP; HARNESS,POWER TILT AUTO CAB TILT<WV2> (C) OD=9 H=6	8-97368-793-0	02	1	1110-1404
37	CLIP; HARNESS,POWER TILT (C) OD=9 H=6	8-97368-793-0	02	1	1405-
37	CLIP; HARNESS,POWER TILT AUTO CAB TILT<WV2> (B) L=250	5-09707-030-1	01	1	1110-1404
37	CLIP; HARNESS,POWER TILT AUTO CAB TILT<WV2> (B) L=250	5-09707-030-1	01	1	1110-1404
37	CLIP; HARNESS,POWER TILT (B) L=250	5-09707-030-1	01	1	1405-
37	CLIP; HARNESS,POWER TILT (B) L=250	5-09707-030-1	01	1	1405-
48	CLIP; FRAME HARNESS (G) ID=16X2 L=50	0-95325-586-0	01	1	1110-
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	1110-
48	CLIP; FRAME HARNESS (C) ID=15 L=65	1-09700-466-0	01	1	1110-1201
48	CLIP; FRAME HARNESS (J) ID=20 L=70	1-09700-485-0	01	1	1202-
48	CLIP; FRAME HARNESS (C) ID=15 L=65	1-09700-466-0	04	1	1110-
48	CLIP; FRAME HARNESS (J) ID=20 L=70	1-09700-485-0	03	1	1110-
48	CLIP; FRAME HARNESS (J) ID=20 L=70	1-09700-485-0	08	1	1110-
48	CLIP; FRAME HARNESS (E) ID=28 L=78	1-09700-858-0	02	1	1110-
48	CLIP; FRAME HARNESS (A) ID=14.5 L=40	1-09701-014-0	01	1	1110-
48	CLIP; FRAME HARNESS CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION FULL FLOATING<W16> (I) ID=35 L=50	1-09701-214-0	01	1	1110-1404
48	CLIP; FRAME HARNESS (D) ID=33 L=83	1-09701-291-0	01	1	1110-
48	CLIP; FRAME HARNESS (D) ID=33 L=83	1-09701-291-0	03	1	1110-
48	CLIP; FRAME HARNESS (H) OD=9 H=13.5	1-09709-180-0	01	1	1110-
48	CLIP; FRAME HARNESS (F) L=140	5-09707-031-1	02	1	1110-1404
48	CLIP; FRAME HARNESS (I) ID=35 L=50	1-09701-214-0	01	1	1405-
48	CLIP; FRAME HARNESS (J) ID=20 L=70	1-09700-485-0	01	1	1110-1201
48	CLIP; FRAME HARNESS (J) ID=20 L=70	1-09700-485-0	01	1	1110-1201
48	CLIP; FRAME HARNESS (C) ID=15 L=65	1-09700-466-0	01	1	1202-
48	CLIP; FRAME HARNESS (C) ID=15 L=65	1-09700-466-0	01	1	1202-
178	GROMMET; HARNESS (B) ID=28 OD=35 T=25	1-09332-011-1	02	1	1110-
178	GROMMET; HARNESS (C) ID=24 OD=30 T=17	9-09956-092-1	02	1	1110-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	02	1	1110-
178	GROMMET; HARNESS (B) ID=28 OD=35 T=25	1-09332-011-1	01	1	1110-
178	GROMMET; HARNESS (B) ID=28 OD=35 T=25	1-09332-011-1	01	1	1110-
194	CLIP; BAND AUTO CAB TILT<WV2> L=250	5-09707-030-1	02	1	1110-1404
194	CLIP; BAND L=250	5-09707-030-1	02	1	1405-
206	CLIP; FUEL TANK HARNESS L=250	5-09707-030-1	02	1	1110-
217	CLIP; RR BODY HARNESS EXC. REVERSING WARNING BUZZER<YM9> L=250	5-09707-030-1	01	1	1110-
217	CLIP; RR BODY HARNESS L=250	5-09707-030-1	02	1	1110-
225	CLIP; AIR TANK HARNESS L=250	5-09707-030-1	04	1	1110-
225	CLIP; AIR TANK HARNESS L=250	5-09707-030-1	04	1	1110-
503	CONNECTOR EXC. AIR CONDITIONER MANUAL CONTROL(C60)	1-82690-668-0	01	1	1110-1204
503	CONNECTOR GENERATOR 24V60A(KG2) EXC. AIR CONDITIONER MANUAL CONTROL(C60)	1-82690-668-0	01	1	1205-
530	SEAL; HARNESS 180X40	1-72498-019-1	14	1	1110-1305
530	SEAL; HARNESS 180X40	1-72498-019-1	16	1	1306-
530	SEAL; HARNESS 100X40	1-72498-022-1	06	1	1110-1305
530	SEAL; HARNESS EXC. REMOTE CONT DOOR LOCK<6NF> 180X40	1-72498-019-1	01	1	1306-
538	SEAL; HOLE OD=25 BLACK	1-76798-019-0	01	1	1110-

139 38 304 304 313 304 516 358 377 386 139 38 313 139 38 150 139 313 139 38 313 139 139 184 38 386 38 524 294 219 524 294 525 47 127

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

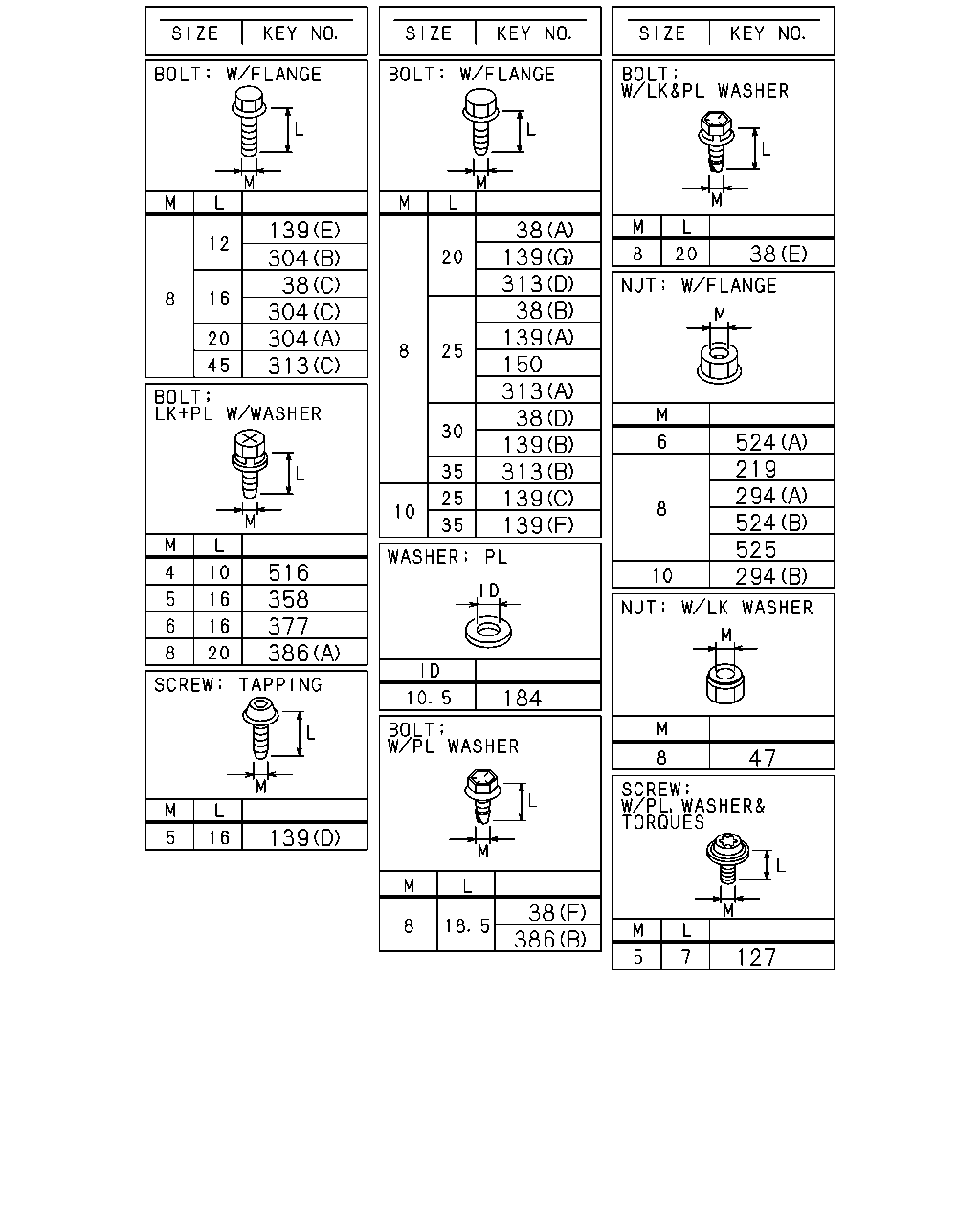

38	BOLT; CLIP,HARNESS (C) M8X16 FLANGE	0-28050-816-0	02	1	1110-
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	04	1	1110-
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	01	1	1110-
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	02	1	1110-
38	BOLT; CLIP,HARNESS (E) M8X20 W/LK&PL WASHER	8-97086-825-0	03	1	1110-1201
38	BOLT; CLIP,HARNESS (F) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1202-
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	1110-
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	1110-
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	1110-
47	NUT; GEN TERMINAL M8 W/LK WASHER	8-94279-050-0	01	1	1409-
127	SCREW; FACIA HARNESS CLIP M5X7 HEXALOBULAR SOCKET IRA	8-98063-767-0	01	1	1110-
139	BOLT; BRKT (G) M8X20 FLANGE	0-28650-820-0	01	1	1405-
139	BOLT; BRKT EXC. AIR CONDITIONER MANUAL CONTROL(C60) (D) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1110-
139	BOLT; BRKT (E) M8X12 FLANGE	0-28050-812-0	01	1	1110-
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1110-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1110-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	1110-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	04	1	1110-
139	BOLT; BRKT (D) M8X35 FLANGE	0-28650-835-0	01	1	1110-
139	BOLT; BRKT (C) M10X25 FLANGE	0-28651-025-0	02	1	1110-
139	BOLT; BRKT (F) M10X35 FLANGE	0-28651-035-0	01	1	1110-
139	BOLT; BRKT (F) M10X35 FLANGE	0-28651-035-0	01	1	1110-
150	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	02	1	1110-
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	02	1	1110-
219	NUT M8 FLANGE	0-91180-108-0	04	1	1110-1509
219	NUT M8 FLANGE	0-91180-108-0	02	1	1510-
219	NUT M8 FLANGE	0-91180-108-0	02	1	1510-
219	NUT M8 FLANGE	0-91180-108-0	01	1	1110-
219	NUT M8 FLANGE	0-91180-108-0	01	1	1110-
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	1110-
294	NUT (A) M8 FLANGE	0-91180-108-0	04	1	1110-
294	NUT (A) M8 FLANGE	0-91180-108-0	05	1	1110-
294	NUT (B) M10 FLANGE	0-91180-210-0	02	1	1110-
294	NUT AUTO CAB TILT<WV2> (A) M8 FLANGE	0-91180-108-0	01	1	1110-1404
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1110-1404
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1405-
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1405-
304	BOLT; ENG HARNESS CLIP (A) M8X20 FLANGE	0-28050-820-0	02	1	1405-
304	BOLT; ENG HARNESS CLIP GENERATOR 24V60A(KG2) (A) M8X20 FLANGE	0-28050-820-0	02	1	1405-
304	BOLT; ENG HARNESS CLIP (B) M8X12 FLANGE	0-28050-812-0	06	1	1110-
304	BOLT; ENG HARNESS CLIP (C) M8X16 FLANGE	0-28050-816-0	05	1	1110-
304	BOLT; ENG HARNESS CLIP (A) M8X20 FLANGE	0-28050-820-0	04	1	1110-1404
304	BOLT; ENG HARNESS CLIP GENERATOR 24V90A(K44) (A) M8X20 FLANGE	0-28050-820-0	01	1	1405-
313	BOLT; BRKT (C) M8X45 FLANGE	0-28050-845-0	01	1	1110-
313	BOLT; BRKT AUTO CAB TILT<WV2> (D) M8X20 FLANGE	0-28650-820-0	01	1	1110-1404
313	BOLT; BRKT (D) M8X20 FLANGE	0-28650-820-0	01	1	1405-
313	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1110-
313	BOLT; BRKT (B) M8X35 FLANGE	0-28650-835-0	01	1	1110-
358	BOLT; EARTH AUTO CAB TILT<WV2> M5X16 W/LK&PL WASHER	8-94198-538-0	01	1	1110-1404
358	BOLT; EARTH M5X16 W/LK&PL WASHER	8-94198-538-0	01	1	1405-
377	BOLT; CAB EARTH M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	1110-
386	BOLT; GRAND HARNESS (A) M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	1110-1202
386	BOLT; GRAND HARNESS (B) M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1203-
516	BOLT; HARNESS M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	1110-
524	NUT; HARNESS (B) M8 FLANGE	0-91180-108-0	01	1	1405-
524	NUT; HARNESS (A) M6 FLANGE	0-91180-106-0	04	1	1110-
525	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	1110-

16 235 305 305 171 16 48 16 37 223 305 48 16 305 116 16 37 223 306

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (I) ID=11 L=16	0-95235-025-0	02	1	1110-
16	CLIP; HARNESS (H) ID=11X2 L=16	0-95325-025-0	02	1	1110-
16	CLIP; HARNESS (E) ID=11 L=61	1-09700-484-0	01	1	1110-
16	CLIP; HARNESS (J) ID=14 H=50 L=20	1-09700-843-0	02	1	1110-
16	CLIP; HARNESS (G) ID=14.5 H=23 L=30	1-09700-859-0	01	1	1110-
16	CLIP; HARNESS (L) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	1110-
16	CLIP; HARNESS (M) ID=5-12 L=14.5	1-09987-221-0	02	1	1110-
16	CLIP; HARNESS (F) L=250	5-09707-030-1	04	1	1110-
16	CLIP; HARNESS (K) L=140	5-09707-031-1	01	1	1110-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1110-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	1110-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	1110-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (D) L=40.6	8-97229-357-0	02	1	1110-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (D) L=40.6	8-97229-357-0	02	1	1110-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	1110-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	1110-
37	CLIP; HARNESS,POWER TILT AUTO CAB TILT<WV2> (A) ID=5-12 L=14.5	1-09987-221-0	02	1	1110-1404
37	CLIP; HARNESS,POWER TILT (A) ID=5-12 L=14.5	1-09987-221-0	02	1	1405-
37	CLIP; HARNESS,POWER TILT AUTO CAB TILT<WV2> (C) OD=9 H=6	8-97368-793-0	02	1	1110-1404
37	CLIP; HARNESS,POWER TILT (C) OD=9 H=6	8-97368-793-0	02	1	1405-
37	CLIP; HARNESS,POWER TILT AUTO CAB TILT<WV2> (B) L=250	5-09707-030-1	01	1	1110-1404
37	CLIP; HARNESS,POWER TILT AUTO CAB TILT<WV2> (B) L=250	5-09707-030-1	01	1	1110-1404
37	CLIP; HARNESS,POWER TILT (B) L=250	5-09707-030-1	01	1	1405-
37	CLIP; HARNESS,POWER TILT (B) L=250	5-09707-030-1	01	1	1405-
48	CLIP; FRAME HARNESS (G) ID=16X2 L=50	0-95325-586-0	01	1	1110-
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	1110-
48	CLIP; FRAME HARNESS (C) ID=15 L=65	1-09700-466-0	01	1	1110-1201
48	CLIP; FRAME HARNESS (J) ID=20 L=70	1-09700-485-0	01	1	1202-
48	CLIP; FRAME HARNESS (C) ID=15 L=65	1-09700-466-0	04	1	1110-
48	CLIP; FRAME HARNESS (J) ID=20 L=70	1-09700-485-0	03	1	1110-
48	CLIP; FRAME HARNESS (J) ID=20 L=70	1-09700-485-0	08	1	1110-
48	CLIP; FRAME HARNESS (E) ID=28 L=78	1-09700-858-0	02	1	1110-
48	CLIP; FRAME HARNESS (A) ID=14.5 L=40	1-09701-014-0	01	1	1110-
48	CLIP; FRAME HARNESS CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION FULL FLOATING<W16> (I) ID=35 L=50	1-09701-214-0	01	1	1110-1404
48	CLIP; FRAME HARNESS (D) ID=33 L=83	1-09701-291-0	01	1	1110-
48	CLIP; FRAME HARNESS (D) ID=33 L=83	1-09701-291-0	03	1	1110-
48	CLIP; FRAME HARNESS (H) OD=9 H=13.5	1-09709-180-0	01	1	1110-
48	CLIP; FRAME HARNESS (F) L=140	5-09707-031-1	02	1	1110-1404
48	CLIP; FRAME HARNESS (I) ID=35 L=50	1-09701-214-0	01	1	1405-
48	CLIP; FRAME HARNESS (J) ID=20 L=70	1-09700-485-0	01	1	1110-1201
48	CLIP; FRAME HARNESS (J) ID=20 L=70	1-09700-485-0	01	1	1110-1201
48	CLIP; FRAME HARNESS (C) ID=15 L=65	1-09700-466-0	01	1	1202-
48	CLIP; FRAME HARNESS (C) ID=15 L=65	1-09700-466-0	01	1	1202-
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	04	1	1110-
171	CLIP; STARTER HARNESS ID=19 L=28	0-95235-856-0	01	1	1405-
223	CLIP; AIR TANK HARNESS (B) OD=9 H=6	1-09709-178-0	01	1	1110-
223	CLIP; AIR TANK HARNESS (A) ID=5-12 L=14.5	1-09987-221-0	01	1	1110-
235	CLIP; HARNESS,SPD SENSOR,SSPS ID=11 L=16	0-95235-025-0	02	1	1110-
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	1110-
305	CLIP; ENG HARNESS (H) ID=16 L=40	0-95235-576-0	01	1	1110-
305	CLIP; ENG HARNESS (E) ID=24 L=32	1-09700-766-1	01	1	1110-
305	CLIP; ENG HARNESS (F) ID=24 L=27	1-09700-809-0	03	1	1110-
305	CLIP; ENG HARNESS (D) ID=20 H=23 L=27	1-09700-861-0	01	1	1110-
305	CLIP; ENG HARNESS (B) ID=19 L=39 H=21	1-09700-972-1	01	1	1110-
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	1110-
305	CLIP; ENG HARNESS (I) OD=9 H=6	1-09709-178-0	01	1	1110-
305	CLIP; ENG HARNESS (G) ID=21 L=47.5	8-94178-108-0	01	1	1110-
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	01	1	1110-1310
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	02	1	1311-
306	CLIP; HARNESS,ELEC GOV (A) ID=28 L=32	1-09701-107-1	01	1	1110-
306	CLIP; HARNESS,ELEC GOV (B) ID=28X2 L=28	1-09701-302-0	02	1	1110-

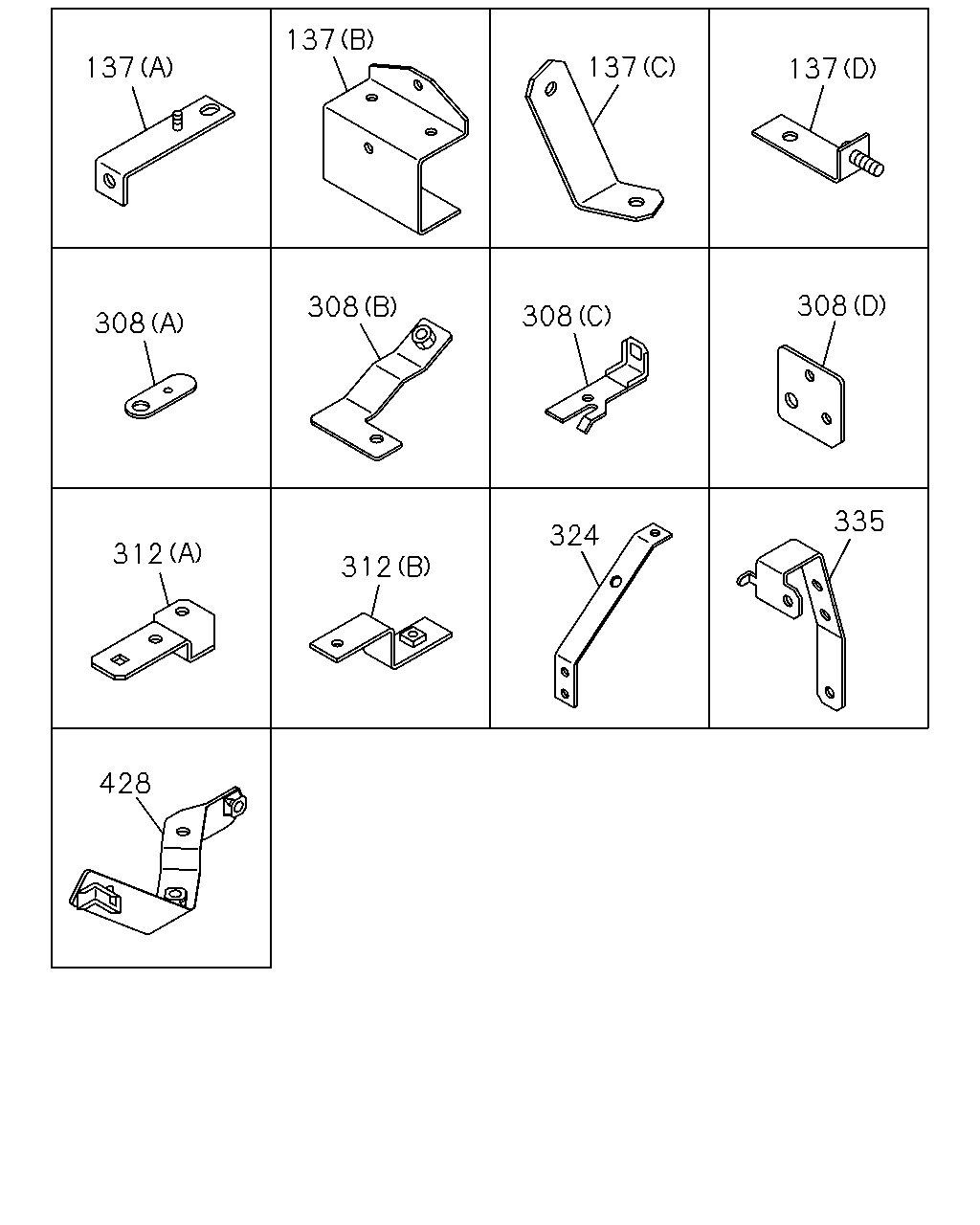

137 137 137 137 308 308 308 308 312 312 324 335 428

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
137	BRACKET; HARNESS CLAMP (D)	8-98111-710-1	01	1	1405-
137	BRACKET; HARNESS CLAMP (B)	8-97609-797-1	02	1	1110-
137	BRACKET; HARNESS CLAMP (C)	8-97614-728-1	01	1	1110-
137	BRACKET; HARNESS CLAMP (A)	8-97624-013-0	01	1	1110-
308	BRACKET; CLIP,ENG HARNESS (A)	8-97601-310-0	02	1	1110-
308	BRACKET; CLIP,ENG HARNESS (D)	8-98021-692-1	01	1	1110-
308	BRACKET; CLIP,ENG HARNESS (B)	8-98032-178-0	01	1	1110-
308	BRACKET; CLIP,ENG HARNESS (C)	8-98075-824-0	01	1	1110-
312	BRACKET; CLIP HARNESS (B)	8-97609-110-1	01	1	1110-
312	BRACKET; CLIP HARNESS AUTO CAB TILT<WV2> (A)	8-97620-519-0	01	1	1110-1404
312	BRACKET; CLIP HARNESS (A)	8-97620-519-0	01	1	1405-
324	BRACKET; CLIP	1-47479-430-0	02	1	1110-
335	BRACKET; CONNECTOR	8-97619-097-1	01	1	1110-
428	BRACKET	8-97620-514-0	01	1	1110-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
