◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11439 - FVR(IRAN) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#44825) — 166 parça

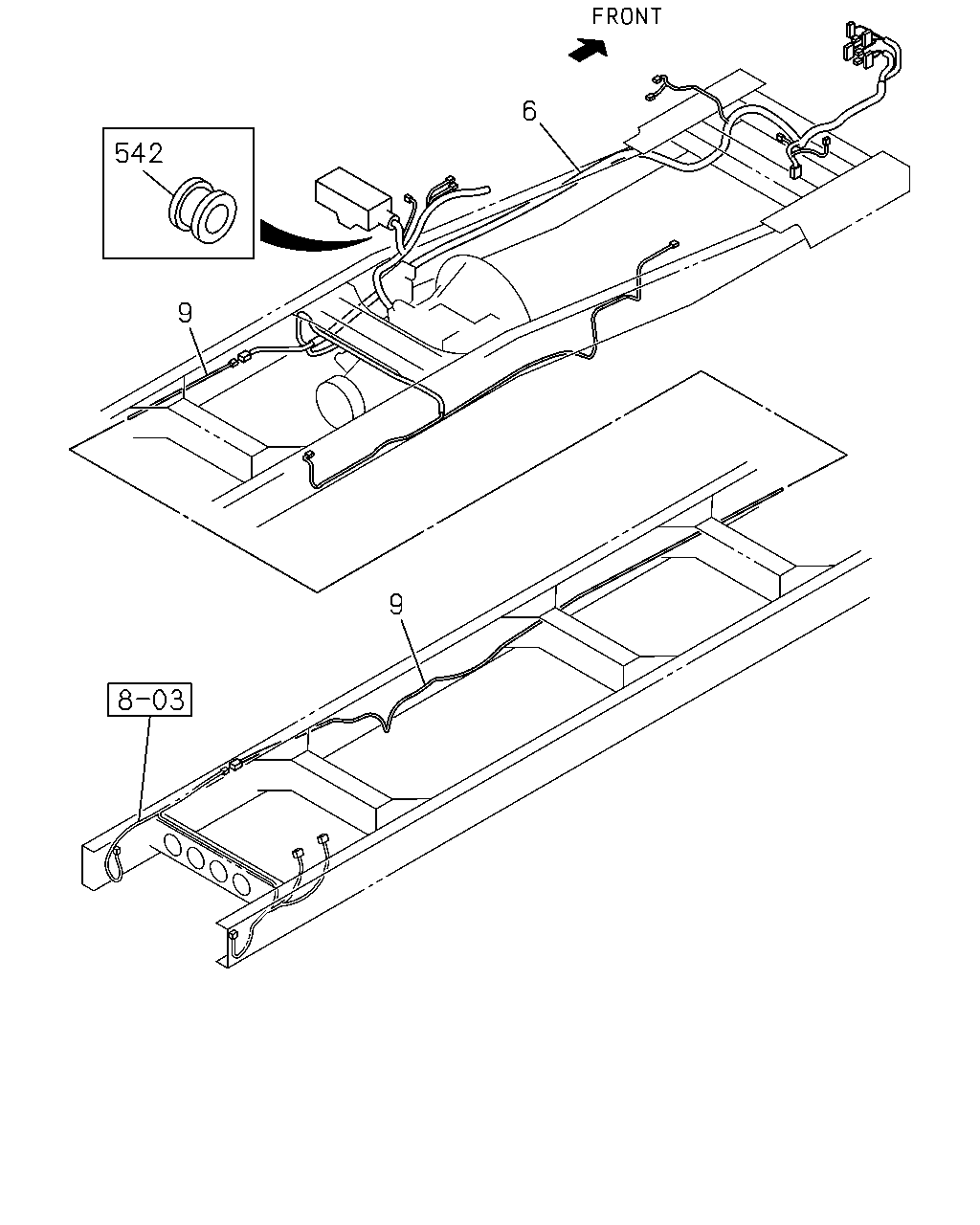

çizim 113693
9 9 542 6
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
EXC. CAB SUSPENSION FULL FLOATING<W16> 		8-98194-964-1 01 1 1110-1404
6 HARNESS; FRAME
CAB SUSPENSION FULL FLOATING<W16> 		8-98194-965-1 01 1 1110-1404
6 HARNESS; FRAME 8-98250-801-0 01 1 1405-
9 HARNESS; FRAME,RR 8-98194-793-0 01 1 1110-
542 GROMMET; HARNESS
ID=28 OD=35 T=25 		1-09332-011-1 01 1 1405-

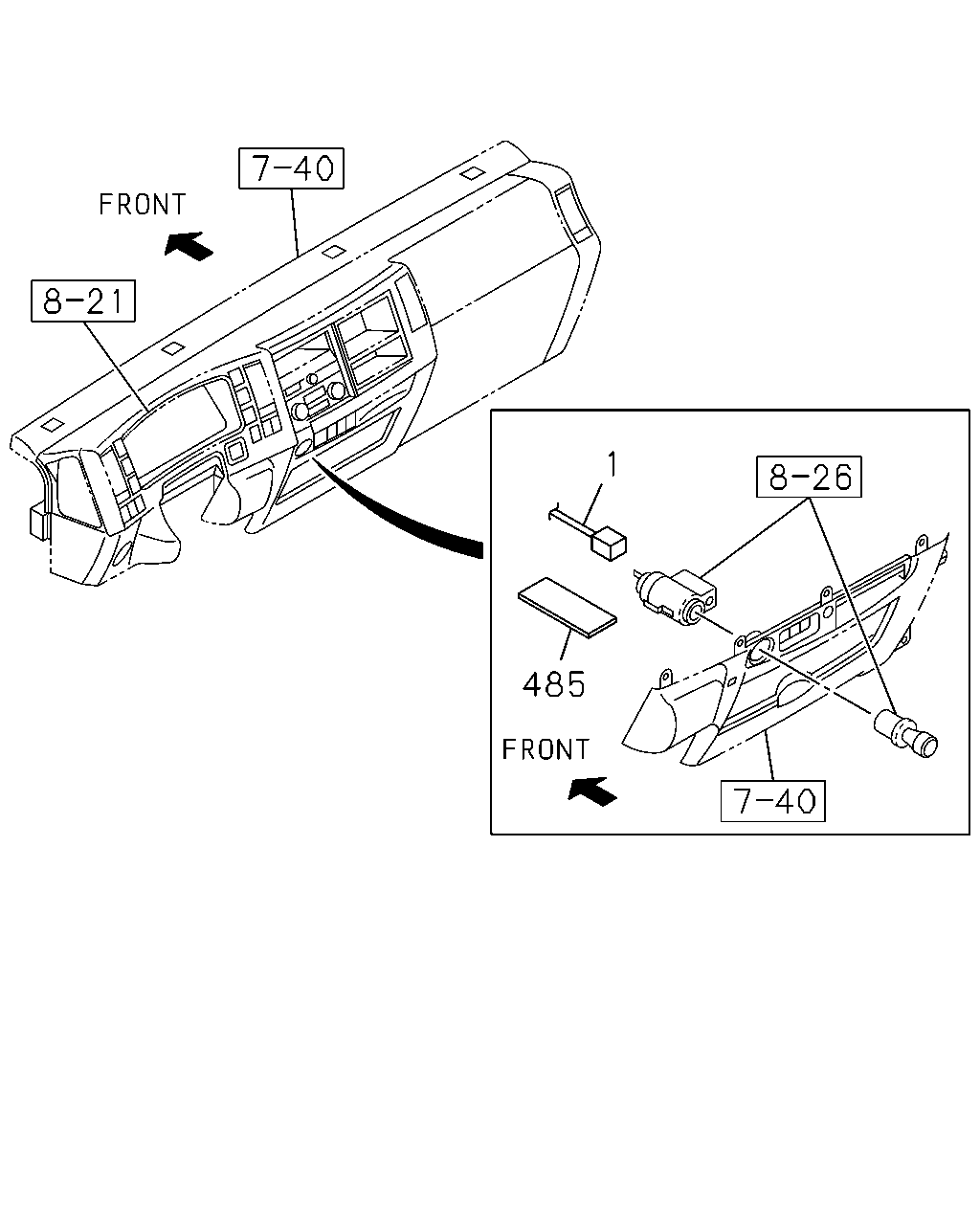

çizim 113696
1 485
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> REMOTE CONT DOOR LOCK<6NF> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98188-107-0 01 1 1110-1209
1 HARNESS; CAB
REMOTE CONT DOOR LOCK<6NF> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98188-107-0 01 1 1210-1311
1 HARNESS; CAB
REMOTE CONT DOOR LOCK<6NF> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98085-084-4 01 1 1312-
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> EXC. AIR BAG DRIVER & PASSENGER(AK5),REMOTE CONT DOOR LOCK<6NF> 		8-98188-106-0 01 1 1110-1209
1 HARNESS; CAB
EXC. AIR BAG DRIVER & PASSENGER(AK5),REMOTE CONT DOOR LOCK<6NF> 		8-98188-106-0 01 1 1210-1311
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> EXC. AIR BAG DRIVER & PASSENGER(AK5),REMOTE CONT DOOR LOCK<6NF> 		8-98196-305-0 01 1 1110-1209
1 HARNESS; CAB
EXC. AIR BAG DRIVER & PASSENGER(AK5),REMOTE CONT DOOR LOCK<6NF> 		8-98196-305-0 01 1 1210-
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) IN HOUSE PRODUCTION<TKF> REMOTE CONT DOOR LOCK<6NF> 		8-98188-113-0 01 1 1110-1209
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) REMOTE CONT DOOR LOCK<6NF> 		8-98188-113-0 01 1 1210-
1 HARNESS; CAB
REMOTE CONT DOOR LOCK<6NF> EXC. AIR BAG DRIVER & PASSENGER(AK5),IN HOUSE PRODUCTION<TKF> 		8-98085-084-4 01 1 1110-1209
1 HARNESS; CAB
EXC. AIR BAG DRIVER & PASSENGER(AK5),IN HOUSE PRODUCTION<TKF>,REMOTE CONT DOOR LOCK<6NF> 		8-98196-304-0 01 1 1110-1209
485 SEAL; CONNECTOR
180X40 		1-72498-019-1 01 1 1110-

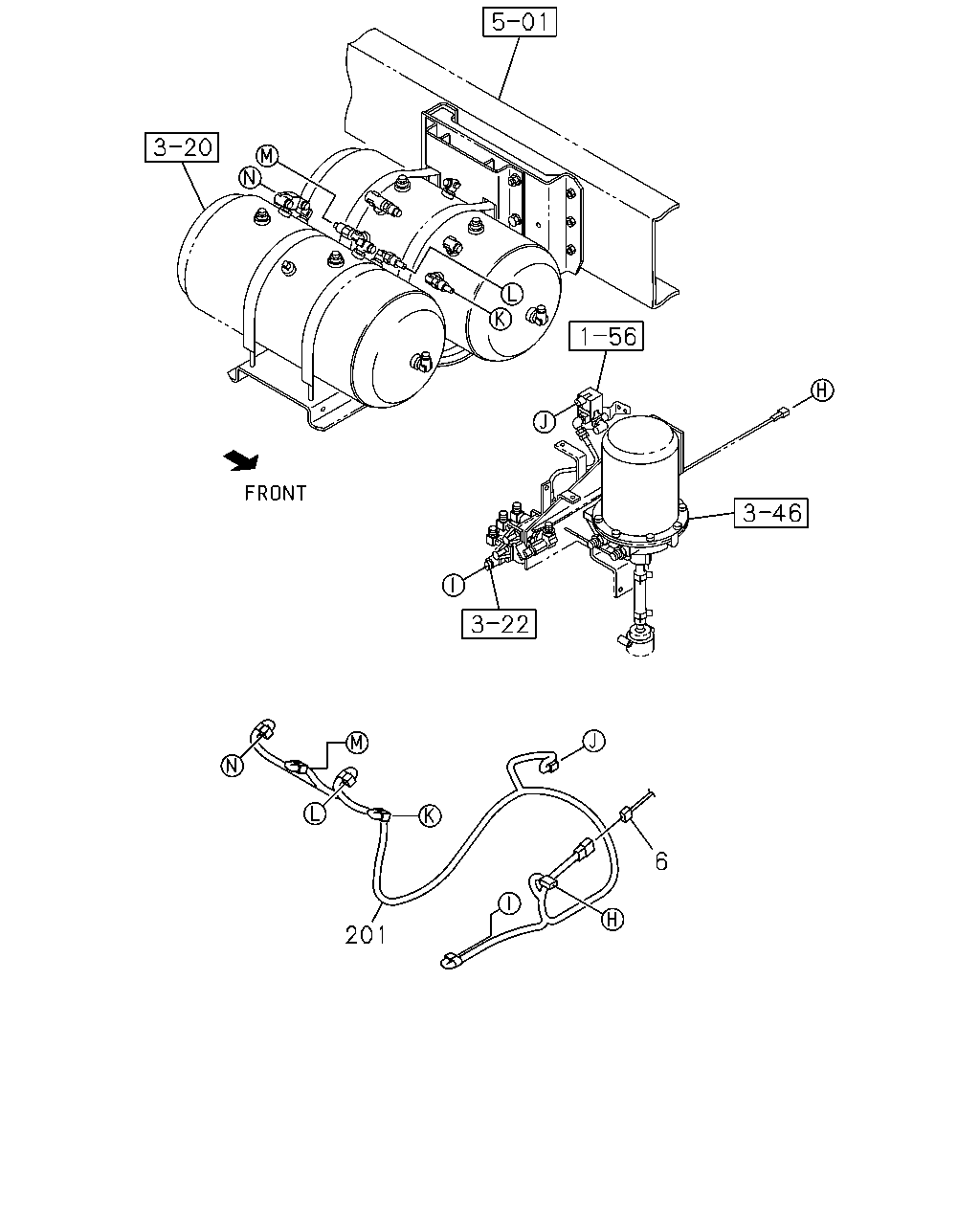

çizim 113697
6 201
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
EXC. CAB SUSPENSION FULL FLOATING<W16> 		8-98194-964-1 01 1 1110-1404
6 HARNESS; FRAME
CAB SUSPENSION FULL FLOATING<W16> 		8-98194-965-1 01 1 1110-1404
6 HARNESS; FRAME 8-98250-801-0 01 1 1405-
201 HARNESS; AIR TANK 8-98184-703-0 01 1 1110-

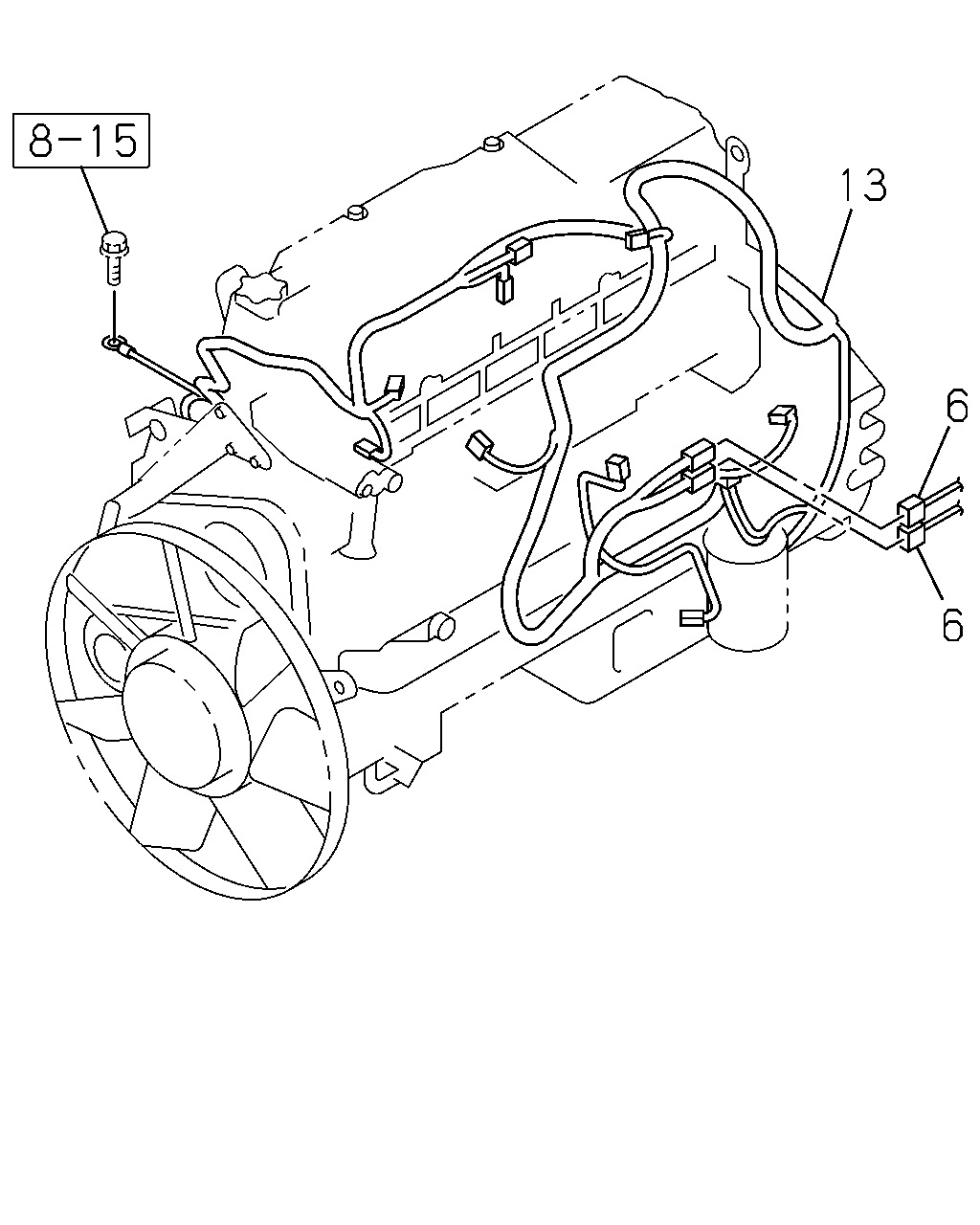

çizim 113701
13 6 6
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
EXC. CAB SUSPENSION FULL FLOATING<W16> 		8-98194-964-1 01 1 1110-1404
6 HARNESS; FRAME
CAB SUSPENSION FULL FLOATING<W16> 		8-98194-965-1 01 1 1110-1404
6 HARNESS; FRAME 8-98250-801-0 01 1 1405-
13 HARNESS; ENG 8-98075-775-5 01 1 1110-
çizim 113702
1 2 2 314 431 431 431 431
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> REMOTE CONT DOOR LOCK<6NF> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98188-107-0 01 1 1110-1209
1 HARNESS; CAB
REMOTE CONT DOOR LOCK<6NF> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98188-107-0 01 1 1210-1311
1 HARNESS; CAB
REMOTE CONT DOOR LOCK<6NF> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98085-084-4 01 1 1312-
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> EXC. AIR BAG DRIVER & PASSENGER(AK5),REMOTE CONT DOOR LOCK<6NF> 		8-98188-106-0 01 1 1110-1209
1 HARNESS; CAB
EXC. AIR BAG DRIVER & PASSENGER(AK5),REMOTE CONT DOOR LOCK<6NF> 		8-98188-106-0 01 1 1210-1311
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> EXC. AIR BAG DRIVER & PASSENGER(AK5),REMOTE CONT DOOR LOCK<6NF> 		8-98196-305-0 01 1 1110-1209
1 HARNESS; CAB
EXC. AIR BAG DRIVER & PASSENGER(AK5),REMOTE CONT DOOR LOCK<6NF> 		8-98196-305-0 01 1 1210-
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) IN HOUSE PRODUCTION<TKF> REMOTE CONT DOOR LOCK<6NF> 		8-98188-113-0 01 1 1110-1209
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) REMOTE CONT DOOR LOCK<6NF> 		8-98188-113-0 01 1 1210-
1 HARNESS; CAB
REMOTE CONT DOOR LOCK<6NF> EXC. AIR BAG DRIVER & PASSENGER(AK5),IN HOUSE PRODUCTION<TKF> 		8-98085-084-4 01 1 1110-1209
1 HARNESS; CAB
EXC. AIR BAG DRIVER & PASSENGER(AK5),IN HOUSE PRODUCTION<TKF>,REMOTE CONT DOOR LOCK<6NF> 		8-98196-304-0 01 1 1110-1209
2 DIODE; CABLE HARNESS
(A) BLACK 10P 		1-82699-703-0 01 1 1110-
2 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 01 1 1110-
314 RESISTOR; HARNESS
BLUE 		1-82691-204-0 01 1 1110-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 05 1 1110-
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 02 1 1110-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 04 1 1110-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 1110-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 09 1 1110-
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 1110-
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1110-
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1110-

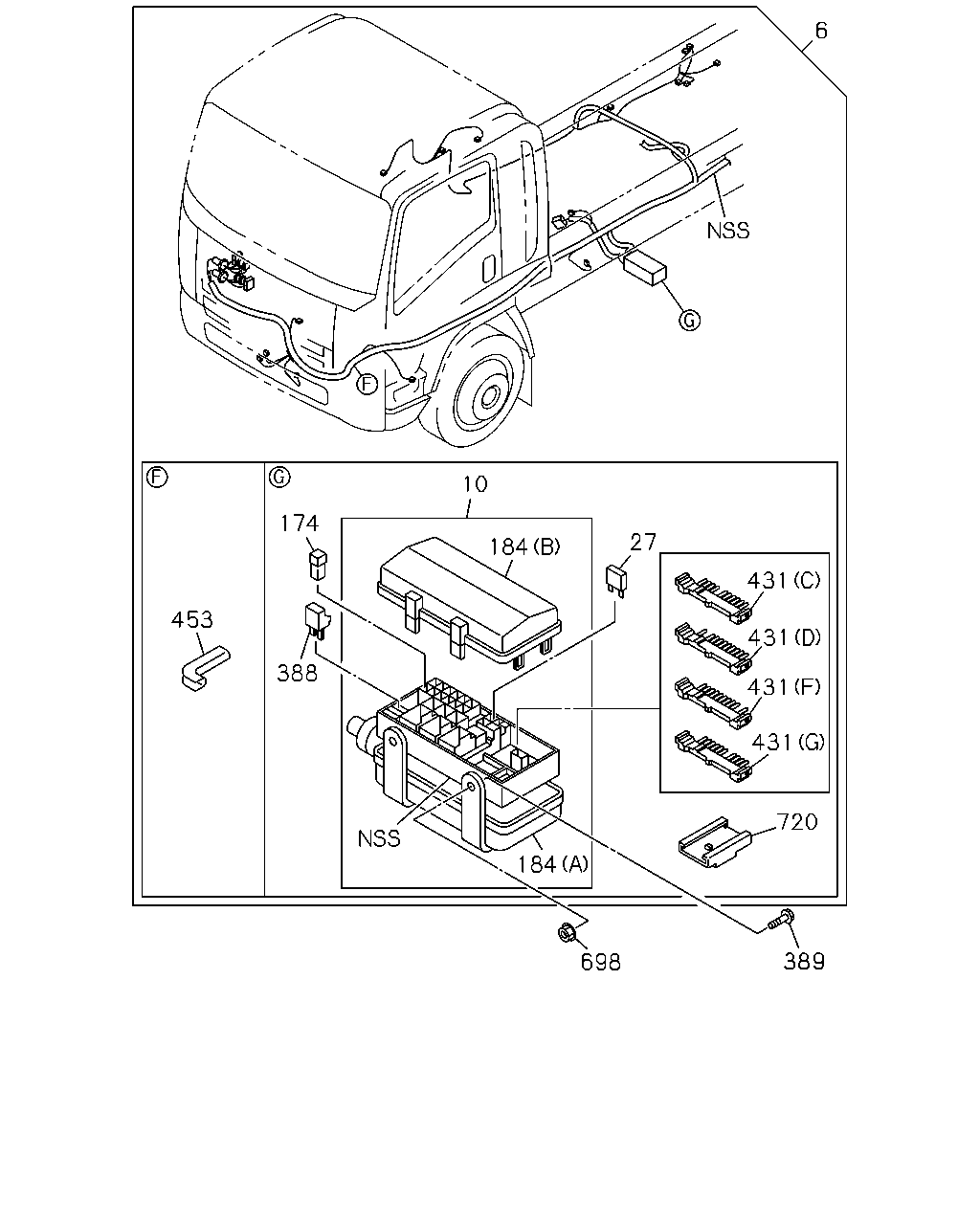

çizim 113705
6 10 174 27 184 431 453 431 388 431 431 720 184 389 698
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
EXC. CAB SUSPENSION FULL FLOATING<W16> 		8-98194-964-1 01 1 1110-1404
6 HARNESS; FRAME
CAB SUSPENSION FULL FLOATING<W16> 		8-98194-965-1 01 1 1110-1404
6 HARNESS; FRAME 8-98250-801-0 01 1 1405-
10 BOX; FUSE,HARNESS 8-98030-762-0 01 1 1110-
27 FUSE UNIT
10A RED 		8-98054-257-0 01 1 1110-
27 FUSE UNIT
15A BLUE 		8-98054-258-0 02 1 1110-
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 01 1 1110-
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 02 1 1110-
174 FUSE; SLOW BLOW
30A PINK 		8-98079-191-0 01 1 1110-
174 FUSE; SLOW BLOW
40A GREEN 		8-98079-192-0 01 1 1110-
174 FUSE; SLOW BLOW
50A RED 		8-98079-193-0 03 1 1110-
184 COVER; RELAY & FUSE BOX
(A) 		8-98030-766-0 01 1 1110-
184 COVER; RELAY & FUSE BOX
(B) 		8-98030-767-1 01 1 1110-
388 DIODE; RELAY BOX
BLACK 4P-1.5A 		8-94381-730-0 01 1 1110-
388 DIODE; RELAY BOX
BLACK 2P-1.5A 		8-94422-639-1 01 1 1110-
389 BOLT; COVER,RELAY BOX
M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 1110-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 05 1 1110-
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 02 1 1110-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 04 1 1110-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 1110-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 09 1 1110-
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 1110-
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1110-
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1110-
453 PROTECTOR; HARNESS 1-82699-709-0 01 1 1110-
698 NUT; COVER,RELAY BOX
M8 FLANGE 		0-91180-108-0 02 1 1110-1404
720 ATTACHMENT; CONNECTOR 1-82699-688-0 03 1 1110-

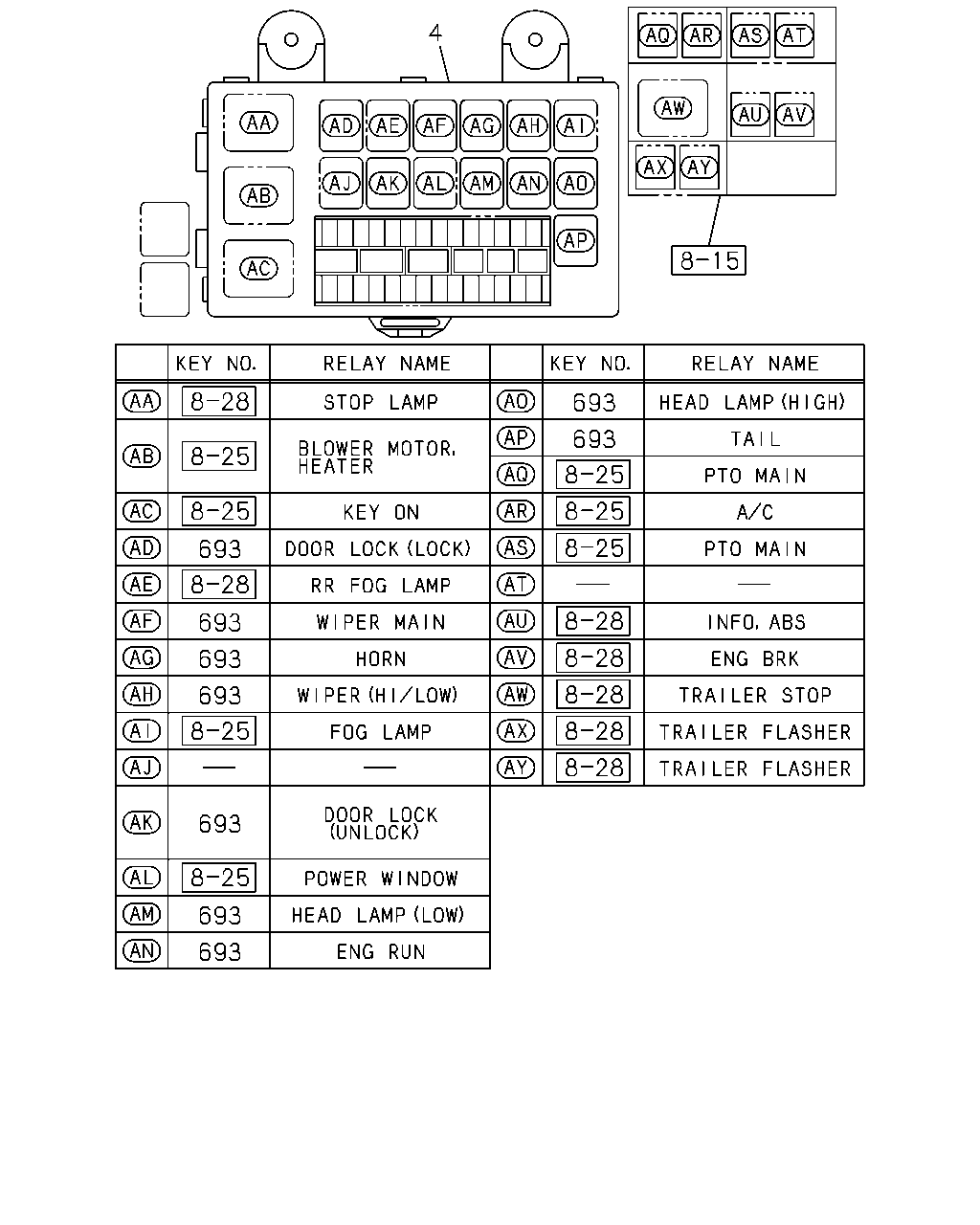

çizim 113706
4 693 693 693 693 693 693 693 693 693
BalonParca AdiParca NoAdetTipApplied Date
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 1110-
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 1110-

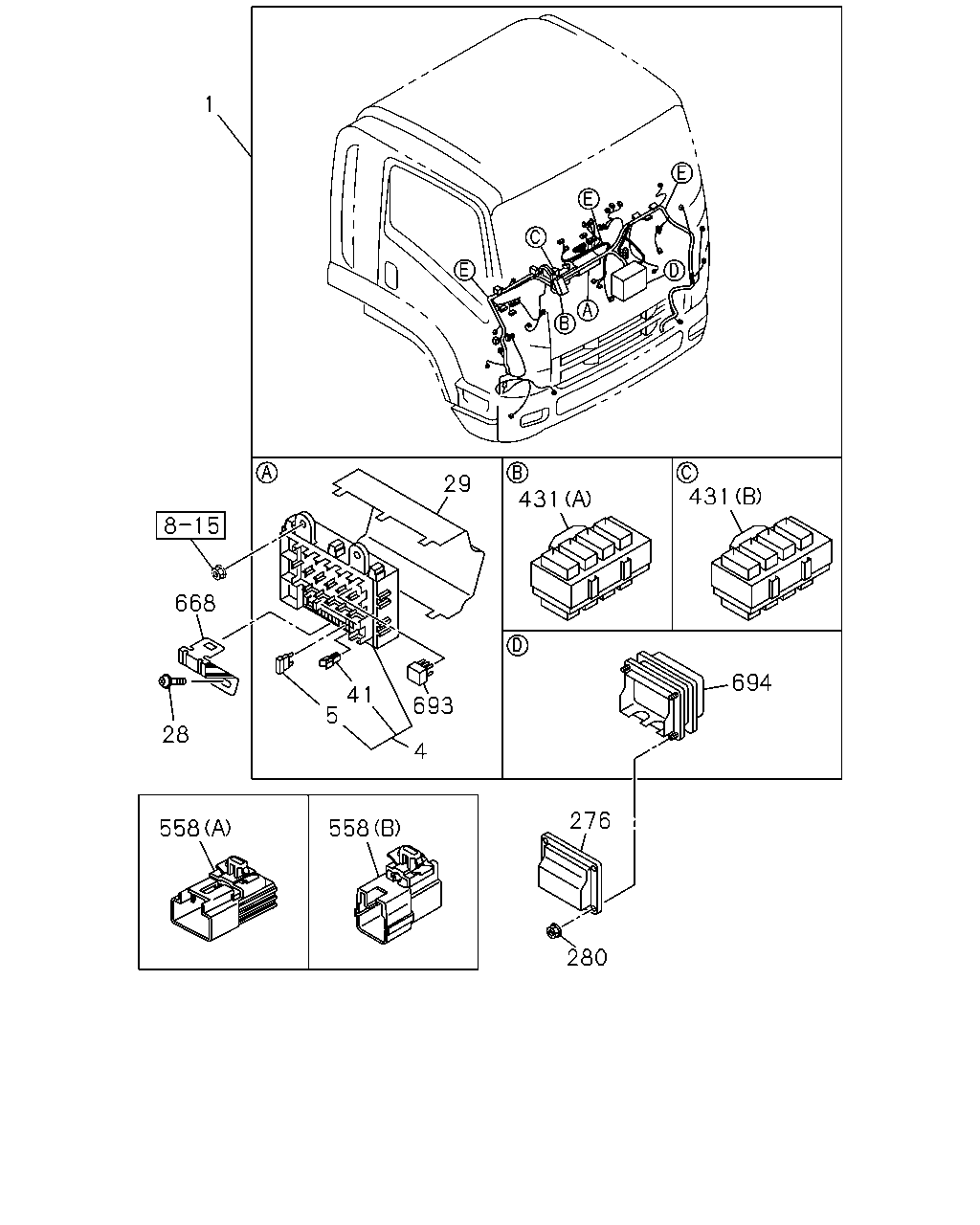

çizim 113713
1 431 431 29 668 694 41 5 693 28 4 276 558 558 280
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> REMOTE CONT DOOR LOCK<6NF> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98188-107-0 01 1 1110-1209
1 HARNESS; CAB
REMOTE CONT DOOR LOCK<6NF> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98188-107-0 01 1 1210-1311
1 HARNESS; CAB
REMOTE CONT DOOR LOCK<6NF> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98085-084-4 01 1 1312-
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> EXC. AIR BAG DRIVER & PASSENGER(AK5),REMOTE CONT DOOR LOCK<6NF> 		8-98188-106-0 01 1 1110-1209
1 HARNESS; CAB
EXC. AIR BAG DRIVER & PASSENGER(AK5),REMOTE CONT DOOR LOCK<6NF> 		8-98188-106-0 01 1 1210-1311
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> EXC. AIR BAG DRIVER & PASSENGER(AK5),REMOTE CONT DOOR LOCK<6NF> 		8-98196-305-0 01 1 1110-1209
1 HARNESS; CAB
EXC. AIR BAG DRIVER & PASSENGER(AK5),REMOTE CONT DOOR LOCK<6NF> 		8-98196-305-0 01 1 1210-
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) IN HOUSE PRODUCTION<TKF> REMOTE CONT DOOR LOCK<6NF> 		8-98188-113-0 01 1 1110-1209
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) REMOTE CONT DOOR LOCK<6NF> 		8-98188-113-0 01 1 1210-
1 HARNESS; CAB
REMOTE CONT DOOR LOCK<6NF> EXC. AIR BAG DRIVER & PASSENGER(AK5),IN HOUSE PRODUCTION<TKF> 		8-98085-084-4 01 1 1110-1209
1 HARNESS; CAB
EXC. AIR BAG DRIVER & PASSENGER(AK5),IN HOUSE PRODUCTION<TKF>,REMOTE CONT DOOR LOCK<6NF> 		8-98196-304-0 01 1 1110-1209
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 1110-
5 FUSE; FACIA HARNESS
10A RED 		8-98054-257-0 AR 1 1110-
5 FUSE; FACIA HARNESS
15A BLUE 		8-98054-258-0 AR 1 1110-
5 FUSE; FACIA HARNESS
20A YELLOW 		8-98054-259-0 AR 1 1110-
5 FUSE; FACIA HARNESS
25A WHITE 		8-98062-982-0 02 1 1110-
28 SCREW; FUSE BOX
M6X16 FLANGE 		0-28650-616-0 01 1 1110-
29 COVER; FUSE BOX 8-98056-968-0 01 1 1110-
41 PULLER; FUSE 8-98054-260-0 01 1 1110-
276 COVER; BOX,FRAME HARNESS 8-98034-039-1 01 1 1110-
280 NUT; BOX ASM FIX
M6 FLANGE 		0-91180-106-0 04 1 1110-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 05 1 1110-
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 02 1 1110-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 04 1 1110-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 1110-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 09 1 1110-
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 1110-
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1110-
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1110-
558 CONNECTOR; HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98108-678-0 01 1 1110-
558 CONNECTOR; HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98108-679-0 01 1 1110-
668 BRACKET; HARNESS 8-98095-653-2 01 1 1110-
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 1110-
694 BOX ASM; CONNECTOR 8-98063-269-1 01 1 1110-

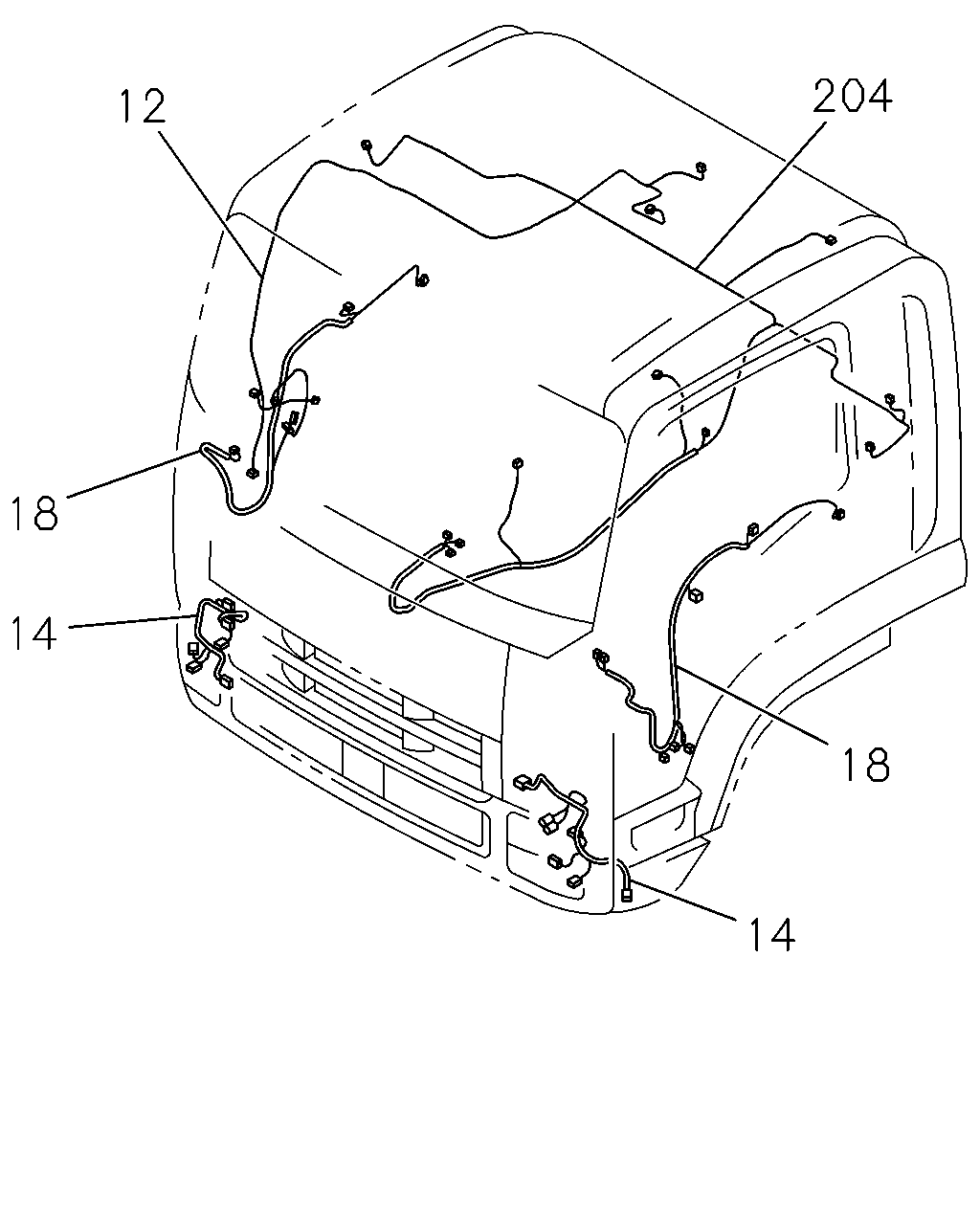

çizim 113714
204 12 18 14 18 14
BalonParca AdiParca NoAdetTipApplied Date
12 HARNESS; ROOF
EXC. FLUORESCENT LAMP<6UC> 		8-98085-336-1 01 1 1110-
12 HARNESS; ROOF
FLUORESCENT LAMP<6UC> 		8-98079-074-2 01 1 1110-
14 HARNESS; HEADLAMP 8-98069-166-1 02 1 1110-
18 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> 		8-98084-285-2 01 1 1110-1202
18 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> 		8-98084-285-2 01 1 1203-
18 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> 		8-98084-290-2 01 1 1110-1202
18 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> 		8-98084-290-2 01 1 1203-
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> 		8-98080-127-3 01 1 1110-
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> 		8-98080-128-3 01 1 1110-
204 HARNESS; CABLE,FLOOR
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98085-307-1 01 1 1110-
204 HARNESS; CABLE,FLOOR
AIR BAG DRIVER & PASSENGER(AK5) 		8-98196-408-0 01 1 1110-

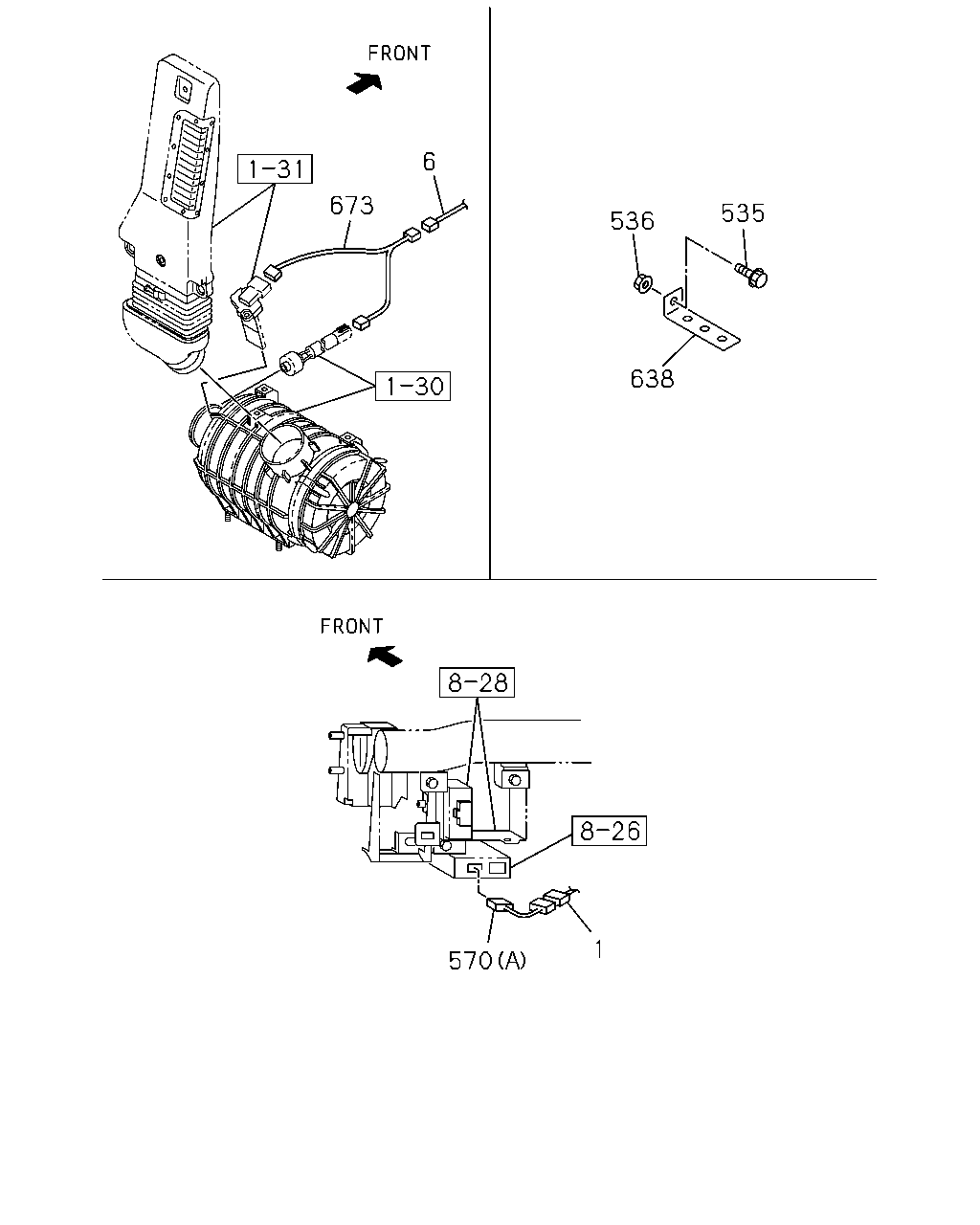

çizim 113716
6 673 535 536 638 1 570
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> REMOTE CONT DOOR LOCK<6NF> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98188-107-0 01 1 1110-1209
1 HARNESS; CAB
REMOTE CONT DOOR LOCK<6NF> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98188-107-0 01 1 1210-1311
1 HARNESS; CAB
REMOTE CONT DOOR LOCK<6NF> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98085-084-4 01 1 1312-
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> EXC. AIR BAG DRIVER & PASSENGER(AK5),REMOTE CONT DOOR LOCK<6NF> 		8-98188-106-0 01 1 1110-1209
1 HARNESS; CAB
EXC. AIR BAG DRIVER & PASSENGER(AK5),REMOTE CONT DOOR LOCK<6NF> 		8-98188-106-0 01 1 1210-1311
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> EXC. AIR BAG DRIVER & PASSENGER(AK5),REMOTE CONT DOOR LOCK<6NF> 		8-98196-305-0 01 1 1110-1209
1 HARNESS; CAB
EXC. AIR BAG DRIVER & PASSENGER(AK5),REMOTE CONT DOOR LOCK<6NF> 		8-98196-305-0 01 1 1210-
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) IN HOUSE PRODUCTION<TKF> REMOTE CONT DOOR LOCK<6NF> 		8-98188-113-0 01 1 1110-1209
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) REMOTE CONT DOOR LOCK<6NF> 		8-98188-113-0 01 1 1210-
1 HARNESS; CAB
REMOTE CONT DOOR LOCK<6NF> EXC. AIR BAG DRIVER & PASSENGER(AK5),IN HOUSE PRODUCTION<TKF> 		8-98085-084-4 01 1 1110-1209
1 HARNESS; CAB
EXC. AIR BAG DRIVER & PASSENGER(AK5),IN HOUSE PRODUCTION<TKF>,REMOTE CONT DOOR LOCK<6NF> 		8-98196-304-0 01 1 1110-1209
6 HARNESS; FRAME
EXC. CAB SUSPENSION FULL FLOATING<W16> 		8-98194-964-1 01 1 1110-1404
6 HARNESS; FRAME
CAB SUSPENSION FULL FLOATING<W16> 		8-98194-965-1 01 1 1110-1404
6 HARNESS; FRAME 8-98250-801-0 01 1 1405-
535 BOLT; BRKT FIX
M8X35 FLANGE 		0-28650-835-0 01 1 1110-
536 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 01 1 1110-
570 HARNESS; SPEED SENSOR
(B) 		8-98148-602-0 01 1 1110-
570 HARNESS; SPEED SENSOR
(A) 		8-98058-327-1 01 1 1110-
638 BRACKET; SPD SENSOR 1-82698-167-0 01 1 1110-
673 HARNESS; EXT,SENSOR 8-98069-172-0 01 1 1110-1404
673 HARNESS; EXT,SENSOR 8-98175-402-0 01 1 1405-

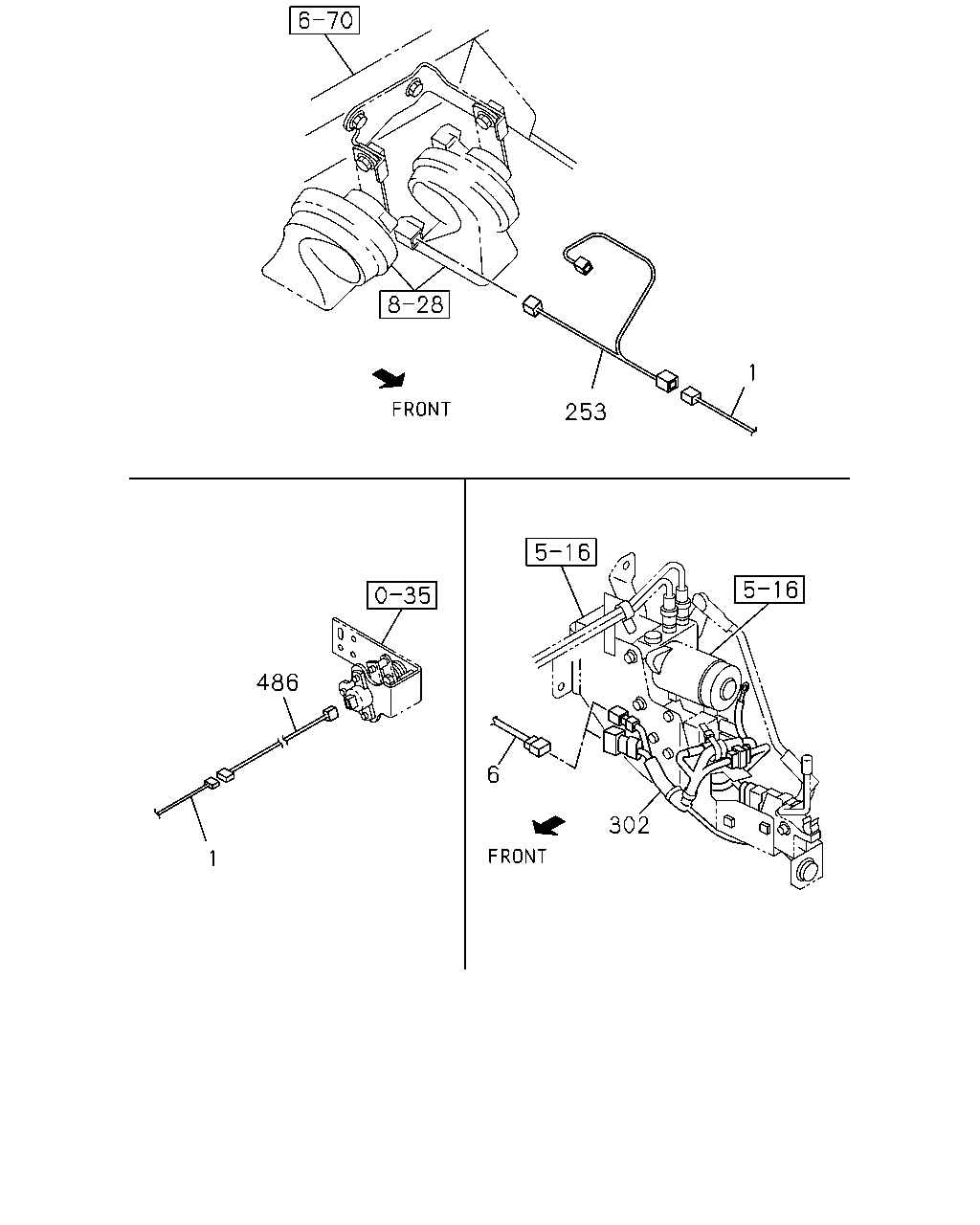

çizim 113718
1 253 486 6 302 1
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> REMOTE CONT DOOR LOCK<6NF> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98188-107-0 01 1 1110-1209
1 HARNESS; CAB
REMOTE CONT DOOR LOCK<6NF> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98188-107-0 01 1 1210-1311
1 HARNESS; CAB
REMOTE CONT DOOR LOCK<6NF> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98085-084-4 01 1 1312-
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> EXC. AIR BAG DRIVER & PASSENGER(AK5),REMOTE CONT DOOR LOCK<6NF> 		8-98188-106-0 01 1 1110-1209
1 HARNESS; CAB
EXC. AIR BAG DRIVER & PASSENGER(AK5),REMOTE CONT DOOR LOCK<6NF> 		8-98188-106-0 01 1 1210-1311
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> EXC. AIR BAG DRIVER & PASSENGER(AK5),REMOTE CONT DOOR LOCK<6NF> 		8-98196-305-0 01 1 1110-1209
1 HARNESS; CAB
EXC. AIR BAG DRIVER & PASSENGER(AK5),REMOTE CONT DOOR LOCK<6NF> 		8-98196-305-0 01 1 1210-
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) IN HOUSE PRODUCTION<TKF> REMOTE CONT DOOR LOCK<6NF> 		8-98188-113-0 01 1 1110-1209
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) REMOTE CONT DOOR LOCK<6NF> 		8-98188-113-0 01 1 1210-
1 HARNESS; CAB
REMOTE CONT DOOR LOCK<6NF> EXC. AIR BAG DRIVER & PASSENGER(AK5),IN HOUSE PRODUCTION<TKF> 		8-98085-084-4 01 1 1110-1209
1 HARNESS; CAB
EXC. AIR BAG DRIVER & PASSENGER(AK5),IN HOUSE PRODUCTION<TKF>,REMOTE CONT DOOR LOCK<6NF> 		8-98196-304-0 01 1 1110-1209
6 HARNESS; FRAME
EXC. CAB SUSPENSION FULL FLOATING<W16> 		8-98194-964-1 01 1 1110-1404
6 HARNESS; FRAME
CAB SUSPENSION FULL FLOATING<W16> 		8-98194-965-1 01 1 1110-1404
6 HARNESS; FRAME 8-98250-801-0 01 1 1405-
253 HARNESS; EXT,HORN 8-98074-081-2 01 1 1110-
302 HARNESS; POWER CAB TILT
AUTO CAB TILT<WV2> 		8-97620-490-1 01 1 1110-1404
302 HARNESS; POWER CAB TILT 8-97620-490-1 01 1 1405-
486 HARNESS; ALL SPEED ACCEL
PTO ZF TRANS RR(BDM) 		1-82675-898-0 01 1 1110-

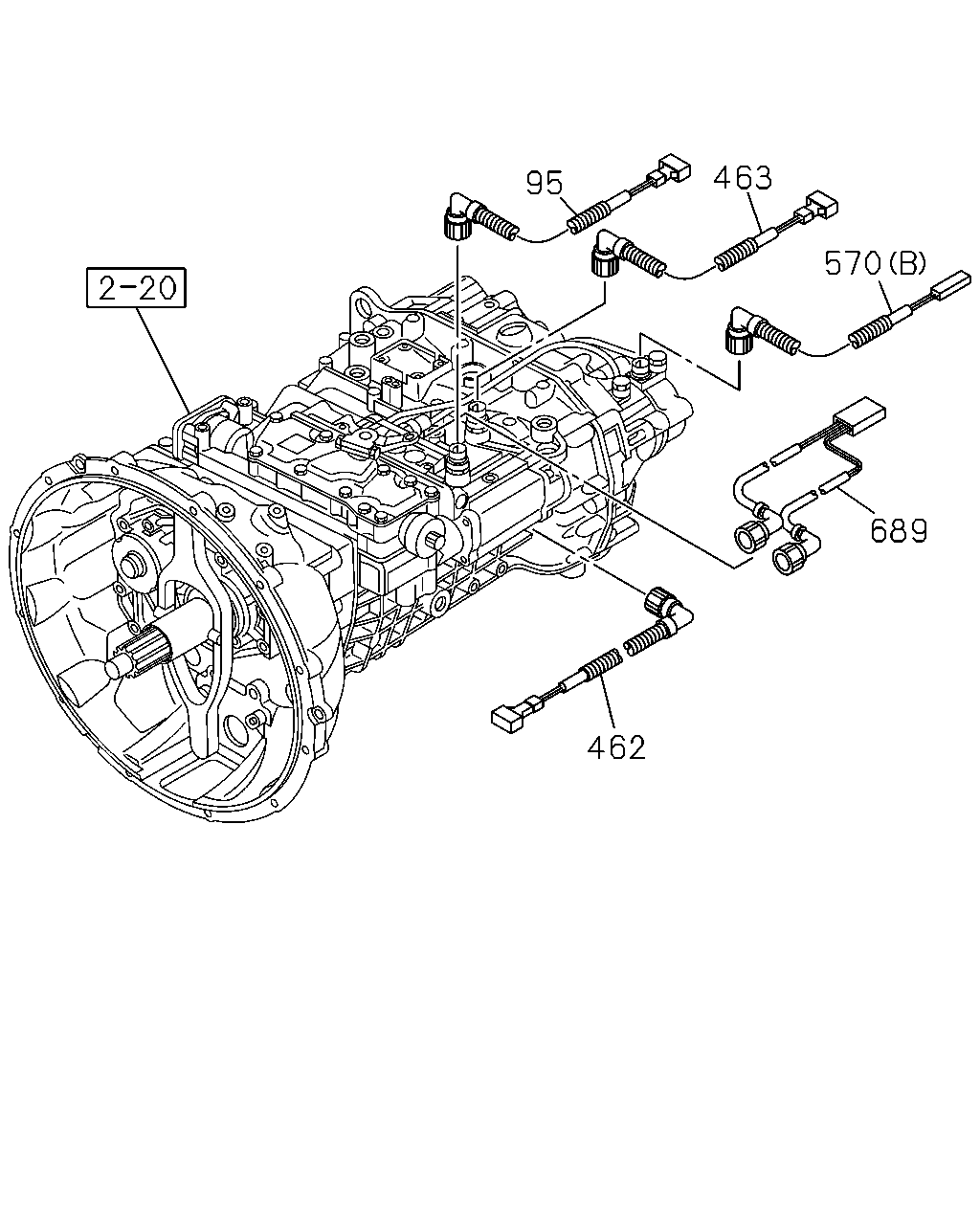

çizim 113740
463 95 570 689 462
BalonParca AdiParca NoAdetTipApplied Date
95 HARNESS; NEUTRAL SW
RED 		8-98145-854-0 01 1 1110-
462 HARNESS; SW,RANGE
BLUE 		8-98145-857-0 01 1 1110-
463 HARNESS; SW,BACK UP
BLACK 		8-98145-856-0 01 1 1110-
570 HARNESS; SPEED SENSOR
(B) 		8-98148-602-0 01 1 1110-
570 HARNESS; SPEED SENSOR
(A) 		8-98058-327-1 01 1 1110-
689 HARNESS; PRESSURE & ECU SWITCH 8-98148-603-0 01 1 1110-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
