Isuzu WW
▶
TRUCKS
▶
FVR
▶
11439 - FVR(IRAN)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-03 - LAMP; REAR AND REAR SIDE
▶

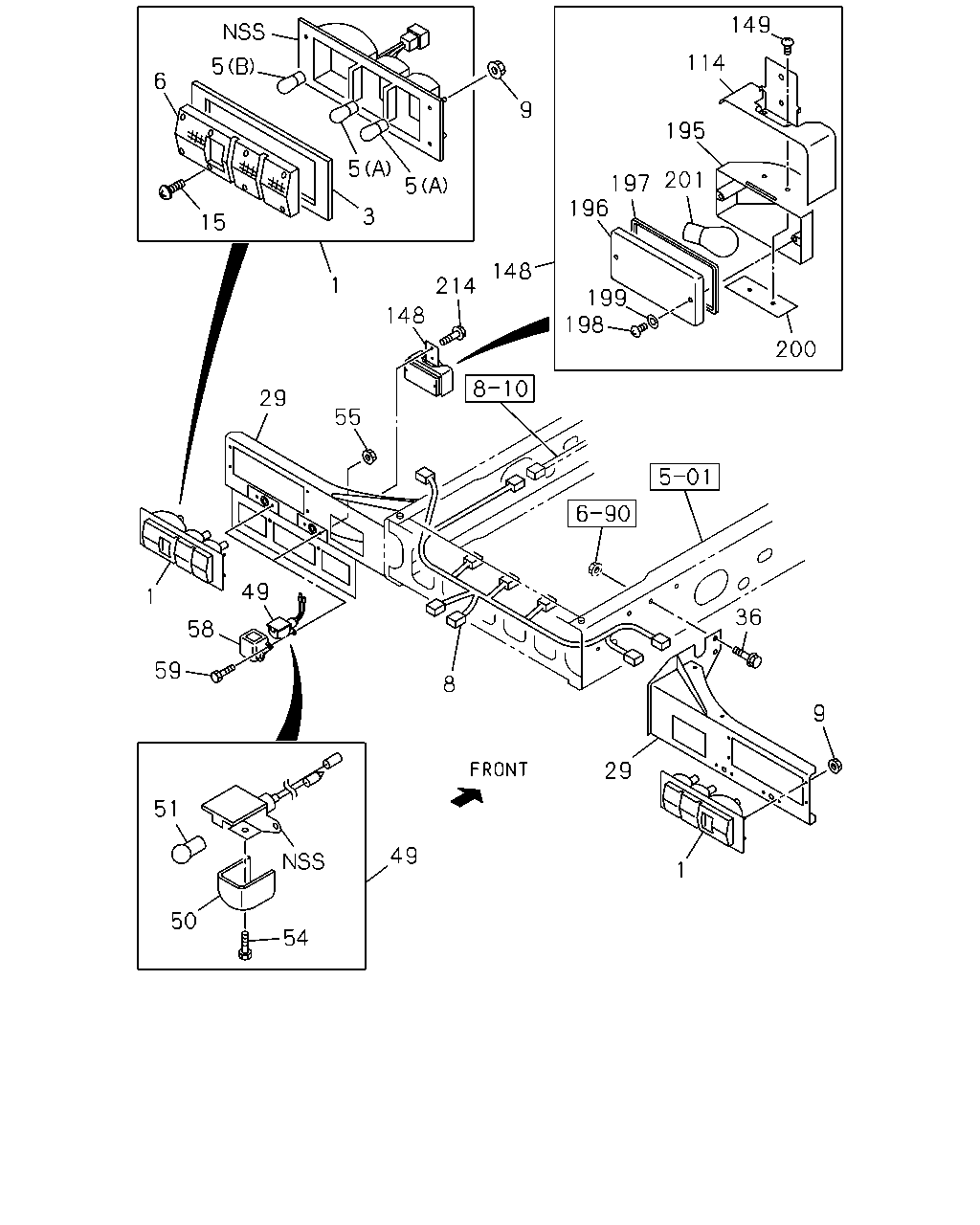

8-03 — LAMP; REAR AND REAR SIDE
(#44823) — 36 parça
149
114
5
6
9
195
5
201
197
196
5
3
15
148
1
214
199
198
148
200
29
55
49
1
36
58
59
8
9
29
51
49
1
50
54
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LAMP ASM; RR COMB
8-98020-845-2
01
1
1110-1207
1
LAMP ASM; RR COMB
8-98223-615-0
01
1
1208-
1
LAMP ASM; RR COMB
8-98020-846-2
01
1
1110-1207
1
LAMP ASM; RR COMB
8-98223-616-0
01
1
1208-
3
GASKET; RR COMB LAMP
5-82236-001-0
01
1
1110-
3
GASKET; RR COMB LAMP
5-82236-002-0
01
1
1110-
5
BULB; RR COMB LAMP
(A) 24V 21W
8-98017-972-0
04
1
1110-
5
BULB; RR COMB LAMP
(B) 24V 21/5W
8-98017-973-0
02
1
1110-
6
LENS; RR COMB LAMP
5-82235-001-0
01
1
1110-
6
LENS; RR COMB LAMP
5-82235-002-0
01
1
1110-
8
HARNESS; RR COMB LAMP
8-98115-347-3
01
1
1110-1201
8
HARNESS; RR COMB LAMP
8-98203-884-0
01
1
1202-
9
NUT; LAMP,RR COMB
M5 FLANGE
1-09984-170-0
08
1
1110-
15
SCREW; RR COMB LAMP
8-97017-759-0
16
1
1110-
29
BRACKET; LAMP,RR COMB
8-98112-149-2
01
1
1110-
29
BRACKET; LAMP,RR COMB
8-98112-150-2
01
1
1110-
36
BOLT; BRKT,RR COMB
M10X30 FLANGE
0-28651-030-0
04
1
1110-
49
LAMP; LICENSE PLATE
24V 5W IRA
8-97105-380-0
02
1
1110-1509
49
LAMP; LICENSE PLATE
24V 5W IRA
8-98329-430-0
02
1
1510-
50
LENS; LICENSE PLATE LAMP
IRA
8-97108-212-0
02
1
1110-
51
BULB; LICENSE PLATE LAMP
24V 5W IRA
1-82194-039-0
02
1
1110-
54
SCREW; LICENSE PLATE LAMP
M4X8
8-94419-312-0
02
1
1110-
55
NUT; LICENSE PLATE LAMP
M5 FLANGE
1-09984-170-0
04
1
1110-
58
COVER; LICENSE PLATE LAMP
8-97076-590-1
02
1
1110-
59
SCREW; TAP,LICENSE LAMP BODY
M5X20
9-93490-520-0
04
1
1110-
114
BRACKET; RR FOG LAMP
8-97108-583-0
01
1
1110-
148
LAMP ASM; RR FOG
1-82110-477-0
01
1
1110-
149
SCREW; BRKT TO LAMP BODY
8-94336-372-0
02
1
1110-
195
LAMP UNIT; RR FOG
8-94336-322-0
01
1
1110-
196
LENS; RR FOG LAMP
8-94336-325-0
01
1
1110-
197
GASKET; RR FOG LAMP
8-94336-324-0
01
1
1110-
198
SCREW; LENS TO BODY
0-71190-416-0
02
1
1110-
199
WASHER; LENS,RR FOG LAMP
8-94336-326-0
02
1
1110-
200
PLATE; SET,RR FOG LAMP
8-94336-323-0
01
1
1110-
201
BULB; RR FOG LAMP
24V 21W
1-82194-036-0
01
1
1110-
214
BOLT; RR FOG LAMP
M6X16 FLANGE
0-28650-616-0
01
1
1110-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
