5-30 — SPARE TIRE CARRIER AND COVER (#4482) — 52 parça

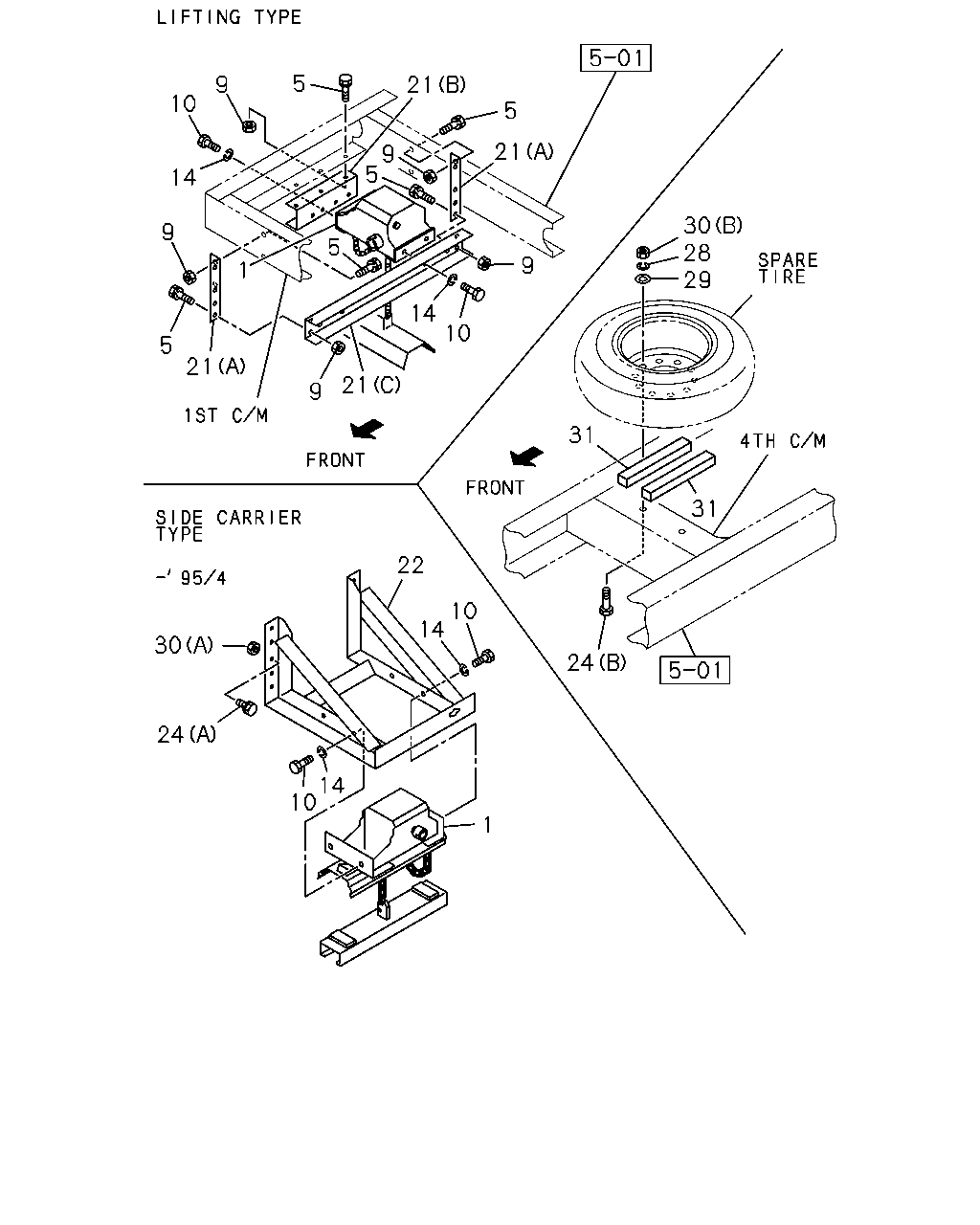

çizim 37097
5 9 21 10 5 9 21 5 14 30 28 29 9 1 9 5 14 10 5 21 21 9 31 31 22 10 14 30 24 24 14 10 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME SIDE(P13),SPARE TIRE CARRIER LIFTING TYPE(SY8) DISC WHEEL 10STUD 22.5X8.25 165-13<QM8>,DISC WHEEL10STUD 20X7.00T<Q58>,DISC WHEEL 10STUD 20X7.50V 165-12<Q64> 		1-53630-146-1 01 1 9101-9504 ● ●
1 HANGER ASM; TIRE FT
INTERNATIONAL STD ISO<B3V> SPARE WHEEL CARRIER(SFB) 		1-53630-146-1 01 1 9505-9704 ● ●
1 HANGER ASM; TIRE FT
INTERNATIONAL STD ISO<B3V> SPARE WHEEL CARRIER(SFB) 		1-53630-210-4 01 1 9705- ● ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME SIDE(P13),SPARE TIRE CARRIER LIFTING TYPE(SY8) EXC. DISC WHEEL 10STUD 22.5X8.25 165-13<QM8>,DISC WHEEL 10STUD 20X7.00T<Q58>,DISC WHEEL 10STUD 20X7.50V 165-12<Q64> 		1-53630-147-2 01 1 9101-9504 ● ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER(SFB) EXC. INTERNATIONAL STD ISO<B3V> 		1-53630-147-2 01 1 9505-9704 ● ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER(SFB) EXC. INTERNATIONAL STD ISO<B3V> 		1-53630-208-3 01 1 9705- ● ●
5 BOLT; BRKT TO FRAME
SPARE TIRE CARRIER LIFTING TYPE(SY8) M12X28 W/LK WASHER 		0-50041-228-0 11 1 9101-9504 ● ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER(SFB) M12X30 FLANGE 		0-28081-230-0 11 1 9505-9606 ● ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER(SFB) M12X35 FLANGE 		0-28681-235-0 11 1 9607-0512 ● ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER(SFB) M12X35 FLANGE 		0-28651-235-0 11 1 0601- ● ●
9 NUT; BRKT TO FRAME
SPARE TIRE CARRIER LIFTING TYPE(SY8) M12 		9-99110-512-0 11 1 9101-9504 ● ●
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER(SFB) M12 		9-99110-512-0 11 1 9505-0512 ● ●
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER(SFB) M12 		0-91110-512-0 11 1 0601- ● ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE(P13),SPARE TIRE CARRIER LIFTING TYPE(SY8) M16X30 		0-20801-630-0 04 1 9101-9504 ● ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER(SFB) M16X30 		0-28081-630-0 04 1 9505-9608 ● ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER(SFB) M16X30 		0-20801-630-0 04 1 9609-9704 ● ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER(SFB) M12X30 FLANGE 		0-28681-230-0 04 1 9705-0512 ● ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER(SFB) M12X30 FLANGE 		0-28651-230-0 04 1 0601- ● ●
14 WASHER; LK,TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE(P13),SPARE TIRE CARRIER LIFTING TYPE(SY8) ID=16.2 		9-09150-516-0 04 1 9101-9504 ● ●
14 WASHER; LK,TIRE HANGER
SPARE WHEEL CARRIER(SFB) ID=16.2 		9-09150-516-0 04 1 9505-9606 ● ●
21 BRACKET; SPARE TIRE HANGER
SPARE TIRE CARRIER LIFTING TYPE(SY8) (A) 		1-53618-019-1 02 1 9101-9504 ● ●
21 BRACKET; SPARE TIRE HANGER
SPARE WHEEL CARRIER(SFB) (A) 		1-53618-019-1 02 1 9505-9704 ● ●
21 BRACKET; SPARE TIRE HANGER
SPARE WHEEL CARRIER(SFB) (A) 		1-53618-046-0 02 1 9705- ● ●
21 BRACKET; SPARE TIRE HANGER
SPARE TIRE CARRIER LIFTING TYPE(SY8) (B) 		1-53618-020-0 01 1 9101-9504 ● ●
21 BRACKET; SPARE TIRE HANGER
SPARE WHEEL CARRIER(SFB) (B) 		1-53618-020-0 01 1 9505-9704 ● ●
21 BRACKET; SPARE TIRE HANGER
SPARE WHEEL CARRIER(SFB) (B) 		1-53618-047-0 01 1 9705- ● ●
21 BRACKET; SPARE TIRE HANGER
SPARE TIRE CARRIER LIFTING TYPE(SY8) (C) 		1-53618-021-1 01 1 9101-9504 ● ●
21 BRACKET; SPARE TIRE HANGER
SPARE WHEEL CARRIER(SFB) (C) 		1-53618-021-1 01 1 9505-9704 ● ●
21 BRACKET; SPARE TIRE HANGER
SPARE WHEEL CARRIER(SFB) (C) 		1-53618-048-0 01 1 9705- ● ●
22 BRACKET; SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE(P13) 		1-53631-064-0 01 1 9101-9504 ● ●
24 BOLT; SPARE TIRE
DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR(R46) EXC. SPARE TIRE CARRIER LIFTING TYPE(SY8) (B) M14X80 		9-92041-480-0 02 1 9101-9204 ● ●
24 BOLT; SPARE TIRE
DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR(R46) EXC. SPARE TIRE CARRIER LIFTING TYPE(SY8) (B) M14X80 		0-20801-480-0 02 1 9205-9504 ● ●
24 BOLT; SPARE TIRE
DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR(R46) EXC. SPARE WHEEL CARRIER(SFB) (B) M14X80 		0-20801-480-0 02 1 9505-9506 ● ●
24 BOLT; SPARE TIRE
SPARE TIRE FIXING<RE3> (B) M14X80 		0-20801-480-0 02 1 9507-9510 ● ●
24 BOLT; SPARE TIRE
SPARE TIRE FIXING<RE3> (B) M14X100 M14X100 		0-20801-400-0 02 1 9511- ● ●
24 BOLT; SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE(P13) (A) M12X28 W/LK WASHER 		0-50041-228-0 06 1 9101-9504 ● ●
28 WASHER; LK,SPARE TIRE
DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR(R46) EXC. SPARE TIRE CARRIER LIFTING TYPE(SY8) ID=14.2 		9-09150-614-0 02 1 9101-9504 ● ●
28 WASHER; LK,SPARE TIRE
DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR(R46) EXC. SPARE WHEEL CARRIER(SFB) ID=14.2 		9-09150-614-0 02 1 9505-9506 ● ●
28 WASHER; LK,SPARE TIRE
SPARE TIRE FIXING<RE3> ID=14.2 		9-09150-614-0 02 1 9507-0603 ● ●
28 WASHER; LK,SPARE TIRE
SPARE TIRE FIXING<RE3> ID=14.2 		0-91510-614-0 02 1 0604- ● ●
29 WASHER; PL,BRKT,HANGER
DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR(R46) EXC. SPARE TIRE CARRIER LIFTING TYPE(SY8) ID=15 OD=52 		9-09164-414-0 02 1 9101-9504 ● ●
29 WASHER; PL,BRKT,HANGER
DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR(R46) EXC. SPARE WHEEL CARRIER(SFB) ID=15 OD=52 		9-09164-414-0 02 1 9505-9506 ● ●
29 WASHER; PL,BRKT,HANGER
SPARE TIRE FIXING<RE3> ID=15 OD=52 		9-09164-414-0 02 1 9507-9608 ● ●
29 WASHER; PL,BRKT,HANGER
SPARE TIRE FIXING<RE3> ID=15 OD=52 		9-09164-814-0 02 1 9609- ● ●
30 NUT; SPARE TIRE
DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR(R46) EXC. SPARE TIRE CARRIER LIFTING TYPE(SY8) (B) M14 		9-99110-414-0 02 1 9101-9504 ● ●
30 NUT; SPARE TIRE
DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR(R46) EXC. SPARE WHEEL CARRIER(SFB) (B) M14 		9-99110-414-0 02 1 9505-9506 ● ●
30 NUT; SPARE TIRE
SPARE TIRE FIXING<RE3> (B) M14 		9-99110-414-0 02 1 9507-0512 ● ●
30 NUT; SPARE TIRE
SPARE TIRE FIXING<RE3> (B) M14 		0-91110-514-0 02 1 0601- ● ●
30 NUT; SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE(P13) (A) M12 		9-99110-512-0 03 1 9101-9504 ● ●
31 SPACER; HANGER BRKT
DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR(R46) EXC. SPARE TIRE CARRIER LIFTING TYPE(SY8) 		1-53637-007-0 02 1 9101-9504 ● ●
31 SPACER; HANGER BRKT
DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR(R46) EXC. SPARE WHEEL CARRIER(SFB) 		1-53637-007-0 02 1 9505-9506 ● ●
31 SPACER; HANGER BRKT
SPARE TIRE FIXING<RE3> 		1-53637-007-0 02 1 9507- ● ●
