◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11439 - FVR(IRAN) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#44815) — 116 parça

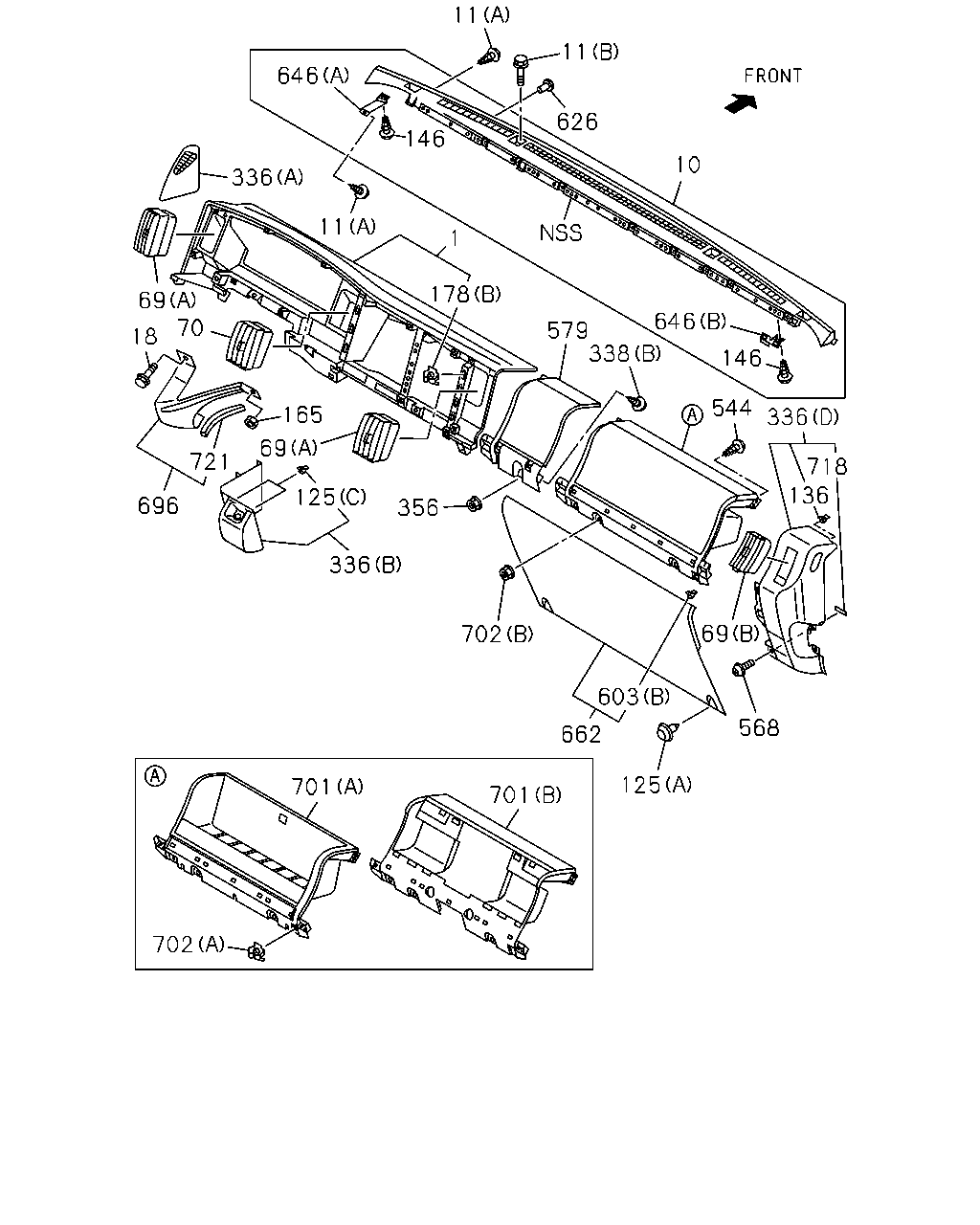

çizim 113672
702 701 701 125 662 568 69 702 336 356 125 69 165 721 696 18 69 336 646 146 11 1 178 579 10 626 11 11 544 646 338 336 718 136 70 603 146
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; INST
GRAY 		8-97409-777-3 01 1 1110-
10 PANEL ASM; GARNISH
GRAY IRA 		8-97422-098-1 01 1 1110-
11 BOLT; INST PNL
(A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1110-
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 1110-
18 BOLT; BRKT
M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 1110-
69 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 1110-
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-563-2 02 1 1110-
70 GRILLE; CENTER,AIR OUTLET 8-98028-561-2 01 1 1110-
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1110-
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1110-
125 CLIP; INST PANEL
(C) 		8-98021-271-0 02 1 1110-
136 CLIP; INST COVER 8-98076-254-0 02 1 1110-
146 SCREW; TAP
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1110-
165 NUT; BRKT KNEE PAD
M6 FLANGE 		0-91180-106-0 01 1 1110-
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 1110-
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 1110-
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97409-779-0 01 1 1110-
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97409-780-3 01 1 1110-
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97409-782-3 01 1 1110-1208
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97424-712-0 01 1 1209-
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97411-635-2 01 1 1110-
338 SCREW; COVER
(B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1110-
338 SCREW; COVER
(A) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1110-
356 NUT; COVER
M6 FLANGE 		0-91180-106-0 01 1 1110-
544 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1110-
568 BOLT; COVER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1110-
579 COVER; INST PNL
GRAY 		8-97411-560-2 01 1 1110-
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1110-
603 CLIP; COVER
(B) 		8-98021-271-0 01 1 1110-
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 1110-
626 RETAINER
OD=15 BLACK 		8-94279-804-0 02 1 1110-
646 BRACKET; GARNISH PANEL
(A) 		8-98066-952-1 01 1 1110-
646 BRACKET; GARNISH PANEL
(B) 		8-98066-953-1 01 1 1110-
662 COVER; LWR,INST PANEL
GRAY 		8-97407-429-3 01 1 1110-
696 BRACKET; KNEE 8-98057-569-0 01 1 1110-1110
696 BRACKET; KNEE 8-98098-126-1 01 1 1110-
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITHOUT LID<JDP> EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) GRAY 		8-97421-976-1 01 1 1110-
701 TRAY; INST
AIR BAG DRIVER & PASSENGER(AK5) EXC. COMPARTMENT - I/P ASSIST SIDE WITHOUT LID<JDP> (B) GRAY 		8-97417-196-2 01 1 1110-
702 NUT; TRAY
(B) M6 FLANGE 		0-91180-106-0 02 1 1110-
702 NUT; TRAY
(A) 		8-98037-629-0 01 1 1110-
718 SEAL; COVER
4X35 		8-98185-153-0 01 1 1209-
721 FINISHER; BRKT,KNEE
L=95 		8-97995-992-0 01 1 1110-1110

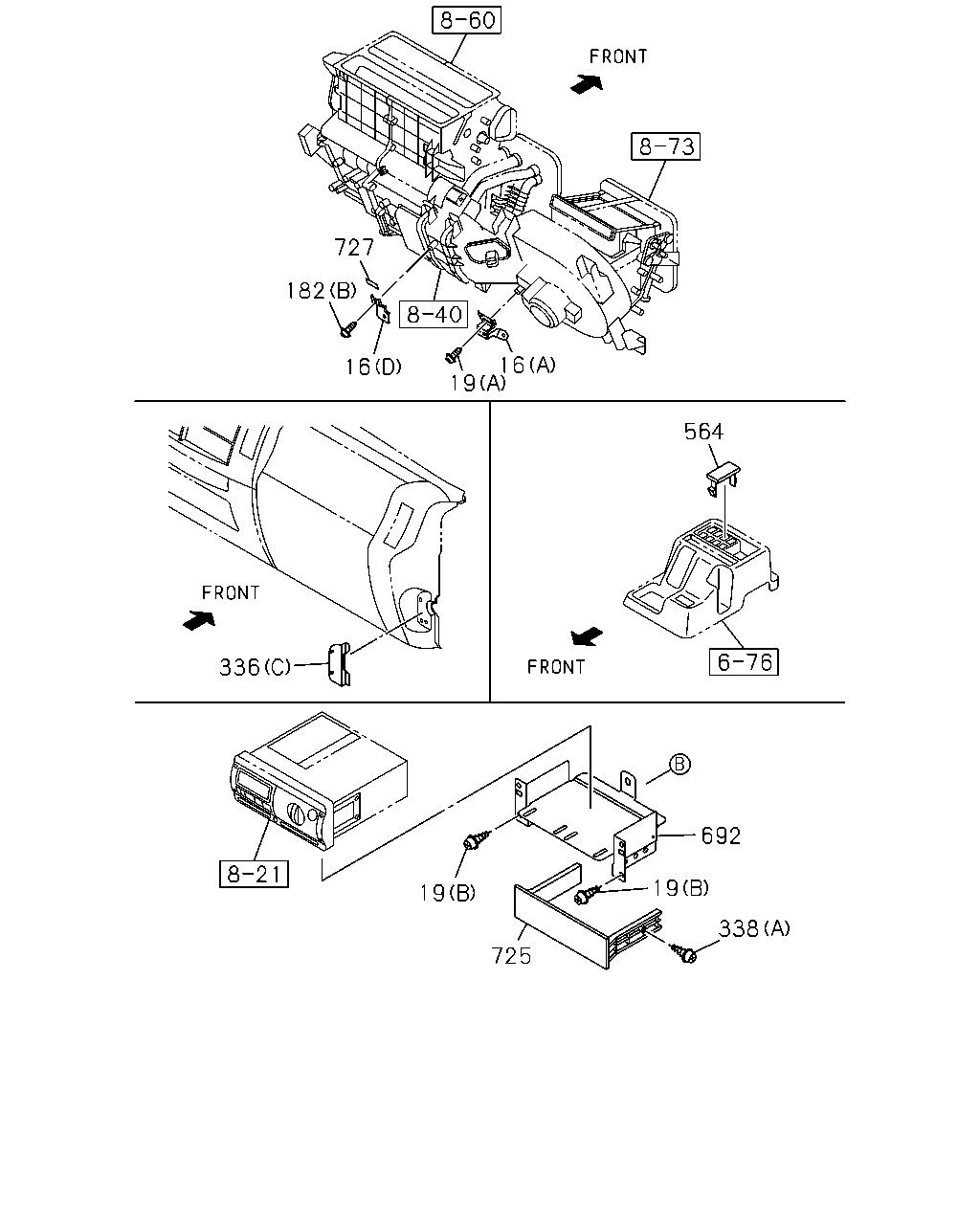

çizim 113673
338 19 692 19 725 336 564 16 19 16 182 727
BalonParca AdiParca NoAdetTipApplied Date
16 BRACKET; INST PNL
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-97585-612-2 01 1 1110-
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1110-
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1110-
16 BRACKET; INST PNL
AIR CONDITIONER MANUAL CONTROL(C60) (D) 		8-98017-529-1 01 1 1110-
16 BRACKET; INST PNL
(C) 		8-98063-326-0 01 1 1110-
19 SCREW; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) (A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1110-
19 SCREW; BRKT
(B) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1110-
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 1110-
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 03 1 1110-1111
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1112-
182 BOLT; BRKT,INST PANEL
AIR CONDITIONER MANUAL CONTROL(C60) (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1110-
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1110-
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97409-779-0 01 1 1110-
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97409-780-3 01 1 1110-
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97409-782-3 01 1 1110-1208
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97424-712-0 01 1 1209-
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97411-635-2 01 1 1110-
338 SCREW; COVER
(B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1110-
338 SCREW; COVER
(A) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1110-
564 COVER; SW 8-97043-732-1 06 1 1110-
692 BRACKET; TACHOGRAPH 8-98094-272-0 01 1 1110-
725 COVER; TACHOGRAPH
BLACK 		8-97407-896-2 01 1 1110-
727 SEAL; BRACKET
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98186-934-0 01 1 1209-

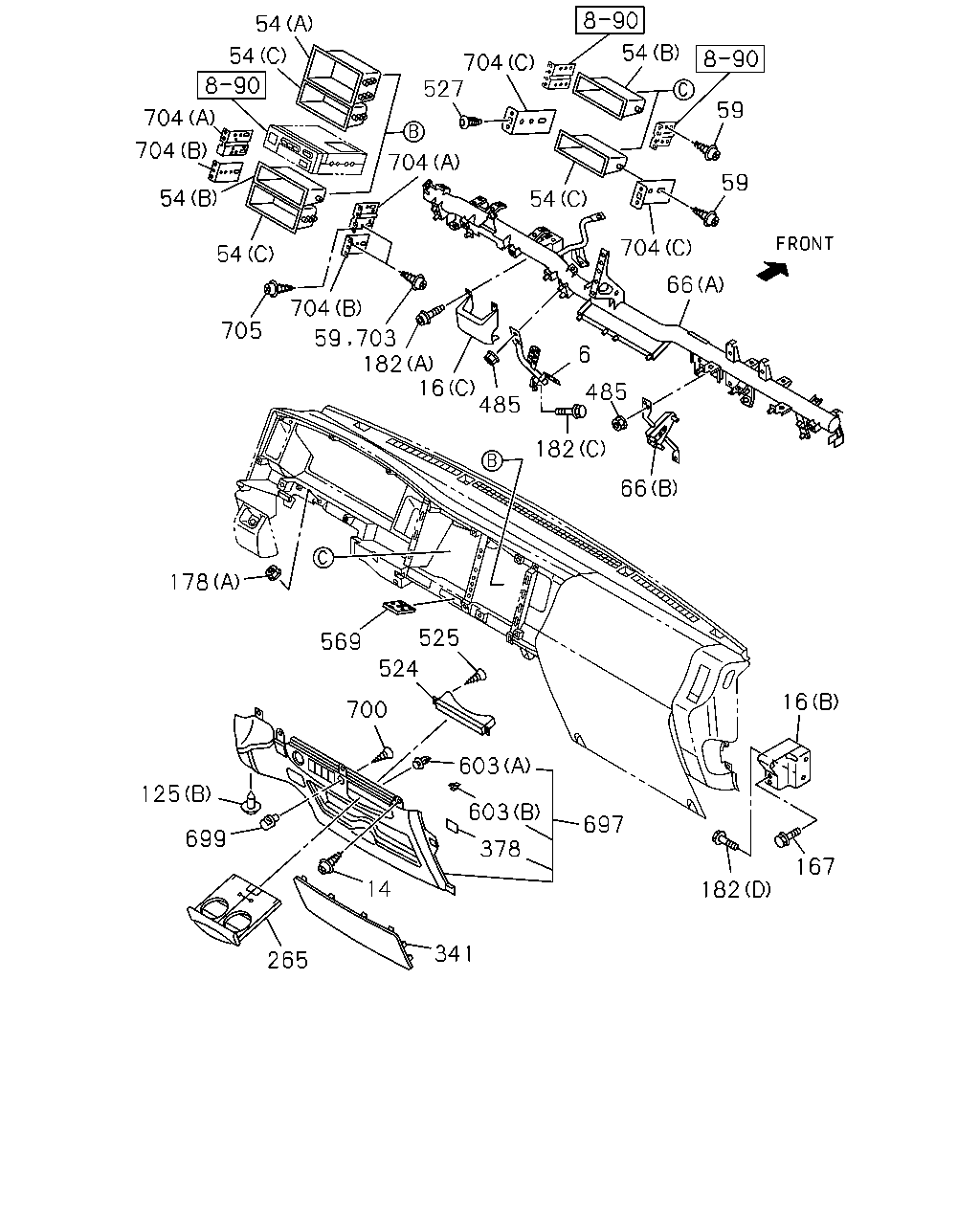

çizim 113698
54 54 704 704 54 54 705 59 703 182 704 16 485 182 66 485 6 66 704 54 59 59 54 704 527 704 178 569 525 524 700 603 603 378 697 182 167 16 341 14 265 699 125
BalonParca AdiParca NoAdetTipApplied Date
6 SUPPORT; INST PANEL 8-98064-936-1 01 1 1110-
14 SCREW; INST PNL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1110-
16 BRACKET; INST PNL
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-97585-612-2 01 1 1110-
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1110-
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1110-
16 BRACKET; INST PNL
AIR CONDITIONER MANUAL CONTROL(C60) (D) 		8-98017-529-1 01 1 1110-
16 BRACKET; INST PNL
(C) 		8-98063-326-0 01 1 1110-
54 POCKET; CENTER CLUSTER
(A) H=108.4 BLACK 		8-97407-129-3 01 1 1110-
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-3 01 1 1110-
54 POCKET; CENTER CLUSTER
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) H=69.8 BLACK 		8-97408-865-3 01 1 1110-
54 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-3 01 1 1110-
59 SCREW; CLUSTER POCKET
EXC. AIR CONDITIONER MANUAL CONTROL(C60) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1110-
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1110-
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1110-
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-97585-581-1 01 1 1110-
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98069-419-7 01 1 1110-1406
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) IRA 		8-98240-611-0 01 1 1407-
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98069-420-7 01 1 1110-1406
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98241-975-0 01 1 1407-
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-98082-466-1 01 1 1110-
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1110-
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1110-
125 CLIP; INST PANEL
(C) 		8-98021-271-0 02 1 1110-
167 BOLT; REINF TO INST
M8X23 FLANGE 		8-97264-766-0 04 1 1110-
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 1110-
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 1110-
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 1110-
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 03 1 1110-1111
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1112-
182 BOLT; BRKT,INST PANEL
AIR CONDITIONER MANUAL CONTROL(C60) (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1110-
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1110-
265 HOLDER; CUP
GRAY 		8-97418-528-0 01 1 1110-
341 LID; FUSE BOX
GRAY 		8-97422-209-0 01 1 1110-
378 SEAL; INST PANEL
5X30 		8-98176-199-0 01 1 1110-
485 NUT; SUPPORT CLIP,HARNESS
M6 FLANGE 		0-91180-106-0 04 1 1110-
524 STAND ASM; CUP,INST 8-98054-414-0 01 1 1110-
525 SCREW; CUP STAND
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1110-
527 CLIP; INST CLUSTER
EXC. AIR CONDITIONER MANUAL CONTROL(C60) DARK GRAY 		8-97098-326-0 01 1 1110-
569 HOLDER; CARD 8-97410-276-1 01 1 1110-
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1110-
603 CLIP; COVER
(B) 		8-98021-271-0 01 1 1110-
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 1110-
697 PANEL; INST CENTER
GRAY 		8-97422-208-1 01 1 1110-
699 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 1110-
700 BOLT; HOOK
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1110-
703 SCREW; CENTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1110-
704 BRACKET; CENTER POCKET
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) 		8-98107-549-0 02 1 1110-
704 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 1110-
704 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 1110-
705 SCREW; BRACKET CENTER POCKET
EXC. AIR CONDITIONER MANUAL CONTROL(C60) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 1110-
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 08 1 1110-
