7-20 — MIRROR AND MIRROR STAY (#44813) — 113 parça

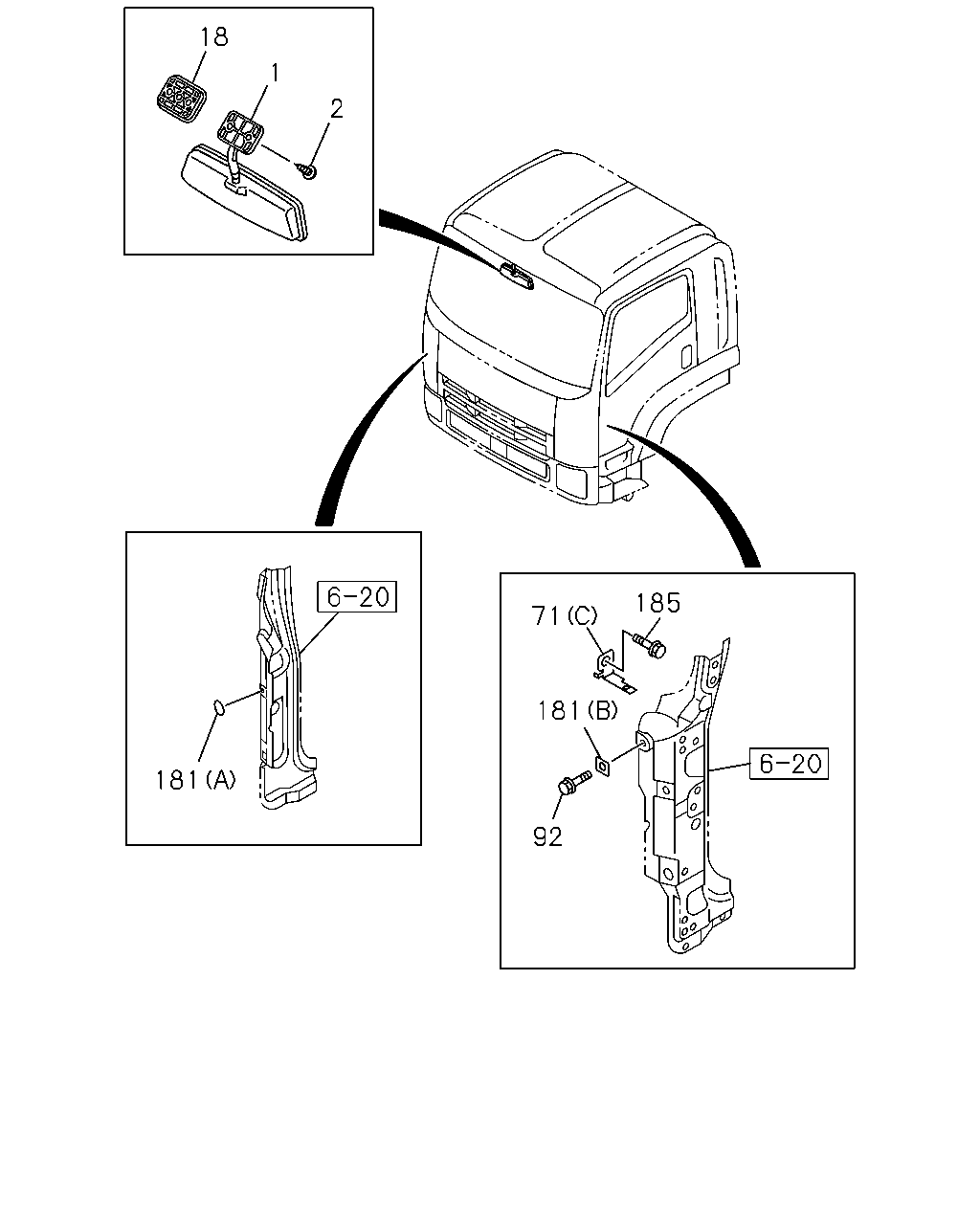

çizim 113660
18 1 2 185 71 181 181 92
BalonParca AdiParca NoAdetTipApplied Date
1 MIRROR; ROOM
DARK GRAY 		8-98097-534-1 01 1 1110-
2 SCREW; MIRROR TO BODY
M6X26 		8-98033-674-0 02 1 1110-
18 CLIP; MIRROR
DARK GRAY 		8-97408-241-0 01 1 1110-
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-484-1 01 1 1110-
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 1110-
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 1110-
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98039-277-2 02 1 1110-
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98064-775-0 01 1 1110-
71 BRACKET; OUTSIDE MIRROR
(E) 		8-98092-491-3 01 1 1110-
92 BOLT; STAY BRKT,MIRROR
M8X16 FLANGE 		8-98076-109-0 01 1 1110-
181 SEAL; BRKT
(A) OD=25 BLACK 		1-76798-019-0 02 1 1110-
181 SEAL; BRKT
(B) 25X25 IRA 		8-94272-533-0 01 1 1110-
185 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 02 1 1110-

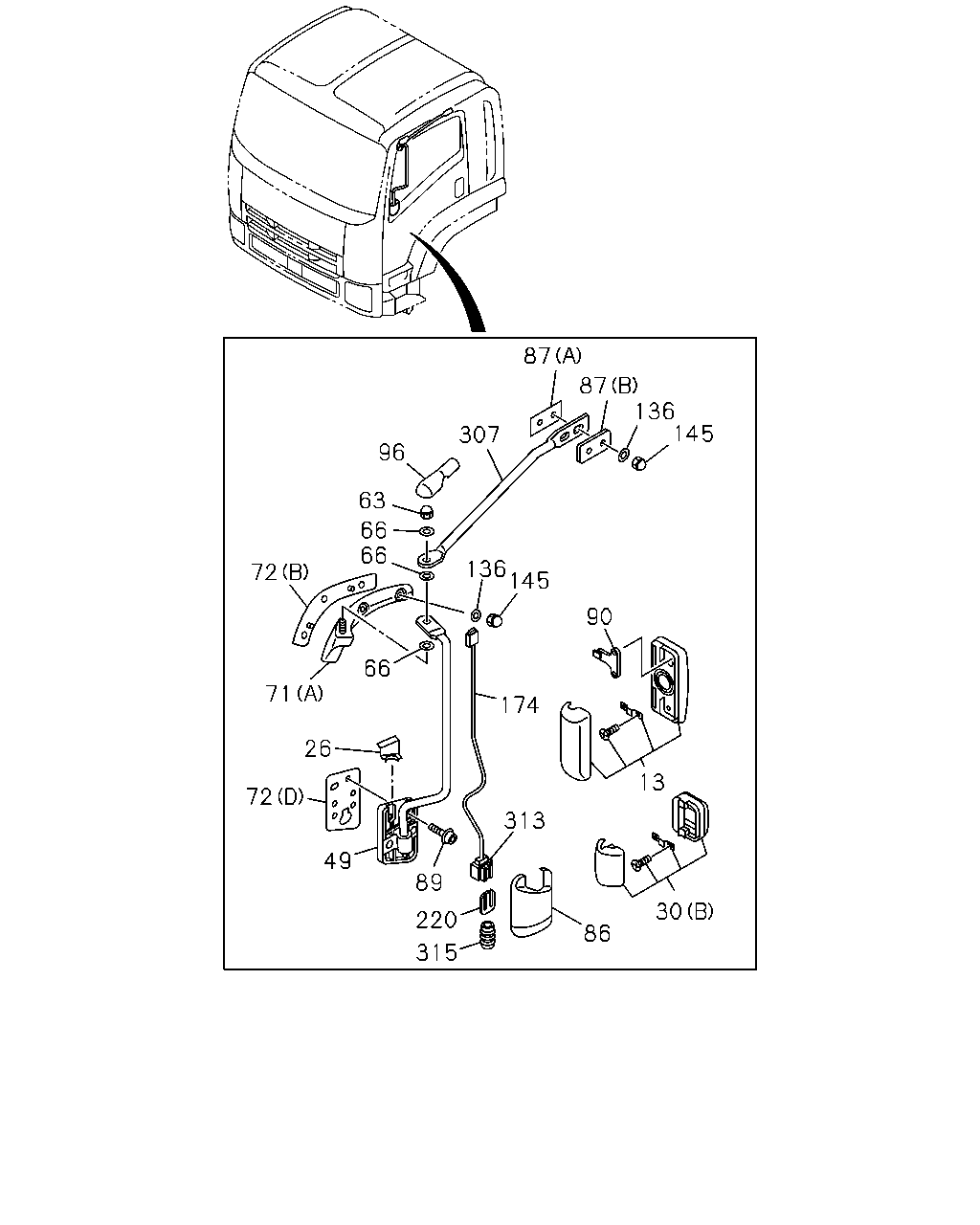

çizim 113675
87 87 136 145 307 96 63 66 66 136 145 72 90 66 71 174 26 13 72 313 49 89 30 220 86 315
BalonParca AdiParca NoAdetTipApplied Date
13 MIRROR ASM; OUTSIDE RR VIEW 8-98043-060-1 01 1 1110-
13 MIRROR ASM; OUTSIDE RR VIEW 8-98043-176-1 01 1 1110-
26 COVER; OUTSIDE MIRROR 8-98031-805-0 01 1 1110-
26 COVER; OUTSIDE MIRROR 8-98031-806-0 01 1 1110-
30 MIRROR; UNDER
(B) 		8-98043-061-0 02 1 1110-
30 MIRROR; UNDER
(A) 		8-98043-065-0 01 1 1110-
30 MIRROR; UNDER
(C) 		8-98055-994-0 01 1 1110-1504
30 MIRROR; UNDER
(C) 		8-98309-725-0 01 1 1505-
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98064-780-1 01 1 1110-1202
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-198-0 01 1 1203-
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98064-781-1 01 1 1110-1202
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-199-0 01 1 1203-
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98075-066-1 01 1 1110-1202
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-210-0 01 1 1203-
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98075-067-1 01 1 1110-1202
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-211-0 01 1 1203-
63 NUT; STAY
M10 CAP NUT 		1-09984-134-0 02 1 1110-
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 02 1 1110-
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 1110-
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-484-1 01 1 1110-
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 1110-
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 1110-
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98039-277-2 02 1 1110-
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98064-775-0 01 1 1110-
71 BRACKET; OUTSIDE MIRROR
(E) 		8-98092-491-3 01 1 1110-
72 SHEET
(D) 		8-98101-864-0 01 1 1110-
72 SHEET
(D) 		8-98101-865-0 01 1 1110-
72 SHEET
(C) 		8-98031-796-0 01 1 1110-
72 SHEET
(B) 		8-98031-797-0 01 1 1110-
72 SHEET
(E) 		8-98060-225-1 01 1 1110-
72 SHEET
(A) 		8-98064-773-0 01 1 1110-
86 COVER; STAY,OUTSIDE MIRROR 8-98031-802-2 01 1 1110-
86 COVER; STAY,OUTSIDE MIRROR 8-98031-803-2 01 1 1110-
87 SPACER
(A) 		8-98063-786-0 02 1 1110-
87 SPACER
(B) IRA 		8-98063-789-0 01 1 1110-
89 SCREW; BRKT,OUTSIDE MIRROR
M8X23 		8-97310-216-1 08 1 1110-
90 BRACKET; MIRROR STAY 8-98129-822-0 02 1 1110-
96 CAP; MIRROR STAY 8-98080-173-0 02 1 1110-
136 WASHER; LK,BRKT,MIRROR STAY
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 1110-
145 NUT; CAP,SUB STAY
M8 CAP NUT 		8-98059-914-0 10 1 1110-
174 HARNESS; MIRROR 8-98125-653-0 02 1 1110-
220 HOLDER; CONNECTOR 8-94447-536-0 02 1 1110-
307 STAY; MIRROR SUPPORT 8-98063-784-2 01 1 1110-
307 STAY; MIRROR SUPPORT 8-98063-785-2 01 1 1110-
313 CONNECTOR; MIRROR 8-94447-532-0 02 1 1110-
315 RUBBER ASM; CONNECTOR 1-82691-026-0 02 1 1110-

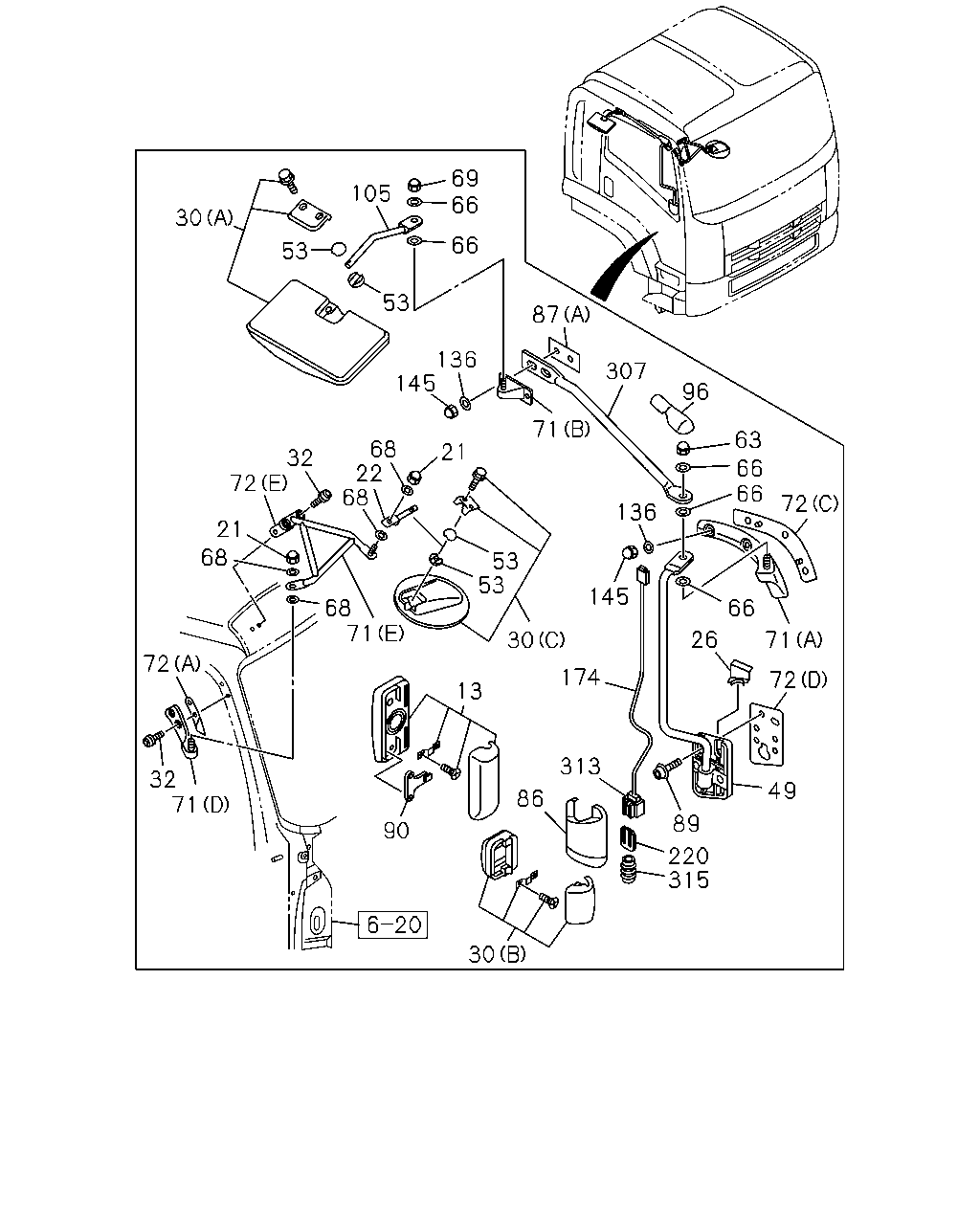

çizim 113685
69 66 105 30 66 53 53 87 136 145 307 96 71 63 68 22 68 21 32 72 66 66 72 136 21 68 53 53 145 68 71 66 26 71 30 72 174 72 13 313 32 71 49 86 89 90 220 315 30
BalonParca AdiParca NoAdetTipApplied Date
13 MIRROR ASM; OUTSIDE RR VIEW 8-98043-060-1 01 1 1110-
13 MIRROR ASM; OUTSIDE RR VIEW 8-98043-176-1 01 1 1110-
21 NUT; MIRROR
M10 CAP NUT 		1-09984-134-0 02 1 1110-
22 STAY; OUTSIDE MIRROR 8-98092-493-0 01 1 1110-
26 COVER; OUTSIDE MIRROR 8-98031-805-0 01 1 1110-
26 COVER; OUTSIDE MIRROR 8-98031-806-0 01 1 1110-
30 MIRROR; UNDER
(B) 		8-98043-061-0 02 1 1110-
30 MIRROR; UNDER
(A) 		8-98043-065-0 01 1 1110-
30 MIRROR; UNDER
(C) 		8-98055-994-0 01 1 1110-1504
30 MIRROR; UNDER
(C) 		8-98309-725-0 01 1 1505-
32 SCREW; UNDER MIRROR
M8X26 W/PL WASHER 		8-98067-249-2 04 1 1110-
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98064-780-1 01 1 1110-1202
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-198-0 01 1 1203-
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98064-781-1 01 1 1110-1202
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-199-0 01 1 1203-
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98075-066-1 01 1 1110-1202
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-210-0 01 1 1203-
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98075-067-1 01 1 1110-1202
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-211-0 01 1 1203-
53 PIVOT; SIDE MIRROR
ID=19.1 		1-71737-633-2 02 1 1110-
53 PIVOT; SIDE MIRROR
ID=19.1 		1-71737-633-2 02 1 1110-
63 NUT; STAY
M10 CAP NUT 		1-09984-134-0 02 1 1110-
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 02 1 1110-
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 1110-
68 WASHER; STAY
ID=10.5 OD=26 T=2.6 		1-09985-204-0 04 1 1110-
69 NUT; CAP
M10 CAP NUT 		1-09984-134-0 01 1 1110-
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-484-1 01 1 1110-
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 1110-
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 1110-
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98039-277-2 02 1 1110-
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98064-775-0 01 1 1110-
71 BRACKET; OUTSIDE MIRROR
(E) 		8-98092-491-3 01 1 1110-
72 SHEET
(D) 		8-98101-864-0 01 1 1110-
72 SHEET
(D) 		8-98101-865-0 01 1 1110-
72 SHEET
(C) 		8-98031-796-0 01 1 1110-
72 SHEET
(B) 		8-98031-797-0 01 1 1110-
72 SHEET
(E) 		8-98060-225-1 01 1 1110-
72 SHEET
(A) 		8-98064-773-0 01 1 1110-
86 COVER; STAY,OUTSIDE MIRROR 8-98031-802-2 01 1 1110-
86 COVER; STAY,OUTSIDE MIRROR 8-98031-803-2 01 1 1110-
87 SPACER
(A) 		8-98063-786-0 02 1 1110-
87 SPACER
(B) IRA 		8-98063-789-0 01 1 1110-
89 SCREW; BRKT,OUTSIDE MIRROR
M8X23 		8-97310-216-1 08 1 1110-
90 BRACKET; MIRROR STAY 8-98129-822-0 02 1 1110-
96 CAP; MIRROR STAY 8-98080-173-0 02 1 1110-
105 STAY; SUB UNDER MIRROR 8-98080-109-2 01 1 1110-
136 WASHER; LK,BRKT,MIRROR STAY
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 1110-
145 NUT; CAP,SUB STAY
M8 CAP NUT 		8-98059-914-0 10 1 1110-
174 HARNESS; MIRROR 8-98125-653-0 02 1 1110-
220 HOLDER; CONNECTOR 8-94447-536-0 02 1 1110-
307 STAY; MIRROR SUPPORT 8-98063-784-2 01 1 1110-
307 STAY; MIRROR SUPPORT 8-98063-785-2 01 1 1110-
313 CONNECTOR; MIRROR 8-94447-532-0 02 1 1110-
315 RUBBER ASM; CONNECTOR 1-82691-026-0 02 1 1110-
