◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11439 - FVR(IRAN) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#44812) — 12 parça
çizim 113662
35 140 160 35 140 49
BalonParca AdiParca NoAdetTipApplied Date
35 PLATE; CAUTION,CAB
EXC. AUTO CAB TILT<WV2> (A) 		8-98065-363-0 01 1 1110-1404
35 PLATE; CAUTION,CAB
AUTO CAB TILT<WV2> (B) 		8-98017-667-1 01 1 1110-1404
35 PLATE; CAUTION,CAB
(B) 		8-98017-667-1 01 1 1405-
49 PLATE; CAUTION,FUSE BOX 8-98122-354-0 01 1 1110-
140 PLATE; CAUTION,SRS
AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98080-839-0 02 1 1110-
140 PLATE; CAUTION,SRS
AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-98139-964-0 01 1 1110-
160 PLATE; CAUTION,TOWING 1-85888-737-1 01 1 1110-

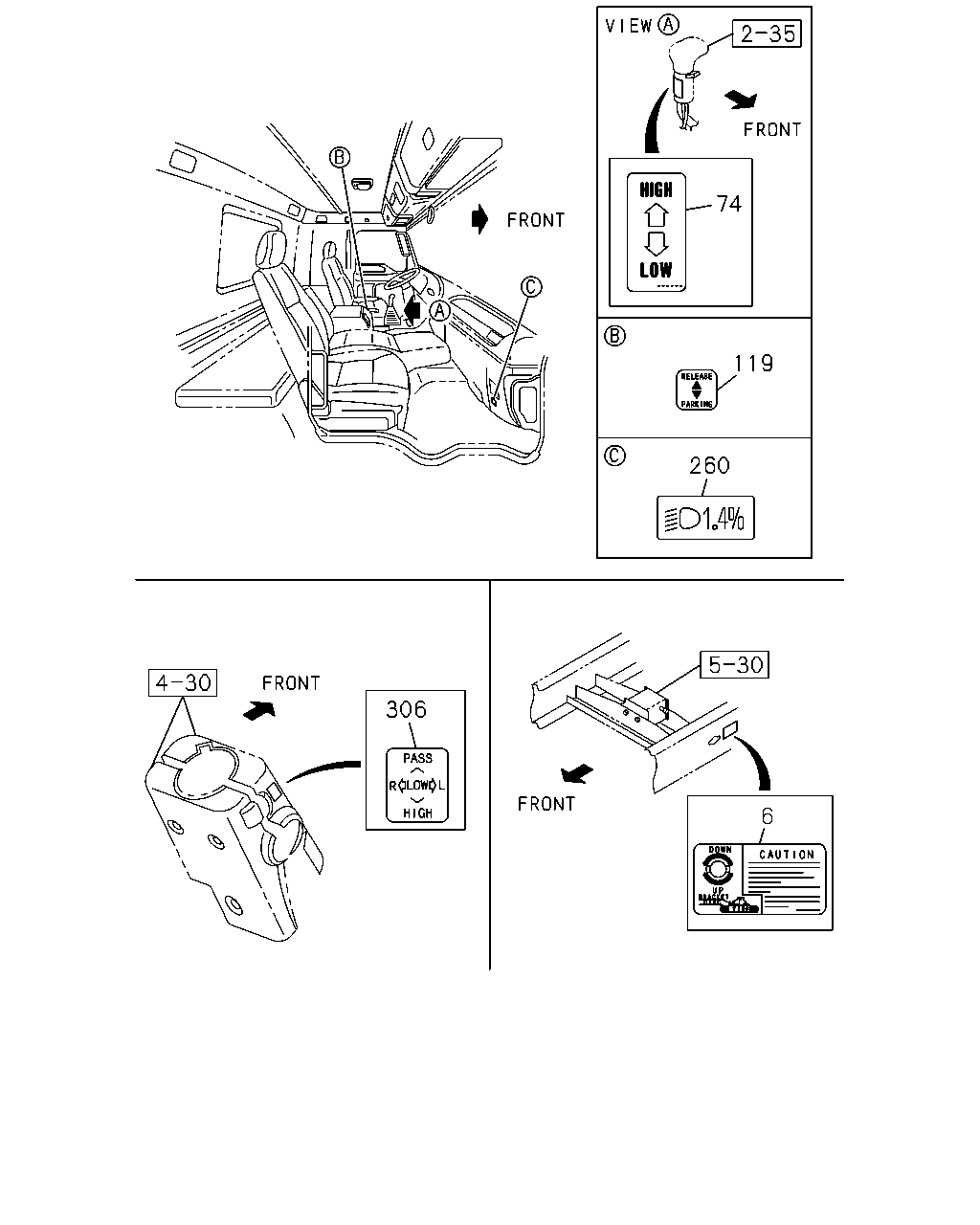

çizim 113679
74 119 260 306 6
BalonParca AdiParca NoAdetTipApplied Date
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> 		8-98082-437-0 01 1 1110-
74 PLATE; CAUTION,CHANGE LEV 8-98118-493-0 01 1 1110-
119 PLATE; CAUTION,HAND BRK LEVER 1-85881-759-0 01 1 1110-
260 PLATE; CAUTION,HEAD LAMP LEVELING 8-98008-779-0 01 1 1110-
306 LABEL; BEAM & PASS 8-98070-239-0 01 1 1110-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
