Isuzu WW
▶
TRUCKS
▶
FVR
▶
11439 - FVR(IRAN)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-76 - FLOOR EQUIPMENT AND SEALING
▶

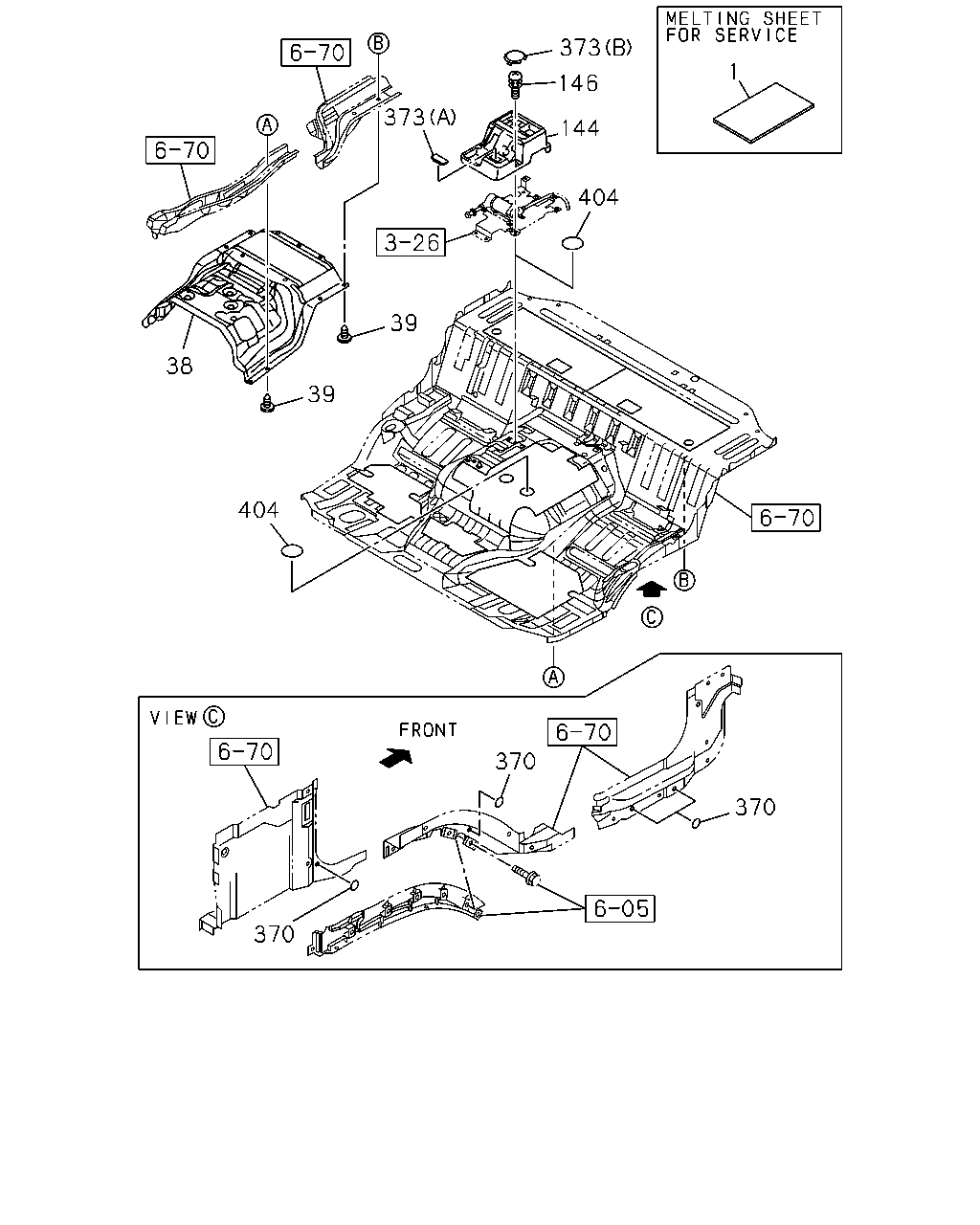

6-76 — FLOOR EQUIPMENT AND SEALING
(#44805) — 14 parça
373
1
146
373
144
404
39
38
39
404
370
370
370
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS ONLY
8-94262-093-0
AR
1
1110-
38
INSULATOR; ENG COVER
EXC. INSULATION ACOUSTICAL PKG DELETE<BS3>
8-97586-180-6
01
1
1110-1310
38
INSULATOR; ENG COVER
EXC. INSULATION ACOUSTICAL PKG DELETE<BS3>
8-98240-137-1
01
1
1311-
38
INSULATOR; ENG COVER
INSULATION ACOUSTICAL PKG DELETE<BS3>
8-98180-258-0
01
1
1110-1310
38
INSULATOR; ENG COVER
INSULATION ACOUSTICAL PKG DELETE<BS3> IRA
8-98248-305-0
01
1
1311-
39
CLIP; INSULATOR,COVER
EXC. INSULATION ACOUSTICAL PKG DELETE<BS3> ID=6.2 L=11.4
8-97808-623-0
24
1
1110-
39
CLIP; INSULATOR,COVER
INSULATION ACOUSTICAL PKG DELETE<BS3> ID=6.2 L=11.4
8-97808-623-0
17
1
1110-
144
COVER; HAND BRK VLV
GRAY
8-97407-974-0
01
1
1110-
146
BOLT; COVER BRKT
M6X16
0-38050-616-0
04
1
1110-
370
SEAL; LOCATION HOLE
OD=30 T=1.0
8-98051-161-0
08
1
1110-1211
370
SEAL; LOCATION HOLE
OD=30 T=0.8
8-98230-420-0
08
1
1212-
373
COVER; HOLE
(B) GRAY
8-97407-951-0
04
1
1110-
373
COVER; HOLE
(A) GRAY
8-97409-339-0
01
1
1110-
404
SEAL; FLOOR,HOLE
OD=25 BLACK
1-76798-019-0
12
1
1110-
