Sayfa 6-75 - Isuzu EPC

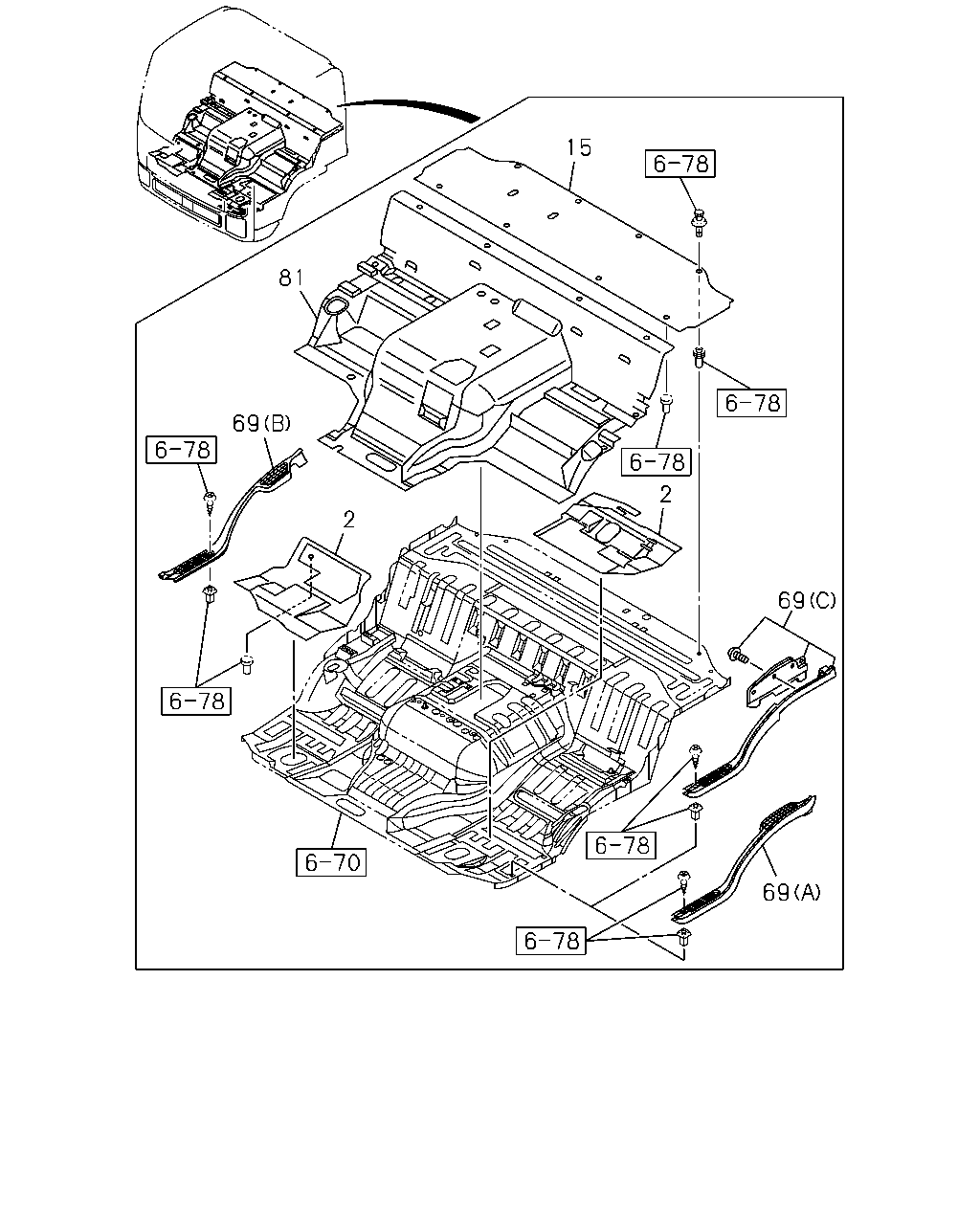

6-75 — MAT AND CARPET (#44804) — 8 parça

15 81 69 2 2 69 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	MAT; FLOOR FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY	8-97414-161-1	01	1	1110-
2	MAT; FLOOR FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY	8-97414-162-3	01	1	1110-
15	MAT; FLOOR REAR FLOOR COVER VAR.2<EFK> EXC. MATTRESS SLEEPER CAB<E40> DARK GRAY	8-97418-951-0	01	1	1110-
15	MAT; FLOOR REAR FLOOR COVER<6WX> EXC. MATTRESS SLEEPER CAB<E40> GRAY	8-97407-404-1	01	1	1110-
69	COVER; TRIM,FLOOR MAT,DOOR SIDE DUMP CONTROL LEVER<RC4> (C) GRAY	8-97409-776-2	01	1	1110-
69	COVER; TRIM,FLOOR MAT,DOOR SIDE (B) GRAY	8-97407-412-1	01	1	1110-
69	COVER; TRIM,FLOOR MAT,DOOR SIDE EXC. DUMP CONTROL LEVER<RC4> (A) GRAY	8-97407-413-1	01	1	1110-
81	MAT; FLOOR,CENTER FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY	8-97411-558-2	01	1	1110-
