Isuzu WW
▶
TRUCKS
▶
FVR
▶
11439 - FVR(IRAN)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

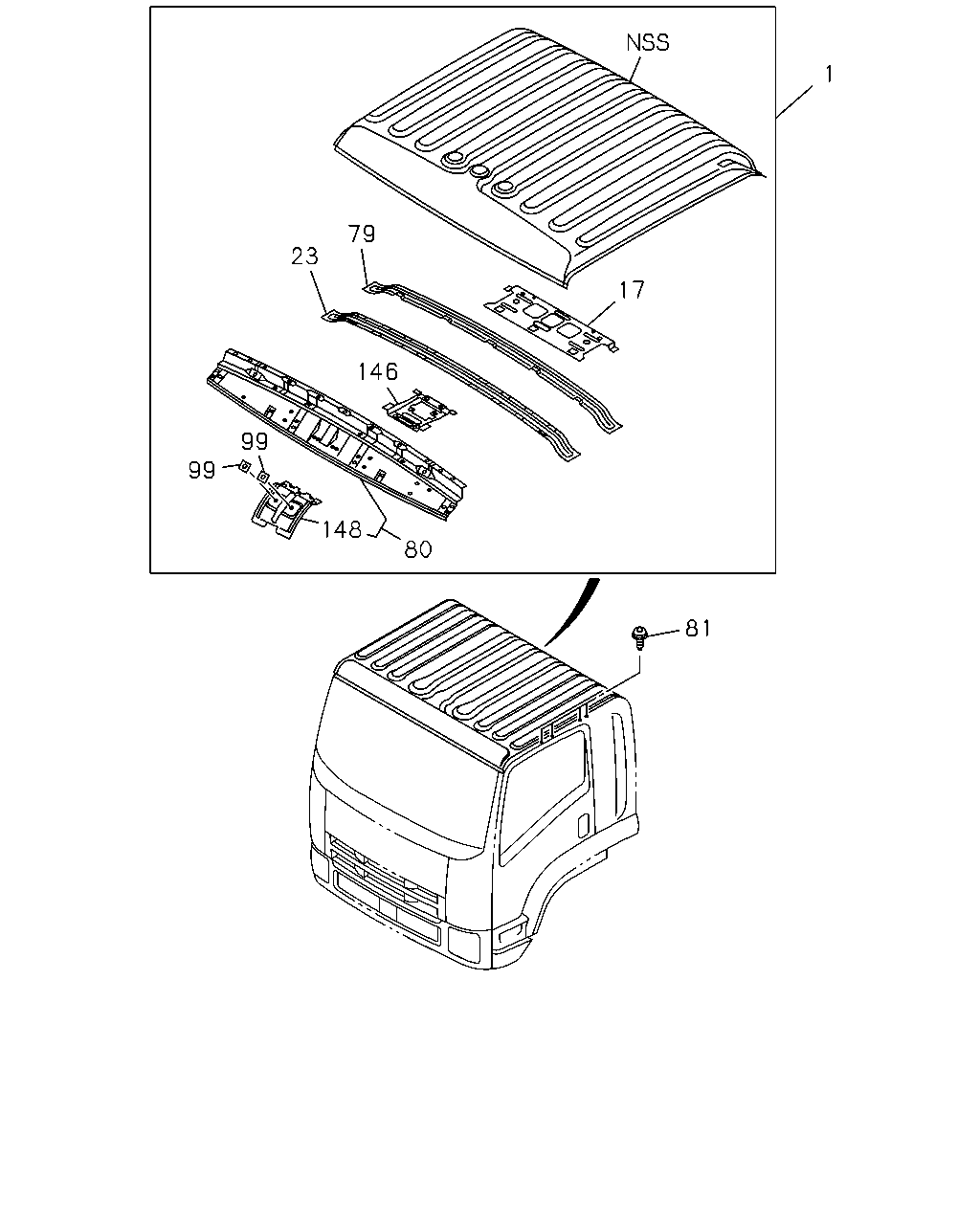

6-60 - ROOF PANEL
▶
6-60 — ROOF PANEL
(#44801) — 13 parça
1
79
23
17
146
99
99
148
80
81
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PANEL; ROOF
EXC. FLUORESCENT LAMP<6UC>
8-98152-807-0
01
1
1110-1308
1
PANEL; ROOF
EXC. FLUORESCENT LAMP<6UC>
8-98246-482-0
01
1
1309-
1
PANEL; ROOF
FLUORESCENT LAMP<6UC>
8-98048-093-3
01
1
1110-1308
1
PANEL; ROOF
FLUORESCENT LAMP<6UC>
8-98246-480-0
01
1
1309-
17
REINFORCEMENT; ROOF PNL CENTER
FLUORESCENT LAMP<6UC>
8-97584-203-5
01
1
1110-
23
REINFORCEMENT; ROOF PANEL,FRT
8-98019-316-0
01
1
1110-
79
REINFORCEMENT; ROOF PANEL,RR
8-97584-200-1
01
1
1110-
80
PANEL; HEADER,ROOF
8-98047-271-1
01
1
1110-1308
80
PANEL; HEADER,ROOF
8-98246-472-0
01
1
1309-
81
BOLT; ROOF
M8X15.5 HEXALOBULAR
8-98141-874-0
08
1
1110-
99
SEAL; BODY,METAL
30X30 ID=20 T=0.7
1-61281-380-2
02
1
1110-
146
REINFORCEMENT; ROOM LAMP
IRA
8-98075-827-0
01
1
1110-
148
REINFORCEMENT; MIRROR
8-97411-013-0
01
1
1110-
