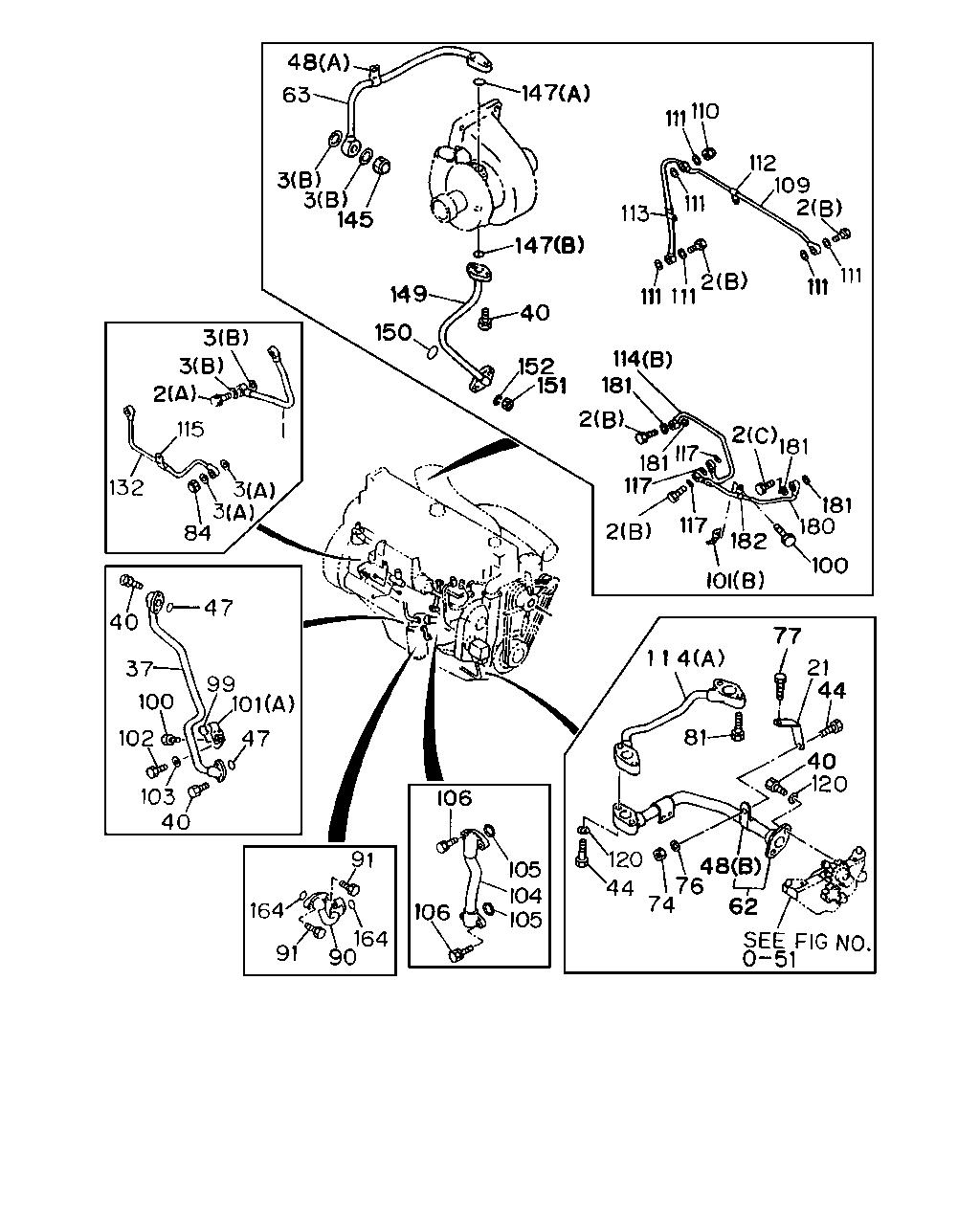

0-52A — OIL AND VACUUM PIPING; ENGINE (#448) — 140 parça

48 147 63 111 110 112 109 113 111 2 111 111 2 111 111 3 3 145 147 149 150 40 114 152 181 2 151 181 117 181 2 181 180 100 182 117 117 101 2 3 3 2 3 115 132 84 3 47 40 37 99 101 101 100 102 103 40 91 164 164 91 90 106 105 104 105 106 114 77 21 44 40 120 81 48 76 74 62 120 44 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PIPE; OIL,INJ PUMP TO C/BL	1-13312-205-0	01	1	8712-	●	●	●
2	BOLT; EYE,OIL PIPE (B) M10X21 FLANGE	1-09675-077-0	04	1	8712-9306	●	●	●
2	BOLT; EYE,OIL PIPE (A) M12X27 FLANGE	1-09675-085-0	01	1	8712-9001	●	●	●
2	BOLT; EYE,OIL PIPE (A) M12X27 FLANGE	1-09675-085-0	01	1	8712-9306	●	●	●
2	BOLT; EYE,OIL PIPE (A) M12X27 FLANGE	1-09675-085-0	01	1	9307-		●
2	BOLT; EYE,OIL PIPE (C) M10X32	1-09675-119-0	01	1	8712-	●	●	●
2	BOLT; EYE,OIL PIPE (B) M10X21 FLANGE	1-09675-077-0	04	1	9307-		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	8712-	●	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2	1-09630-084-0	04	1	8712-	●	●	●
21	STAY; OIL PIPE	1-13345-105-1	01	1	8712-	●	●	●
37	PIPE; OIL,FILTER TO COOLER	1-13311-848-0	01	1	8712-	●	●	●
40	BOLT; OIL PIPE M8X22	9-01910-822-0	03	1	8712-9005	●	●	●
40	BOLT; OIL PIPE M8X22 W/LK WASHER	0-50040-822-0	03	1	9006-9306	●	●
40	BOLT; OIL PIPE M8X32 W/LK WASHER	9-01910-832-0	03	1	8712-9005	●	●	●
40	BOLT; OIL PIPE M8X32 W/LK WASHER	0-50040-832-0	03	1	9006-	●	●
40	BOLT; OIL PIPE M10X30	9-01931-030-0	02	1	8712-9002	●	●	●
40	BOLT; OIL PIPE M10X30 W/LK WASHER	0-50051-030-0	02	1	9003-		●
40	BOLT; OIL PIPE M8X22 W/LK WASHER	0-50040-822-0	03	1	9307-		●
40	BOLT; OIL PIPE M8X22	9-01910-822-0	02	1	8712-9005	●
40	BOLT; OIL PIPE M8X22 W/LK WASHER	0-50040-822-0	02	1	9006-9306	●
44	BOLT; CLIP,OIL PIPE M8X70	9-01055-870-0	02	1	8712-9005	●	●	●
44	BOLT; CLIP,OIL PIPE M8X70	0-10805-870-0	02	1	9006-	●	●
44	BOLT; CLIP,OIL PIPE M10X55	9-01656-055-0	01	1	8712-9004	●	●	●
44	BOLT; CLIP,OIL PIPE M10X55	0-16806-055-0	01	1	9005-	●	●
44	BOLT; CLIP,OIL PIPE M10X22 W/LK WASHER	9-01931-022-0	01	1	8712-9002	●	●	●
44	BOLT; CLIP,OIL PIPE M10X22 W/LK WASHER	0-50051-022-0	01	1	9003-	●	●
44	BOLT; CLIP,OIL PIPE M8X20	9-01970-820-0	01	1	8712-9005	●	●	●
44	BOLT; CLIP,OIL PIPE M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	9006-	●	●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=27.7	1-09623-170-0	02	1	8712-9003	●	●	●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=27.7	1-09623-450-0	02	1	9004-	●	●
48	CLIP; OIL PIPE (A) ID=11 H=30 L=17	1-09700-113-0	01	1	8712-	●	●	●
48	CLIP; OIL PIPE (B)	1-09700-377-0	01	1	8712-	●	●	●
62	PIPE; OIL,PUMP TO C/BL	1-13311-871-1	01	1	8712-	●	●	●
63	PIPE; OIL,TURBOCHARGER FEED	1-13312-408-0	01	1	8712-		●	●
63	PIPE; OIL,TURBOCHARGER FEED	1-13312-064-0	01	1	8712-9306	●
74	NUT; CLIP,OIL PIPE,PUMP TO BODY M8	9-09110-408-0	01	1	8712-	●	●	●
76	WASHER; CLIP ID=8.4 OD=18	9-09160-608-0	01	1	8712-	●	●	●
77	BOLT; STAY,PUMP TO BODY M8X20	9-01970-820-0	01	1	8712-9001	●	●	●
77	BOLT; STAY,PUMP TO BODY M8X16 W/LK WASHER	9-01910-816-0	01	1	9002-9005	●	●
77	BOLT; STAY,PUMP TO BODY M8X16 W/LK WASHER	0-50040-816-0	01	1	9006-	●	●
81	BOLT; OIL PIPE,BODY TO BODY M8X35 W/LK WASHER	9-01910-835-0	02	1	8712-9005	●	●	●
81	BOLT; OIL PIPE,BODY TO BODY M8X35 W/LK WASHER	0-50040-835-0	02	1	9006-	●	●
84	NUT; CAP,OIL PIPE M10	9-09844-022-0	01	1	8712-	●	●	●
90	PIPE ASM; OIL,C/BL TO FILTER	1-13311-849-1	01	1	8712-	●	●	●
91	BOLT; OIL PIPE,BODY TO FILTER M8X22	9-01910-822-0	02	1	8712-9005	●	●	●
91	BOLT; OIL PIPE,BODY TO FILTER M8X22 W/LK WASHER	0-50040-822-0	02	1	9006-	●	●
91	BOLT; OIL PIPE,BODY TO FILTER M8X40 W/LK WASHER	9-01910-840-0	02	1	8712-9005	●	●	●
91	BOLT; OIL PIPE,BODY TO FILTER M8X40 W/LK WASHER	0-50040-840-0	02	1	9006-	●	●
99	CLIP; OIL PIPE,FILTER TO COOLER ID=23.6 L=35	1-09700-634-0	01	1	8712-	●	●	●
100	BOLT; CLIP M8X16 W/LK WASHER	9-01910-816-0	01	1	8712-9005	●	●	●
100	BOLT; CLIP M8X16 W/LK WASHER	0-50040-816-0	01	1	9006-	●	●
100	BOLT; CLIP M10X20 W/LK WASHER	9-01911-020-0	01	1	8712-9002	●	●	●
100	BOLT; CLIP M10X20 W/LK WASHER	0-50041-020-0	01	1	9003-	●	●
101	BRACKET; CLIP (A)	1-13345-118-0	01	1	8712-	●	●	●
101	BRACKET; CLIP (B)	1-23219-106-0	01	1	9010-	●	●
102	BOLT; BRKT M14X25	9-92351-425-0	01	1	8712-9005	●	●	●
102	BOLT; BRKT M14X25	0-23801-425-0	01	1	9006-	●	●
103	WASHER; LK,BRKT ID=14.2	9-09150-514-0	01	1	8712-	●	●	●
104	PIPE ASM; OIL,COOLER TO BODY	1-13312-465-1	01	1	8712-8809		●	●
104	PIPE ASM; OIL,COOLER TO BODY	1-13311-304-1	01	1	8810-	●	●	●
105	GASKET; OIL PIPE,COOLER TO BODY ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	1-09623-170-0	02	1	8712-9003	●	●	●
105	GASKET; OIL PIPE,COOLER TO BODY ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	1-09623-450-0	02	1	9004-	●	●
106	BOLT; OIL PIPE,COOLER TO BODY M8X22	9-01910-822-0	04	1	8712-8811	●	●	●
106	BOLT; OIL PIPE,COOLER TO BODY M8X22	9-01910-822-0	02	1	8812-9005	●	●	●
106	BOLT; OIL PIPE,COOLER TO BODY M8X22 W/LK WASHER	0-50040-822-0	02	1	9006-	●	●
106	BOLT; OIL PIPE,COOLER TO BODY M8X28 W/LK WASHER	9-01910-828-0	02	1	8812-9005	●	●	●
106	BOLT; OIL PIPE,COOLER TO BODY M8X28 W/LK WASHER	0-50040-828-0	02	1	9006-	●	●
109	PIPE ASM; OIL,BODY TO HD	1-13312-360-0	01	1	8712-		●	●
109	PIPE ASM; OIL,BODY TO HD	1-13312-057-0	01	1	8712-9306	●
110	NUT; CAP OIL PIPE M12	9-09844-632-1	01	1	8712-		●	●
110	NUT; CAP OIL PIPE M10	9-09844-022-0	01	1	8712-9306	●
111	GASKET; JOINT,OIL PIPE,BODY TO HD ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	04	1	8712-		●	●
111	GASKET; JOINT,OIL PIPE,BODY TO HD ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2	1-09630-084-0	02	1	8712-		●	●
111	GASKET; JOINT,OIL PIPE,BODY TO HD ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	06	1	8712-9306	●
112	CLIP; OIL PIPE,TAP CHAMBER CVR	1-09700-144-0	01	1	8712-	●	●	●
113	CLIP; WATER OUTLET PIPE	1-09700-444-0	01	1	8712-	●	●	●
114	PIPE ASM; OIL,BODY (A) OD=15.0	1-13311-703-1	01	1	8712-	●	●	●
114	PIPE ASM; OIL,BODY (B)	1-13312-144-0	01	1	8712-	●	●	●
115	CLIP; PIPE,INJ PUMP	9-09917-411-0	01	1	8712-9401	●	●	●
115	CLIP; PIPE,INJ PUMP	9-09917-649-0	01	1	9402-		●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	03	1	8712-	●	●	●
120	WASHER; PL,PIPE FIX ID=8.2	9-09150-508-0	02	1	8712-	●	●	●
120	WASHER; PL,PIPE FIX ID=10.2	9-09150-510-0	01	1	8712-	●	●	●
132	PIPE ASM; OIL,INJ PUMP FEED	9-13312-414-1	01	1	8712-	●	●	●
145	NUT; CAP,OIL PIPE,TURBOCHARGER FEED M12	9-09844-632-1	01	1	8712-	●	●	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.8	1-09623-274-0	01	1	8712-	●	●	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (B)	1-09623-359-0	01	1	8712-	●	●	●
149	PIPE; OIL RETURN,TURBOCHARGER	1-13312-613-0	01	1	8712-9001	●	●	●
149	PIPE; OIL RETURN,TURBOCHARGER	1-13312-815-0	01	1	9002-	●	●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-297-0	01	1	8712-	●	●	●
151	NUT; PIPE,TURBOCHARGER RETAINER M8	9-09110-408-0	02	1	8712-	●	●	●
152	WASHER; LK,OIL PIPE,TURBOCHARGER ID=8.2	9-09150-508-0	02	1	8712-	●	●	●
164	GASKET; EYE BOLT,OIL PIPE,FILTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	1-09623-170-0	02	1	8712-9003	●	●	●
164	GASKET; EYE BOLT,OIL PIPE,FILTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	1-09623-450-0	02	1	9004-	●	●
180	PIPE ASM; OIL,FAN CENTER	1-13312-463-0	01	1	8712-		●	●
180	PIPE ASM; OIL,FAN CENTER	1-13311-967-0	01	1	8712-9306	●
181	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2	1-09630-084-0	04	1	8712-9001		●	●
181	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2	1-09630-084-0	02	1	9002-	●	●
182	CLIP; OIL PIPE TO ELBOW ID=7 L=20	9-09524-635-0	02	1	8712-	●	●	●

195 195 194 200 195 195 194 203 214 212 224 250 204 205 216 217 214 212 231 261 262 240 228 204 251

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
194	BOLT; EYE,FLEX HOSE,PARTIAL FILTER (C)	1-09675-086-0	02	1	8712-9001	●	●	●
194	BOLT; EYE,FLEX HOSE,PARTIAL FILTER (C) M14X27 FLANGE	1-09675-086-0	02	1	9002-	●	●
195	GASKET; EYE BOLT,PARTIAL FILTER ID=14.2 OD=19.2	1-09630-085-0	04	1	8712-	●	●	●
200	HOSE; FLEX,PARTIAL FILTER,DELIVERY L=420	1-09364-486-0	01	1	8712-9306	●	●	●
200	HOSE; FLEX,PARTIAL FILTER,DELIVERY L=380	1-09364-525-0	01	1	9307-		●
203	HOSE; FLEX,PARTIAL FILTER,RETURN L=420	1-09364-486-0	01	1	8712-8805	●	●	●
203	HOSE; FLEX,PARTIAL FILTER,RETURN L=420	1-09364-655-0	01	1	8806-9306	●	●	●
203	HOSE; FLEX,PARTIAL FILTER,RETURN L=380	1-09364-659-0	01	1	9307-		●
204	CLIP; OIL PIPE (A) ID=11 & 11 L=15 & 15	1-09700-656-0	01	1	8712-9001	●	●	●
204	CLIP; OIL PIPE (A) ID=11 & 11 L=15 & 15	1-09700-656-0	01	1	9002-	●	●
204	CLIP; OIL PIPE (B) ID=11 H=20 L=20	5-09700-351-0	01	1	8712-	●	●	●
205	BOLT; CLIP M8X20 W/LK WASHER	9-01900-820-0	02	1	8712-9001	●	●	●
205	BOLT; CLIP M8X16 W/LK WASHER	9-01900-816-0	02	1	9002-9204	●	●
205	BOLT; CLIP M8X16 W/LK WASHER	0-50040-816-0	02	1	9205-	●	●
212	NUT; FLEX HOSE,PARTIAL FILTER M16	9-99111-416-0	02	1	8712-	●	●	●
214	WASHER; LK,FLEX HOSE,PARTIAL FILTER ID=16.2	9-09150-516-0	02	1	8712-	●	●	●
216	BRACKET; FLEX HOSE,PARTIAL OIL FILTER	1-47475-296-1	01	1	8712-	●	●	●
217	BOLT; BRKT M8X20 W/LK WASHER	9-01900-820-0	02	1	8712-9204	●	●	●
217	BOLT; BRKT M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9306	●	●
217	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	02	1	9307-		●
224	PIPE; OIL,DELIVERY	1-13311-929-2	01	1	8712-9306	●	●	●
224	PIPE; OIL,DELIVERY	1-13313-384-0	01	1	9307-		●
228	NUT; CLIP M8	9-09110-408-0	01	1	8712-	●	●	●
231	PIPE; OIL,RETURN	1-13311-932-3	01	1	8712-9306	●	●	●
231	PIPE; OIL,RETURN	1-13313-385-0	01	1	9307-		●
240	BRACKET; CLIP L=50	1-47475-299-2	01	1	8712-	●	●	●
250	CLIP; OIL PIPE,PARTIAL FILTER ID=11 & 11 L=15 & 15	1-09700-656-0	01	1	8712-	●	●	●
251	BOLT; CLIP,OIL PIPE M8X20 W/LK WASHER	9-01900-820-0	01	1	8712-8903	●	●	●
251	BOLT; CLIP,OIL PIPE M8X16 W/LK WASHER	9-01900-816-0	01	1	8904-9204	●	●	●
251	BOLT; CLIP,OIL PIPE M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-	●	●
261	BRACKET; CLIP,OIL PIPE L=50	1-47475-299-2	01	1	8712-	●	●	●
262	NUT; CLIP,OIL PIPE M8	9-09110-408-0	01	1	8712-	●	●	●

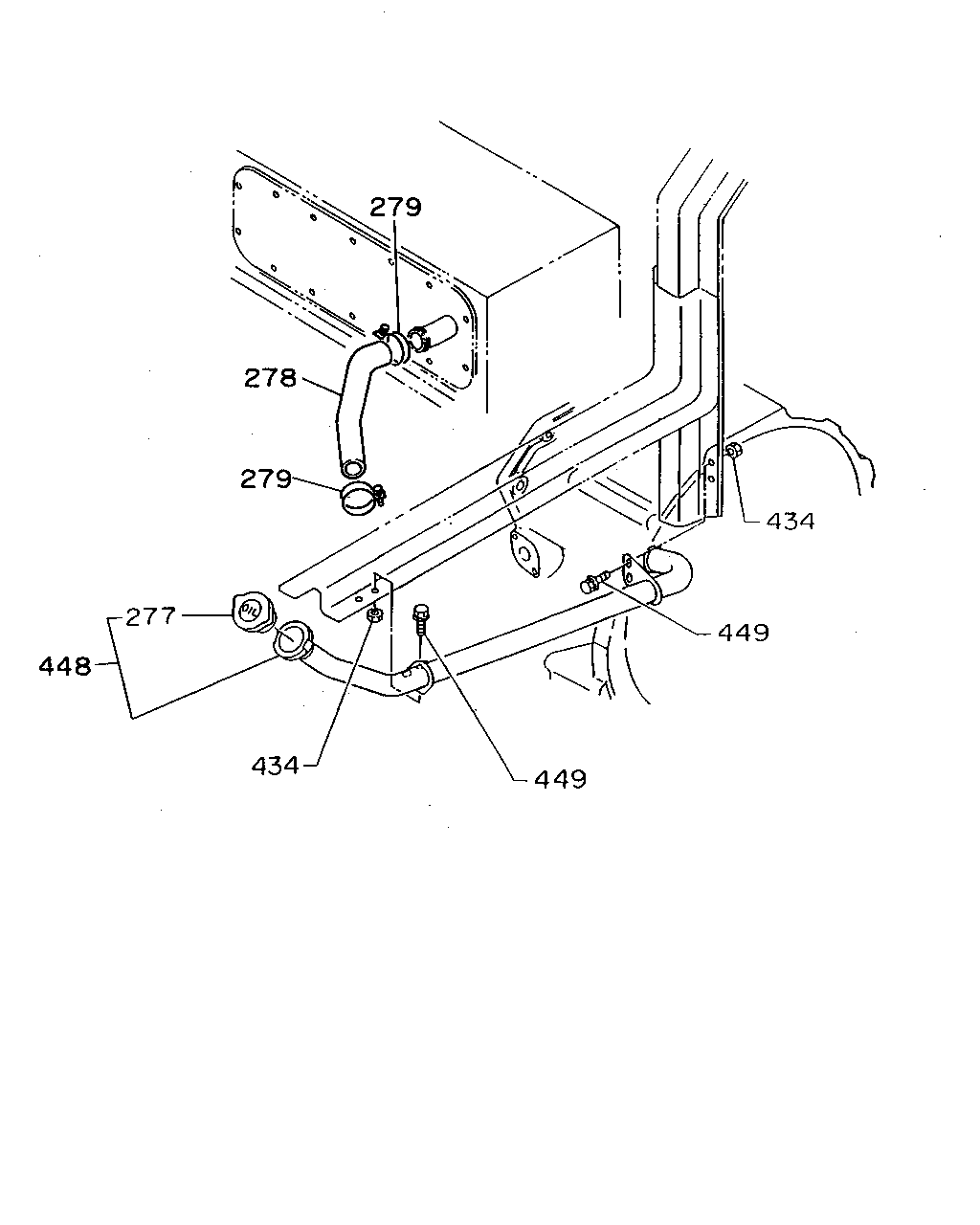

279 278 434 279 449 448 434 277 449

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
277	CAP; OIL FILLER	1-11750-024-1	01	1	8712-	●	●	●
278	HOSE; RUBBER,OIL FILLER	1-11749-085-0	01	1	8712-	●	●	●
279	CLIP; RUBBER HOSE ID=40	9-09916-024-1	02	1	8712-	●	●	●
434	NUT; OIL FILLER M8	9-09110-408-0	04	1	8712-	●	●	●
448	FILLER; OIL	1-11740-164-1	01	1	8712-9001	●	●	●
448	FILLER; OIL	1-11740-213-1	01	1	9002-	●	●
449	BOLT; OIL FILLER M8X20 W/LK&PL WASHER	9-01960-820-0	04	1	9002-9204	●	●
449	BOLT; OIL FILLER M8X20 W/LK&PL WASHER	0-50140-820-0	04	1	9205-9304	●	●
449	BOLT; OIL FILLER M8X20 FLANGE	0-28080-820-0	04	1	9305-	●	●
