Isuzu WW
▶
TRUCKS
▶
FVR
▶
11439 - FVR(IRAN)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

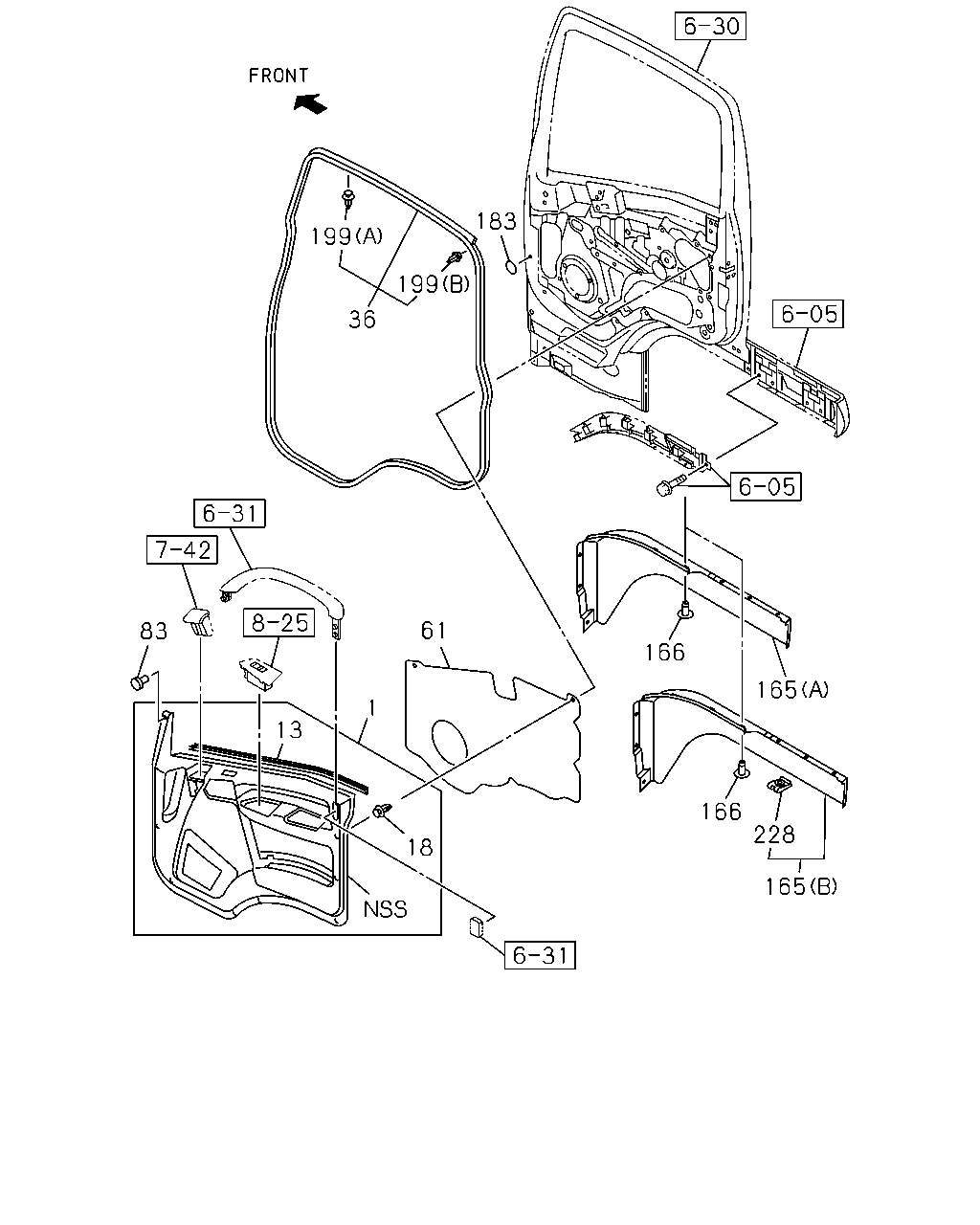

6-35 - FRONT DOOR TRIM
▶
6-35 — FRONT DOOR TRIM
(#44798) — 21 parça
199
199
183
36
166
165
166
228
165
61
1
18
13
83
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PAD; TRIM,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> GRAY
8-97405-305-6
01
1
1110-
1
PAD; TRIM,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> GRAY
8-97405-307-6
01
1
1110-
1
PAD; TRIM,FRT DOOR
POWER WINDOW FRT DOOR<A32> GRAY IRA
8-97405-304-6
01
1
1110-
1
PAD; TRIM,FRT DOOR
POWER WINDOW FRT DOOR<A32> GRAY IRA
8-97405-306-6
01
1
1110-
13
SEAL; DOOR TRIM
8-98029-201-1
01
1
1110-
13
SEAL; DOOR TRIM
8-98029-202-1
01
1
1110-
18
CLIP; DOOR PAD
8-98004-025-0
14
1
1110-
36
SEAL; DOOR,MAIN,CAB SIDE
8-98029-199-3
01
1
1110-
36
SEAL; DOOR,MAIN,CAB SIDE
8-98077-429-0
01
1
1110-
61
SEAL; WATER,DOOR PAD
IRA
8-98029-394-2
01
1
1110-
61
SEAL; WATER,DOOR PAD
IRA
8-98029-395-2
01
1
1110-
83
CLIP; DOOR TRIM
GRAY
8-97405-308-0
02
1
1110-
165
LINER; DOOR LWR
(A)
8-98038-288-1
01
1
1110-1404
165
LINER; DOOR LWR
(B)
8-98084-036-3
01
1
1405-
165
LINER; DOOR LWR
(A)
8-98038-289-1
01
1
1110-1404
165
LINER; DOOR LWR
(A)
8-98084-037-3
01
1
1405-
166
PLUG; HOLE
D8X13.5
1-09987-248-1
09
1
1110-
183
SEAL; LOCATION HOLE
OD=25 BLACK
1-76798-019-0
02
1
1110-
199
CLIP; SEAL
(A) NATURAL
8-98062-270-0
80
1
1110-
199
CLIP; SEAL
(B) RED
8-98062-271-0
02
1
1110-
228
NUT; SPIRE
8-94334-769-0
02
1
1405-
