Isuzu WW
▶
TRUCKS
▶
FVR
▶
11439 - FVR(IRAN)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-03 - RADIATOR GRILLE
▶
6-03 — RADIATOR GRILLE
(#44790) — 62 parça
◀

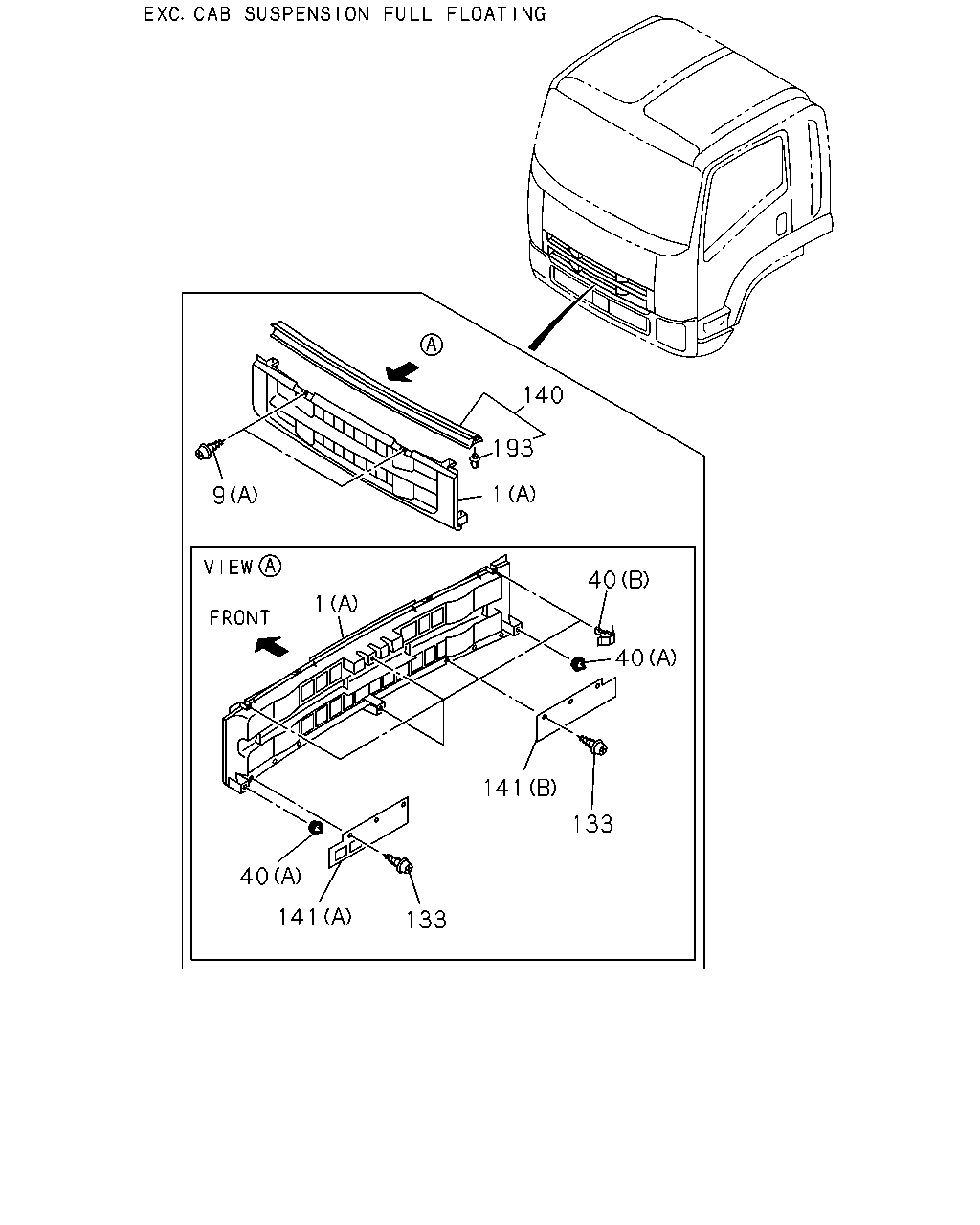

[603A] BRIGHT RAD GRILLE;EXC.FULL FLOATING CA (14 parça)

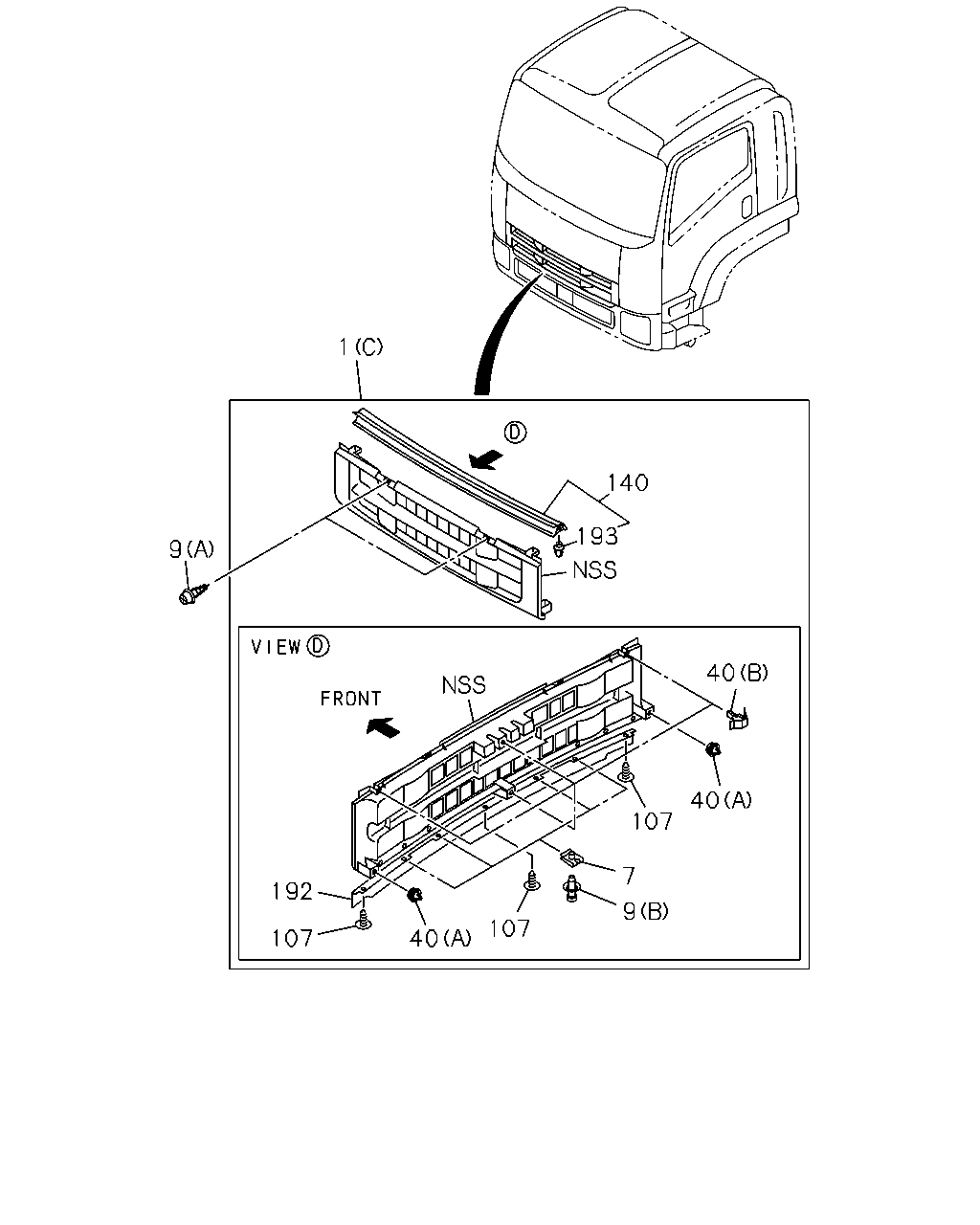

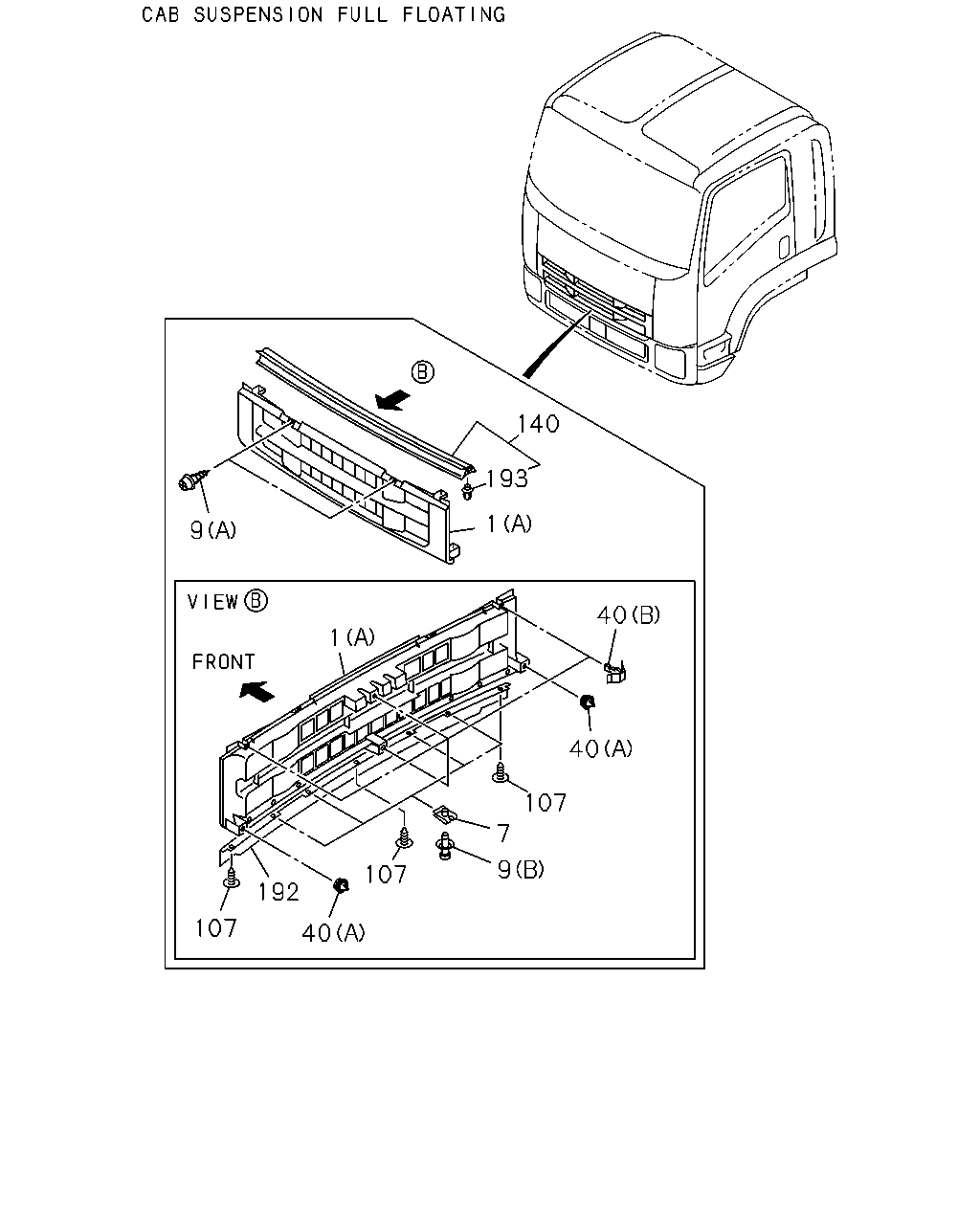

[603A] BRIGHT RAD GRILLE;FULL FLOATING CAB (17 parça)

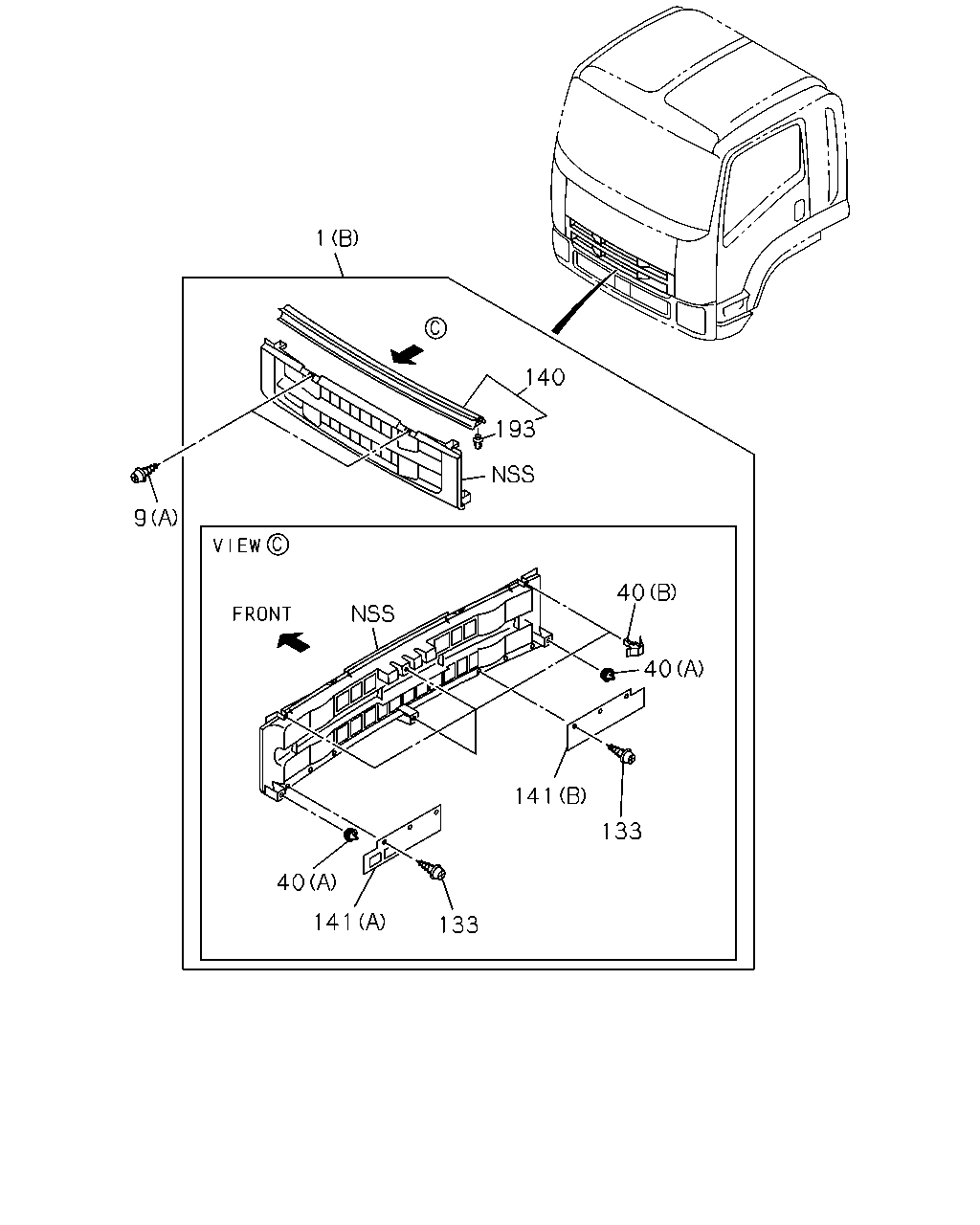

[603A] EXC.BRIGHT RAD GRILLE NO.2 (17 parça)
[603A] EXC.BRIGHT RAD GRILLE NO.1 (14 parça)
▶
1
140
193
9
40
40
141
133
40
141
133
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
GRILLE; RAD
BRIGHT RAD GRILLE<V22> EXC. CAB SUSPENSION FULL FLOATING<W16> (B) CHROMIUM PLATE
8-98046-506-7
01
1
1110-1404
1
GRILLE; RAD
BRIGHT RAD GRILLE<V22> CAB SUSPENSION FULL FLOATING<W16> (C) CHROMIUM PLATE
8-98078-847-2
01
1
1110-1404
1
GRILLE; RAD
BRIGHT RAD GRILLE<V22> (C) CHROMIUM PLATE
8-98078-847-2
01
1
1405-
1
GRILLE; RAD
EXC. BRIGHT RAD GRILLE<V22> (A) DARK GRAY
8-98040-997-6
01
1
1110-
9
SCREW; RAD GRILLE
CAB SUSPENSION FULL FLOATING<W16> (B)
0-38050-620-0
04
1
1110-1404
9
SCREW; RAD GRILLE
(B)
0-38050-620-0
04
1
1405-
9
SCREW; RAD GRILLE
(A) M5X16 TAPPING W/PL WASHER
0-74160-516-0
02
1
1110-
40
CLIP; RAD GRILLE
(A)
8-97581-651-2
02
1
1110-
40
CLIP; RAD GRILLE
(B)
8-98025-698-0
04
1
1110-
133
SCREW; COVER
EXC. CAB SUSPENSION FULL FLOATING<W16> T25 M5X12 TAPPING HEXALOBULAR
8-98081-722-0
06
1
1110-1404
140
SEAL; RAD GRILLE
8-98060-340-0
01
1
1110-
141
COVER; RAD GRILLE
EXC. CAB SUSPENSION FULL FLOATING<W16> (B)
8-98041-013-1
01
1
1110-1404
141
COVER; RAD GRILLE
EXC. CAB SUSPENSION FULL FLOATING<W16> (A)
8-98060-784-0
01
1
1110-1404
193
CLIP; SEAL
NATURAL
8-98027-457-0
13
1
1110-
1
140
193
9
40
40
107
7
192
9
107
107
40
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
GRILLE; RAD
BRIGHT RAD GRILLE<V22> EXC. CAB SUSPENSION FULL FLOATING<W16> (B) CHROMIUM PLATE
8-98046-506-7
01
1
1110-1404
1
GRILLE; RAD
BRIGHT RAD GRILLE<V22> CAB SUSPENSION FULL FLOATING<W16> (C) CHROMIUM PLATE
8-98078-847-2
01
1
1110-1404
1
GRILLE; RAD
BRIGHT RAD GRILLE<V22> (C) CHROMIUM PLATE
8-98078-847-2
01
1
1405-
1
GRILLE; RAD
EXC. BRIGHT RAD GRILLE<V22> (A) DARK GRAY
8-98040-997-6
01
1
1110-
7
NUT; SPIRE,RAD GRILLE
CAB SUSPENSION FULL FLOATING<W16>
8-94279-501-0
04
1
1110-1404
7
NUT; SPIRE,RAD GRILLE
8-94279-501-0
04
1
1405-
9
SCREW; RAD GRILLE
CAB SUSPENSION FULL FLOATING<W16> (B)
0-38050-620-0
04
1
1110-1404
9
SCREW; RAD GRILLE
(B)
0-38050-620-0
04
1
1405-
9
SCREW; RAD GRILLE
(A) M5X16 TAPPING W/PL WASHER
0-74160-516-0
02
1
1110-
40
CLIP; RAD GRILLE
(A)
8-97581-651-2
02
1
1110-
40
CLIP; RAD GRILLE
(B)
8-98025-698-0
04
1
1110-
107
RIVET; ROCKER CVR
CAB SUSPENSION FULL FLOATING<W16> D8X13.5
1-09987-248-1
03
1
1110-1404
107
RIVET; ROCKER CVR
D8X13.5
1-09987-248-1
03
1
1405-
140
SEAL; RAD GRILLE
8-98060-340-0
01
1
1110-
192
EXTENSION; RAD GRILLE
CAB SUSPENSION FULL FLOATING<W16>
8-98098-344-0
01
1
1110-1404
192
EXTENSION; RAD GRILLE
8-98098-344-0
01
1
1405-
193
CLIP; SEAL
NATURAL
8-98027-457-0
13
1
1110-
140
193
1
9
40
1
40
107
7
9
107
192
107
40
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
GRILLE; RAD
BRIGHT RAD GRILLE<V22> EXC. CAB SUSPENSION FULL FLOATING<W16> (B) CHROMIUM PLATE
8-98046-506-7
01
1
1110-1404
1
GRILLE; RAD
BRIGHT RAD GRILLE<V22> CAB SUSPENSION FULL FLOATING<W16> (C) CHROMIUM PLATE
8-98078-847-2
01
1
1110-1404
1
GRILLE; RAD
BRIGHT RAD GRILLE<V22> (C) CHROMIUM PLATE
8-98078-847-2
01
1
1405-
1
GRILLE; RAD
EXC. BRIGHT RAD GRILLE<V22> (A) DARK GRAY
8-98040-997-6
01
1
1110-
7
NUT; SPIRE,RAD GRILLE
CAB SUSPENSION FULL FLOATING<W16>
8-94279-501-0
04
1
1110-1404
7
NUT; SPIRE,RAD GRILLE
8-94279-501-0
04
1
1405-
9
SCREW; RAD GRILLE
CAB SUSPENSION FULL FLOATING<W16> (B)
0-38050-620-0
04
1
1110-1404
9
SCREW; RAD GRILLE
(B)
0-38050-620-0
04
1
1405-
9
SCREW; RAD GRILLE
(A) M5X16 TAPPING W/PL WASHER
0-74160-516-0
02
1
1110-
40
CLIP; RAD GRILLE
(A)
8-97581-651-2
02
1
1110-
40
CLIP; RAD GRILLE
(B)
8-98025-698-0
04
1
1110-
107
RIVET; ROCKER CVR
CAB SUSPENSION FULL FLOATING<W16> D8X13.5
1-09987-248-1
03
1
1110-1404
107
RIVET; ROCKER CVR
D8X13.5
1-09987-248-1
03
1
1405-
140
SEAL; RAD GRILLE
8-98060-340-0
01
1
1110-
192
EXTENSION; RAD GRILLE
CAB SUSPENSION FULL FLOATING<W16>
8-98098-344-0
01
1
1110-1404
192
EXTENSION; RAD GRILLE
8-98098-344-0
01
1
1405-
193
CLIP; SEAL
NATURAL
8-98027-457-0
13
1
1110-
140
193
1
9
40
1
40
141
133
40
141
133
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
GRILLE; RAD
BRIGHT RAD GRILLE<V22> EXC. CAB SUSPENSION FULL FLOATING<W16> (B) CHROMIUM PLATE
8-98046-506-7
01
1
1110-1404
1
GRILLE; RAD
BRIGHT RAD GRILLE<V22> CAB SUSPENSION FULL FLOATING<W16> (C) CHROMIUM PLATE
8-98078-847-2
01
1
1110-1404
1
GRILLE; RAD
BRIGHT RAD GRILLE<V22> (C) CHROMIUM PLATE
8-98078-847-2
01
1
1405-
1
GRILLE; RAD
EXC. BRIGHT RAD GRILLE<V22> (A) DARK GRAY
8-98040-997-6
01
1
1110-
9
SCREW; RAD GRILLE
CAB SUSPENSION FULL FLOATING<W16> (B)
0-38050-620-0
04
1
1110-1404
9
SCREW; RAD GRILLE
(B)
0-38050-620-0
04
1
1405-
9
SCREW; RAD GRILLE
(A) M5X16 TAPPING W/PL WASHER
0-74160-516-0
02
1
1110-
40
CLIP; RAD GRILLE
(A)
8-97581-651-2
02
1
1110-
40
CLIP; RAD GRILLE
(B)
8-98025-698-0
04
1
1110-
133
SCREW; COVER
EXC. CAB SUSPENSION FULL FLOATING<W16> T25 M5X12 TAPPING HEXALOBULAR
8-98081-722-0
06
1
1110-1404
140
SEAL; RAD GRILLE
8-98060-340-0
01
1
1110-
141
COVER; RAD GRILLE
EXC. CAB SUSPENSION FULL FLOATING<W16> (B)
8-98041-013-1
01
1
1110-1404
141
COVER; RAD GRILLE
EXC. CAB SUSPENSION FULL FLOATING<W16> (A)
8-98060-784-0
01
1
1110-1404
193
CLIP; SEAL
NATURAL
8-98027-457-0
13
1
1110-
