Isuzu WW
▶
TRUCKS
▶
FVR
▶
11439 - FVR(IRAN)
▶
5 - Frame, Cab Mounting
▶
5-20 - BATTERY CARRIER
▶

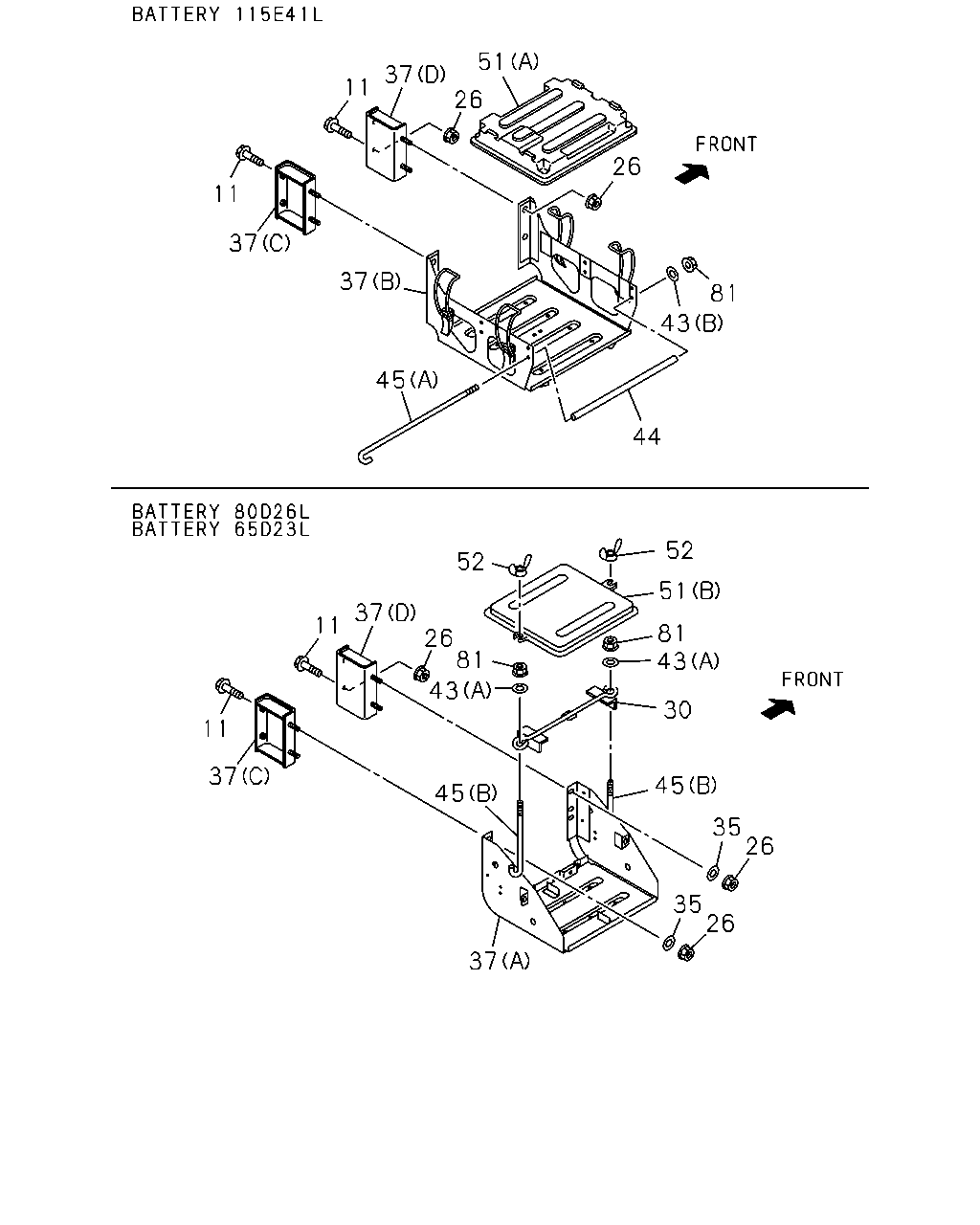

5-20 — BATTERY CARRIER
(#44787) — 20 parça
11
11
37
51
26
37
37
45
44
43
81
26
52
51
81
43
30
45
35
26
35
26
45
11
11
37
37
26
52
81
43
37
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
BOLT; BRKT FIX
M10X35 FLANGE
0-28651-035-0
04
1
1110-
26
NUT; BRKT
M10 FLANGE
0-91180-210-0
02
1
1110-
26
NUT; BRKT
M10 FLANGE
0-91180-210-0
04
1
1110-
30
PLATE; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> IRA
5-53615-004-1
01
1
1110-
35
WASHER; PL,BATTERY CARRIER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ID=10.5 OD=22
0-91614-610-0
04
1
1110-
37
BRACKET; BATTERY
BATTERY 80D26L<TM1> (A) IRA
8-97384-067-2
01
1
1110-
37
BRACKET; BATTERY
BATTERY 65D23L<8EJ> (A)
8-97384-068-2
01
1
1110-
37
BRACKET; BATTERY
BATTERY 115E41L<8MA> (B)
8-98091-497-0
01
1
1110-1405
37
BRACKET; BATTERY
BATTERY 115E41L<8MA> (B)
8-98261-636-0
01
1
1406-
37
BRACKET; BATTERY
(D)
8-98088-828-0
01
1
1110-
37
BRACKET; BATTERY
(C)
8-98144-194-0
01
1
1110-
43
WASHER; PL,CLAMP
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (A) ID=8.4 OD=22 IRA
0-91614-708-0
02
1
1110-
43
WASHER; PL,CLAMP
BATTERY 115E41L<8MA> (B) ID=8.4 OD=16
0-91610-508-0
02
1
1110-
44
SPACER; BATTERY
BATTERY 115E41L<8MA>
8-98261-682-0
02
1
1406-
45
ROD; TENSION,BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) L=120
9-53616-615-0
02
1
1110-
45
ROD; TENSION,BATTERY
BATTERY 115E41L<8MA> (A) L=430
8-97134-740-0
02
1
1110-
51
COVER; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) IRA
8-97120-747-0
01
1
1110-
51
COVER; BATTERY
BATTERY 115E41L<8MA> (A)
1-53612-037-2
01
1
1110-
52
NUT; WING,COVER FIX
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 WING NUT IRA
0-91118-408-0
02
1
1110-
81
NUT; BATTERY
M8 FLANGE
0-91180-108-0
02
1
1110-
