◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11439 - FVR(IRAN) ▶ 5 - Frame, Cab Mounting ▶ 5-17 - CYLINDER; CAB TILT ▶
5-17 — CYLINDER; CAB TILT (#44786) — 54 parça

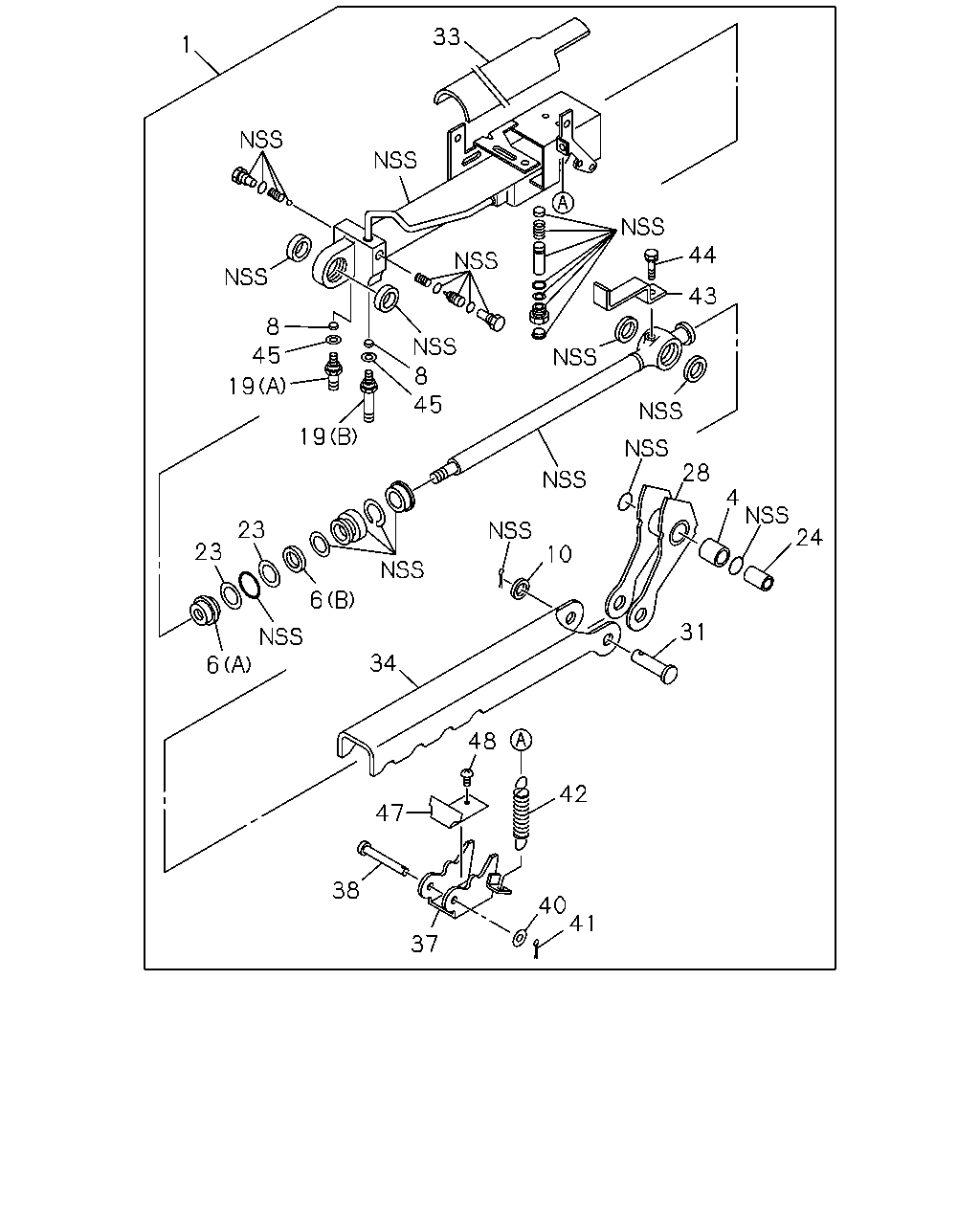

çizim 113631
33 1 44 43 8 45 8 45 19 19 28 4 24 23 23 10 6 31 34 6 48 42 47 38 40 41 37
BalonParca AdiParca NoAdetTipApplied Date
1 CYLINDER; OIL,CAB TILT
AUTO CAB TILT<WV2> 		8-98020-528-0 01 1 1110-1404
1 CYLINDER; OIL,CAB TILT 8-98020-528-0 01 1 1405-
4 BUSHING; OIL CYL
AUTO CAB TILT<WV2> 		1-53458-405-0 01 1 1110-1404
4 BUSHING; OIL CYL 1-53458-405-0 01 1 1405-
6 PISTON; OIL CYL
AUTO CAB TILT<WV2> (A) 		8-98134-365-0 01 1 1110-1404
6 PISTON; OIL CYL
(A) 		8-98134-365-0 01 1 1405-
6 PISTON; OIL CYL
AUTO CAB TILT<WV2> (B) 		8-98134-367-0 01 1 1110-1404
6 PISTON; OIL CYL
(B) 		8-98134-367-0 01 1 1405-
8 FILTER; OIL CYL
AUTO CAB TILT<WV2> 		1-53458-102-0 02 1 1110-1404
8 FILTER; OIL CYL 1-53458-102-0 02 1 1405-
10 WASHER; OIL CYL
AUTO CAB TILT<WV2> 		1-53458-401-0 01 1 1110-1404
10 WASHER; OIL CYL 1-53458-401-0 01 1 1405-
19 NIPPLE; OIL CYL
AUTO CAB TILT<WV2> (A) 		1-53457-044-0 01 1 1110-1404
19 NIPPLE; OIL CYL
(A) 		1-53457-044-0 01 1 1405-
19 NIPPLE; OIL CYL
AUTO CAB TILT<WV2> (B) 		1-53457-045-0 01 1 1110-1404
19 NIPPLE; OIL CYL
(B) 		1-53457-045-0 01 1 1405-
23 RING; SNAP
AUTO CAB TILT<WV2> 		1-53457-048-0 02 1 1110-1404
23 RING; SNAP 1-53457-048-0 02 1 1405-
24 COLLAR; LEVER
AUTO CAB TILT<WV2> 		1-53458-398-0 01 1 1110-1404
24 COLLAR; LEVER 1-53458-398-0 01 1 1405-
28 LEVER; OIL CYL
AUTO CAB TILT<WV2> 		1-53458-583-0 01 1 1110-1404
28 LEVER; OIL CYL 1-53458-583-0 01 1 1405-
31 PIN; OIL CYL
AUTO CAB TILT<WV2> 		1-53457-172-0 01 1 1110-1404
31 PIN; OIL CYL 1-53457-172-0 01 1 1405-
33 COVER; CYL
AUTO CAB TILT<WV2> 		1-53458-590-0 01 1 1110-1404
33 COVER; CYL 1-53458-590-0 01 1 1405-
34 STOPPER; OIL CYL
AUTO CAB TILT<WV2> 		1-53458-582-0 01 1 1110-1404
34 STOPPER; OIL CYL 1-53458-582-0 01 1 1405-
37 LEVER; STOPPER
AUTO CAB TILT<WV2> 		1-53457-170-0 01 1 1110-1404
37 LEVER; STOPPER 1-53457-170-0 01 1 1405-
38 PIN; STOPPER
AUTO CAB TILT<WV2> 		1-53458-550-0 01 1 1110-1404
38 PIN; STOPPER 1-53458-550-0 01 1 1405-
40 WASHER; STOPPER PIN
AUTO CAB TILT<WV2> 		1-53458-045-0 01 1 1110-1404
40 WASHER; STOPPER PIN 1-53458-045-0 01 1 1405-
41 PIN; SPLIT
AUTO CAB TILT<WV2> 		1-53458-545-0 01 1 1110-1404
41 PIN; SPLIT 1-53458-545-0 01 1 1405-
42 SPRING; LOCK LEVER
AUTO CAB TILT<WV2> 		1-53457-168-0 01 1 1110-1404
42 SPRING; LOCK LEVER 1-53457-168-0 01 1 1405-
43 PLATE; SW
AUTO CAB TILT<WV2> 		1-53457-167-0 01 1 1110-1404
43 PLATE; SW 1-53457-167-0 01 1 1405-
44 BOLT; SW PLATE
AUTO CAB TILT<WV2> M6X12 		1-53458-542-0 01 1 1110-1404
44 BOLT; SW PLATE
M6X12 		1-53458-542-0 01 1 1405-
45 GASKET; OIL CYL
AUTO CAB TILT<WV2> 		1-53458-073-0 02 1 1110-1404
45 GASKET; OIL CYL 1-53458-073-0 02 1 1405-
47 PLATE; THRUST,OIL CYL
AUTO CAB TILT<WV2> 		1-53457-169-0 01 1 1110-1404
47 PLATE; THRUST,OIL CYL 1-53457-169-0 01 1 1405-
48 SCREW; OIL CYL
AUTO CAB TILT<WV2> M5X8 		1-53458-005-0 02 1 1110-1404
48 SCREW; OIL CYL
M5X8 		1-53458-005-0 02 1 1405-

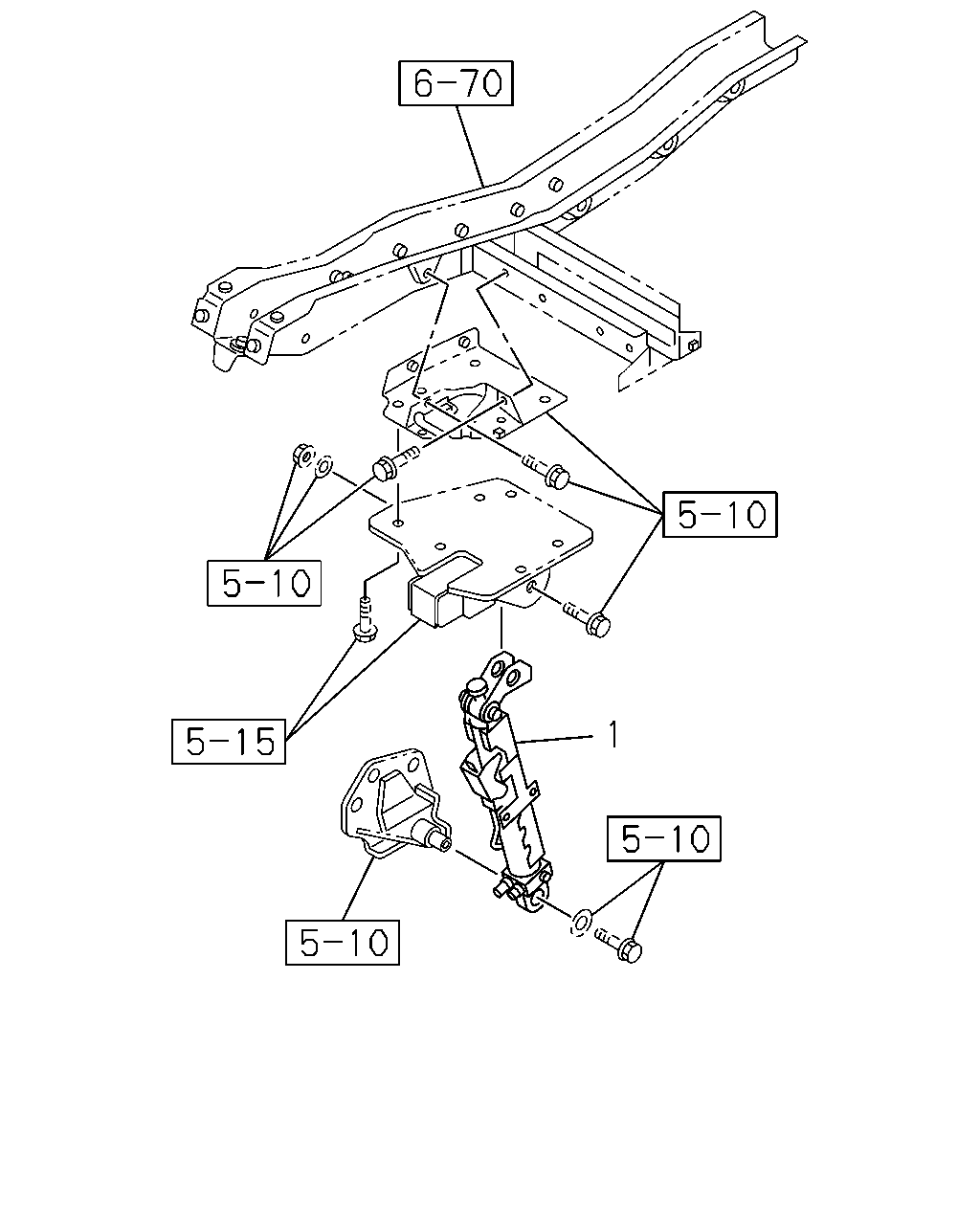

çizim 113636
1
BalonParca AdiParca NoAdetTipApplied Date
1 CYLINDER; OIL,CAB TILT
AUTO CAB TILT<WV2> 		8-98020-528-0 01 1 1110-1404
1 CYLINDER; OIL,CAB TILT 8-98020-528-0 01 1 1405-

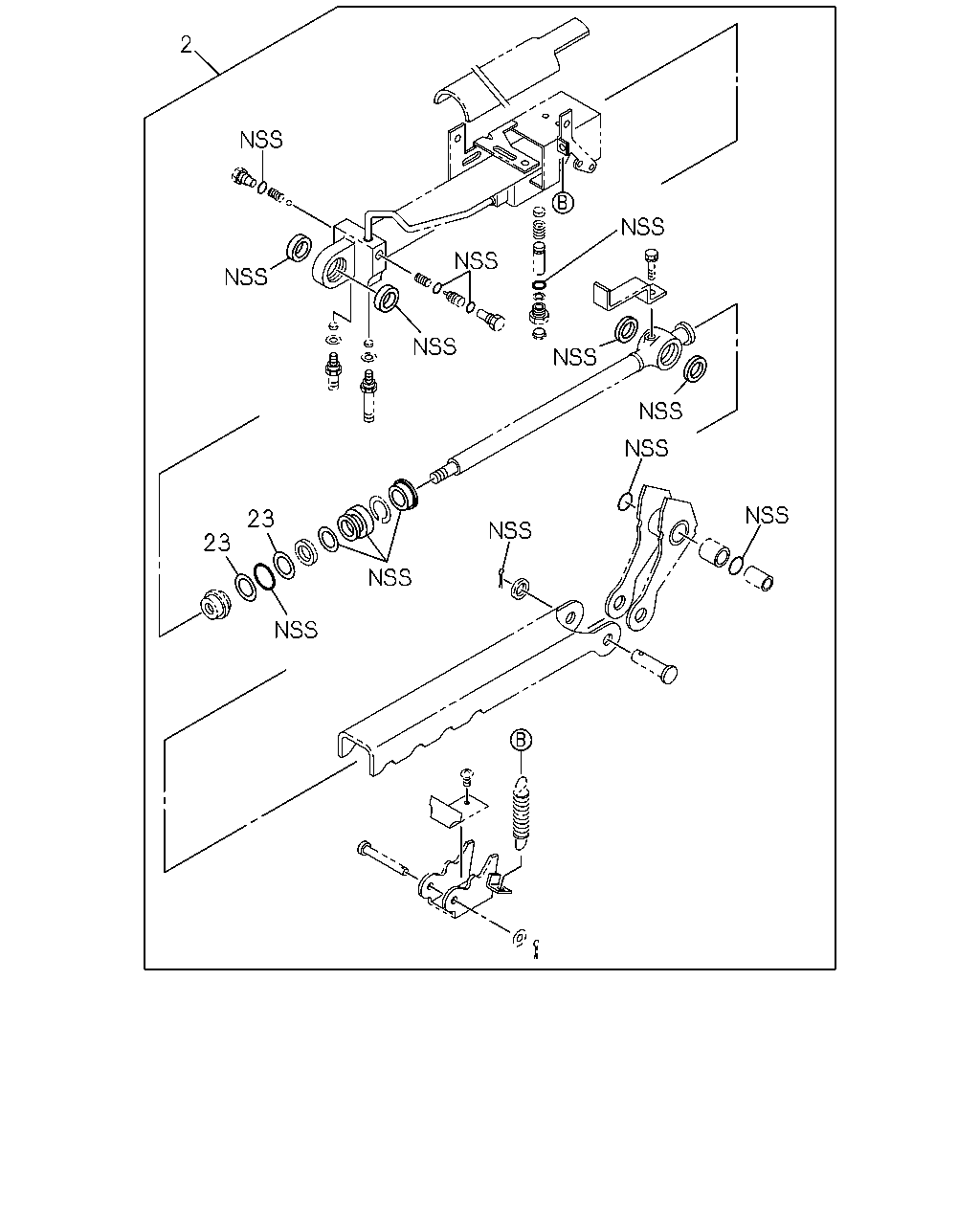

çizim 113708
2 23 23
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; OIL CYL
AUTO CAB TILT<WV2> 		1-85579-068-0 01 1 1110-1404
2 REPAIR KIT; OIL CYL 1-85579-068-0 01 1 1405-
23 RING; SNAP
AUTO CAB TILT<WV2> 		1-53457-048-0 02 1 1110-1404
23 RING; SNAP 1-53457-048-0 02 1 1405-
