Sayfa 5-10 - Isuzu EPC

5-10 — CAB MOUNTING; FRAME SIDE (#44783) — 186 parça

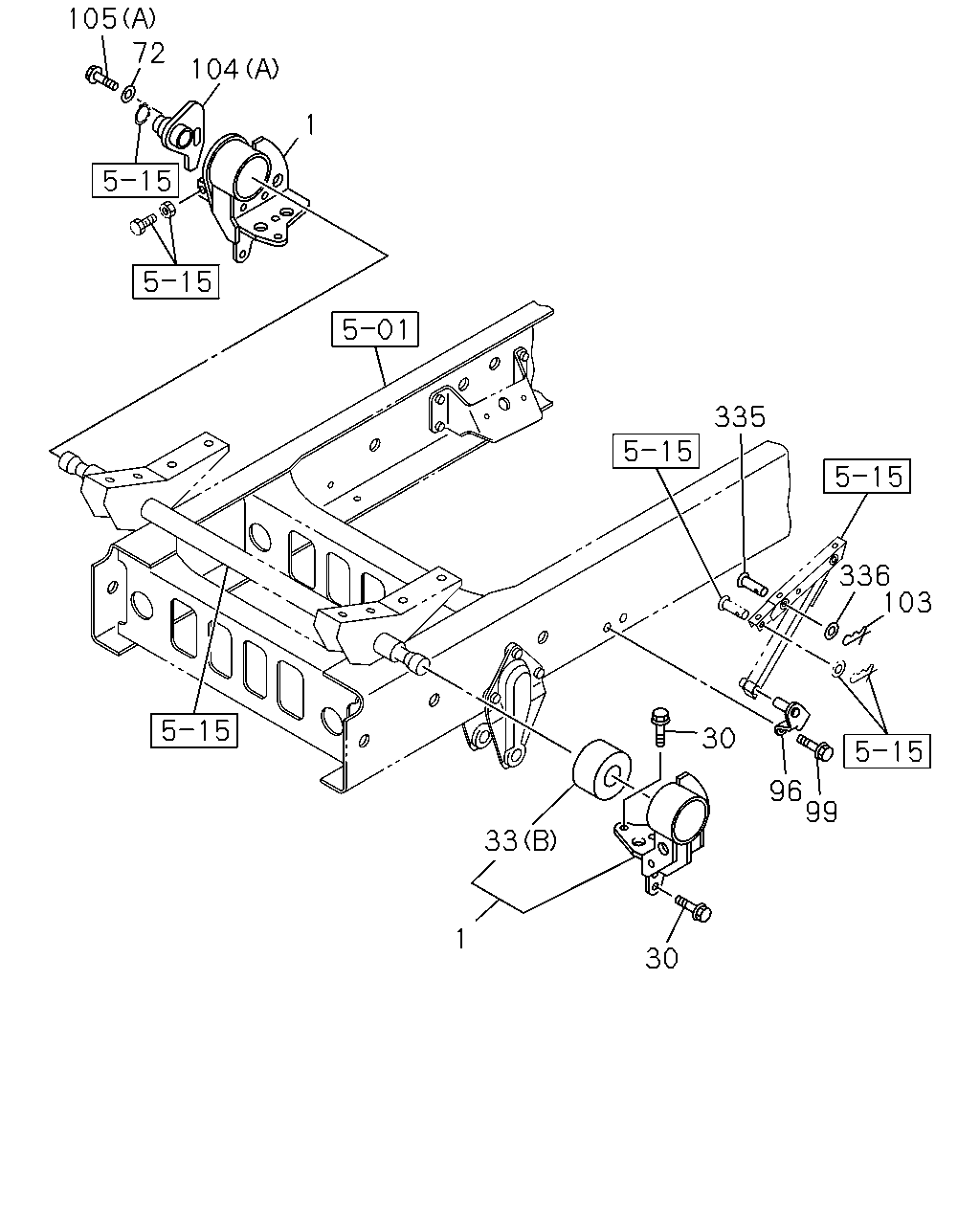

105 72 104 1 335 336 103 30 96 99 33 1 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BRACKET; CAB MTG CAB SUSPENSION SEMI FLOATING<SDK>	8-98017-662-1	01	1	1110-1404
1	BRACKET; CAB MTG CAB SUSPENSION SEMI FLOATING<SDK>	8-98017-663-1	01	1	1110-1404
30	BOLT; CAB FRT FOOT CAB SUSPENSION SEMI FLOATING<SDK> M14X45 FLANGE	0-28861-445-0	10	1	1110-1404
30	BOLT; CAB FRT FOOT CAB SUSPENSION FULL FLOATING<W16> M14X50	0-20951-450-0	10	1	1110-1404
30	BOLT; CAB FRT FOOT M14X50	0-20951-450-0	10	1	1405-
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION SEMI FLOATING<SDK> (A)	8-98010-759-2	02	1	1110-1404
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION SEMI FLOATING<SDK> (B)	8-98065-943-0	02	1	1110-1404
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION FULL FLOATING<W16> (C)	1-53458-636-1	02	1	1110-1404
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (C)	1-53458-636-1	02	1	1405-
72	WASHER; PL,BRKT TO FRAME CAB SUSPENSION SEMI FLOATING<SDK> ID=15 OD=36	0-91614-714-0	01	1	1110-1404
96	BRACKET; CAB STAY CAB SUSPENSION SEMI FLOATING<SDK>	1-62500-628-0	01	1	1110-1404
99	BOLT; BRKT CAB SUSPENSION SEMI FLOATING<SDK> M10X30 FLANGE	0-28661-030-0	02	1	1110-1404
103	PIN; SPLIT,CAB STAY CAB SUSPENSION SEMI FLOATING<SDK> L=32.6	8-98062-280-0	01	1	1110-1404
104	BRACKET; CAB FRAME,CAB FRT MTG CAB SUSPENSION SEMI FLOATING<SDK> (A)	8-98017-610-3	01	1	1110-1404
104	BRACKET; CAB FRAME,CAB FRT MTG CAB SUSPENSION FULL FLOATING<W16> (B)	8-98022-420-2	01	1	1110-1404
104	BRACKET; CAB FRAME,CAB FRT MTG (B)	8-98022-420-2	01	1	1405-
104	BRACKET; CAB FRAME,CAB FRT MTG CAB SUSPENSION FULL FLOATING<W16> (B)	8-98084-173-0	01	1	1110-1404
104	BRACKET; CAB FRAME,CAB FRT MTG (B)	8-98084-173-0	01	1	1405-
105	BOLT; BRKT TO CAB FRAME CAB SUSPENSION SEMI FLOATING<SDK> (A) M14X35 FLANGE	0-28661-435-0	01	1	1110-1404
105	BOLT; BRKT TO CAB FRAME CAB SUSPENSION FULL FLOATING<W16> (B) M12X35 FLANGE	0-28651-235-0	04	1	1110-1404
105	BOLT; BRKT TO CAB FRAME (B) M12X35 FLANGE	0-28651-235-0	04	1	1405-
105	BOLT; BRKT TO CAB FRAME CAB SUSPENSION FULL FLOATING<W16> (C) M10X30 FLANGE	0-28661-030-0	08	1	1110-1404
105	BOLT; BRKT TO CAB FRAME (C) M10X30 FLANGE	0-28661-030-0	08	1	1405-
335	PIN; ADJ,STAY LOCK CAB SUSPENSION SEMI FLOATING<SDK> OD=10 L=48	1-09744-107-0	01	1	1110-1404
336	WASHER; PL,STAY LOCK CAB SUSPENSION SEMI FLOATING<SDK> ID=10.5 T=2.0	1-09985-183-0	01	1	1110-1404

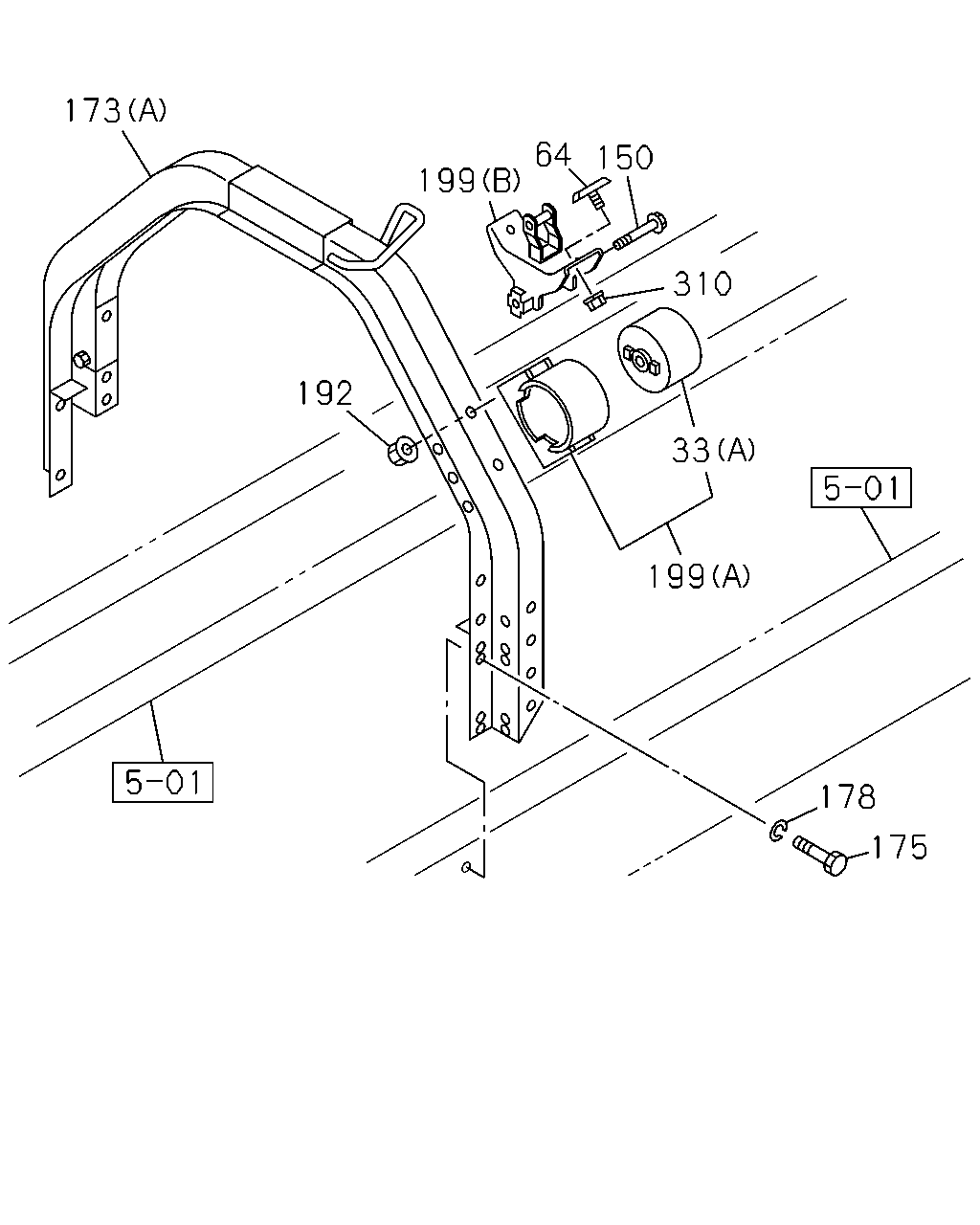

173 64 150 199 310 192 33 199 178 175

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION SEMI FLOATING<SDK> (A)	8-98010-759-2	02	1	1110-1404
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION SEMI FLOATING<SDK> (B)	8-98065-943-0	02	1	1110-1404
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION FULL FLOATING<W16> (C)	1-53458-636-1	02	1	1110-1404
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (C)	1-53458-636-1	02	1	1405-
64	RUBBER; CUSHION	8-97113-340-0	04	1	1110-1404
64	RUBBER; CUSHION	8-97113-340-0	04	1	1405-
150	BOLT; CAB MTG RR CAB SUSPENSION SEMI FLOATING<SDK> M14X100	0-10956-400-0	02	1	1110-1404
173	MEMBER; CAB MTG RR CAB SUSPENSION SEMI FLOATING<SDK> (A)	8-98151-943-0	01	1	1110-1404
173	MEMBER; CAB MTG RR CAB SUSPENSION FULL FLOATING<W16> (B)	8-98022-592-8	01	1	1110-1404
173	MEMBER; CAB MTG RR (B)	8-98022-592-8	01	1	1405-
175	BOLT; MEMBER TO FRAME M12X35	0-20951-235-0	08	1	1110-
178	WASHER; LK,MEMBER ID=12.2	0-91510-612-0	08	1	1110-
192	NUT; BRKT FIX CAB SUSPENSION SEMI FLOATING<SDK> M12 FLANGE	0-91180-212-0	04	1	1110-1404
199	BRACKET; CAB RR MTG CAB SUSPENSION SEMI FLOATING<SDK> (B)	8-98023-692-0	02	1	1110-1404
199	BRACKET; CAB RR MTG CAB SUSPENSION SEMI FLOATING<SDK> (A)	8-98060-901-1	02	1	1110-1404
199	BRACKET; CAB RR MTG CAB SUSPENSION FULL FLOATING<W16> (C)	8-98025-488-4	01	1	1110-1404
199	BRACKET; CAB RR MTG (C)	8-98025-488-4	01	1	1405-
199	BRACKET; CAB RR MTG CAB SUSPENSION FULL FLOATING<W16> (C)	8-98025-489-4	01	1	1110-1404
199	BRACKET; CAB RR MTG (C)	8-98025-489-4	01	1	1405-
310	NUT; CUSHION M8 FLANGE	0-91180-108-0	04	1	1110-1404
310	NUT; CUSHION M8 FLANGE	0-91180-108-0	04	1	1405-

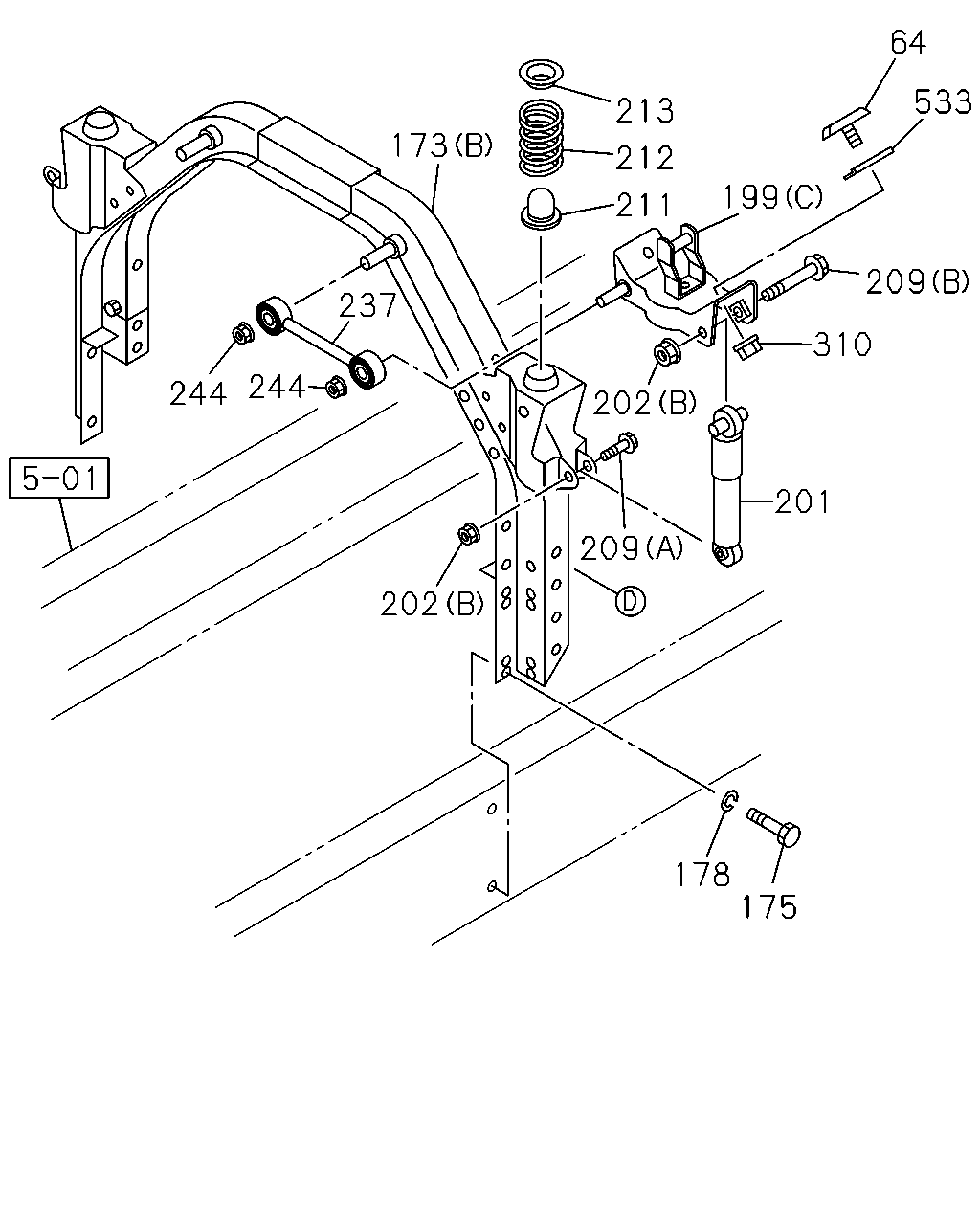

64 533 213 173 212 199 211 209 237 310 244 244 202 201 209 202 178 175

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
64	RUBBER; CUSHION	8-97113-340-0	04	1	1110-1404
64	RUBBER; CUSHION	8-97113-340-0	04	1	1405-
173	MEMBER; CAB MTG RR CAB SUSPENSION SEMI FLOATING<SDK> (A)	8-98151-943-0	01	1	1110-1404
173	MEMBER; CAB MTG RR CAB SUSPENSION FULL FLOATING<W16> (B)	8-98022-592-8	01	1	1110-1404
173	MEMBER; CAB MTG RR (B)	8-98022-592-8	01	1	1405-
175	BOLT; MEMBER TO FRAME M12X35	0-20951-235-0	08	1	1110-
178	WASHER; LK,MEMBER ID=12.2	0-91510-612-0	08	1	1110-
199	BRACKET; CAB RR MTG CAB SUSPENSION SEMI FLOATING<SDK> (B)	8-98023-692-0	02	1	1110-1404
199	BRACKET; CAB RR MTG CAB SUSPENSION SEMI FLOATING<SDK> (A)	8-98060-901-1	02	1	1110-1404
199	BRACKET; CAB RR MTG CAB SUSPENSION FULL FLOATING<W16> (C)	8-98025-488-4	01	1	1110-1404
199	BRACKET; CAB RR MTG (C)	8-98025-488-4	01	1	1405-
199	BRACKET; CAB RR MTG CAB SUSPENSION FULL FLOATING<W16> (C)	8-98025-489-4	01	1	1110-1404
199	BRACKET; CAB RR MTG (C)	8-98025-489-4	01	1	1405-
201	ABSORBER ASM; SHOCK,RR MTG CAB SUSPENSION FULL FLOATING<W16>	8-98022-450-0	02	1	1110-1401
201	ABSORBER ASM; SHOCK,RR MTG CAB SUSPENSION FULL FLOATING<W16>	8-98269-510-0	02	1	1402-1404
201	ABSORBER ASM; SHOCK,RR MTG	8-98269-510-0	02	1	1405-
202	NUT; S/ABS CAB SUSPENSION FULL FLOATING<W16> (B) M12 FLANGE	0-91180-212-0	04	1	1110-1404
202	NUT; S/ABS (B) M12 FLANGE	0-91180-212-0	04	1	1405-
202	NUT; S/ABS CAB SUSPENSION FULL FLOATING<W16> (A) M10	9-09110-410-0	02	1	1110-1404
202	NUT; S/ABS (A) M10	9-09110-410-0	02	1	1405-
209	BOLT; S/ABS CAB SUSPENSION FULL FLOATING<W16> (A) M12X60 FLANGE	0-28051-260-0	02	1	1110-1404
209	BOLT; S/ABS (A) M12X60 FLANGE	0-28051-260-0	02	1	1405-
209	BOLT; S/ABS CAB SUSPENSION FULL FLOATING<W16> (B) M12X100 FLANGE	0-28061-200-0	02	1	1110-1404
209	BOLT; S/ABS (B) M12X100 FLANGE	0-28061-200-0	02	1	1405-
211	RUBBER; CUSHION,S/ABS CAB SUSPENSION FULL FLOATING<W16>	1-53366-144-0	02	1	1110-1404
211	RUBBER; CUSHION,S/ABS	1-53366-144-0	02	1	1405-
212	SPRING; COIL CAB SUSPENSION FULL FLOATING<W16>	1-09580-398-1	02	1	1110-1404
212	SPRING; COIL	1-09580-398-1	02	1	1405-
213	SEAT; SPR,S/ABS CAB SUSPENSION FULL FLOATING<W16>	1-53366-062-2	02	1	1110-1404
213	SEAT; SPR,S/ABS	1-53366-062-2	02	1	1405-
237	ROD ASM; LATERAL CAB SUSPENSION FULL FLOATING<W16>	1-53459-585-2	02	1	1110-1404
237	ROD ASM; LATERAL	1-53459-585-2	02	1	1405-
244	NUT; LATERAL ROD CAB SUSPENSION FULL FLOATING<W16> M16 FLANGE	0-91180-216-0	04	1	1110-1404
244	NUT; LATERAL ROD M16 FLANGE	0-91180-216-0	04	1	1405-
310	NUT; CUSHION M8 FLANGE	0-91180-108-0	04	1	1110-1404
310	NUT; CUSHION M8 FLANGE	0-91180-108-0	04	1	1405-
533	SPACER; MTG RUBBER CAB SUSPENSION FULL FLOATING<W16>	8-98077-323-0	04	1	1110-1404
533	SPACER; MTG RUBBER	8-98077-323-0	04	1	1405-

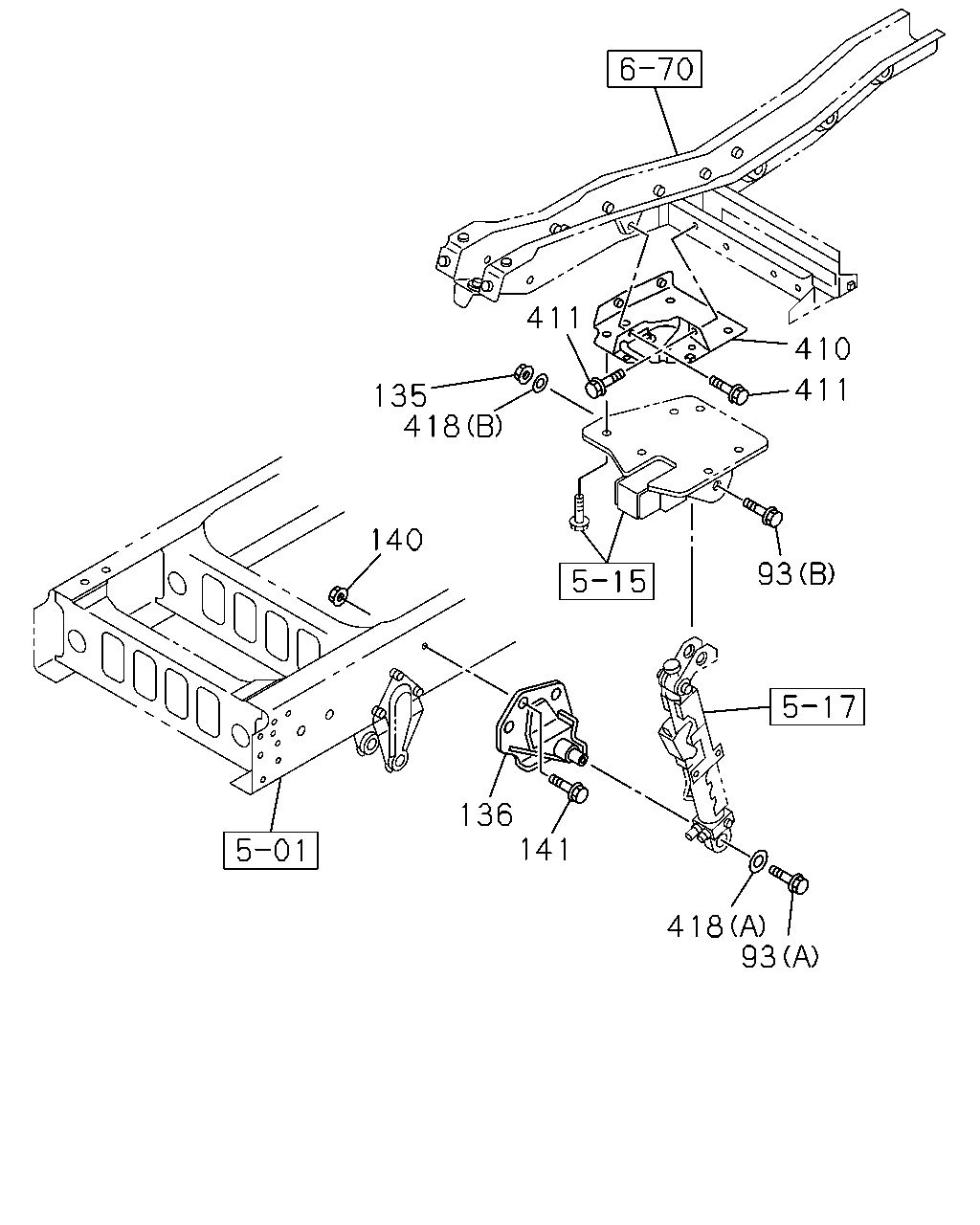

411 410 411 135 418 140 93 136 141 418 93

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
93	BOLT; PIN AUTO CAB TILT<WV2> (A) M10X20 FLANGE	0-28651-020-0	01	1	1110-1404
93	BOLT; PIN (A) M10X20 FLANGE	0-28651-020-0	01	1	1405-
93	BOLT; PIN AUTO CAB TILT<WV2> (B) M14X70 FLANGE	0-29261-470-0	01	1	1110-1404
93	BOLT; PIN (B) M14X70 FLANGE	0-29261-470-0	01	1	1405-
135	NUT; PIN AUTO CAB TILT<WV2> M14	0-91110-514-0	01	1	1110-1404
135	NUT; PIN M14	0-91110-514-0	01	1	1405-
136	BRACKET; OIL CYL AUTO CAB TILT<WV2>	8-98077-938-0	01	1	1110-1404
136	BRACKET; OIL CYL	8-98077-938-0	01	1	1405-
140	NUT; BRKT AUTO CAB TILT<WV2> M14 FLANGE	0-91180-214-0	04	1	1110-1404
140	NUT; BRKT M14 FLANGE	0-91180-214-0	04	1	1405-
141	BOLT; BRKT AUTO CAB TILT<WV2> M14X40 FLANGE IRA	0-28661-440-0	04	1	1110-1404
141	BOLT; BRKT M14X40 FLANGE IRA	0-28661-440-0	04	1	1405-
410	REINFORCEMENT; CAB TILT AUTO CAB TILT<WV2>	8-97588-837-5	01	1	1110-1404
410	REINFORCEMENT; CAB TILT	8-97588-837-5	01	1	1405-
411	BOLT; REINFORCEMENT AUTO CAB TILT<WV2> M8X20 FLANGE	0-28650-820-0	04	1	1110-1404
411	BOLT; REINFORCEMENT M8X20 FLANGE	0-28650-820-0	04	1	1405-
418	WASHER; PL,PIN AUTO CAB TILT<WV2> (B) ID=15	0-91610-514-0	01	1	1110-1404
418	WASHER; PL,PIN (B) ID=15	0-91610-514-0	01	1	1405-
418	WASHER; PL,PIN AUTO CAB TILT<WV2> (A) ID=10.5 OD=32	0-91614-810-0	01	1	1110-1404
418	WASHER; PL,PIN (A) ID=10.5 OD=32	0-91614-810-0	01	1	1405-

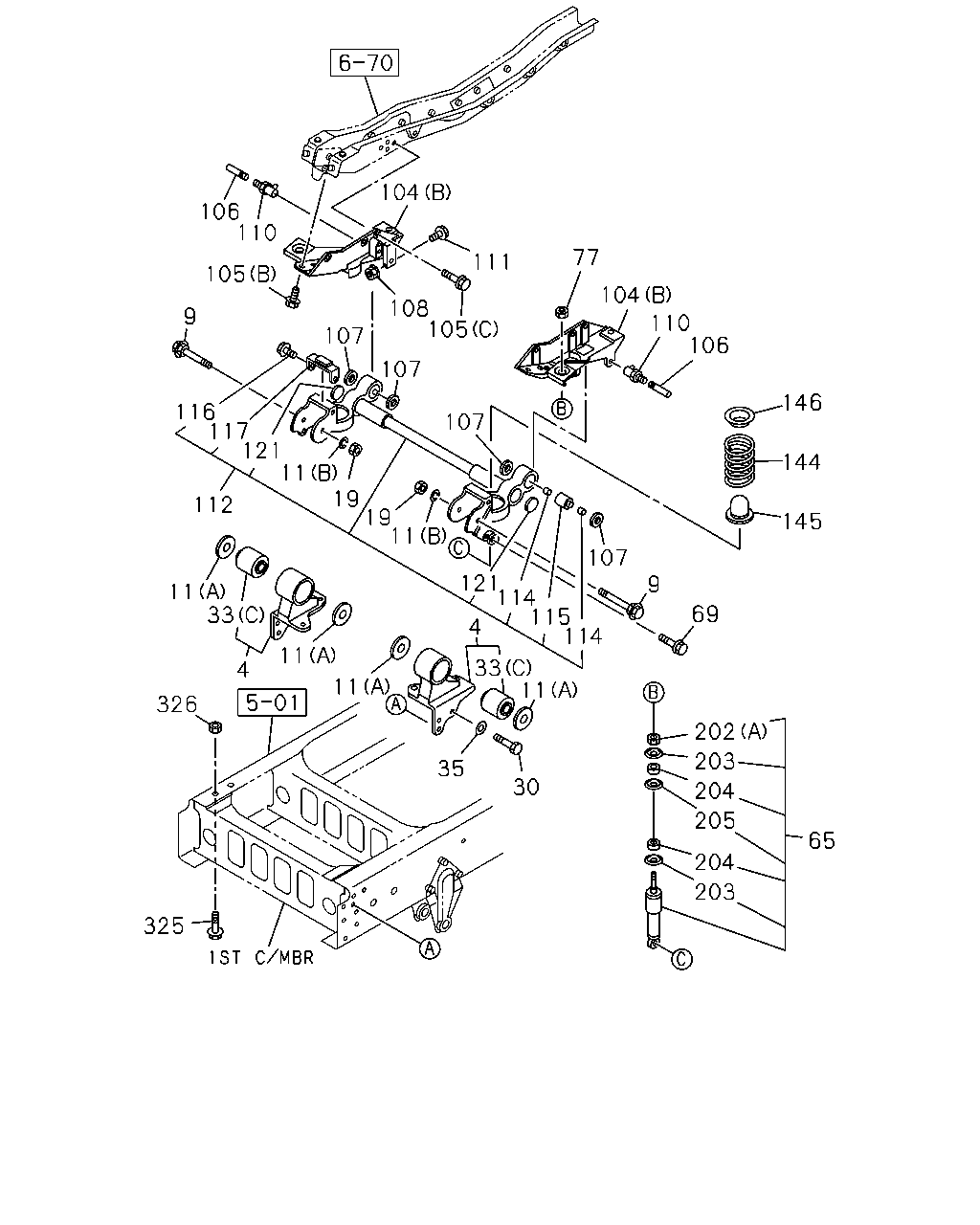

104 106 110 77 111 105 104 108 105 9 110 106 107 107 146 116 117 121 11 19 19 11 107 144 112 145 107 121 114 115 114 9 11 33 69 4 11 33 11 4 1 326 202 203 35 30 204 205 65 204 203 325

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BRACKET; CAB MTG CAB SUSPENSION SEMI FLOATING<SDK>	8-98017-662-1	01	1	1110-1404
1	BRACKET; CAB MTG CAB SUSPENSION SEMI FLOATING<SDK>	8-98017-663-1	01	1	1110-1404
4	BRACKET; FRT MTG CAB SUSPENSION FULL FLOATING<W16>	1-53453-269-0	01	1	1110-1404
4	BRACKET; FRT MTG	1-53453-269-0	01	1	1405-
4	BRACKET; FRT MTG CAB SUSPENSION FULL FLOATING<W16>	1-53453-270-0	01	1	1110-1404
4	BRACKET; FRT MTG	1-53453-270-0	01	1	1405-
9	BOLT CAB SUSPENSION FULL FLOATING<W16> M16X125	1-51361-023-0	02	1	1110-1404
9	BOLT M16X125	1-51361-023-0	02	1	1405-
11	WASHER; LK CAB SUSPENSION FULL FLOATING<W16> (B) ID=16.2	0-91510-816-0	02	1	1110-1404
11	WASHER; LK (B) ID=16.2	0-91510-816-0	02	1	1405-
11	WASHER; LK CAB SUSPENSION FULL FLOATING<W16> (A) ID=34.5	1-53458-281-1	04	1	1110-1404
11	WASHER; LK (A) ID=34.5	1-53458-281-1	04	1	1405-
19	NUT CAB SUSPENSION FULL FLOATING<W16> M16	0-91110-516-0	02	1	1110-1404
19	NUT M16	0-91110-516-0	02	1	1405-
30	BOLT; CAB FRT FOOT CAB SUSPENSION SEMI FLOATING<SDK> M14X45 FLANGE	0-28861-445-0	10	1	1110-1404
30	BOLT; CAB FRT FOOT CAB SUSPENSION FULL FLOATING<W16> M14X50	0-20951-450-0	10	1	1110-1404
30	BOLT; CAB FRT FOOT M14X50	0-20951-450-0	10	1	1405-
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION SEMI FLOATING<SDK> (A)	8-98010-759-2	02	1	1110-1404
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION SEMI FLOATING<SDK> (B)	8-98065-943-0	02	1	1110-1404
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION FULL FLOATING<W16> (C)	1-53458-636-1	02	1	1110-1404
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (C)	1-53458-636-1	02	1	1405-
35	WASHER; PL,CAB MTG BRKT CAB SUSPENSION FULL FLOATING<W16> ID=15	9-09651-069-0	10	1	1110-1201
35	WASHER; PL,CAB MTG BRKT CAB SUSPENSION FULL FLOATING<W16> ID=15	8-98010-627-1	10	1	1202-1404
35	WASHER; PL,CAB MTG BRKT ID=15	8-98010-627-1	10	1	1405-
65	ABSORBER; SHOCK,CAB FRT SUSPENSION CAB SUSPENSION FULL FLOATING<W16>	1-51630-345-0	02	1	1110-1404
65	ABSORBER; SHOCK,CAB FRT SUSPENSION	1-51630-345-0	02	1	1405-
69	BOLT; S/ABS,CAB FRT SUSPENSION CAB SUSPENSION FULL FLOATING<W16> M12X60 FLANGE	0-28051-260-0	02	1	1110-1404
69	BOLT; S/ABS,CAB FRT SUSPENSION M12X60 FLANGE	0-28051-260-0	02	1	1405-
77	NUT CAB SUSPENSION FULL FLOATING<W16>	8-97359-039-0	02	1	1110-1404
77	NUT	8-97359-039-0	02	1	1405-
104	BRACKET; CAB FRAME,CAB FRT MTG CAB SUSPENSION SEMI FLOATING<SDK> (A)	8-98017-610-3	01	1	1110-1404
104	BRACKET; CAB FRAME,CAB FRT MTG CAB SUSPENSION FULL FLOATING<W16> (B)	8-98022-420-2	01	1	1110-1404
104	BRACKET; CAB FRAME,CAB FRT MTG (B)	8-98022-420-2	01	1	1405-
104	BRACKET; CAB FRAME,CAB FRT MTG CAB SUSPENSION FULL FLOATING<W16> (B)	8-98084-173-0	01	1	1110-1404
104	BRACKET; CAB FRAME,CAB FRT MTG (B)	8-98084-173-0	01	1	1405-
105	BOLT; BRKT TO CAB FRAME CAB SUSPENSION SEMI FLOATING<SDK> (A) M14X35 FLANGE	0-28661-435-0	01	1	1110-1404
105	BOLT; BRKT TO CAB FRAME CAB SUSPENSION FULL FLOATING<W16> (B) M12X35 FLANGE	0-28651-235-0	04	1	1110-1404
105	BOLT; BRKT TO CAB FRAME (B) M12X35 FLANGE	0-28651-235-0	04	1	1405-
105	BOLT; BRKT TO CAB FRAME CAB SUSPENSION FULL FLOATING<W16> (C) M10X30 FLANGE	0-28661-030-0	08	1	1110-1404
105	BOLT; BRKT TO CAB FRAME (C) M10X30 FLANGE	0-28661-030-0	08	1	1405-
106	PIN; BRKT TO LINK ARM CAB SUSPENSION FULL FLOATING<W16>	1-53459-642-1	02	1	1110-1404
106	PIN; BRKT TO LINK ARM	1-53459-642-1	02	1	1405-
107	WASHER; LINK ARM PIN,CAB FRT SUSPENSIO CAB SUSPENSION FULL FLOATING<W16>	1-53459-643-2	04	1	1110-1404
107	WASHER; LINK ARM PIN,CAB FRT SUSPENSIO	1-53459-643-2	04	1	1405-
108	NUT; PIN LOCK BOLT CAB SUSPENSION FULL FLOATING<W16> M8 FLANGE	0-91180-108-0	02	1	1110-1404
108	NUT; PIN LOCK BOLT M8 FLANGE	0-91180-108-0	02	1	1405-
110	NIPPLE; GREASE,LINK ARM PIN CAB SUSPENSION FULL FLOATING<W16> PT1/8 ELBOW IRA	0-90301-610-0	02	1	1110-1404
110	NIPPLE; GREASE,LINK ARM PIN PT1/8 ELBOW IRA	0-90301-610-0	02	1	1405-
111	BOLT; PIN LOCK,LINK ARM CAB SUSPENSION FULL FLOATING<W16> M8X50 FLANGE IRA	0-28050-850-0	02	1	1110-1404
111	BOLT; PIN LOCK,LINK ARM M8X50 FLANGE IRA	0-28050-850-0	02	1	1405-
112	ARM ASM; LINK,CAB FRT SUSP CAB SUSPENSION FULL FLOATING<W16>	8-98148-517-0	01	1	1110-1404
112	ARM ASM; LINK,CAB FRT SUSP	8-98148-517-0	01	1	1405-
114	BUSHING; FLOATING LINK PIN CAB SUSPENSION FULL FLOATING<W16>	1-09330-068-0	04	1	1110-1404
114	BUSHING; FLOATING LINK PIN	1-09330-068-0	04	1	1405-
115	BUSHING; RUBBER,FLOATING LINK ARM CAB SUSPENSION FULL FLOATING<W16>	1-53459-315-2	02	1	1110-1404
115	BUSHING; RUBBER,FLOATING LINK ARM	1-53459-315-2	02	1	1405-
116	BOLT; STOPPER RUBBER,LINK ARM CAB SUSPENSION FULL FLOATING<W16> M8X20 FLANGE	0-28050-820-0	04	1	1110-1404
116	BOLT; STOPPER RUBBER,LINK ARM M8X20 FLANGE	0-28050-820-0	04	1	1405-
117	RUBBER; STOPPER,LINK ARM,CAB FRT MTG CAB SUSPENSION FULL FLOATING<W16>	1-53458-321-1	02	1	1110-1404
117	RUBBER; STOPPER,LINK ARM,CAB FRT MTG	1-53458-321-1	02	1	1405-
121	PLUG; FLOATING LINK ARM CAB SUSPENSION FULL FLOATING<W16>	9-09860-031-0	02	1	1110-1404
121	PLUG; FLOATING LINK ARM	9-09860-031-0	02	1	1405-
144	SPRING; COIL,CAB FRT SUSPENSION CAB SUSPENSION FULL FLOATING<W16>	1-09580-518-1	02	1	1110-1404
144	SPRING; COIL,CAB FRT SUSPENSION	1-09580-518-1	02	1	1405-
145	RUBBER; CUSHION,CAB FRT SUSPENSION CAB SUSPENSION FULL FLOATING<W16>	1-53366-144-0	02	1	1110-1404
145	RUBBER; CUSHION,CAB FRT SUSPENSION	1-53366-144-0	02	1	1405-
146	SEAT; SPRING,CAB FRT SUSPENSION CAB SUSPENSION FULL FLOATING<W16>	1-53366-132-1	02	1	1110-1404
146	SEAT; SPRING,CAB FRT SUSPENSION	1-53366-132-1	02	1	1405-
202	NUT; S/ABS CAB SUSPENSION FULL FLOATING<W16> (B) M12 FLANGE	0-91180-212-0	04	1	1110-1404
202	NUT; S/ABS (B) M12 FLANGE	0-91180-212-0	04	1	1405-
202	NUT; S/ABS CAB SUSPENSION FULL FLOATING<W16> (A) M10	9-09110-410-0	02	1	1110-1404
202	NUT; S/ABS (A) M10	9-09110-410-0	02	1	1405-
203	WASHER; RUBBER,SHOCK CAB SUSPENSION FULL FLOATING<W16> ID=10.5 OD=38	9-51631-062-0	04	1	1110-1404
203	WASHER; RUBBER,SHOCK ID=10.5 OD=38	9-51631-062-0	04	1	1405-
204	RUBBER; CUSHION,SHOCK CAB SUSPENSION FULL FLOATING<W16> TOKICO IRA	9-51631-603-0	04	1	1110-1404
204	RUBBER; CUSHION,SHOCK TOKICO IRA	9-51631-603-0	04	1	1405-
205	WASHER; RUBBER,SHOCK CAB SUSPENSION FULL FLOATING<W16> ID=13 OD=38	9-51631-063-0	02	1	1110-1404
205	WASHER; RUBBER,SHOCK ID=13 OD=38	9-51631-063-0	02	1	1405-
325	BOLT; GUIDE NUT CAB SUSPENSION FULL FLOATING<W16> M12X40 FLANGE	0-28651-240-0	02	1	1110-1404
325	BOLT; GUIDE NUT M12X40 FLANGE	0-28651-240-0	02	1	1405-
326	NUT; GUIDE NUT CAB SUSPENSION FULL FLOATING<W16> M12	0-91110-512-0	02	1	1110-1404
326	NUT; GUIDE NUT M12	0-91110-512-0	02	1	1405-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
