Isuzu WW
▶
TRUCKS
▶
FVR
▶
11439 - FVR(IRAN)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-80 - ROAD WHEEL
▶

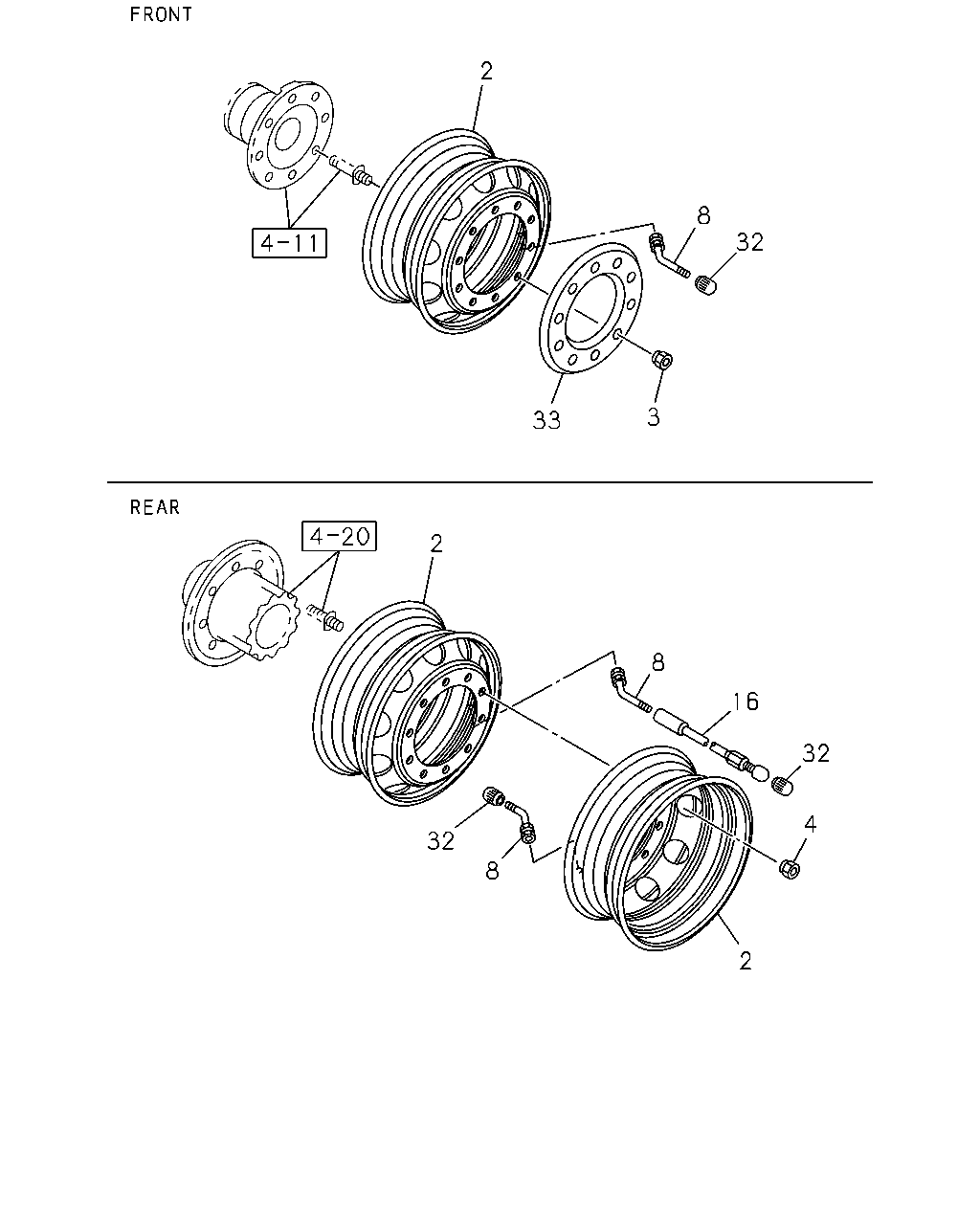

4-80 — ROAD WHEEL
(#44781) — 25 parça
2
8
32
3
33
2
8
16
32
4
32
8
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
WHEEL; DISC
SPARE TIRE & DISC WHEEL RR<R46> SPARE
1-42350-730-0
01
1
1110-1205
2
WHEEL; DISC
SPARE TIRE & DISC WHEEL RR<R46> SPARE
8-98217-247-0
01
1
1206-1407
2
WHEEL; DISC
SPARE TIRE & DISC WHEEL RR<R46> IRA
8-98281-497-0
01
1
1408-
2
WHEEL; DISC
FRONT
1-42350-730-0
02
1
1110-1205
2
WHEEL; DISC
FRONT
8-98217-247-0
02
1
1206-1407
2
WHEEL; DISC
IRA
8-98281-497-0
02
1
1408-
2
WHEEL; DISC
REAR
1-42350-730-0
04
1
1110-1205
2
WHEEL; DISC
REAR
8-98217-247-0
04
1
1206-1407
2
WHEEL; DISC
IRA
8-98281-497-0
04
1
1408-
3
NUT; WHEEL,FRT AXLE
M22X1.5
1-42333-055-0
20
1
1110-
4
NUT; WHEEL,RR AXLE
M22X1.5
1-42333-055-0
20
1
1110-
8
VALVE; TIRE
SPARE TIRE & DISC WHEEL RR<R46> SPARE
1-42370-020-3
01
1
1110-1205
8
VALVE; TIRE
SPARE TIRE & DISC WHEEL RR<R46> SPARE
1-42370-048-0
01
1
1206-1407
8
VALVE; TIRE
SPARE TIRE & DISC WHEEL RR<R46> IRA
1-42370-019-3
01
1
1408-
8
VALVE; TIRE
FRONT
1-42370-020-3
02
1
1110-1205
8
VALVE; TIRE
FRONT
1-42370-048-0
02
1
1206-1407
8
VALVE; TIRE
IRA
1-42370-019-3
02
1
1408-
8
VALVE; TIRE
REAR
1-42370-020-3
04
1
1110-1205
8
VALVE; TIRE
REAR
1-42370-048-0
04
1
1206-1407
8
VALVE; TIRE
IRA
1-42370-019-3
04
1
1408-
16
HOLDER; TIRE VALVE,DISC WHEEL
L=170
8-98167-052-0
02
1
1110-
32
CAP; VALVE
SPARE TIRE & DISC WHEEL RR<R46> SPARE
1-42374-001-0
01
1
1110-
32
CAP; VALVE
FRONT
1-42374-001-0
02
1
1110-
32
CAP; VALVE
REAR
1-42374-001-0
04
1
1110-
33
COVER; WHEEL
1-43139-065-1
02
1
1110-
