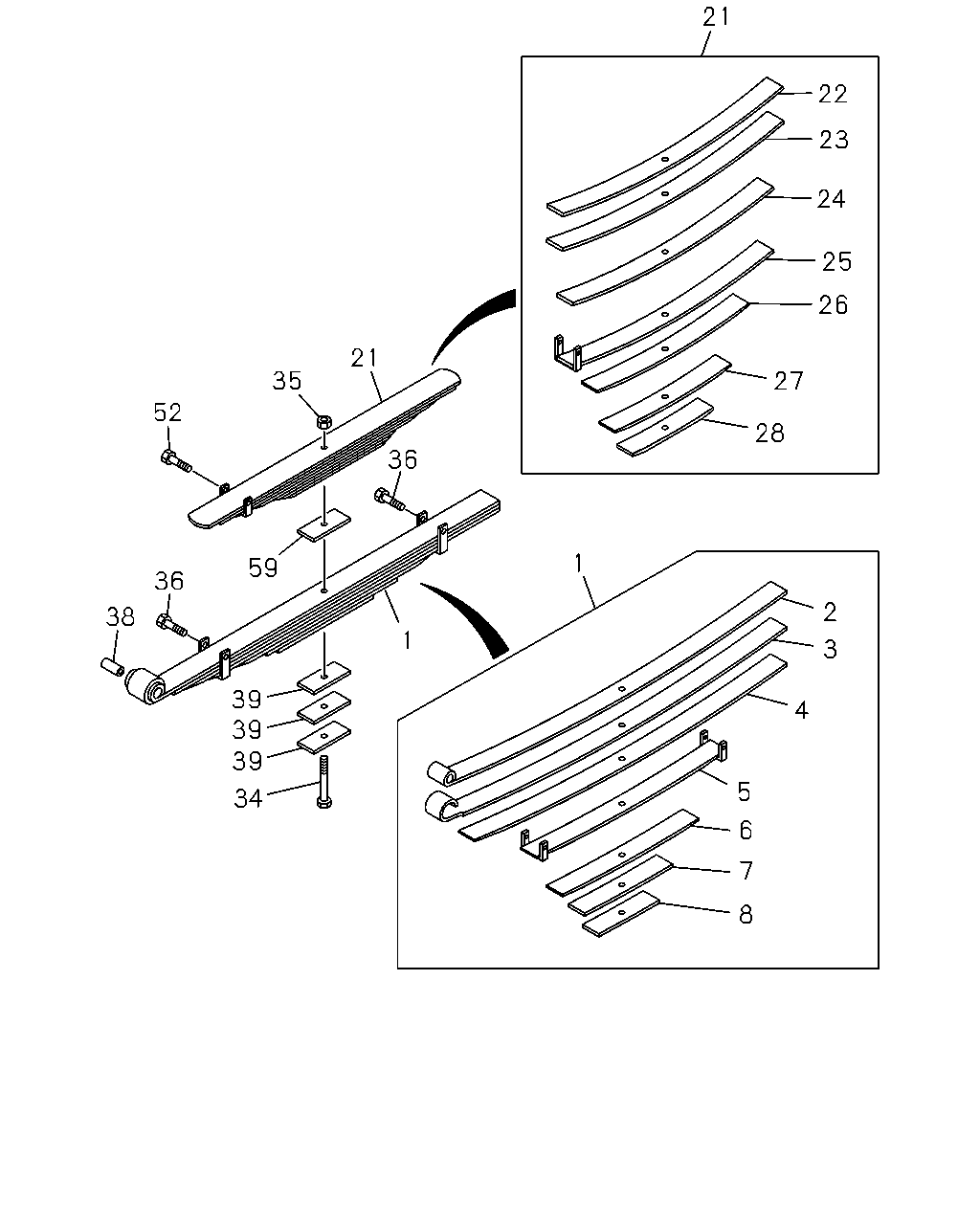

4-65 — REAR LEAF SPRING (#44780) — 24 parça

21 22 23 24 25 26 21 35 27 52 28 36 1 59 36 2 38 1 3 39 39 39 4 5 34 6 7 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING ASM; LEAF,RR MAIN ASM PART: A = 8-98017-566-1	8-98051-977-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: A = 8-98017-566-1	8-98051-978-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 8-98017-566-1	8-98051-979-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: A = 8-98017-566-1	8-98051-980-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: A = 8-98017-566-1	8-98051-981-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: A = 8-98017-566-1	8-98051-982-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN ASM PART: A = 8-98017-566-1	8-98051-983-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN ASM PART: A = 8-98017-566-1	8-98051-984-0	01	1	-
21	SPRING ASM; LEAF,RR SUB ASM PART: A = 8-98017-566-1	8-98051-985-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: A = 8-98017-566-1	8-98051-986-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: A = 8-98017-566-1	8-98051-987-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB ASM PART: A = 8-98017-566-1	8-98051-988-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB ASM PART: A = 8-98017-566-1	8-98051-989-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB ASM PART: A = 8-98017-566-1	8-98051-990-0	01	1	-
27	SPRING; LEAF,NO 6,RR SUB ASM PART: A = 8-98017-566-1	8-98051-991-0	01	1	-
28	SPRING; LEAF,NO 7,RR SUB ASM PART: A = 8-98017-566-1	8-98051-992-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=235 ASM PART: A = 8-98017-566-1	1-51356-140-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M16 ASM PART: A = 8-98017-566-1	1-09400-054-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR M10X117 ASM PART: A = 8-98017-566-1	1-09000-334-0	02	1	-
38	BUSHING; LEAF SPR,RR ASM PART: A = 8-98017-566-1	1-51351-010-0	01	1	-
38	BUSHING; LEAF SPR,RR BEST VALUE PARTS ASM PART: A = 8-98017-566-1	1-87610-164-0	01	1	-
39	SEAT; LEAF SPR,RR MAIN T=10 ASM PART: A = 8-98017-566-1	1-51377-118-0	03	1	-
52	BOLT; CLIP,LEAF SPR,RR SUB M10X117 ASM PART: A = 8-98017-566-1	1-09000-334-0	01	1	-
59	SEAT; RR SPRING,SUB T=10 ASM PART: A = 8-98017-566-1	1-51377-118-0	01	1	-
